Water Pump Impeller Kit – Fits Yamaha F225, F250, F300 4.2L Outboards (Replaces 6CE-W0078-01-00)

Water Pump Impeller Kit – Fits Yamaha F225, F250, F300 4.2L Outboards (Replaces 6CE-W0078-01-00)

This water pump impeller repair kit is designed for Yamaha F225F, F225B, F250D, F300B, and F300C 4.2L V6 4-stroke outboard engines from 2009 to current models. It provides all necessary components for a complete service of the lower unit's water pump assembly.

This kit is a direct replacement for Yamaha OEM part numbers 6CE-W0078-00-00, 6CE-W0078-01-00, and 6CE-W0078-02-00, along with Sierra aftermarket parts 18-3470 and 18-3471.

• Engineered for a direct fit to the original factory housing and components.

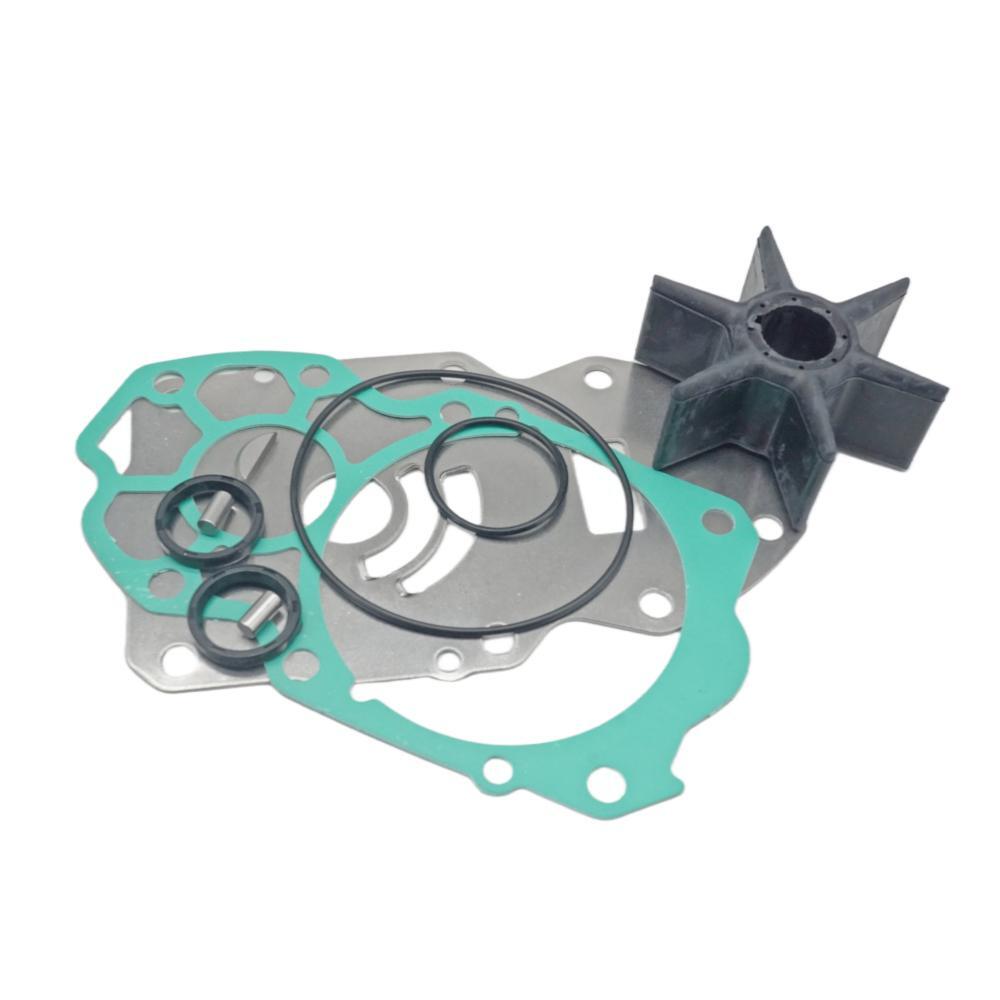

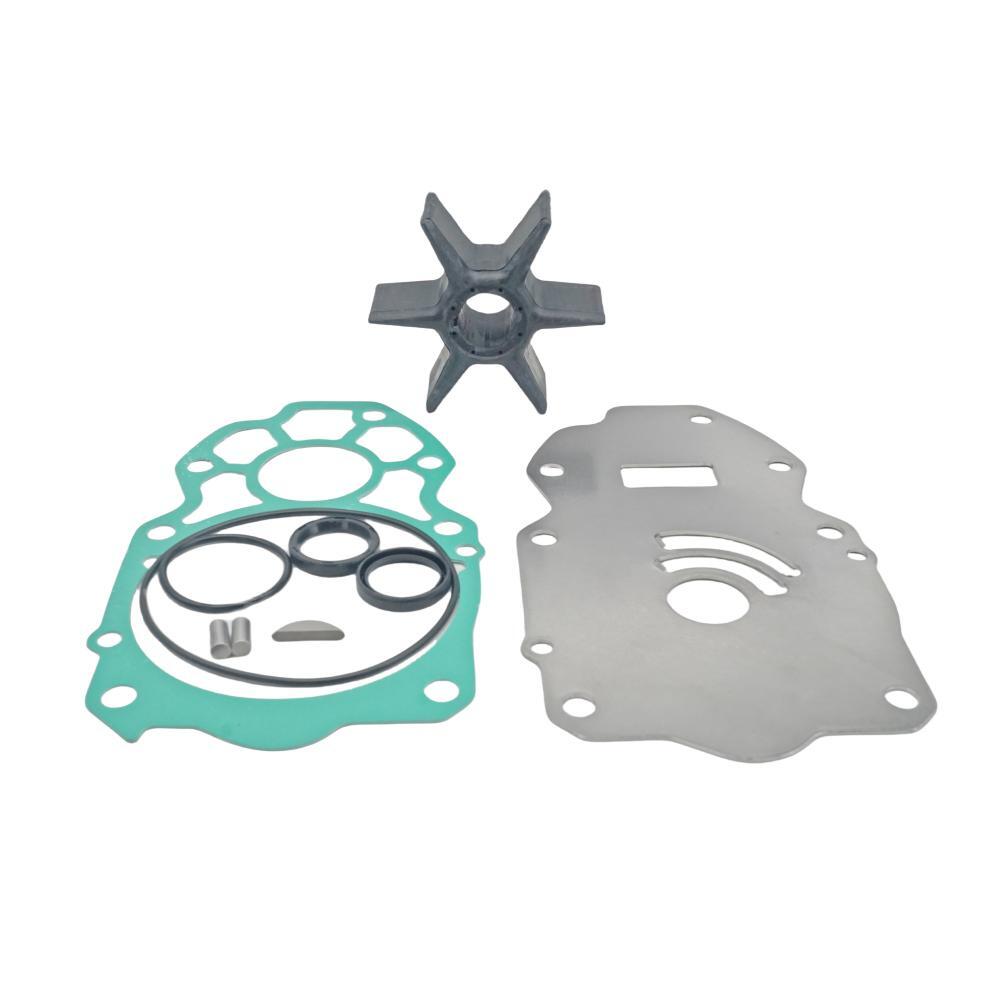

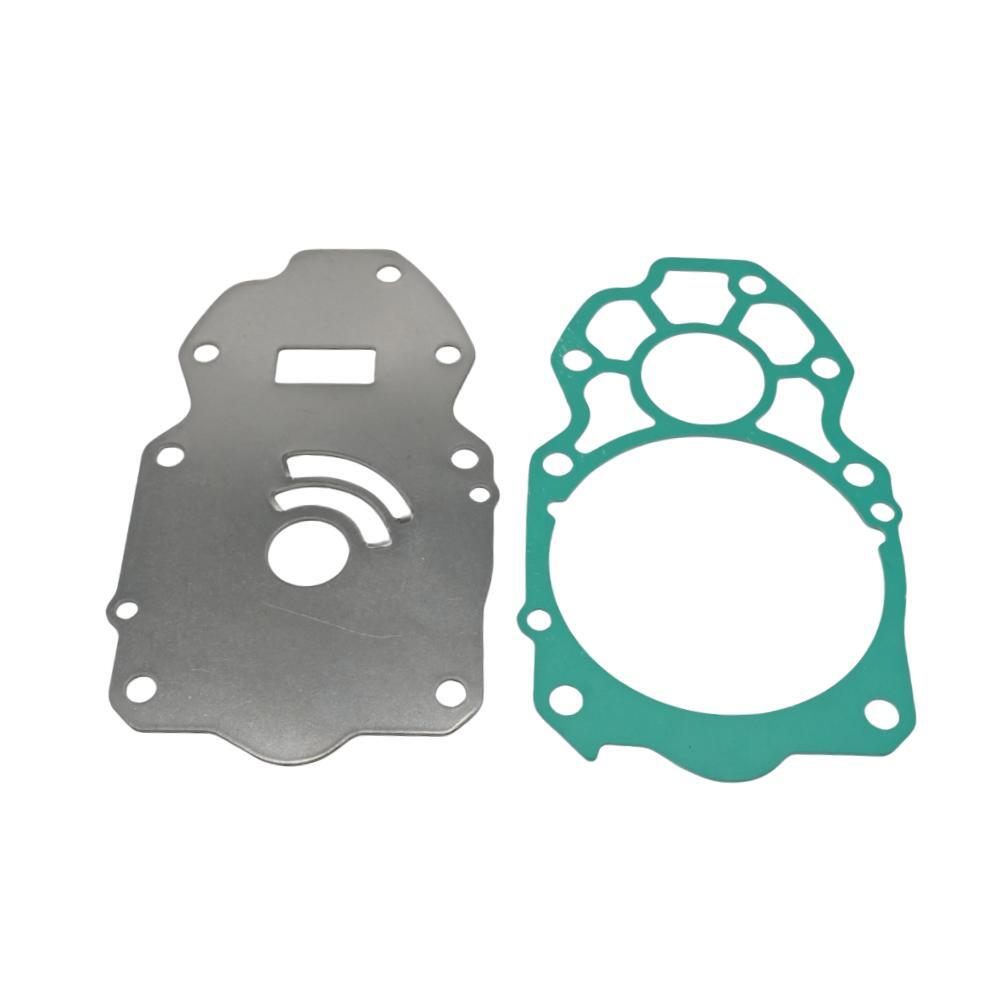

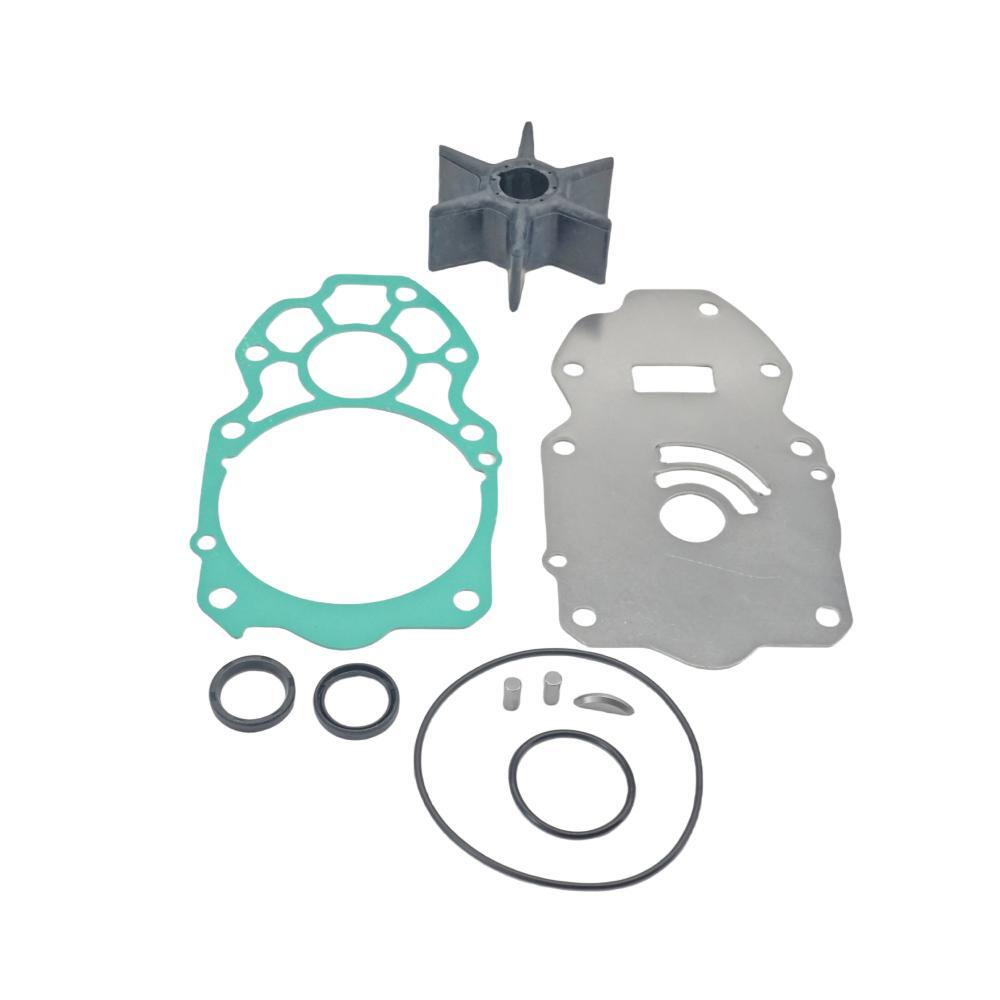

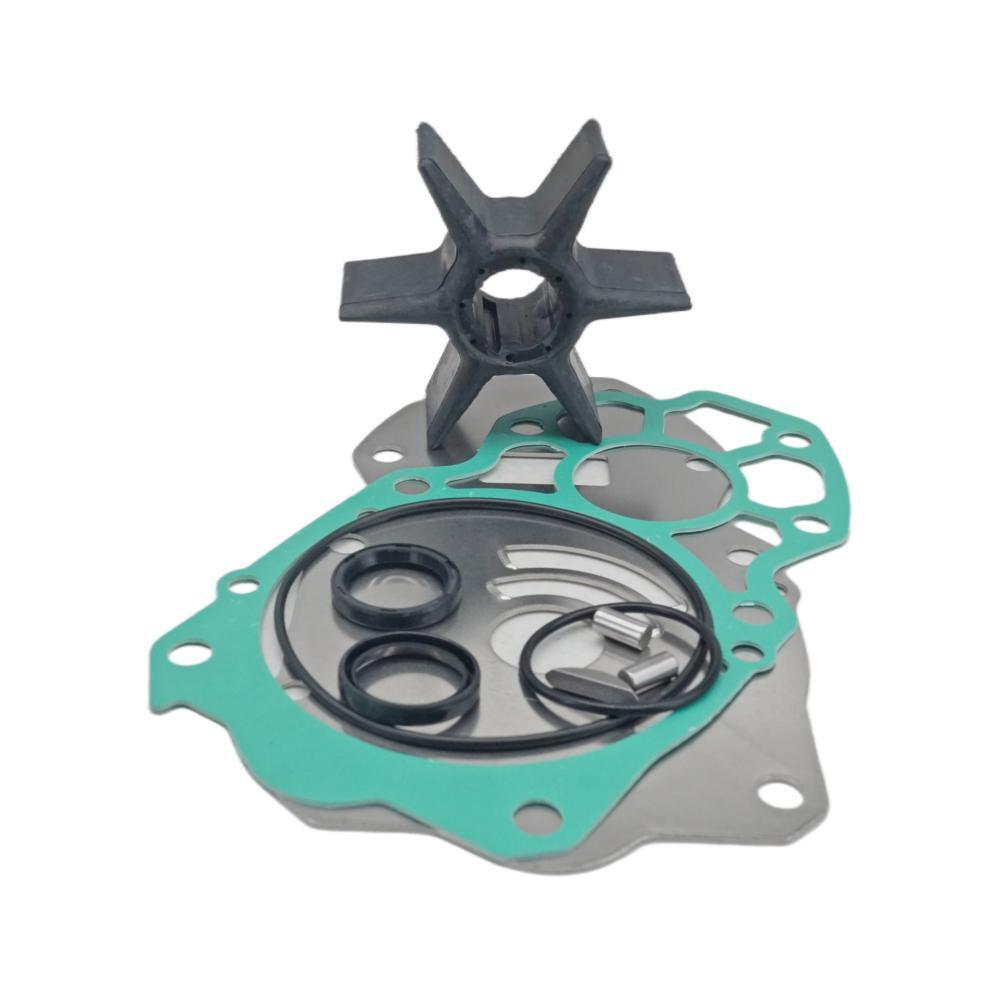

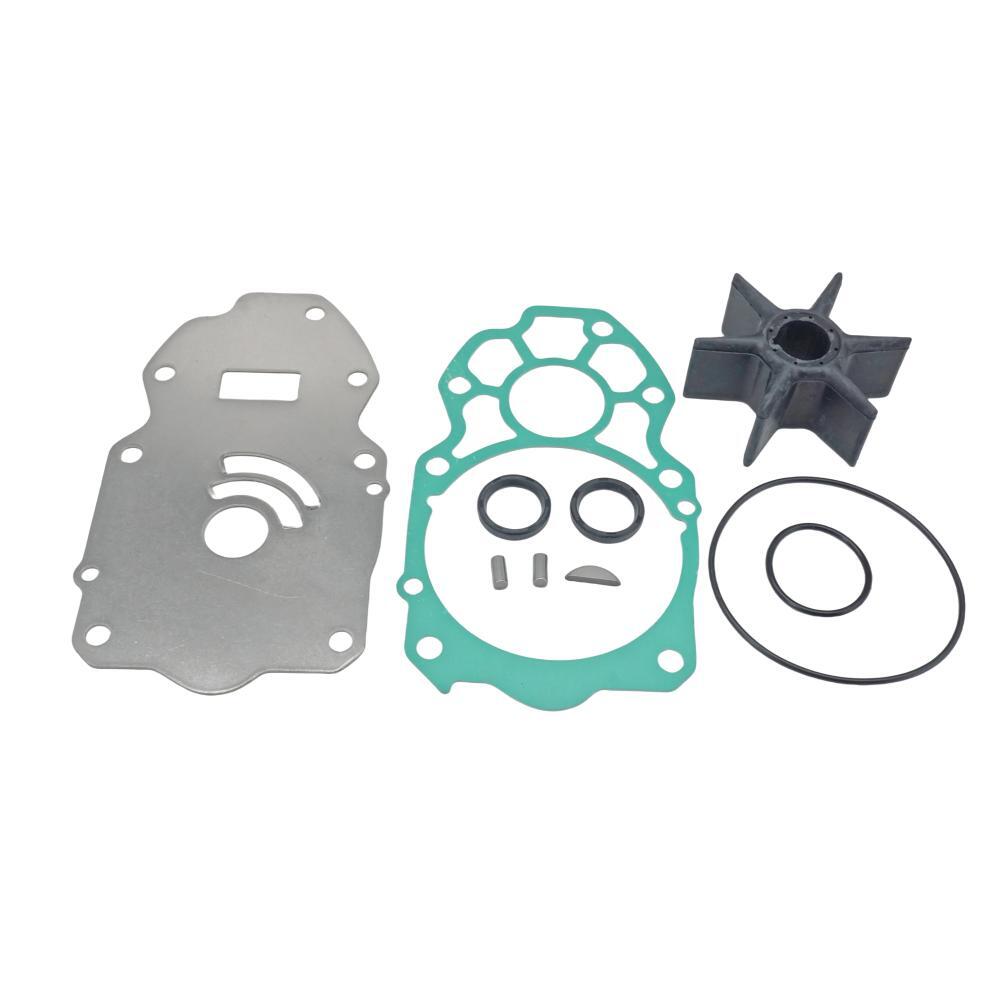

• Comprehensive kit includes the impeller, housing insert, seals, o-ring, key, and bolts.
• Restores cooling system performance to prevent engine overheating.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Package Contents

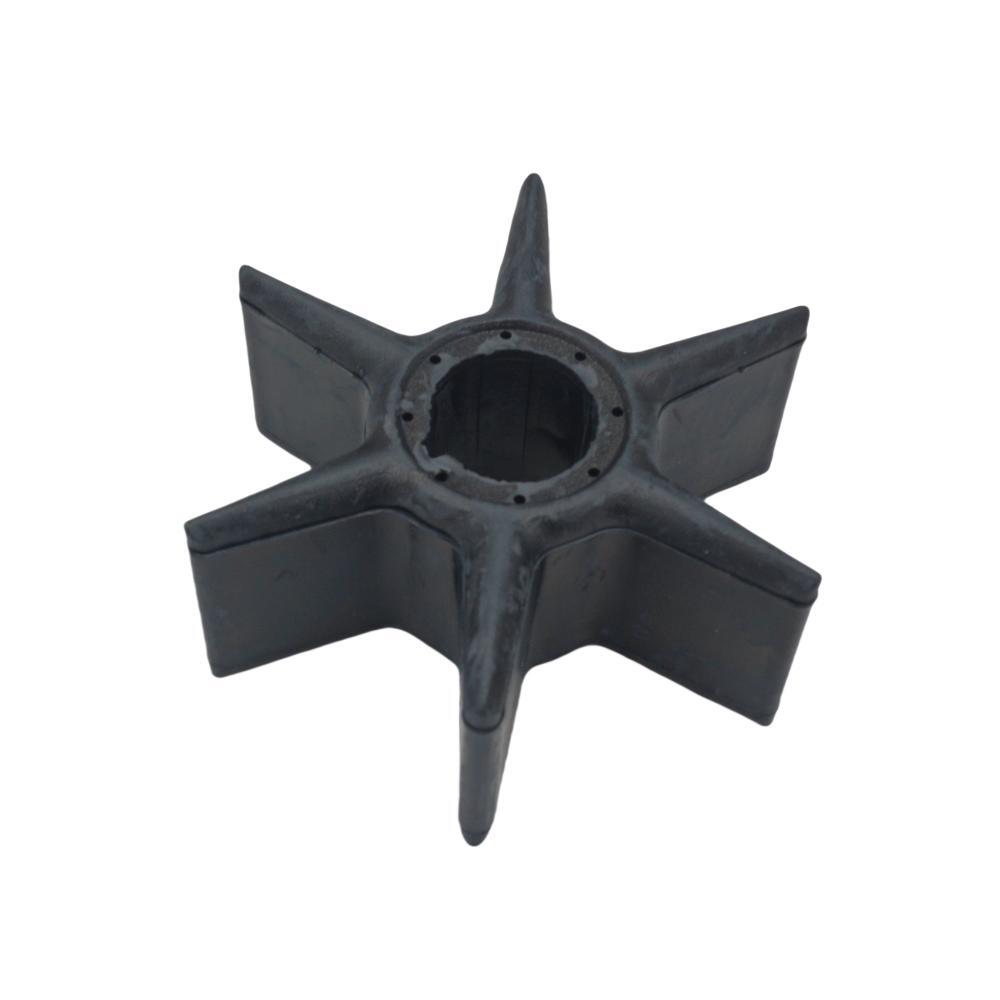

• 1 x Water Pump Impeller (6CE-44352-00-00)
• 1 x Key (90280-04M05-00)
• 1 x O-Ring (93210-94003-00)
• 4 x Bolt (97095-08045-00)
• 2 x Seal, Oil (93104-22M07-00)
• 1 x Cartridge Insert (6AW-44322-00-00)

Installation Guide

1. Disconnect the battery and shift the outboard into neutral.
2. Remove the bolts securing the lower unit (gearcase) to the upper casing.
3. Carefully lower the gearcase from the outboard's midsection.
4. Unbolt and remove the water pump housing cover to access the impeller.
5. Slide the old impeller off the driveshaft, making sure to remove the Woodruff key.
6. Clean the pump housing interior and inspect it for wear, cracks, or corrosion.
7. Install the new cartridge insert, key, seals, and O-ring as provided in the kit.
8. Slide the new impeller onto the driveshaft, turning the shaft clockwise to bed the vanes correctly.
9. Reinstall the water pump housing and torque its bolts to manufacturer specifications.
10. Guide the lower unit back into place, ensuring the driveshaft, shift shaft, and water tube align correctly.
11. Secure the lower unit with its bolts and reconnect the battery.
12. Test run the engine using a flush attachment to confirm proper water circulation from the tell-tale outlet.

Troubleshooting & FAQ

How do I confirm this kit fits my specific Yamaha engine?

Check your engine's model code (e.g., F300XCA) and manufacturing year against our "Compatible Engine Models" table. For further verification, you can use our Yamaha Serial Number Guide to look up your engine details.

What are the signs my water pump impeller is failing?

Common signs of a worn or damaged impeller include a weak or no water stream from the engine's "telltale" outlet, frequent engine overheating alarms, or a melted plastic water pump housing upon inspection.

How often should I replace the water pump impeller?

As a critical preventative maintenance item, the impeller should be inspected annually and replaced every 1-2 years or 100-200 hours of operation, whichever comes first. This interval may be shorter in saltwater or silty/sandy conditions.

OEM vs. Aftermarket?

This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?

We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?

This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
