Water Pump Impeller Kit – Fits Honda BF9.9A & BF15A Outboards
This water pump impeller service kit is designed for Honda 9.9 HP and 15 HP 4-stroke outboard motors manufactured between 1997 and 2002. It provides the essential components needed to restore your engine’s cooling system performance and prevent overheating.
It serves as a direct replacement for Honda part numbers 06192-ZV4-000 and 06192-ZV4-A00, as well as several aftermarket equivalents, ensuring a precise fit and reliable function.
- Engine compatibility: Honda 9.9–15 HP, 4-Stroke (1997–2002).
- Direct replacement installation for straightforward service.
- Includes a new impeller, gaskets, and keyway for a complete repair.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
Brand |
Part Number |
Honda |
06192-ZV4-000 |
Honda |
06192-ZV4-A00 |
Sierra |
18-3280 |
Sierra |
18-4536 |
Mallory |
9-48701 |
GHmarine |
HHJB-ZV4 |
Compatible Engine Models
Confirm your engine model/year in the table below.
Brand |
Model |
Rated HP |
Stroke |
Years |
OEM Part No. |
Notes |
Honda |
BF9.9AM (15" short shaft) |
9.9 |
4-Stroke |
1997 and above |
06192-ZV4-000 |
Frame serial number BABS-1200681 and above |
Honda |
BF9.9AM (20" long shaft) |
9.9 |
4-Stroke |
1997 and above |
06192-ZV4-000 |
Frame serial number BABL-1200828 and above |
Honda |
BF9.9AM (25" extra long shaft) |
9.9 |
4-Stroke |
1997 and above |
06192-ZV4-000 |
Frame serial number BABU-1000001 and above |
Honda |
BF9.9AW, BF9.9AX, BF9.9AY |
9.9 |
4-Stroke |
1998-2000 |
06192-ZV4-000 |
|
Honda |
BF15AM (15" short shaft) |
15 |
4-Stroke |
1997 and above |
06192-ZV4-000 |
Frame serial number BAAS-1201183 and above |
Honda |
BF15AM (20" long shaft) |
15 |
4-Stroke |
1997 and above |
06192-ZV4-000 |
Frame serial number BAAL-1201053 and above |
Honda |
BF15AM (25" extra long shaft) |
15 |
4-Stroke |
1997 and above |
06192-ZV4-000 |
Frame serial number BAAU-1000001 and above |
Honda |
BF15AW, BF15AX, BF15AY, BF15A1, BF15A2 |
15 |
4-Stroke |
1998-2002 |
06192-ZV4-000 |
|
Technical Specifications
Specification |
Value |
Product Type |
Water Pump Impeller Service Kit |
Installation |
Direct replacement |
Warranty |
1 Year (JLM Marine/GHmarine) |

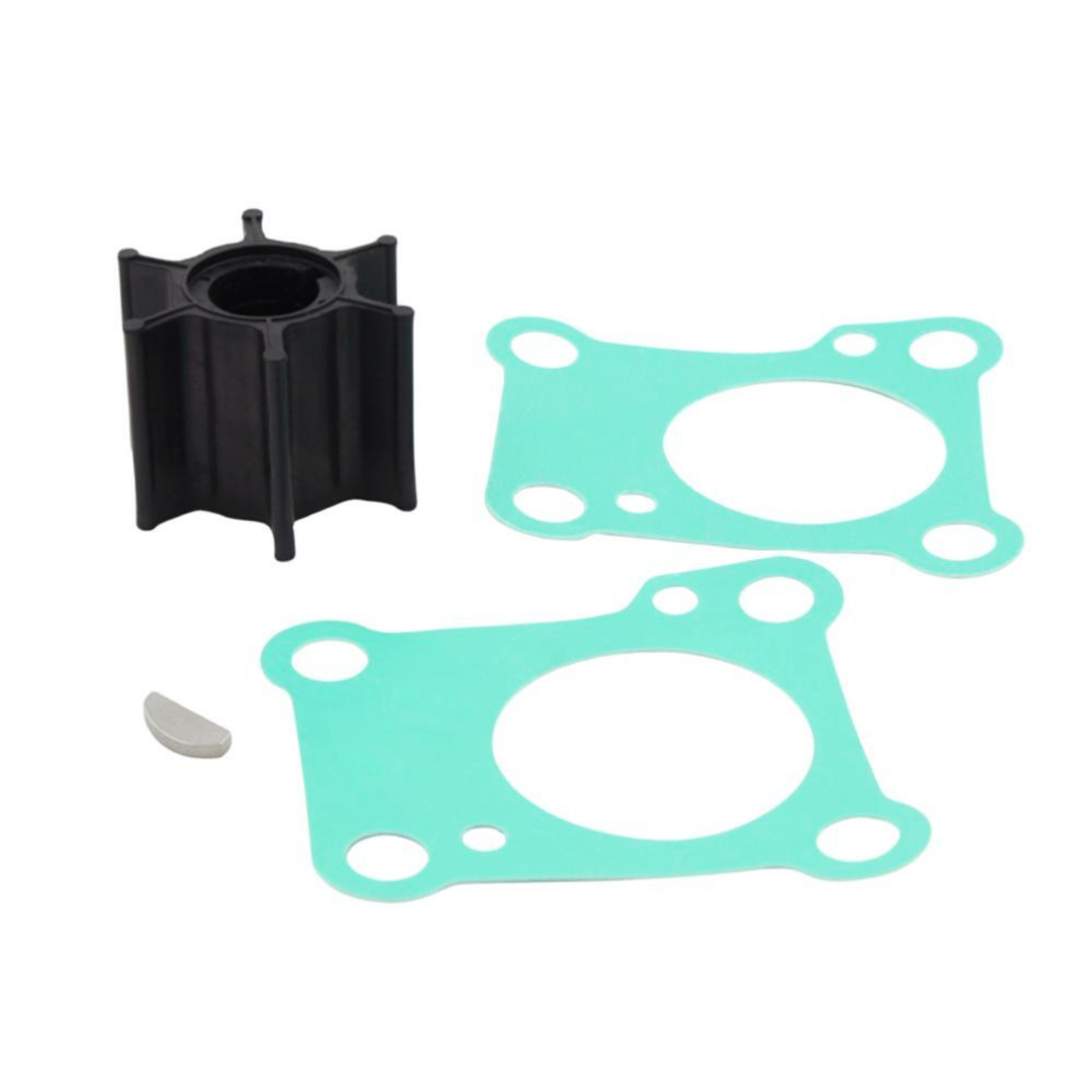

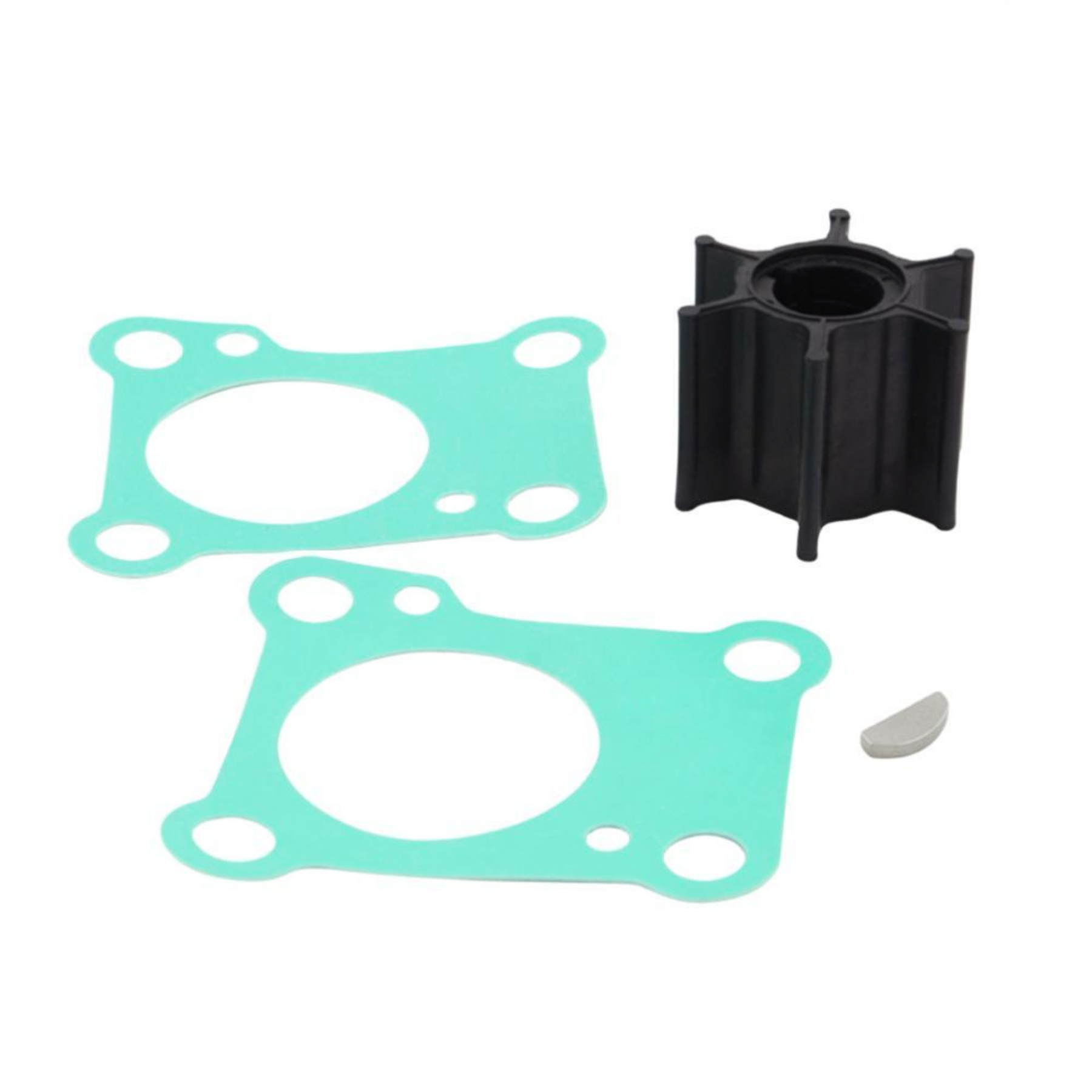

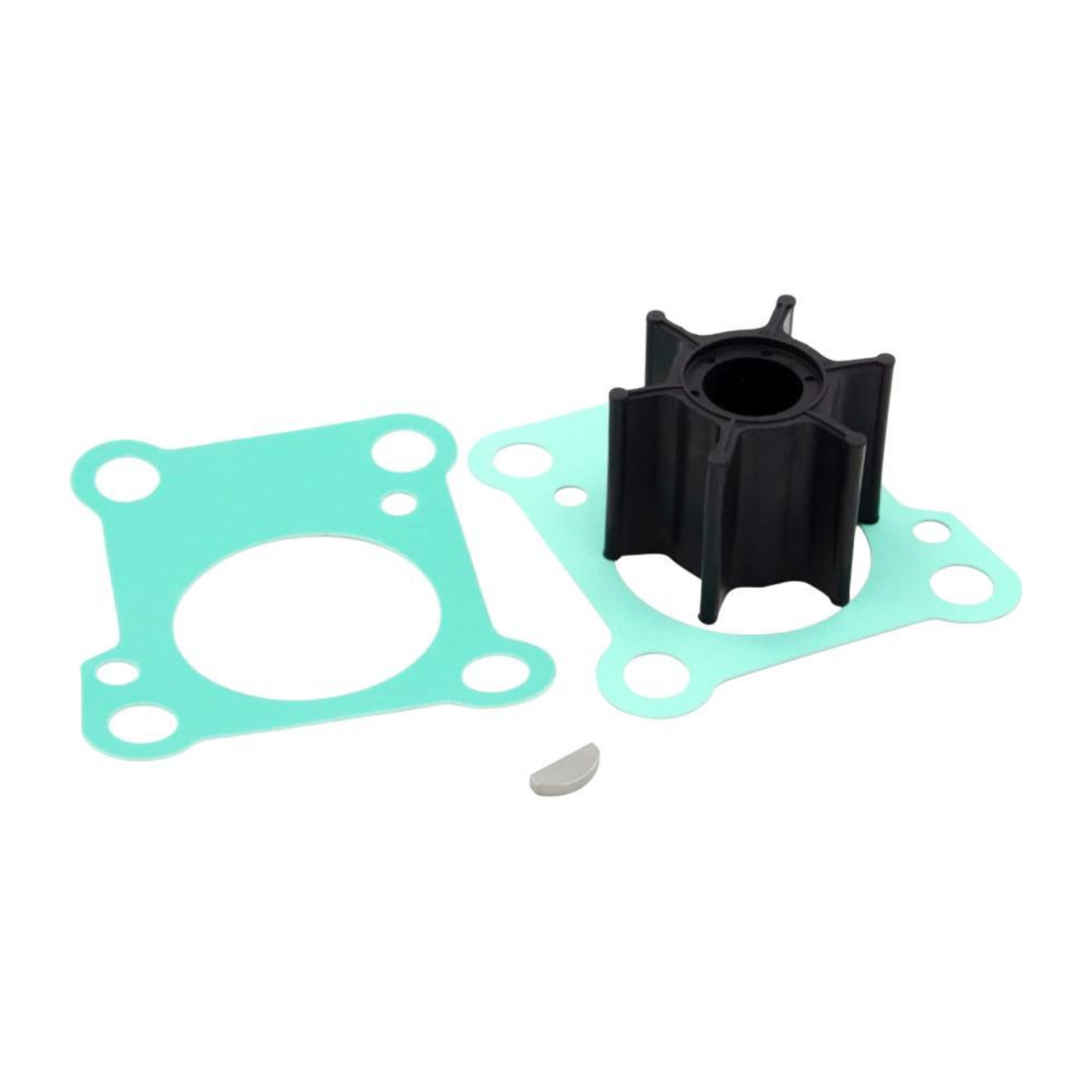

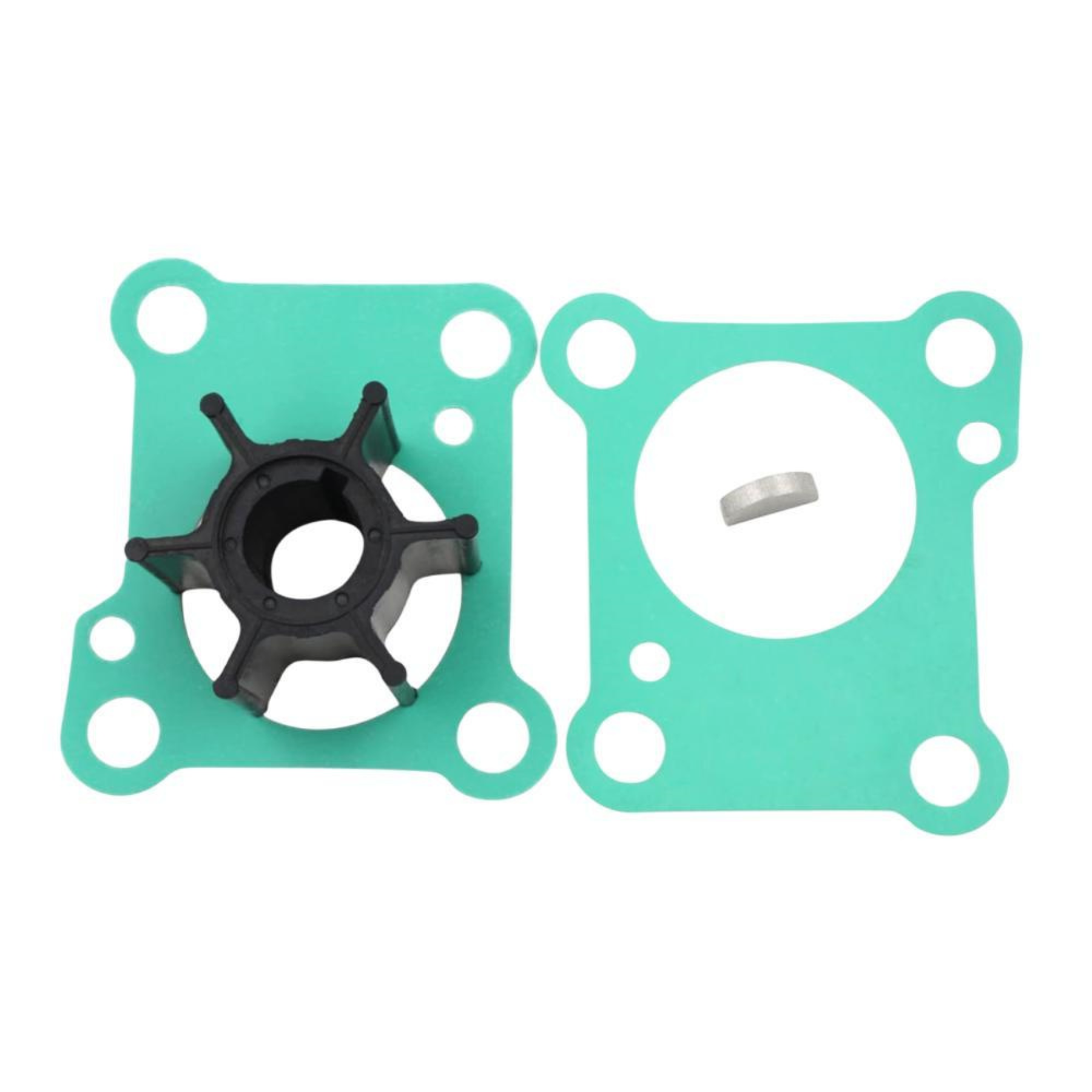

Package Contents

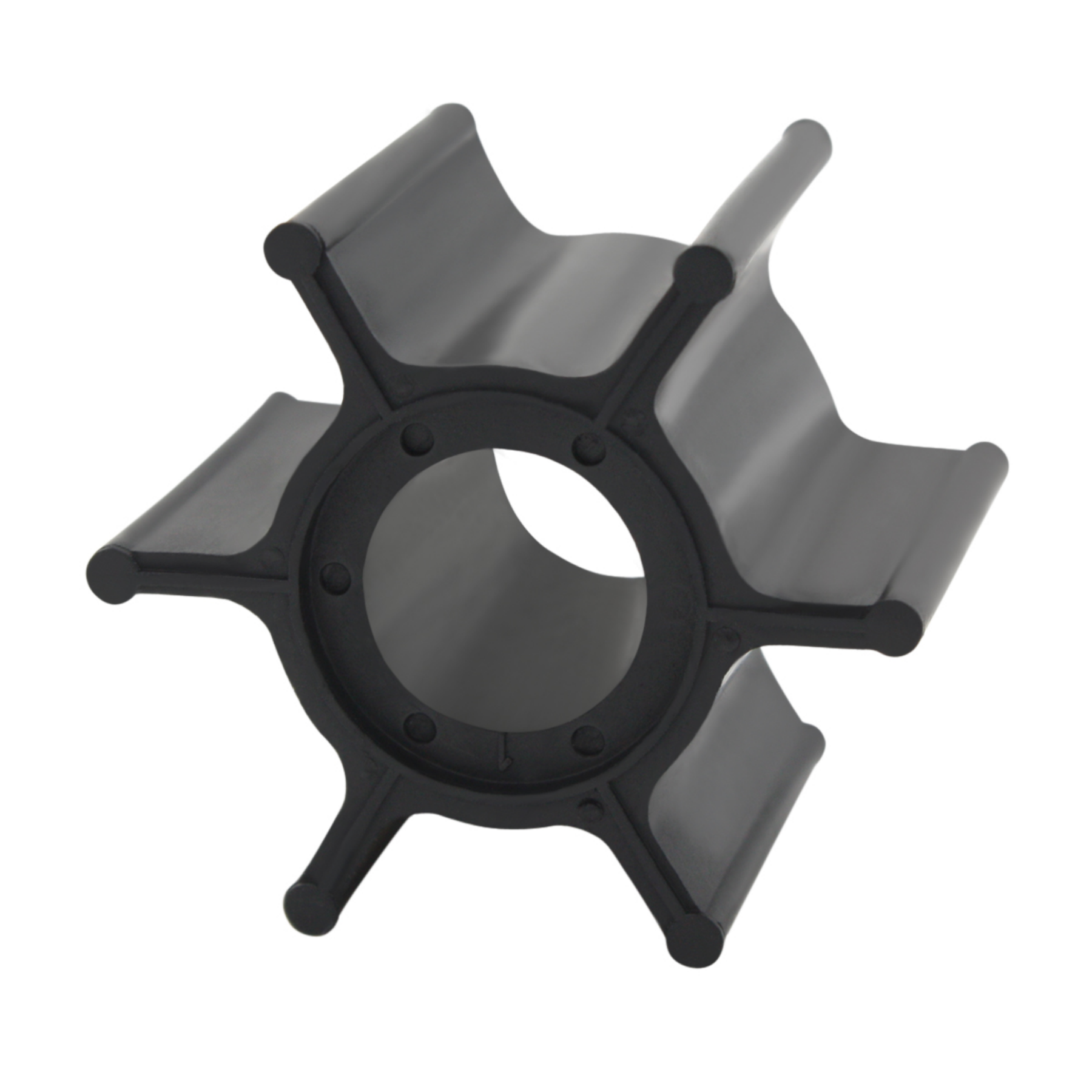

- 1 x Keyway Impeller (19210-ZV4-651)

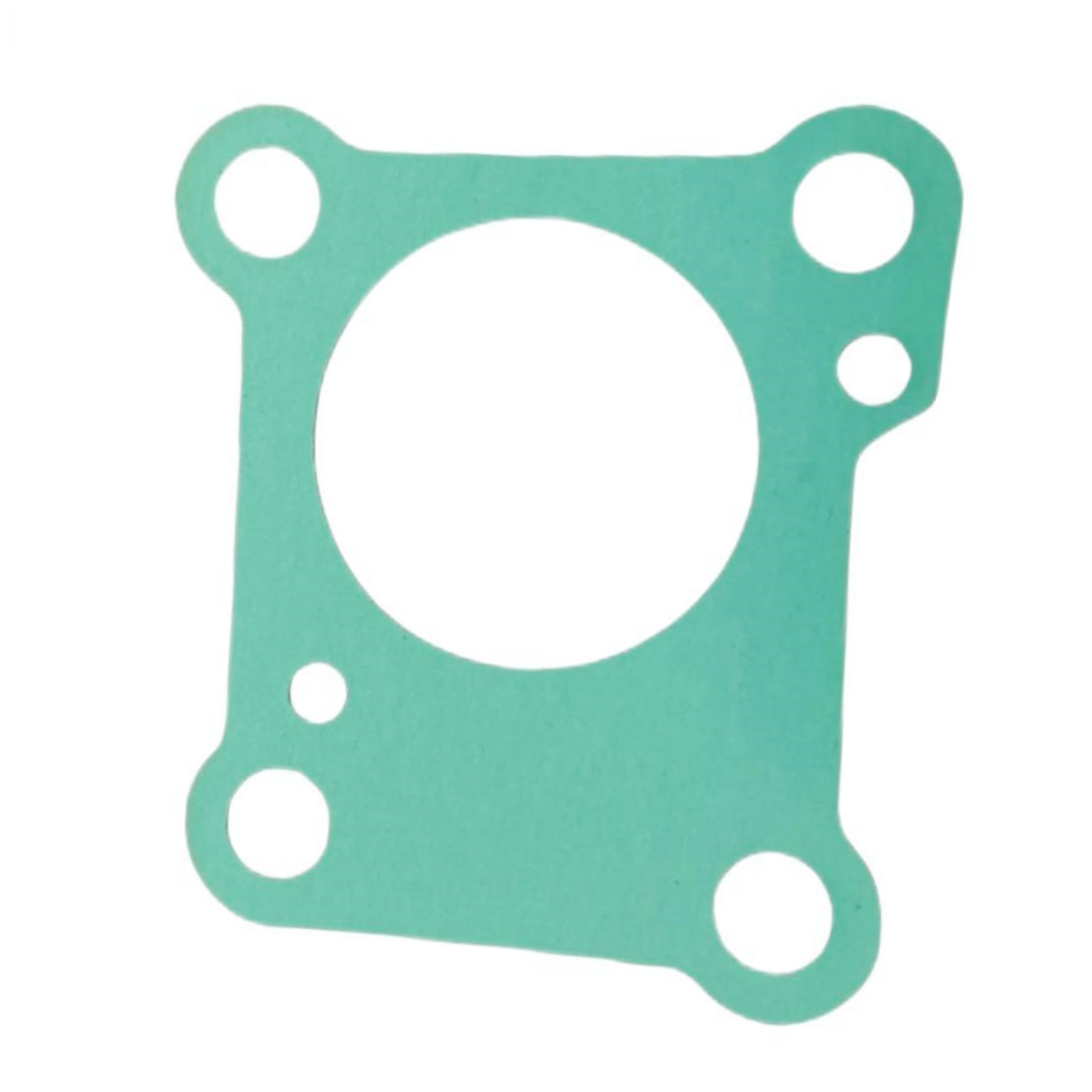

- 2 x Impeller Gasket (19232-ZV4-610/19232-ZV4-010)
- 1 x Impeller Keyway (90752-ZV4-650)
Explosion Diagram
Installation Guide
- Disconnect the negative battery cable and remove the engine cowling.
- Shift the outboard into neutral and remove the bolts securing the lower unit (gearcase).
- Carefully lower the gearcase to separate it from the driveshaft housing, disconnecting the speedometer tube if present.
- Remove the bolts on the water pump housing cover to access the impeller.
- Take note of the old impeller's vane direction before removing it. Remove the old impeller, keyway, and gaskets.
- Thoroughly clean all mating surfaces, removing any old gasket residue.
- Install the new keyway and slide the new impeller onto the driveshaft.
- Apply a light coat of marine grease to the inside of the housing and install the new gaskets.
- Reinstall the water pump housing and tighten the bolts to the manufacturer's specified torque.
- Reattach the lower unit to the engine, ensuring the driveshaft, water tube, and shift rod align correctly.
- Once secured, reconnect the battery and test the engine with a proper water supply to verify water flow from the tell-tale port.
Troubleshooting & FAQ
How do I confirm this kit fits my specific Honda outboard?
This kit is designed for Honda BF9.9A and BF15A models (9.9/15 HP, 4-Stroke) from 1997-2002. To ensure a perfect match, please consult the "Compatible Engine Models" table and verify your engine's frame serial number. You can also cross-reference your current part number with those listed in our cross-reference table.
What are the signs of a failing water pump impeller?
Common indicators of a worn-out impeller include a weak or non-existent water stream from the tell-tale (peephole) outlet, frequent engine overheating alarms, or steam from the exhaust. Reduced cooling performance can cause significant engine damage if ignored.
How often should I replace the water pump impeller?
For preventative maintenance, it is recommended to inspect the impeller annually and replace it every one to two years. The replacement interval can vary based on operating hours and the type of water (salt, fresh, or silty) your engine runs in.
OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
- Professional installation is recommended to ensure safety and optimal performance.
