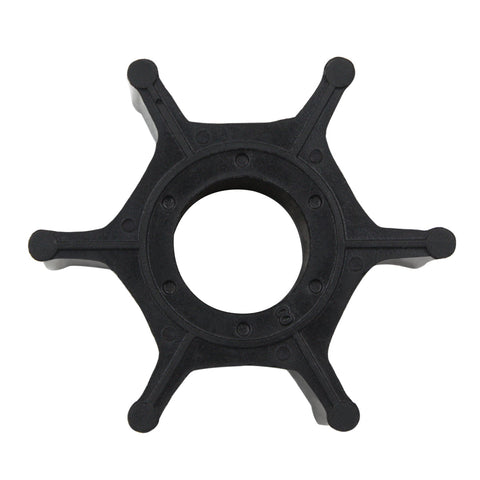

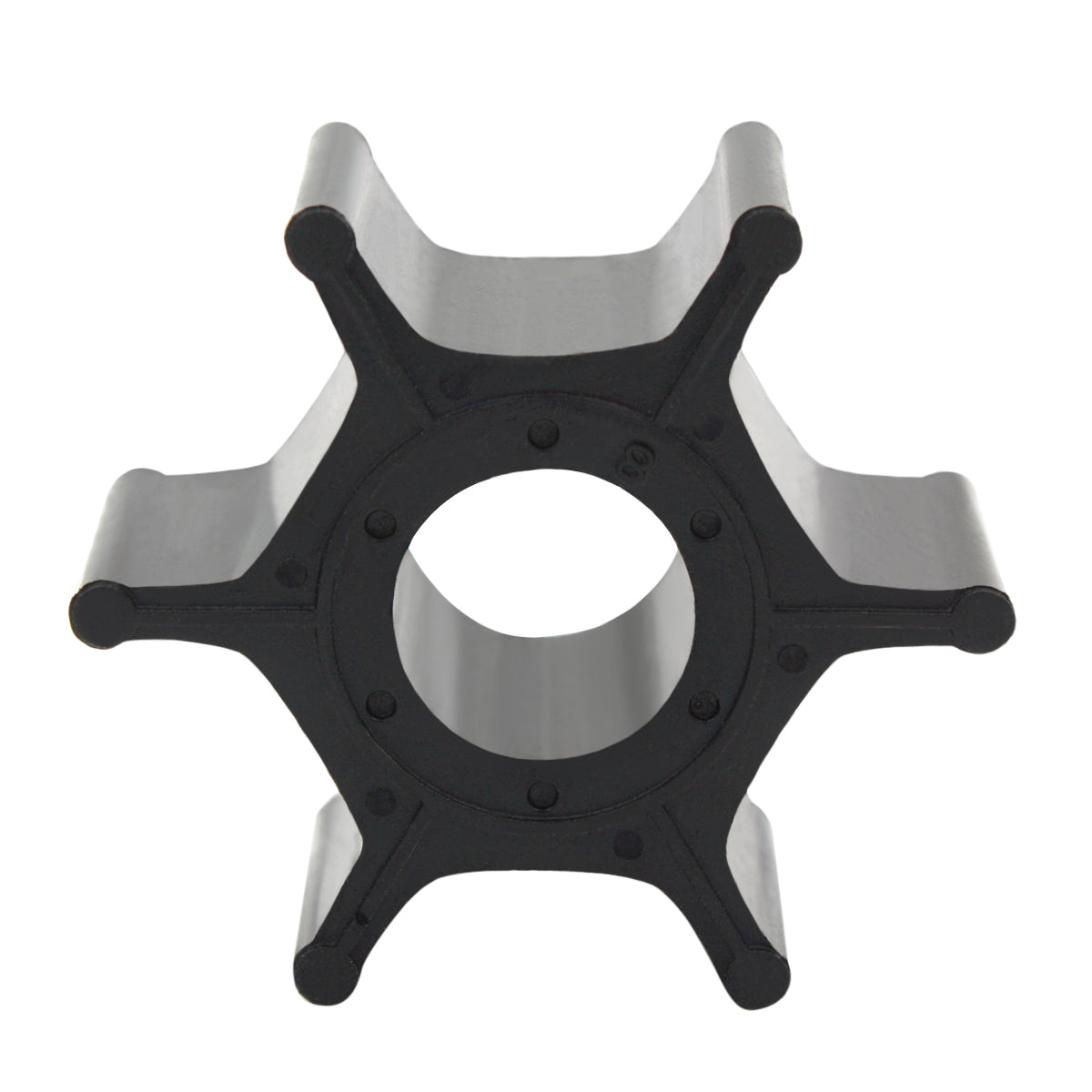

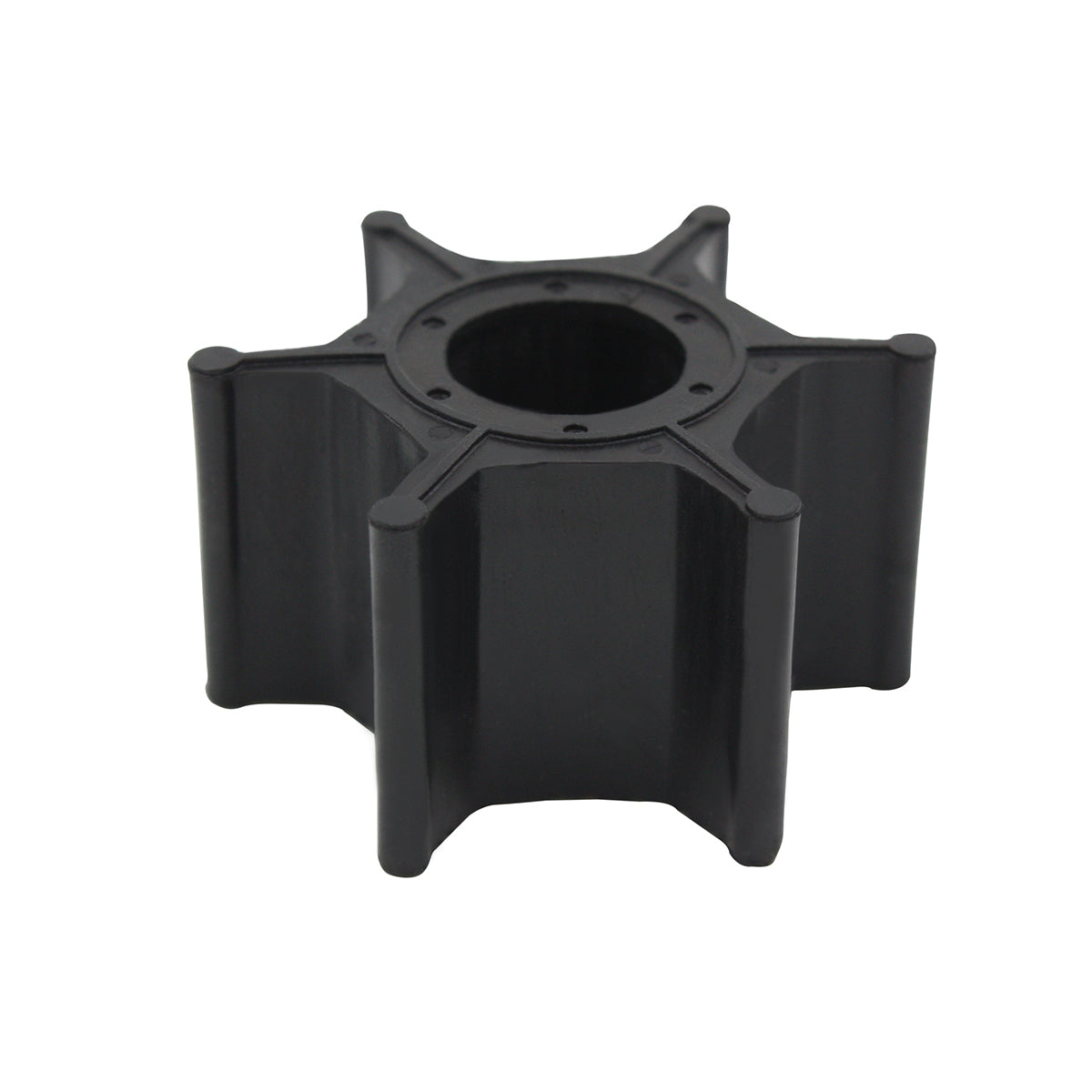

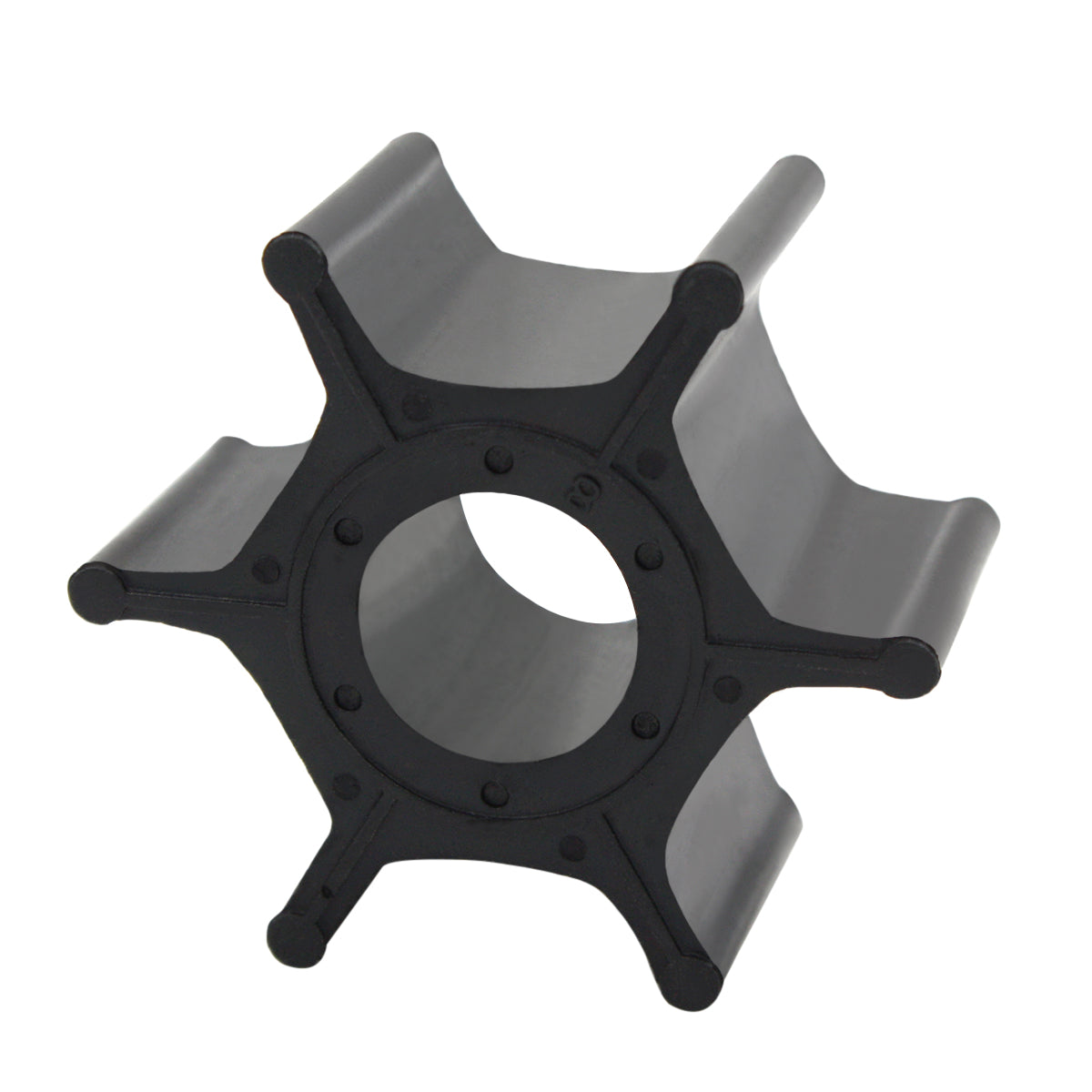

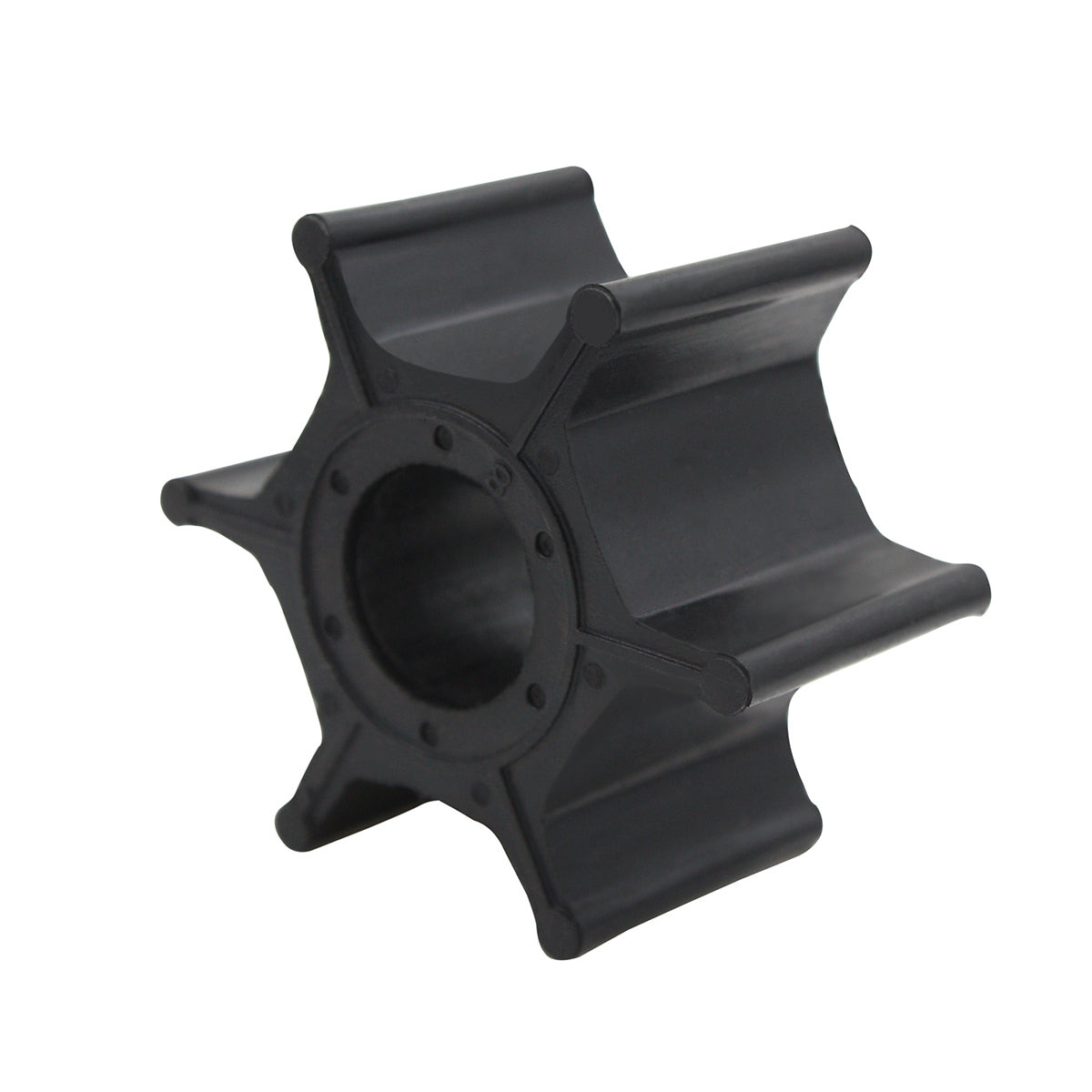

Water Pump Impeller – Fits Suzuki DT9.9/DT15/DF8/DF9.9/DF15 & Johnson/Evinrude 9.9/15 HP (Replaces 17461-93903)

Water Pump Impeller – Fits Suzuki DT9.9/DT15/DF8/DF9.9/DF15 & Johnson/Evinrude 9.9/15 HP (Replaces 17461-93903)

This water pump impeller is designed for a wide range of Suzuki and Johnson/Evinrude outboard motors. It serves as a direct replacement part, ensuring proper fit and function for maintaining your engine's cooling system. This component is compatible with Suzuki 2-Stroke DT9.9/DT15 HP and 4-Stroke DF8/DF9.9/DF15 models, as well as Johnson/Evinrude 4-Stroke 9.9/15 HP engines.

It directly replaces Suzuki part numbers 17461-93900, 17461-93901, 17461-93902, 17461-93903, 17461-939L0, and 17461-939M0. It is also a cross-reference for Johnson/Evinrude 5033112, Sierra 18-3092, and others, providing broad compatibility.

• Installation Method: Direct replacement using the existing key-type shaft.
• Included Components: The package contains one water pump impeller.
• Material Construction: Made from durable neoprene to withstand the marine environment.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson Serial Number Guide.

Suzuki Models

Johnson/Evinrude Models

Technical Specifications

Package Contents

1 x Water Pump Impeller (17461-93903)

Explosion Diagram

Installation Guide

1. Safety First: Before starting, disconnect the engine's battery cables to prevent accidental starting.
2. Access the Lower Unit: Place the outboard motor in a secure, upright position. Remove the bolts that attach the lower unit (gearcase) to the upper leg of the motor.
3. Remove the Water Pump Housing: With the lower unit separated, locate the water pump assembly. Unscrew the bolts securing the water pump housing cover and lift the cover off.
4. Inspect and Remove Old Impeller: Note the orientation of the blades on the old impeller before removing it. Pull the old impeller off the driveshaft. Remove the old key from the driveshaft.
5. Clean and Inspect: Thoroughly clean the inside of the pump housing and the base plate. Inspect the housing and cover for any cracks, melting, or scoring. Replace if damaged.
6. Install New Impeller: Insert the new key into the keyway on the driveshaft. Slide the new impeller onto the shaft, aligning its keyway with the key.
7. Seat the Blades: Apply a light coat of marine grease or a soap-and-water solution to the inside of the pump housing. Place the housing over the impeller and press down while turning the driveshaft clockwise to correctly bend the blades into position.
8. Reassemble and Tighten: Secure the water pump housing with its bolts, tightening them to the manufacturer's specified torque.
9. Reinstall Lower Unit: Guide the lower unit back into place, ensuring the driveshaft, shift shaft, and water tube are properly aligned. Re-install and tighten the mounting bolts.
10. Test Operation: Reconnect the battery. Start the engine using a water supply (flushing muffs or in a test tank) and check for a steady stream of water from the cooling system's tell-tale port.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki engine?
A: Check your engine model and year against the compatibility table. This impeller fits Suzuki 2-Stroke DT9.9 (1977–1997), DT15 (1983–1997), and 4-Stroke DF8/DF9.9/DF15 (2004+). Also, verify your part number matches one of the cross-references, such as 17461-93903.

Q: What are the signs of a failing water pump impeller?
A: Common signs include the engine overheating, a weak or non-existent water stream from the tell-tale port, or a cracked, brittle, or stiff appearance on the impeller blades during inspection.

Q: How often should this impeller be replaced?
A: For optimal performance and to prevent overheating, it's recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of use, depending on operating conditions (e.g., saltwater vs. freshwater).

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
