17461-92D02 Water Pump Impeller with Key for Suzuki DT8C DT9.9C | JLM Marine

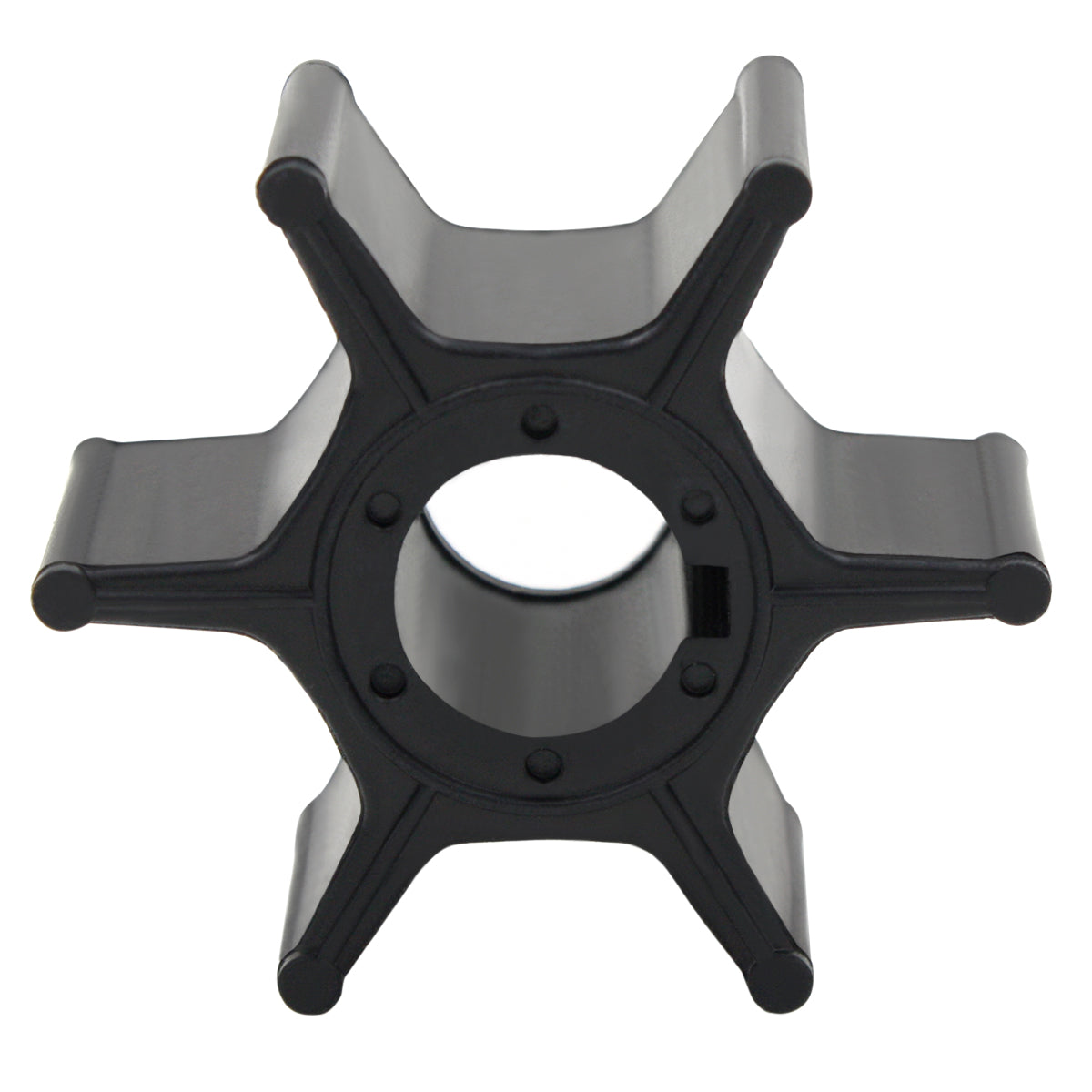

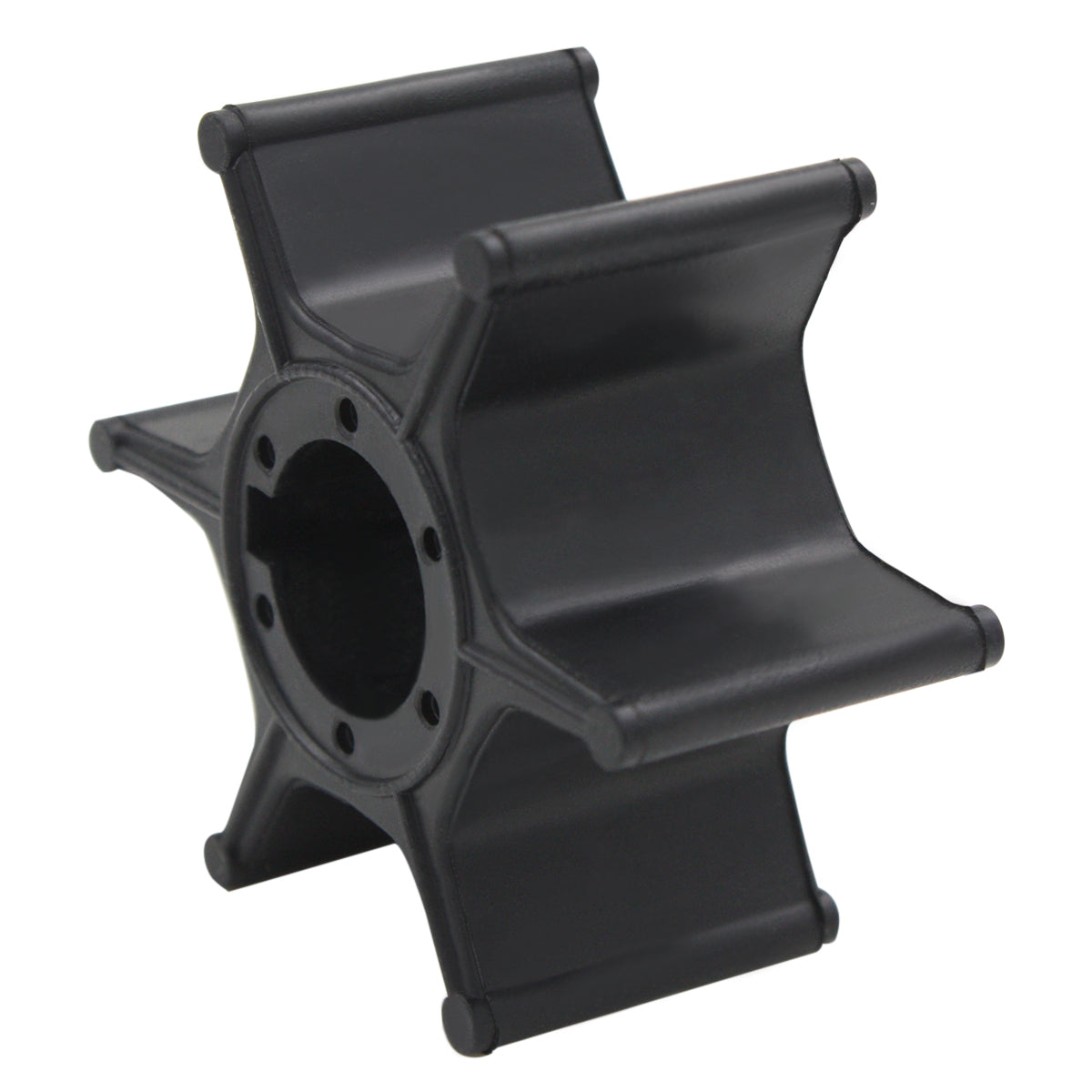

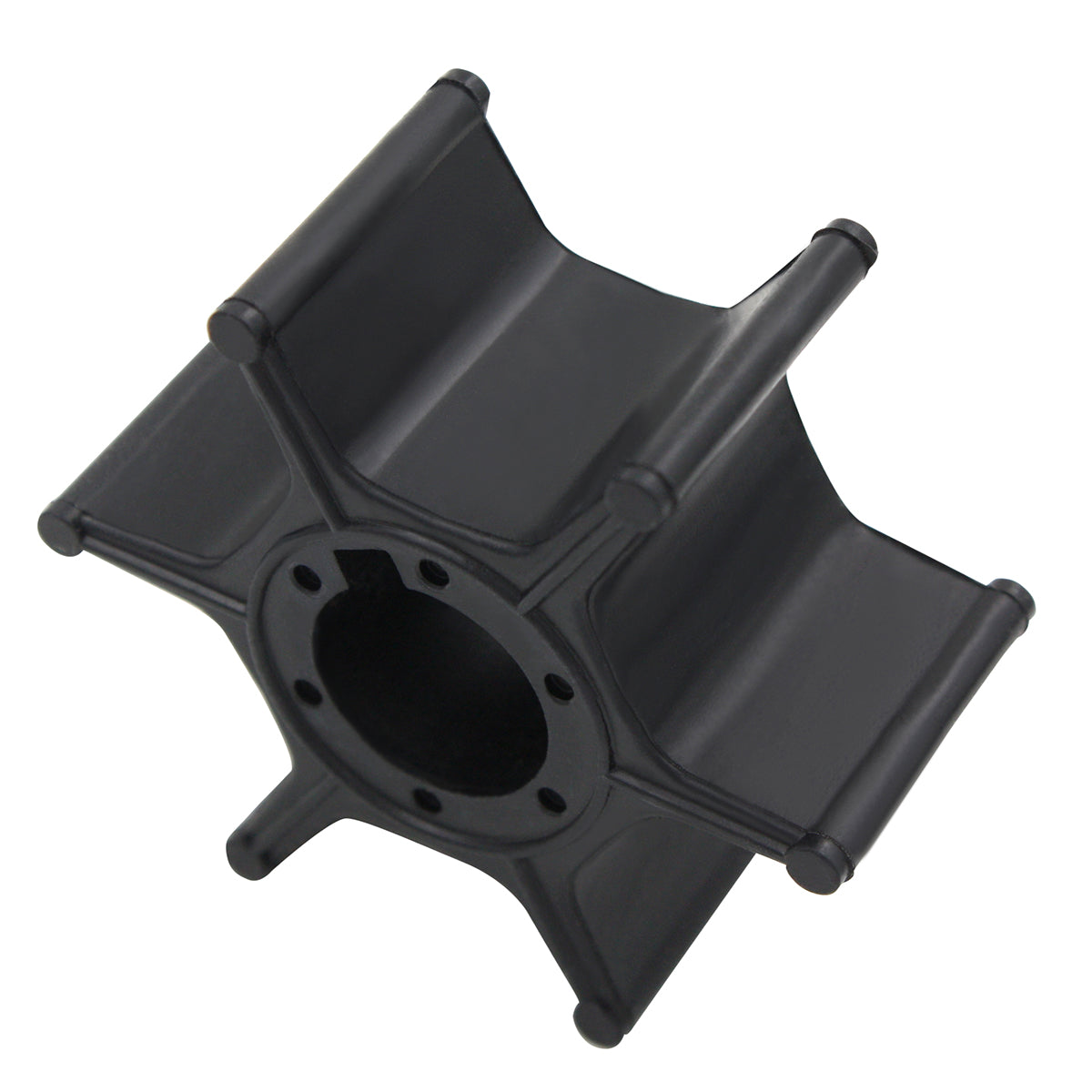

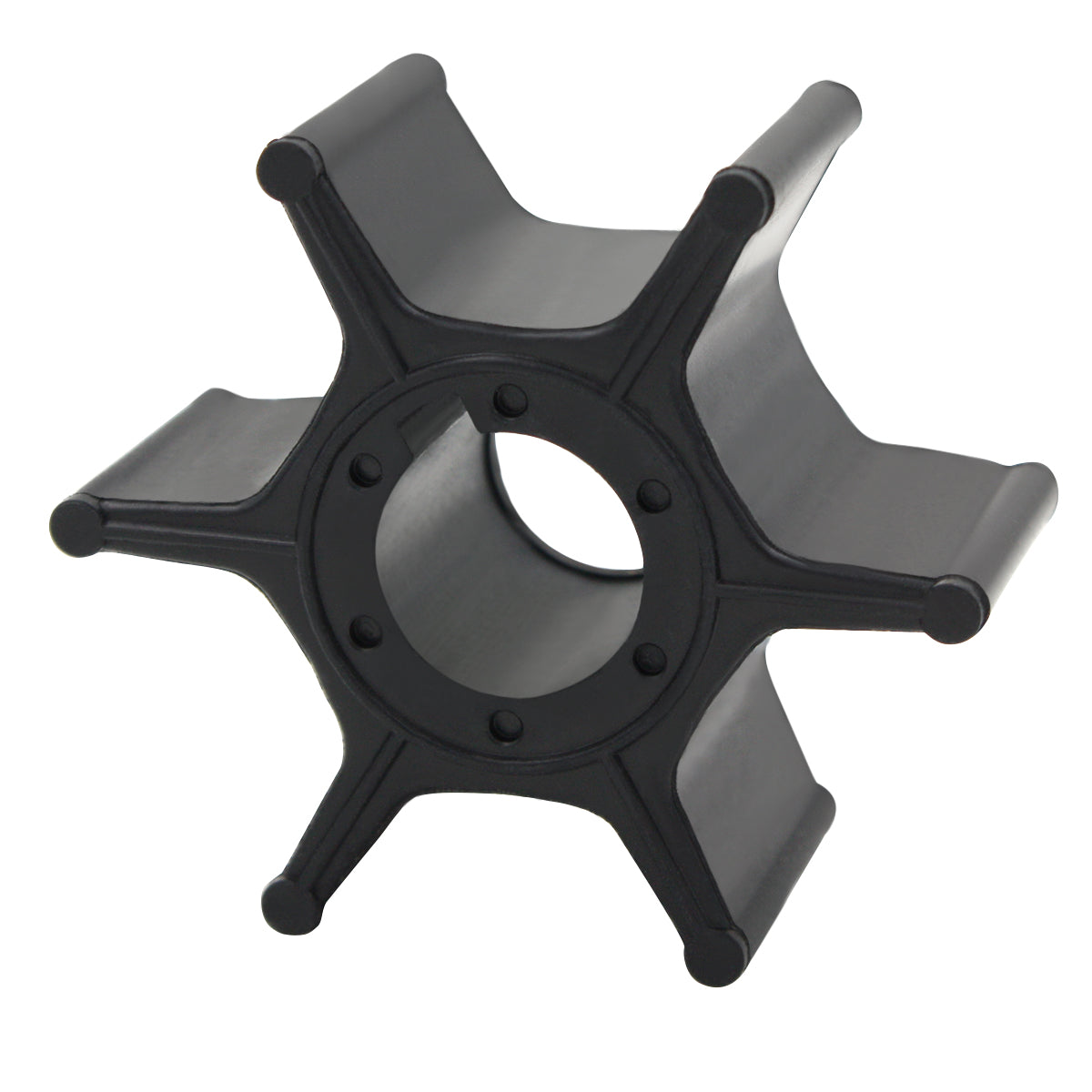

Water Pump Impeller with Key – Fits Suzuki 2-Stroke 8HP & 9.9HP DT8C DT9.9C (1988-1997)

This water pump impeller kit is designed for Suzuki 2-stroke outboard engines rated at 8HP and 9.9HP, specifically the DT8C and DT9.9C models manufactured between 1988 and 1997. It ensures reliable cooling system performance and protects your engine from overheating during operation.

This kit directly replaces OEM part numbers 17461-92D02, 17461-92D01, and 17461-92D00, as well as aftermarket equivalents like Sierra 18-3000, providing broad compatibility for maintenance and repair needs.

• Includes both the impeller and drive key for complete installation
• Designed for 2-stroke Suzuki outboards
• Essential component for maintaining proper water flow and engine temperature

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

This kit includes the following components:

• 1 × Outboard Impeller (17461-92D02)
• 1 × Drive Key (09420-03005)

Installation Guide

1. Disconnect the fuel line and remove the engine cowling to access the lower unit. Ensure the engine is off and cool before proceeding.
2. Remove the lower unit by loosening the mounting bolts and carefully separating it from the mid-section.
3. Locate the water pump housing on the lower unit and remove the retaining bolts or screws securing the pump cover.
4. Extract the old impeller carefully, noting the direction of the vanes for proper installation of the new impeller.
5. Clean the pump housing thoroughly, removing any debris, old gasket material, or corrosion buildup.
6. Insert the drive key into the driveshaft slot, ensuring it is seated properly and aligned.
7. Lubricate the new impeller with water pump grease or soapy water to ease installation and protect the vanes.
8. Install the new impeller onto the driveshaft, ensuring the vanes are oriented in the correct direction (typically curved in the direction of rotation).
9. Reassemble the pump housing with a new gasket (if applicable) and torque the bolts to manufacturer specifications.
10. Reattach the lower unit to the mid-section, aligning the driveshaft and water tube carefully, then tighten all mounting bolts.
11. Reconnect the fuel line and replace the engine cowling securely.
12. Test the cooling system by running the engine in a test tank or on-water, confirming strong water flow from the tell-tale indicator.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki outboard?
A: Check the Compatible Engine Models table above to verify your engine model and year range. This impeller fits DT8C and DT9.9C models from 1988 to 1997. You can also cross-reference the OEM part numbers 17461-92D02, 17461-92D01, or 17461-92D00 with your engine's parts diagram.

Q: How often should I replace my water pump impeller?
A: Most manufacturers recommend replacing the impeller every 2–3 years or every 200–300 operating hours, whichever comes first. If you frequently operate in sandy or debris-filled water, consider more frequent replacement to prevent overheating.

Q: What are the signs that my impeller is failing?
A: Common symptoms include weak or no water flow from the tell-tale (indicator stream), engine overheating, steam from the engine, or the temperature warning alarm activating. If you notice any of these signs, inspect and replace the impeller immediately.

Q: Why is the drive key included in this kit?
A: The drive key (09420-03005) connects the impeller to the driveshaft and can wear or break during impeller removal. Including a new key ensures reliable engagement and prevents installation issues or future failures.

Q: Is this an OEM part or aftermarket replacement?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
