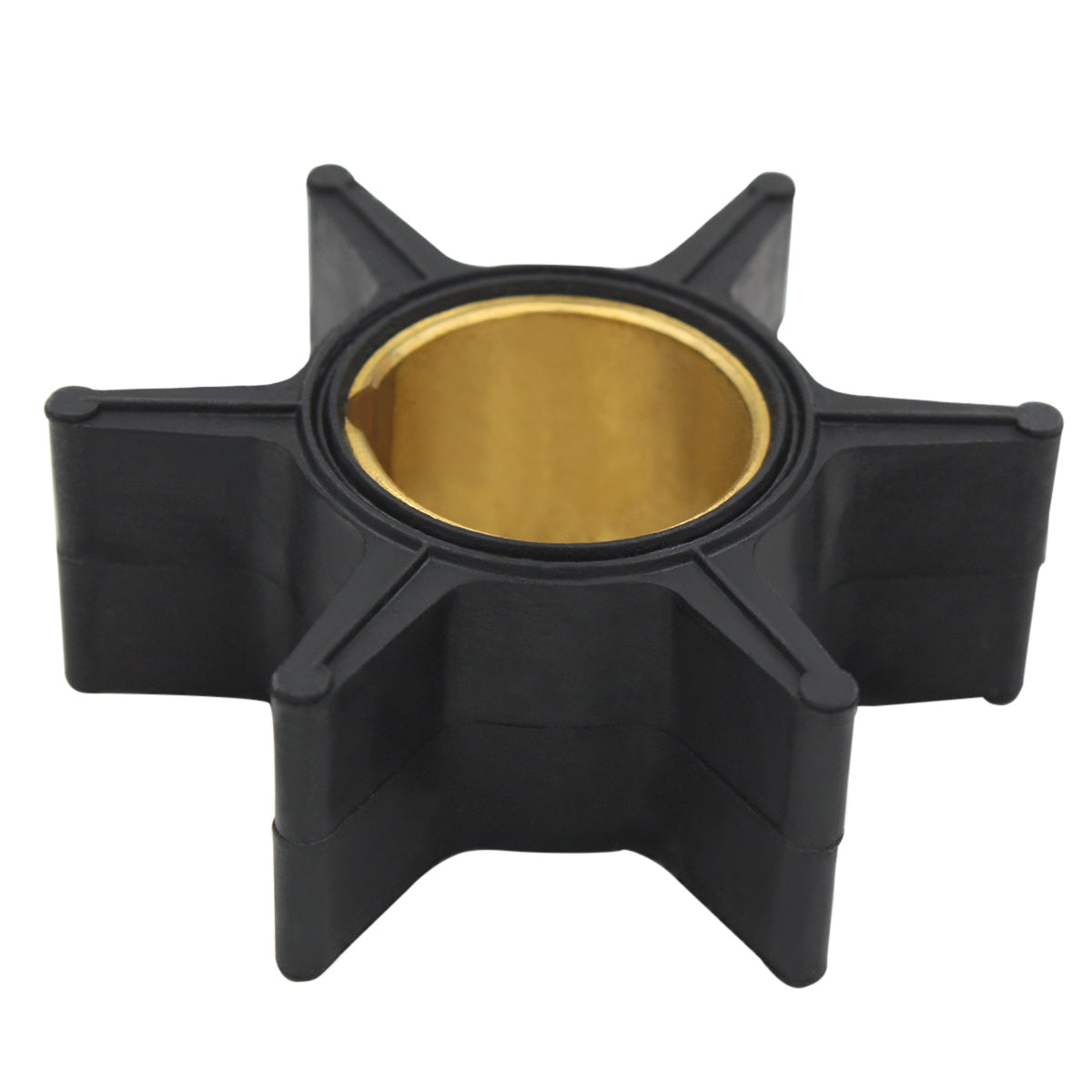

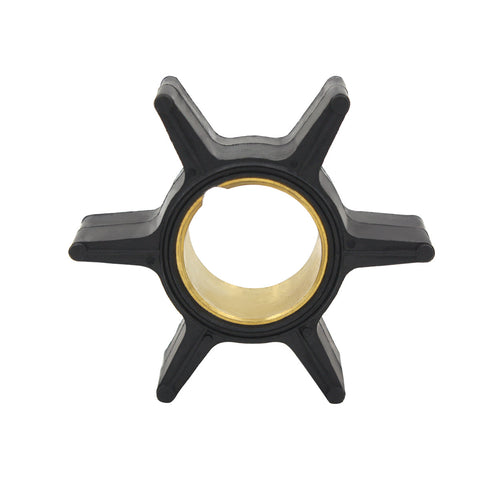

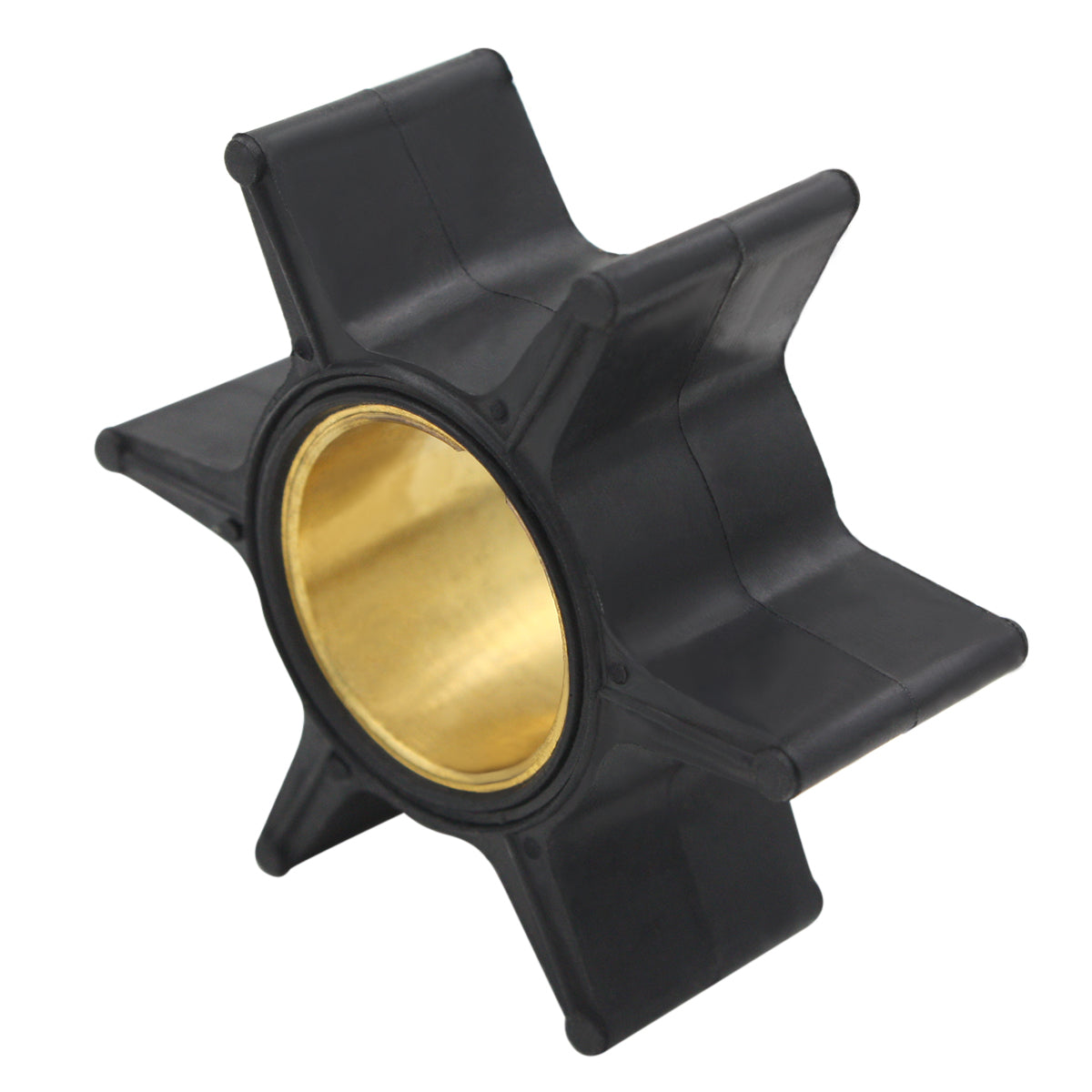

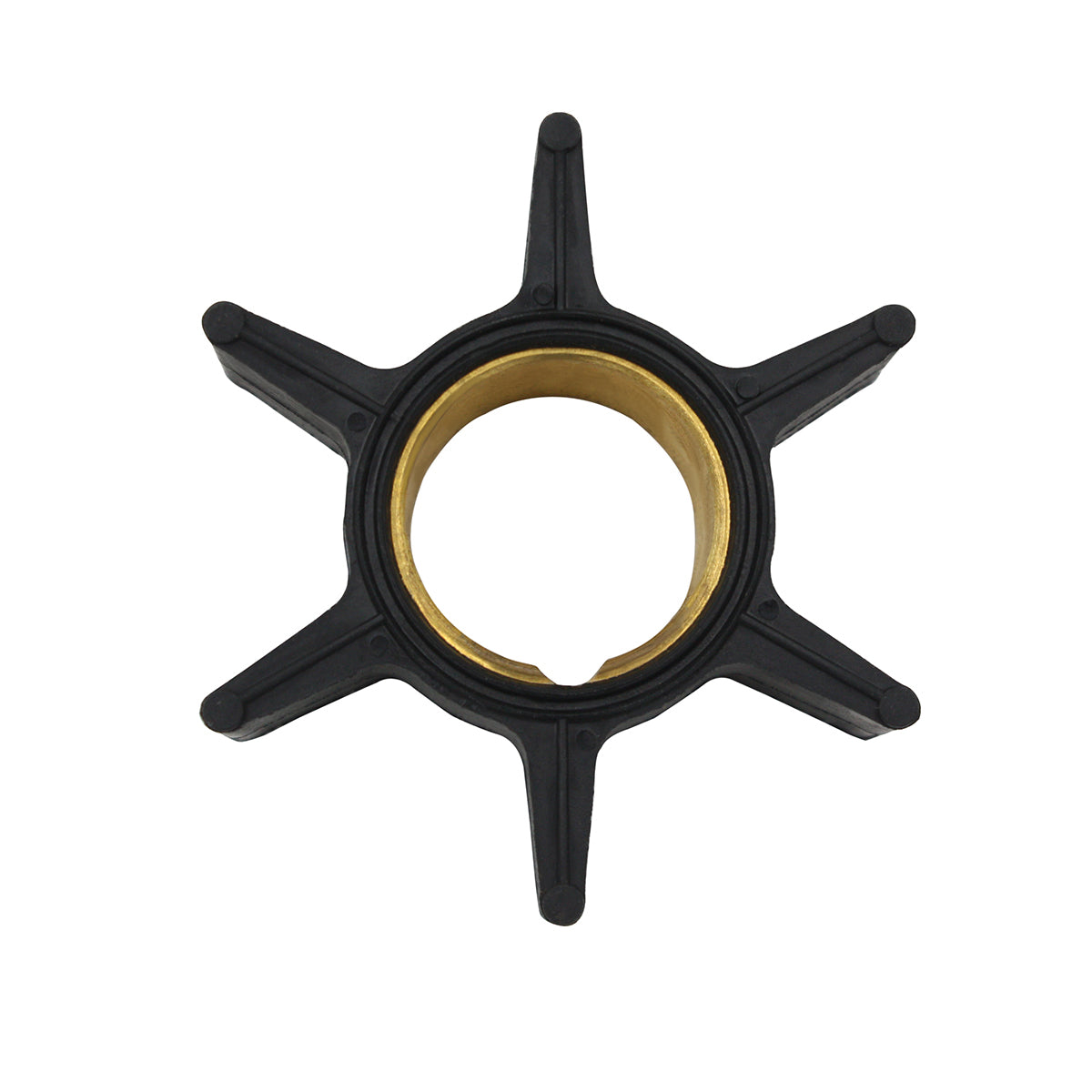

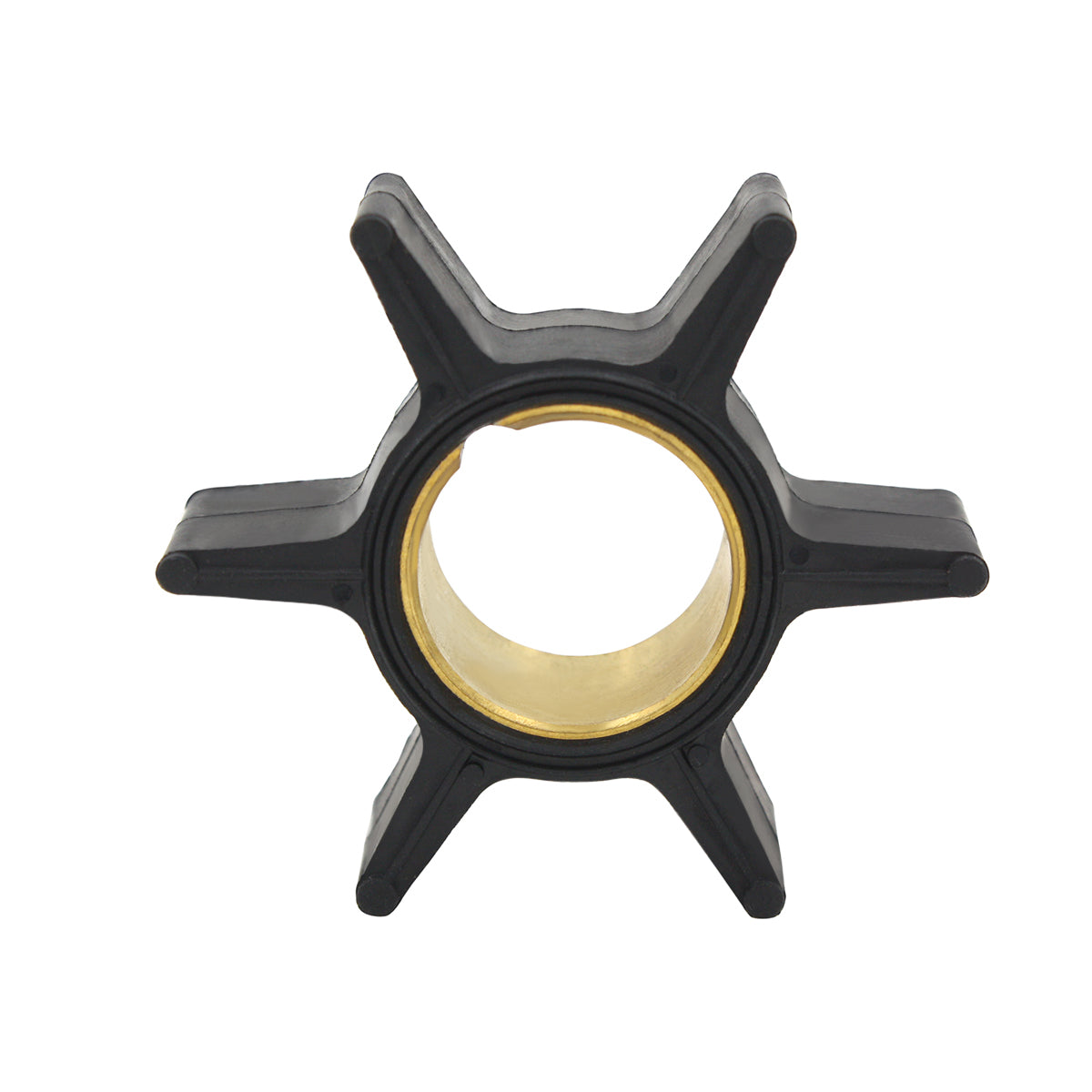

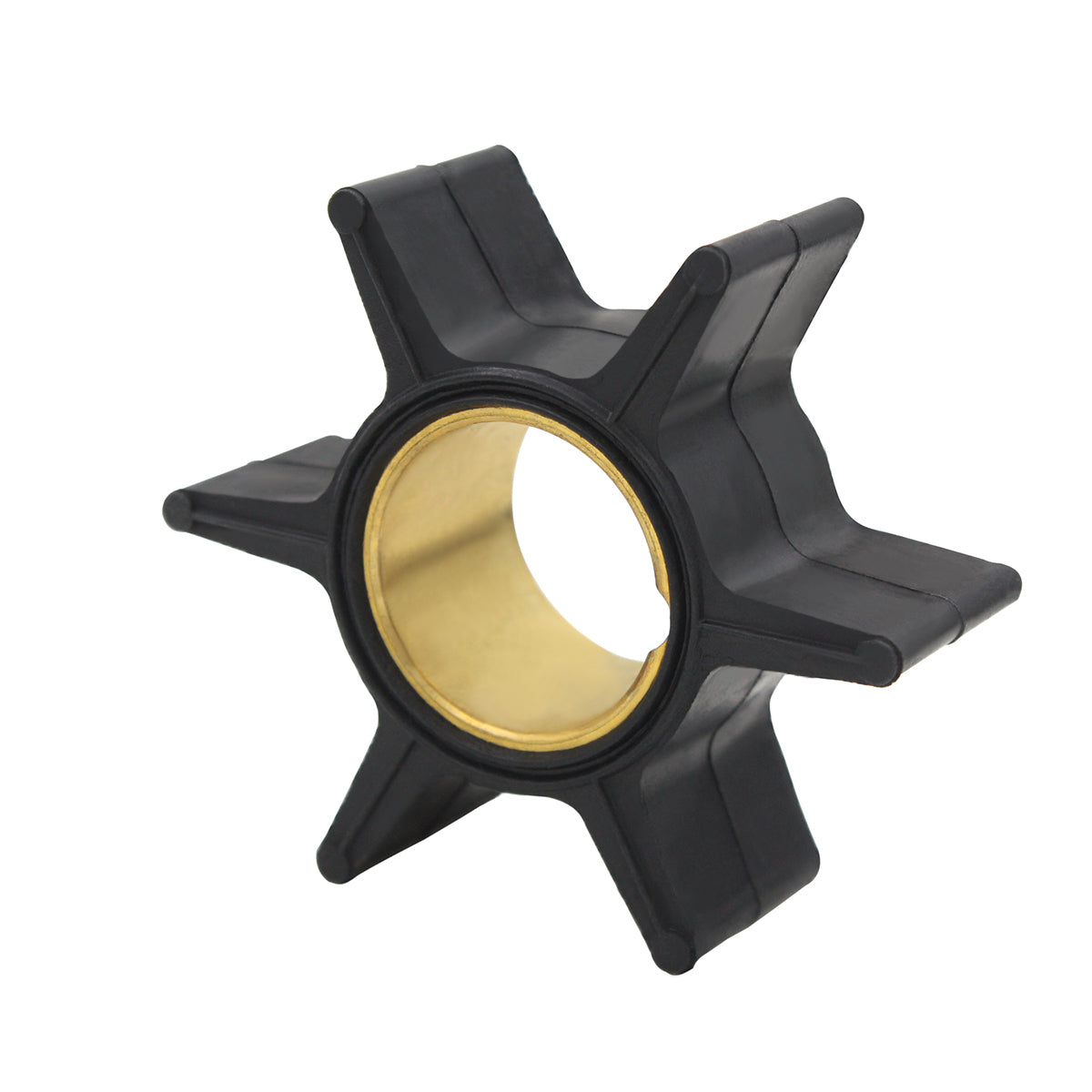

Water Pump Impeller for Suzuki 2-Stroke 35-70 HP Outboards

This aftermarket water pump impeller is designed to fit Suzuki 2-stroke outboard engines rated 35-70 HP with a 0.748" shaft. Engineered to OEM specifications, it ensures reliable cooling system performance and is a direct replacement for OEM part number 17461-95201.

Whether you're performing routine maintenance or addressing cooling system issues, this impeller delivers dependable performance at an exceptional value. Built from durable rubber compounds, it maintains consistent water flow to protect your engine from overheating.

• Includes impeller with key/pin for secure installation
• Fits 0.748" diameter shaft applications
• Direct replacement for Suzuki OEM 17461-95201

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

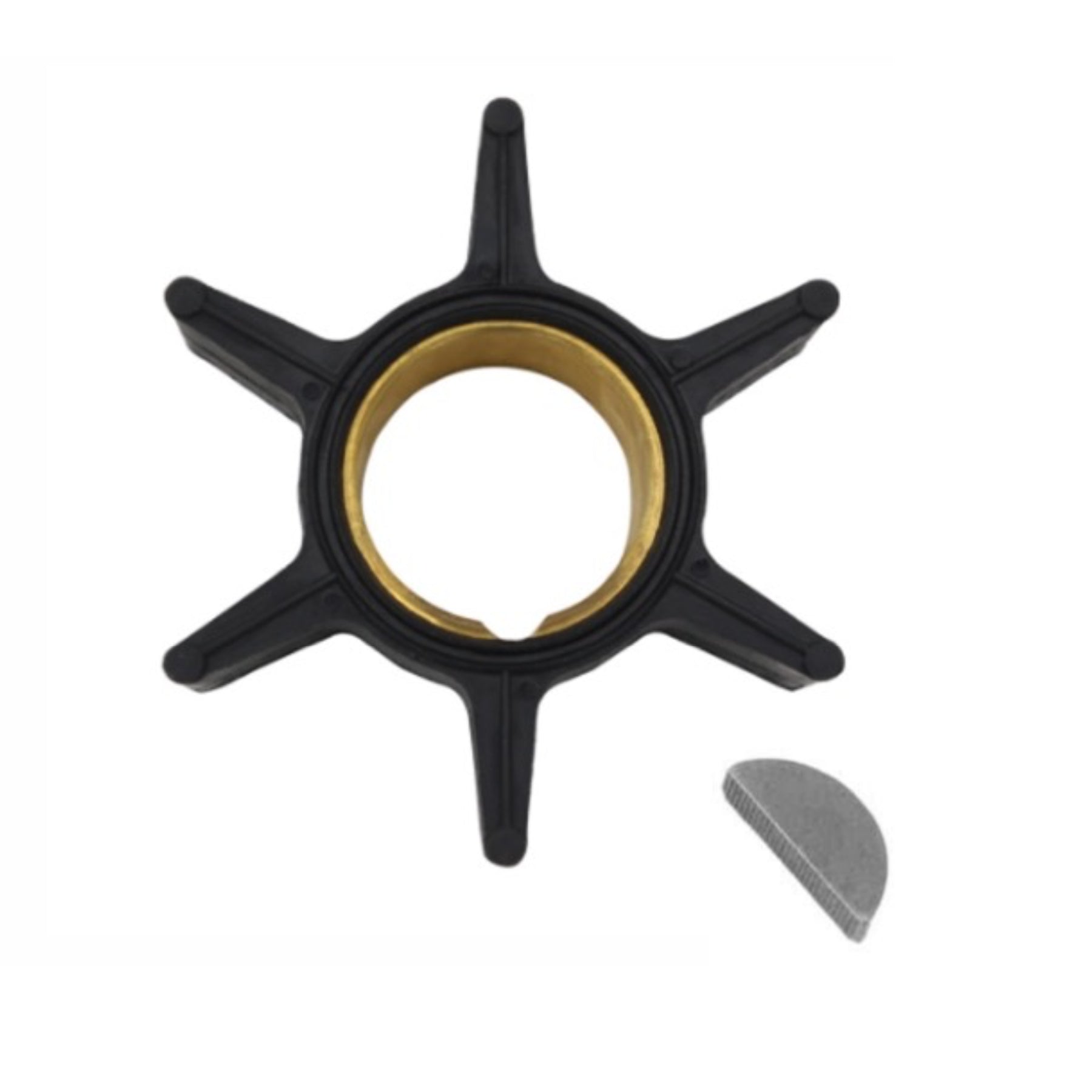

• Outboard Rubber Impeller with Key / Pin

Installation Guide

1. Disconnect the fuel line and remove the engine cowling to access the water pump housing.
2. Remove the lower unit from the engine following your service manual's instructions.
3. Locate and disassemble the water pump housing by removing retaining bolts and separating the housing cover.
4. Extract the old impeller carefully, noting the direction of the blade rotation for proper installation.
5. Clean the impeller housing thoroughly, removing any debris, old gasket material, or corrosion.
6. Inspect the housing and wear plate for damage or excessive wear; replace if necessary.
7. Lubricate the new impeller with glycerin, soapy water, or water pump grease to ease installation and prevent blade damage.
8. Install the key/pin into the driveshaft slot, ensuring it is properly seated.
9. Align the impeller blades in the correct rotational direction and carefully slide the impeller onto the driveshaft.
10. Reassemble the water pump housing with a new gasket, ensuring all components are properly aligned.
11. Reinstall the lower unit onto the engine, tightening all bolts to the manufacturer's torque specifications.
12. Test the cooling system by running the engine in a test tank or on muffs, confirming strong water flow from the tell-tale outlet.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki outboard?
A: Verify your engine is a 2-stroke model rated 35-70 HP with a 0.748" shaft diameter. Cross-reference OEM part number 17461-95201 or consult the Suzuki parts diagrams linked above to confirm compatibility with your specific model and year.

Q: How often should I replace my water pump impeller?
A: Most manufacturers recommend replacing the impeller every 2-3 years or 200-300 hours of operation, whichever comes first. If you frequently operate in sandy or debris-filled water, inspect and replace more often.

Q: What are the signs that my impeller needs replacement?
A: Common symptoms include weak or no water flow from the tell-tale outlet, engine overheating, steam from the engine, or reduced performance. Inspect the impeller if you notice cracked, missing, or curled blades during regular maintenance.

Q: Can I install this impeller myself or do I need a mechanic?
A: If you have basic mechanical skills and the proper tools, you can install this yourself by following your service manual. However, professional installation is recommended to ensure correct assembly and avoid cooling system failures.

Q: OEM vs. Aftermarket – what's the difference?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
