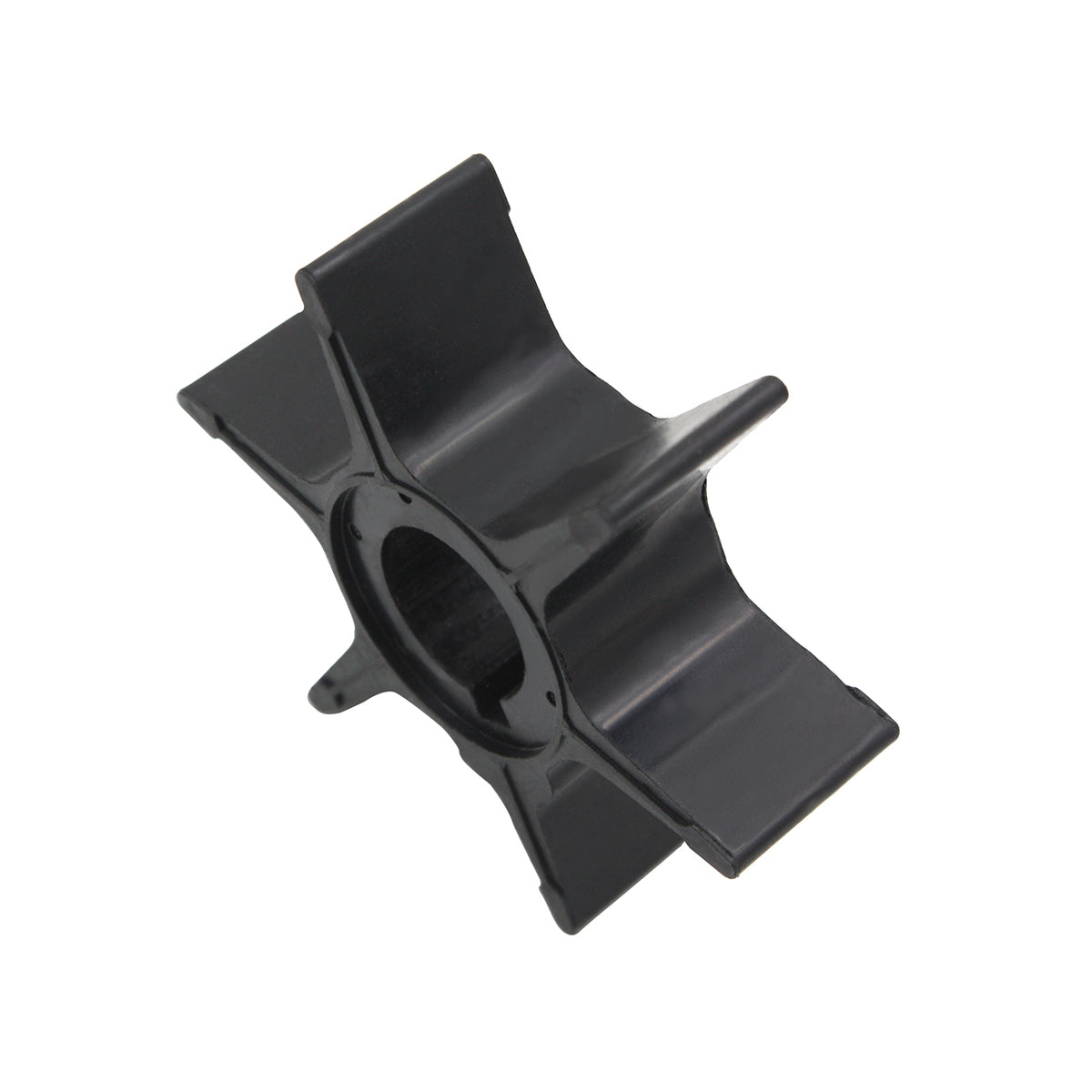

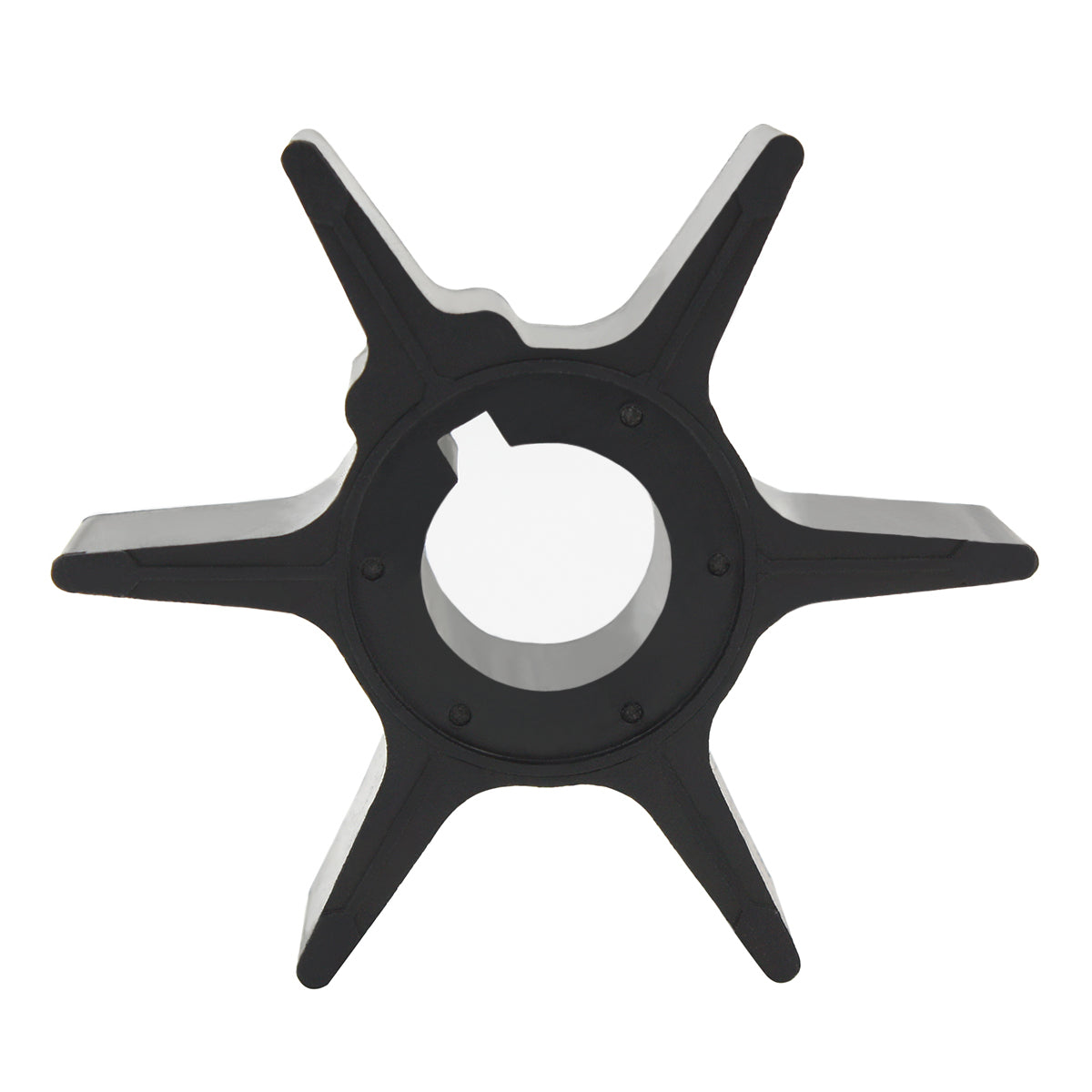

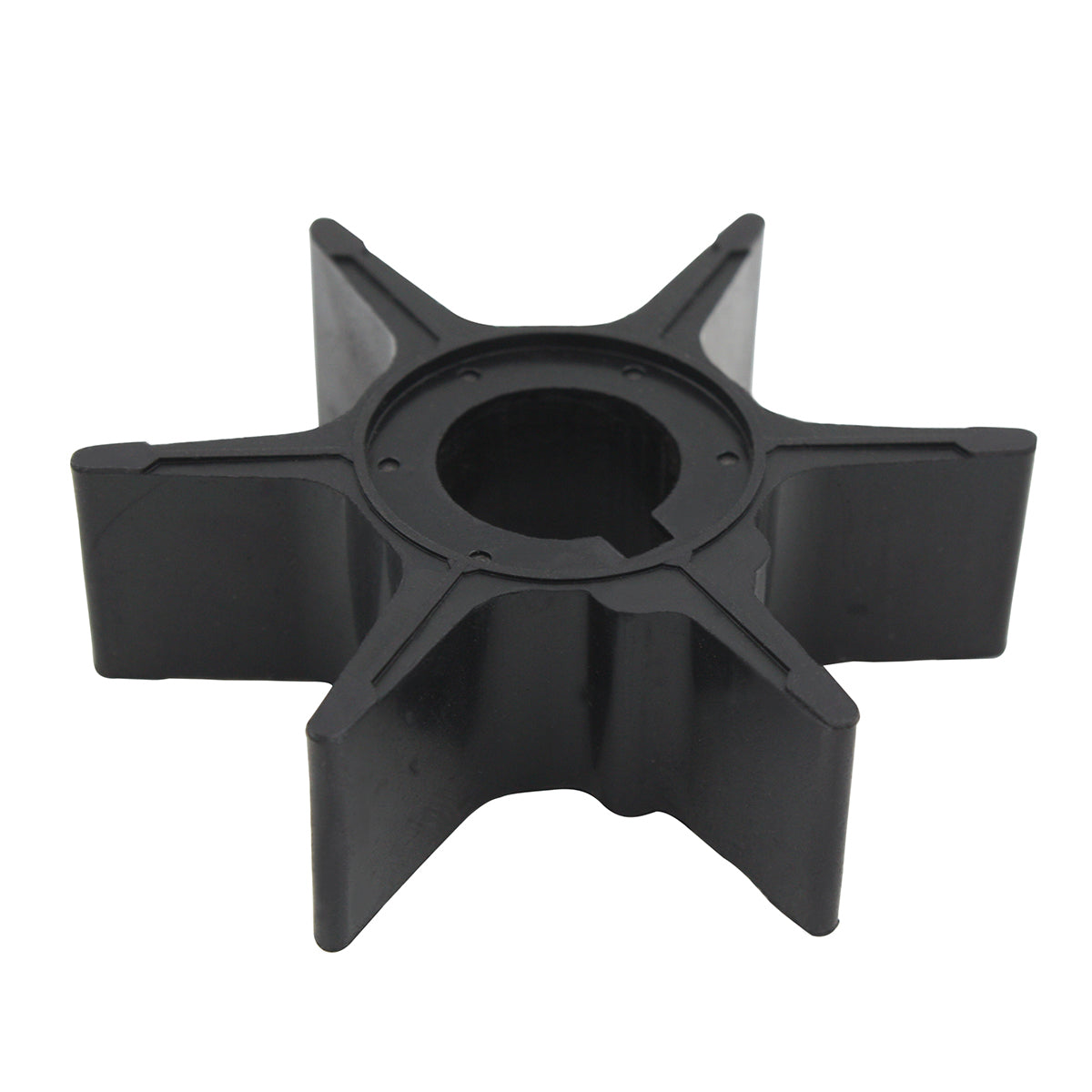

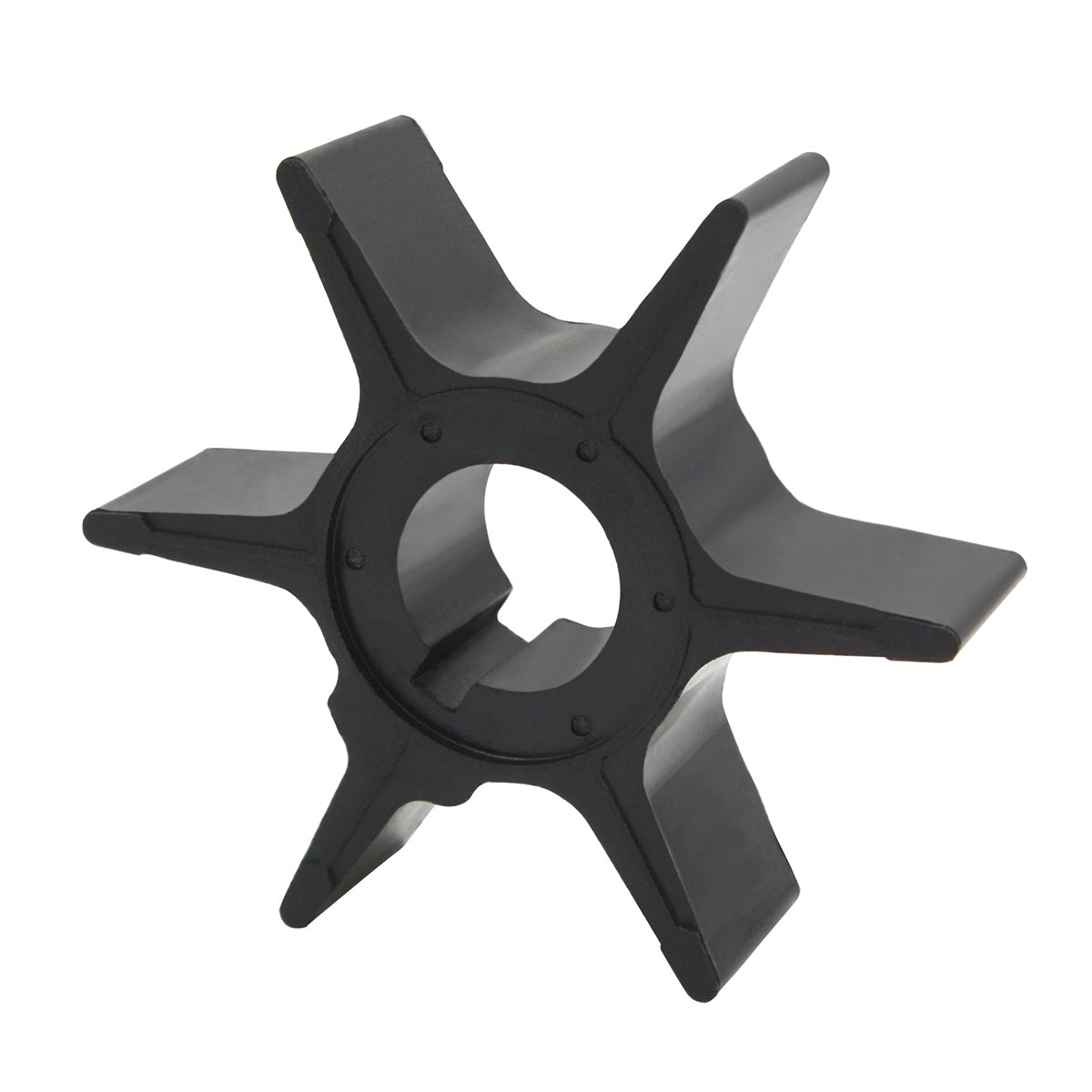

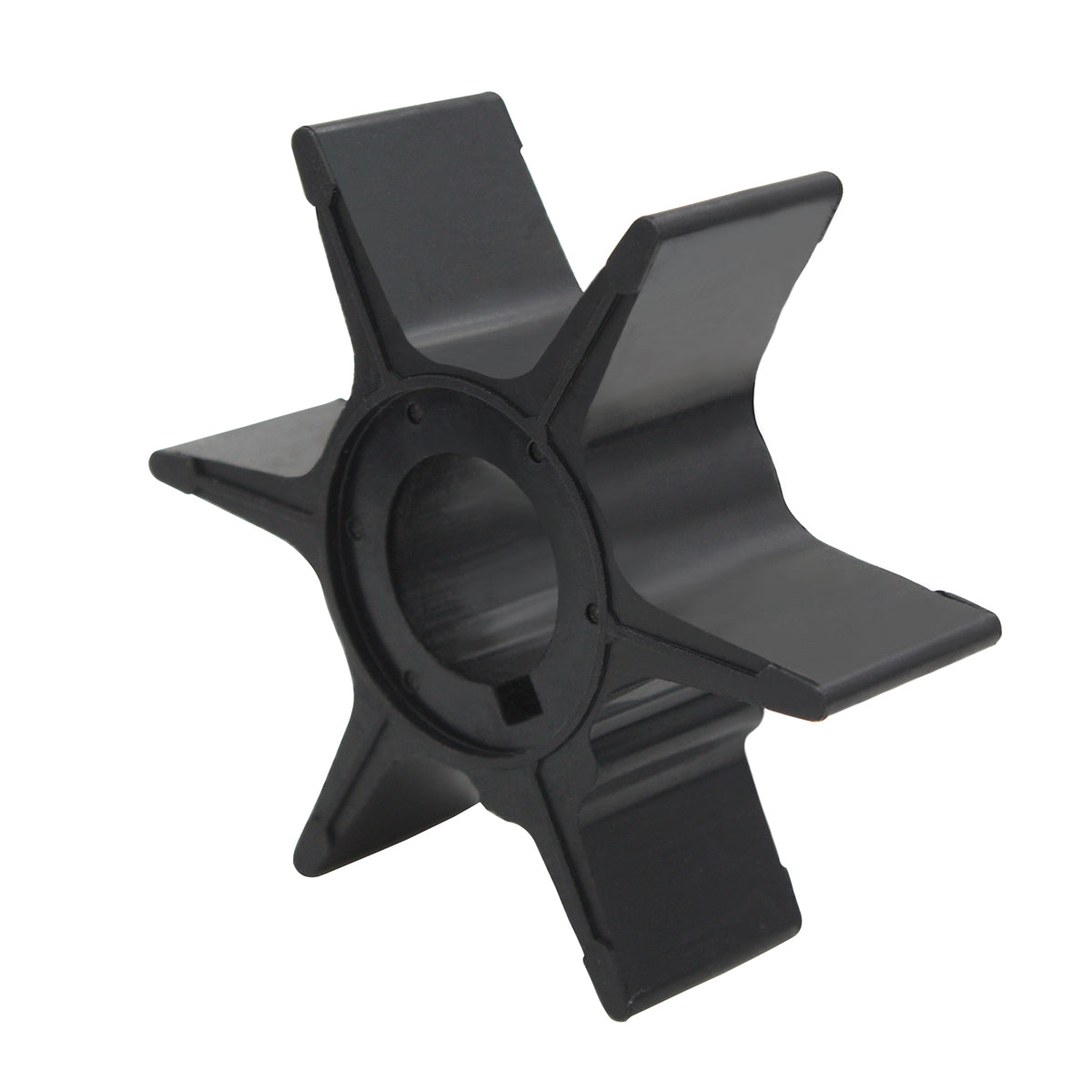

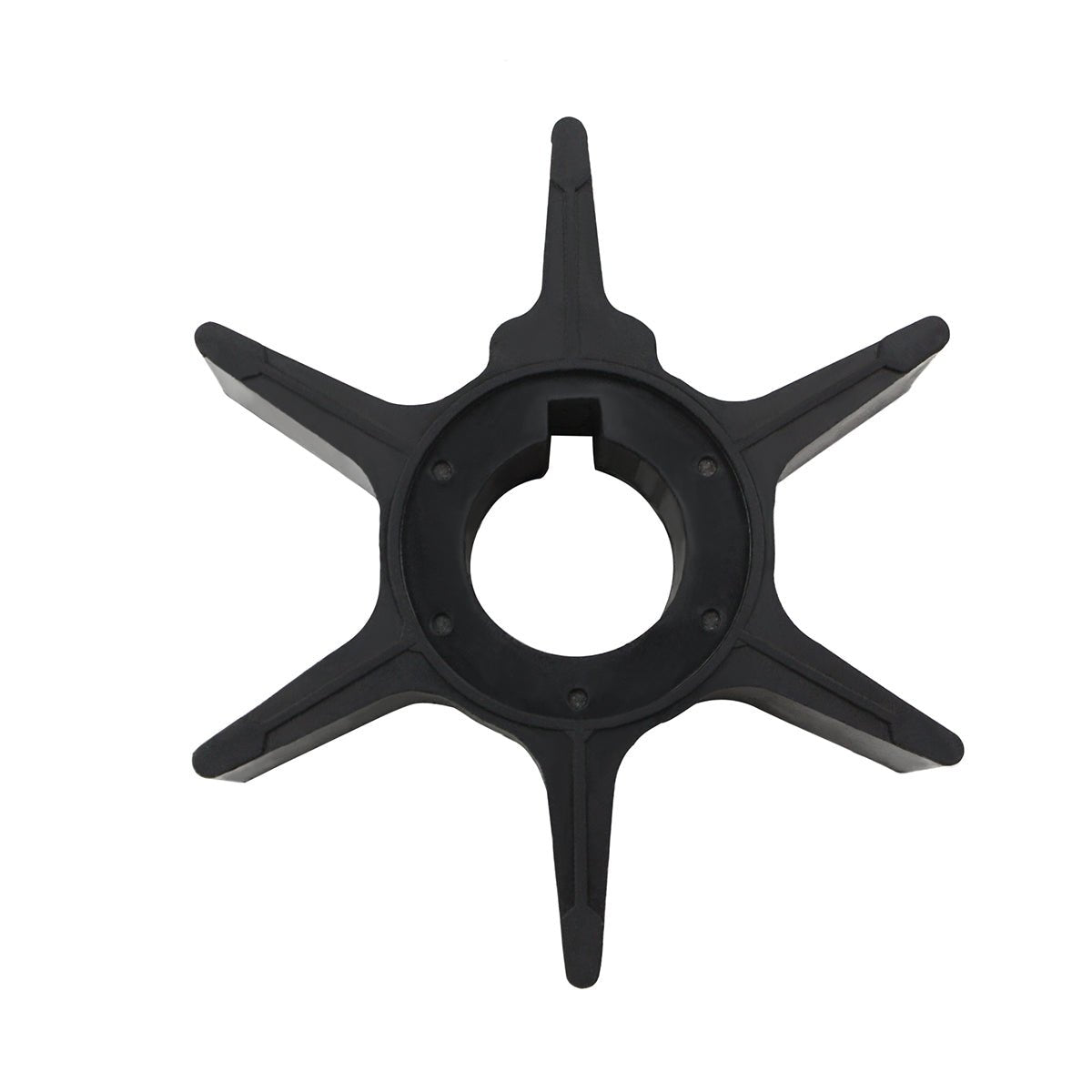

Water Pump Impeller – Fits Suzuki DT35/40/50/55/60/65 (Replaces 17461-94700)

Water Pump Impeller – Fits Suzuki DT35/40/50/55/60/65 (Replaces 17461-94700)

This water pump impeller is designed for Suzuki 2-stroke outboard engines ranging from 35 to 65 HP, covering models manufactured between 1980 and 1997. It is compatible with DT35, DT40, DT50, DT55, DT60, and DT65 models.

This part directly replaces Suzuki OEM part numbers 17461-94700, 17461-94701, 17461-95200, and 17461-95201, as well as several aftermarket equivalents.

• Installation: Engineered for direct OEM replacement.
• Durable Construction: Made from a tough neoprene compound with a hardened nylon hub for reliable performance.
• Complete Replacement: A drive key is included with most aftermarket versions for a comprehensive installation.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

1 x Water Pump Impeller (Replaces 17461-94700)

Explosion Diagram

Installation Guide

1. Disconnect Power: Disconnect the battery and remove the engine cowling.
2. Access Lower Unit: Locate and carefully remove the lower unit (gearcase) from the outboard's driveshaft housing.
3. Remove Pump Housing: Unbolt and remove the water pump housing to expose the impeller.
4. Inspect Old Impeller: Note the rotational direction of the existing impeller's blades before removing it.
5. Remove Impeller: Slide the old impeller and its drive key off the driveshaft.
6. Clean & Inspect: Thoroughly clean and inspect the pump housing and wear plate for scoring, warping, or damage. Replace if necessary.
7. Install New Impeller: Insert the new drive key and slide the new impeller onto the shaft. Rotate the driveshaft clockwise while pushing down to correctly orient the blades inside the housing cup.
8. Reassemble: Reinstall the pump housing, ensuring a proper seal. Torque bolts to the manufacturer's specified values.
9. Reattach Lower Unit: Guide the lower unit back into place, ensuring the driveshaft, shift shaft, and water tube align correctly.
10. Test Operation: Reconnect the battery. With the outboard in water or connected to a flush device, start the engine and verify a strong, steady stream of water from the tell-tale port.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my engine?
A: First, check your engine's model, horsepower, and year against our "Compatible Engine Models" table. Next, cross-reference your existing part number with the numbers listed in the "Part Number Cross-Reference" section. For a final check, you can compare the physical dimensions (Shaft size: 17.1 mm, Overall diameter: 51.8 mm) with your old part.

Q: What are the symptoms of a bad water pump impeller?
A: Common signs of failure include the engine overheating, a weak or intermittent water stream from the tell-tale outlet, or a complete lack of water flow. Upon inspection, you might find the old impeller's blades are cracked, brittle, melted, or have broken off.

Q: How often should I replace the water pump impeller?
A: As a general rule, it is recommended to replace your outboard's impeller every 1 to 2 years, or every 100-200 hours of operation. Frequent use in sandy, silty, or saltwater environments may require more frequent changes.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
