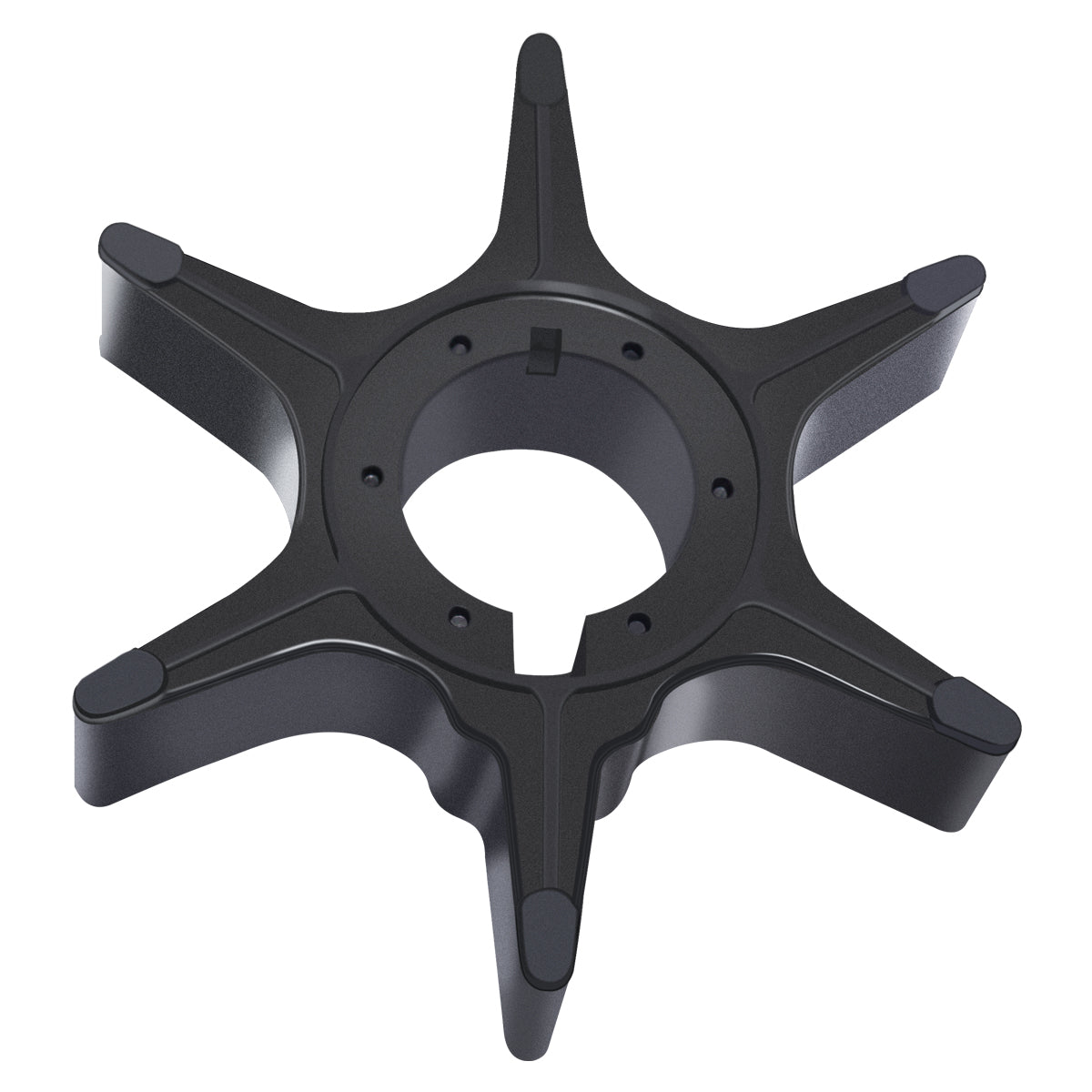

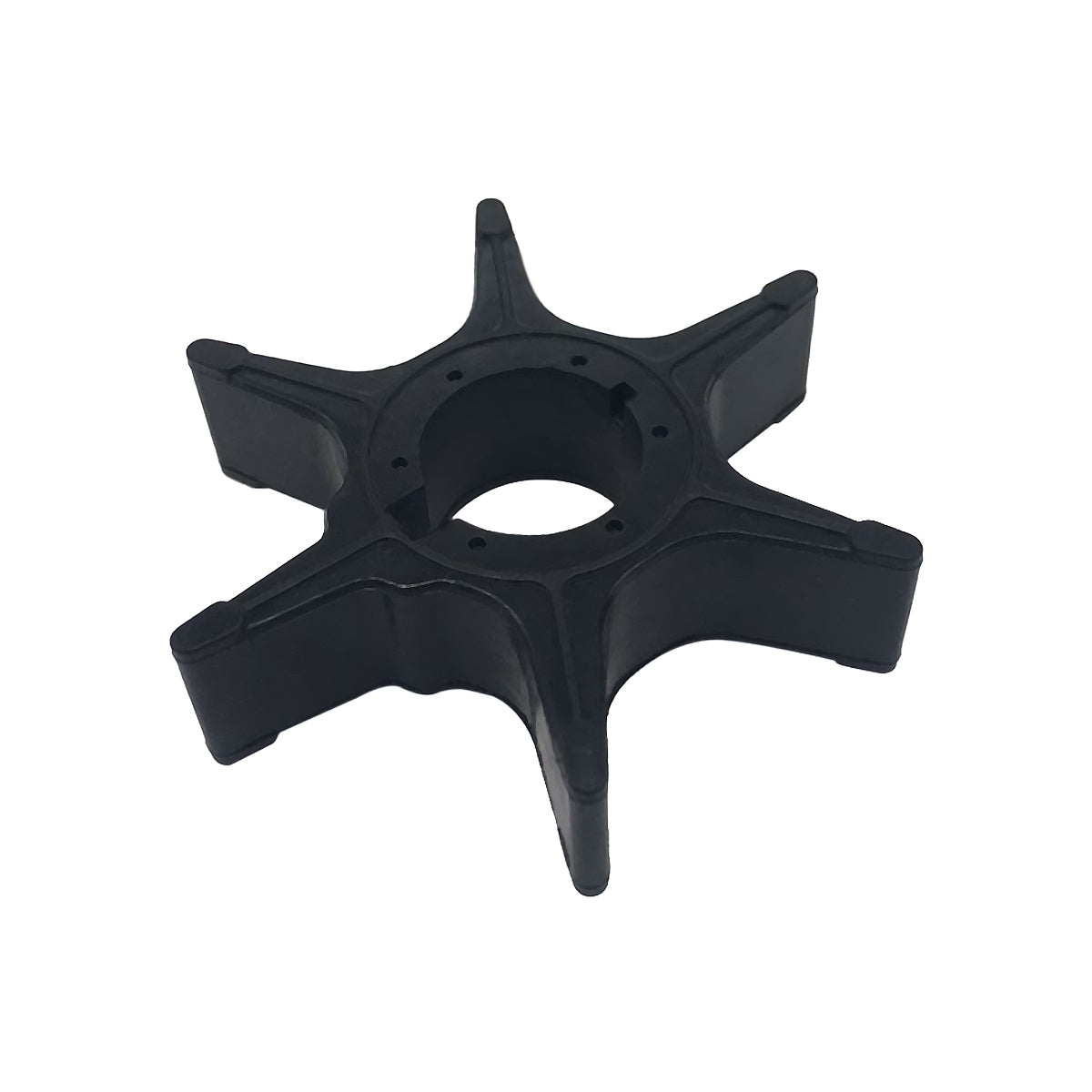

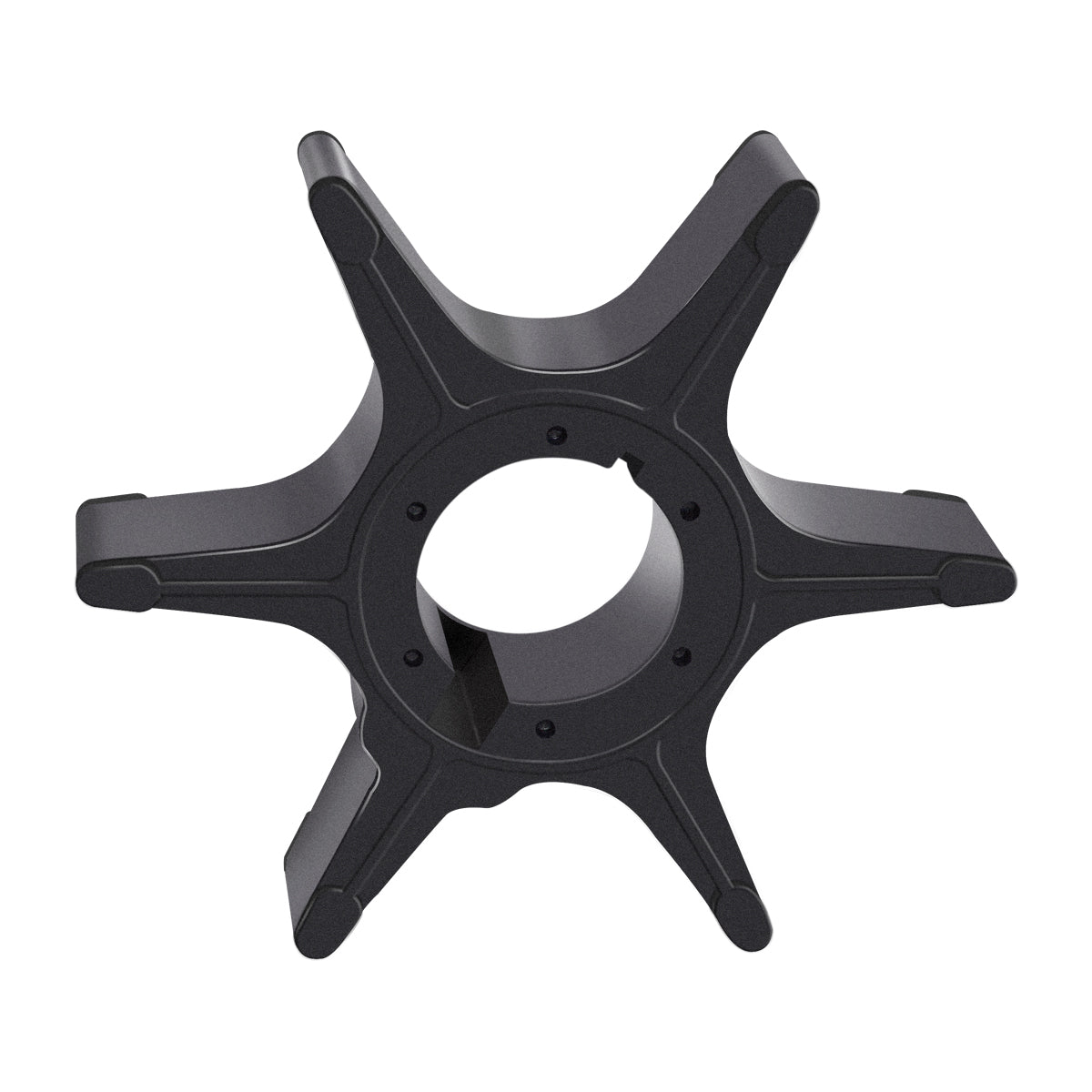

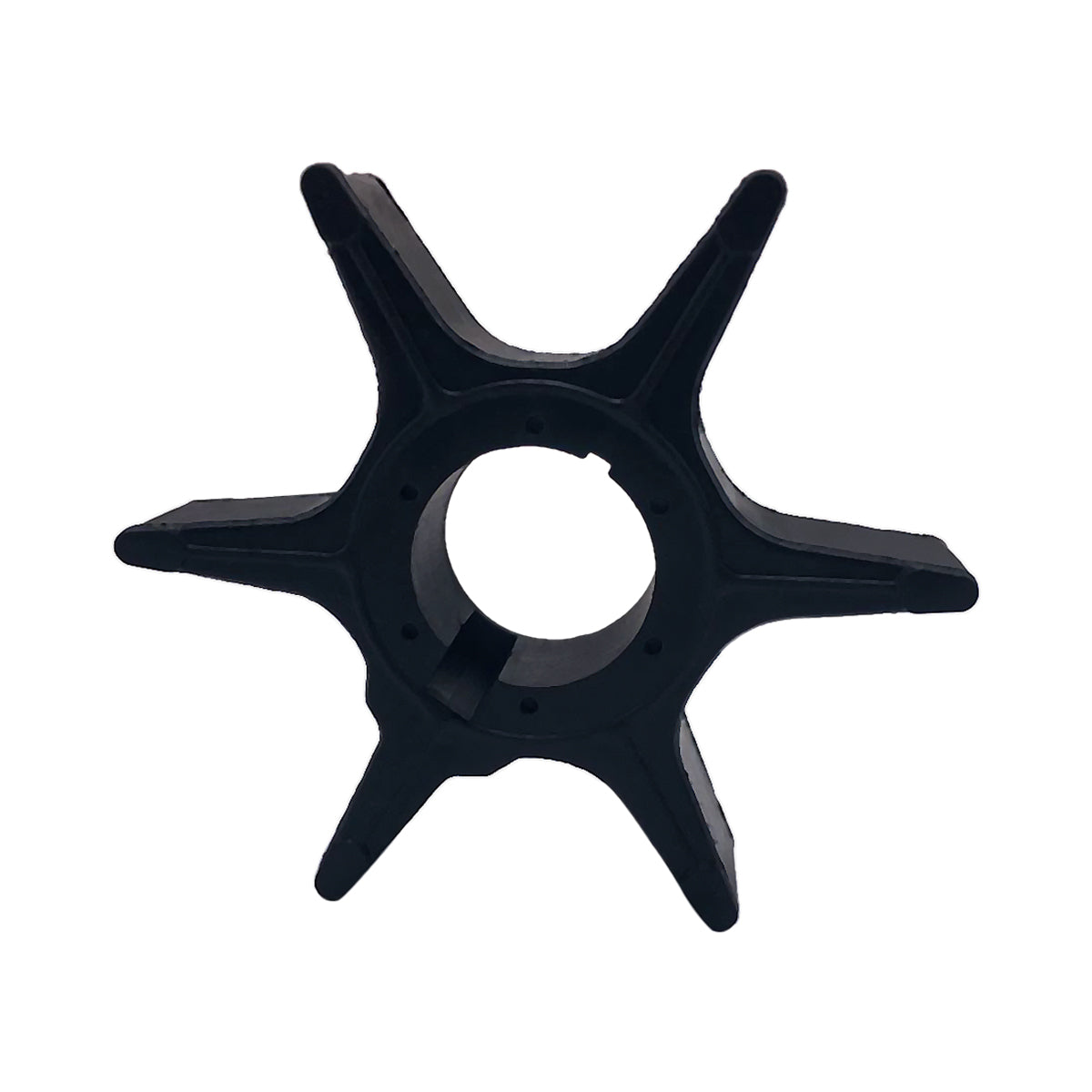

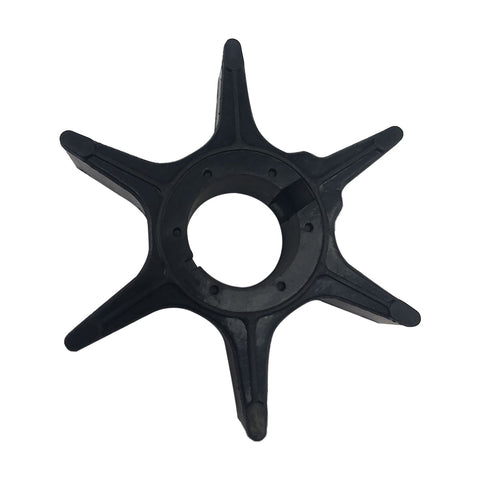

Outboard Impeller – Fits Suzuki 2-Stroke 25 HP (2016)

This high-quality aftermarket impeller is engineered to fit Suzuki 2-Stroke 25 HP outboard engines from 2016. Designed to deliver reliable water pump performance, it ensures optimal cooling and engine protection in both fresh and saltwater environments.

This impeller serves as a direct replacement for OEM part number 17461-94L00, providing a cost-effective solution without compromising on quality or durability.

• Precision-molded for exact fit and reliable sealing
• Essential component for maintaining proper engine cooling
• Suitable for routine maintenance and emergency replacements

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 × Outboard Impeller

Installation Guide

1. Disconnect the fuel line and remove the engine cowling to access the lower unit.
2. Drain the lower unit oil by removing the drain and vent screws. Mark the water pump housing orientation before disassembly.
3. Remove the propeller and propeller shaft to access the water pump assembly.
4. Unbolt and separate the lower unit from the mid-section, taking care not to damage gaskets or seals.
5. Remove the old impeller by carefully prying it from the water pump housing. Note the direction of the blade curvature.
6. Inspect the impeller housing and plate for wear, cracks, or debris; clean thoroughly before installing the new impeller.
7. Lubricate the new impeller blades with glycerin, soapy water, or water pump grease to ease installation and prevent damage.
8. Install the new impeller with blades oriented in the correct rotational direction, typically matching the old impeller's curvature.
9. Reassemble the water pump housing, ensuring the impeller plate and gaskets are properly seated and aligned.
10. Reattach the lower unit to the mid-section, torquing all bolts to manufacturer specifications.
11. Refill the lower unit with fresh gear oil and reinstall the propeller and propeller shaft.
12. Test the water pump by running the engine with a flushing attachment or in a tank; confirm steady water flow from the telltale.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki engine?
A: Cross-reference your engine's year, horsepower, and stroke type with the compatibility table above. Verify your OEM part number (17461-94L00) matches, or consult the Suzuki parts diagrams linked in the compatibility section.

Q: How often should I replace my water pump impeller?
A: Most manufacturers recommend replacing the impeller every 2–3 years or 200–300 hours of operation, whichever comes first. If you frequently operate in sandy, silty, or shallow water, inspect and replace more often.

Q: What are the signs that my impeller is failing?
A: Common symptoms include reduced or no water flow from the telltale (indicator stream), engine overheating, steam from the engine, or loss of power. Inspect the impeller immediately if you notice any of these issues.

Q: Can I install this impeller myself, or do I need a mechanic?
A: If you have basic mechanical skills and the right tools, you can replace the impeller yourself by following the installation guide. However, professional installation is recommended to ensure proper alignment, torque specifications, and leak-free reassembly.

Q: What's the difference between this aftermarket impeller and the OEM part?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
