17461-97J00 Outboard Impeller for Suzuki DF2.5 | JLM Marine

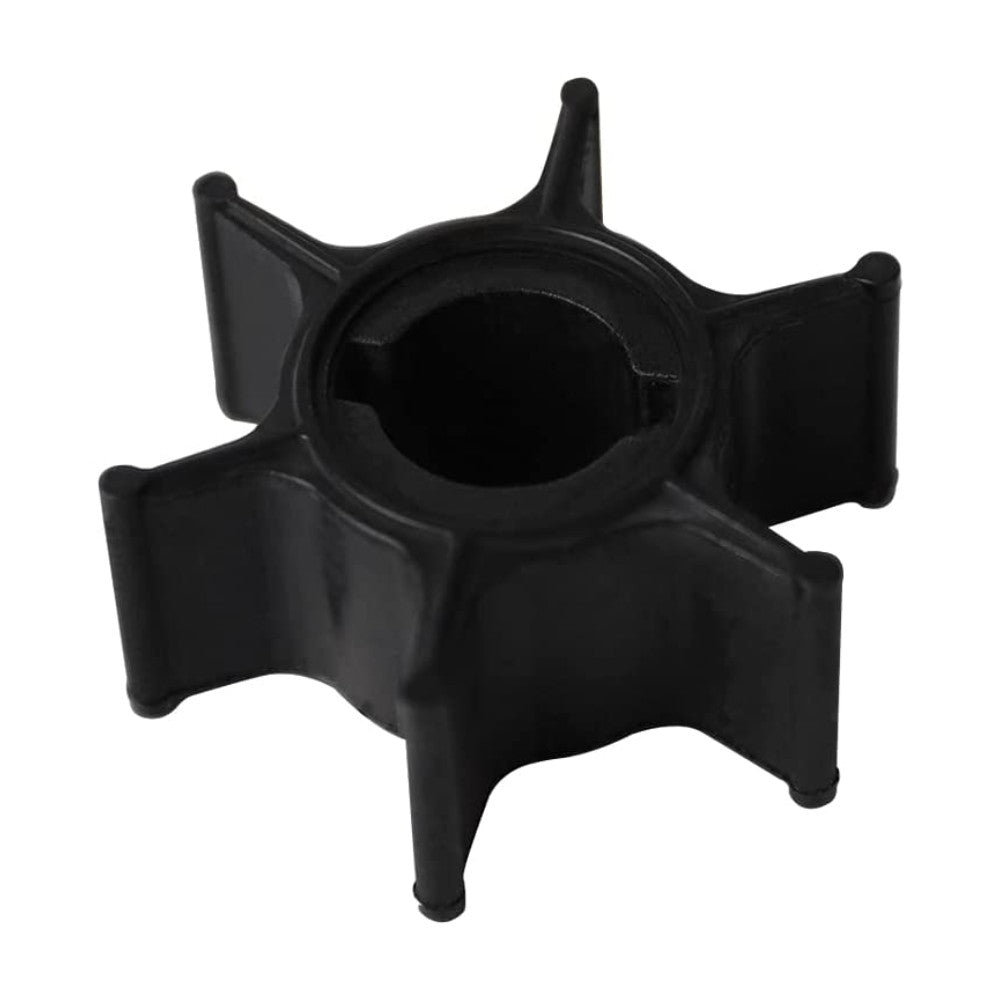

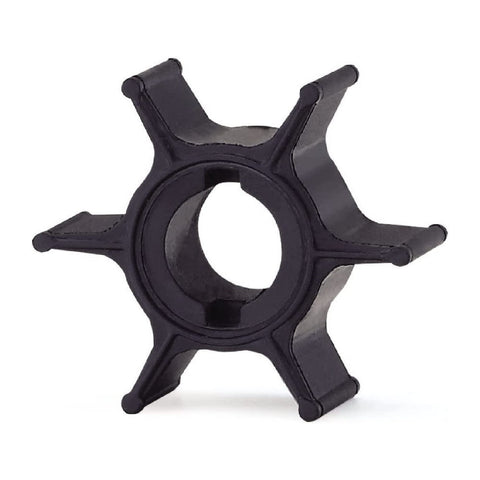

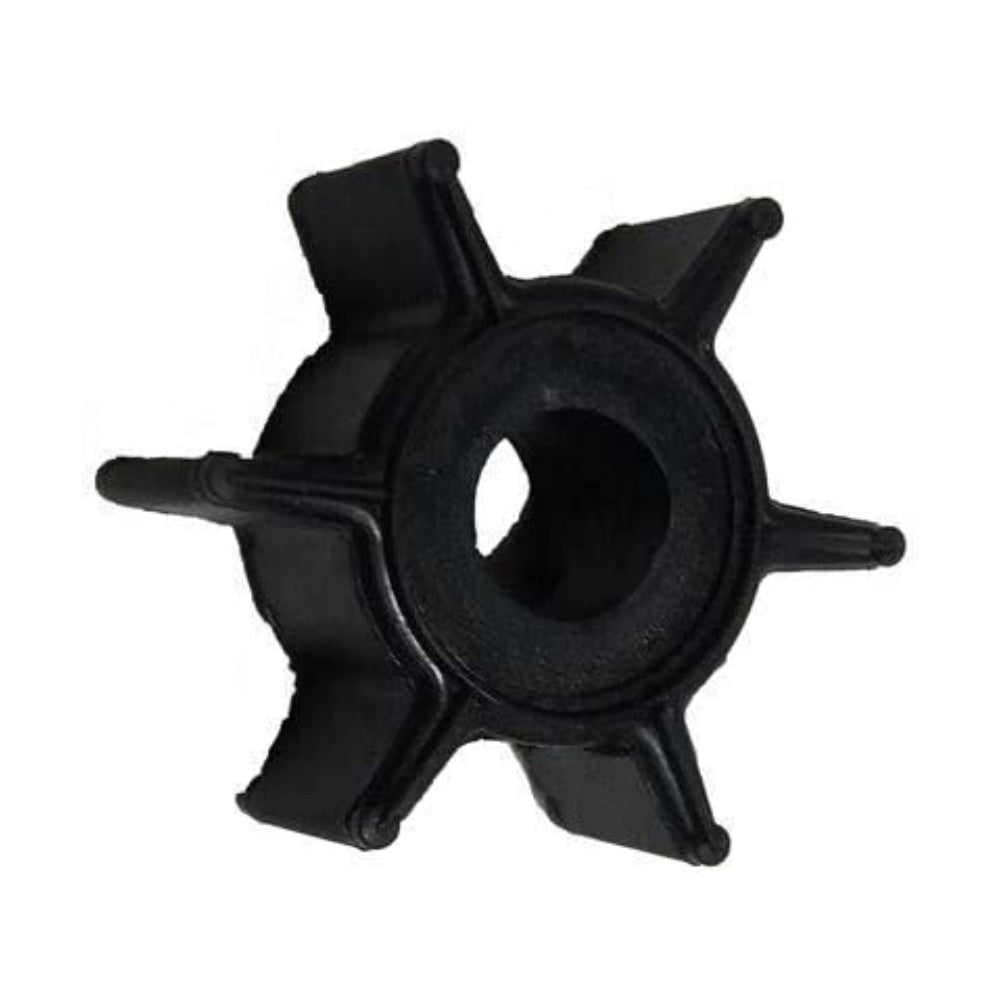

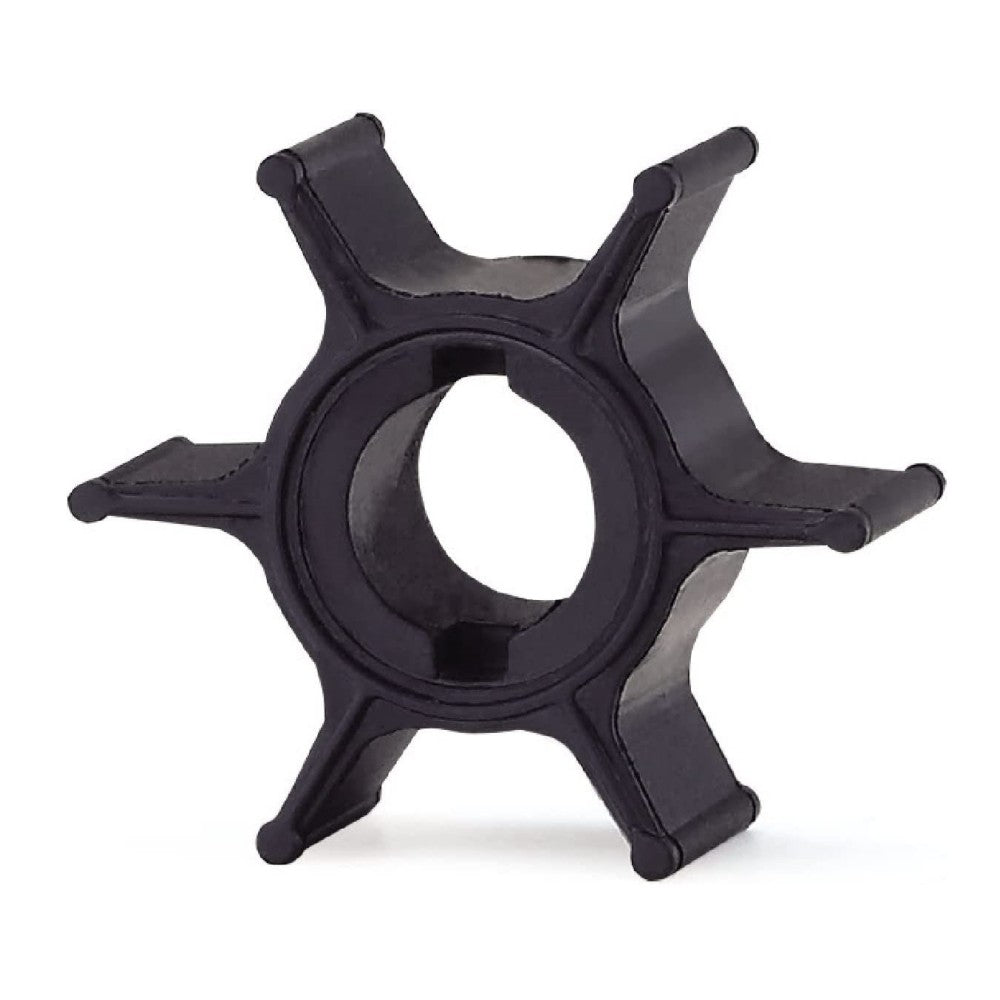

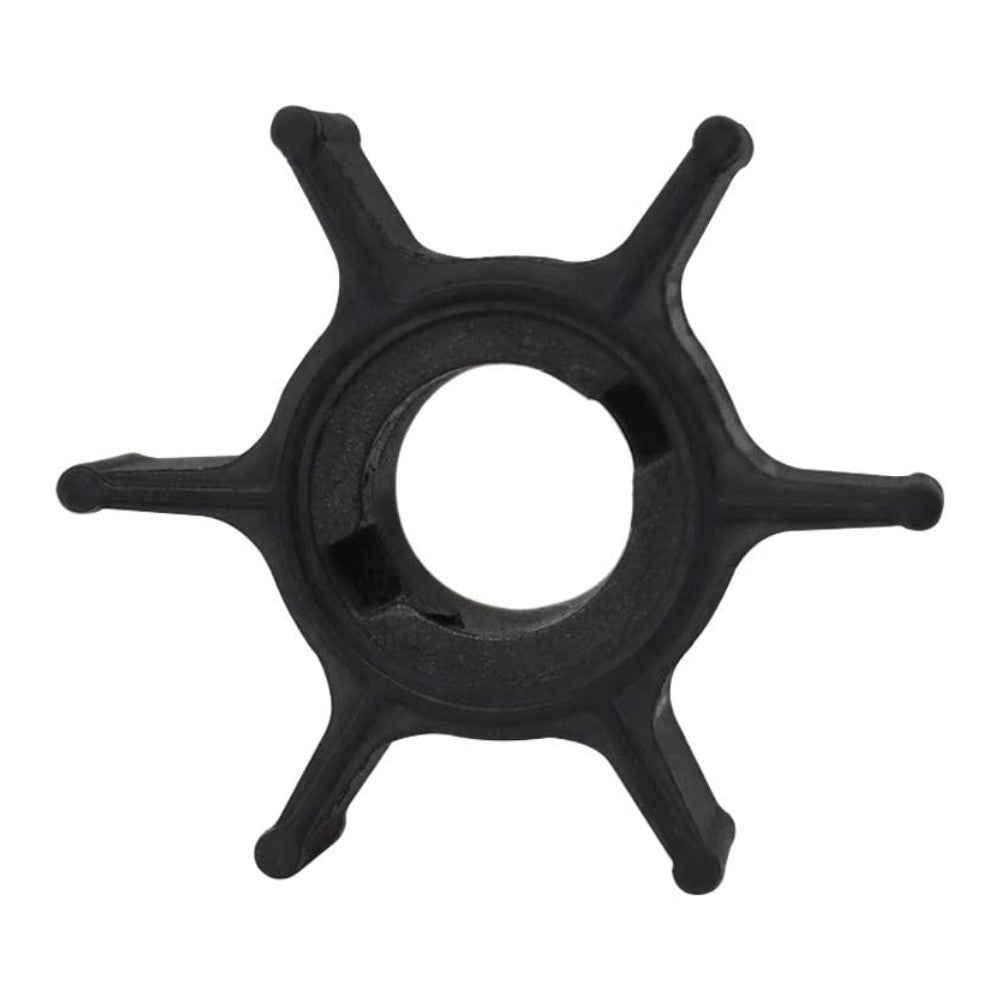

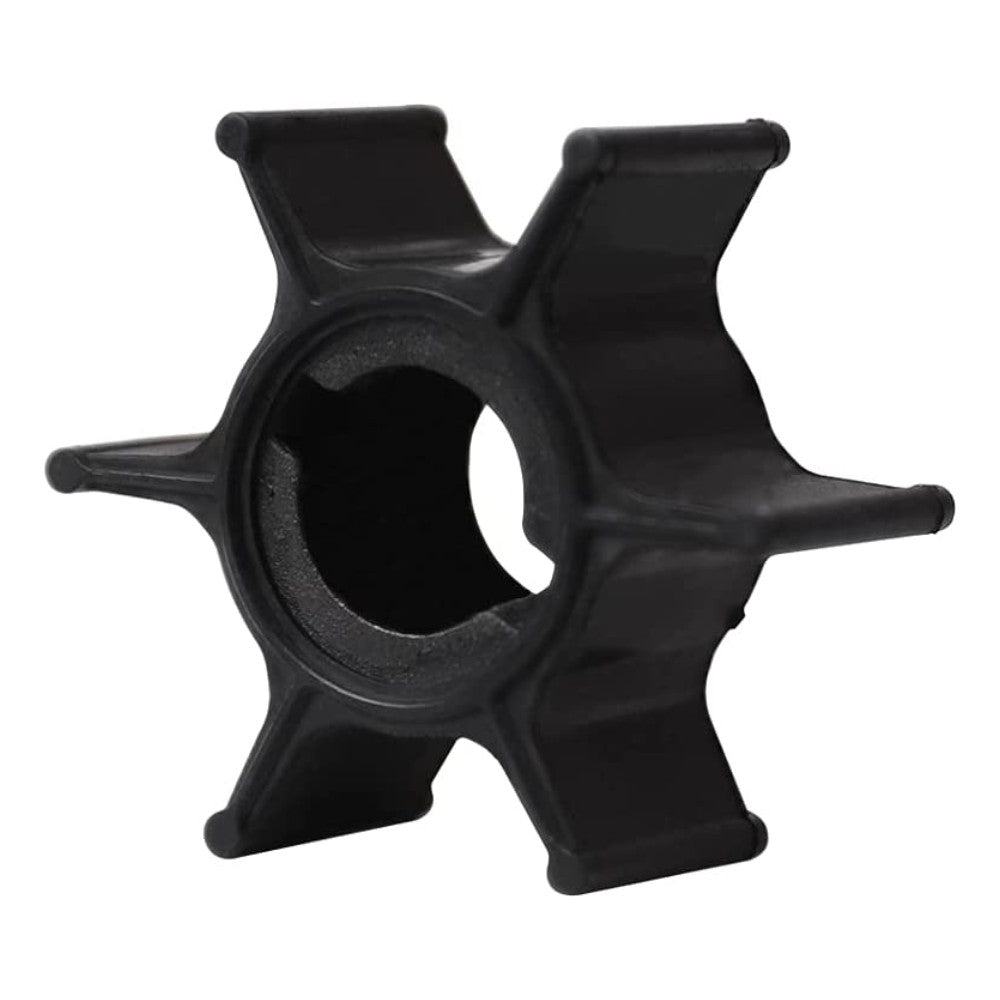

Outboard Impeller for Suzuki DF2.5 – 4-Stroke (2003+)

This aftermarket impeller is engineered to fit Suzuki 4-Stroke DF2.5 outboard engines manufactured from 2003 onward. Designed to meet OEM specifications, it ensures reliable water pump performance and efficient cooling for your engine.

This impeller directly replaces OEM part number 17461-97J00, providing a cost-effective solution for routine maintenance or emergency repairs.

• Precise fit for Suzuki DF2.5 4-stroke models
• Critical component for maintaining proper engine temperature
• Easy installation with basic hand tools

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 × Outboard Impeller

Installation Guide

1. Disconnect the fuel line and remove the engine cowling to access the lower unit.
2. Drain the lower unit oil and remove the propeller, then unbolt the lower unit from the mid-section.
3. Remove the water pump housing cover by unscrewing the retaining bolts. Carefully lift off the cover.
4. Extract the old impeller from the pump housing, noting the direction of the blades for correct installation.
5. Clean the pump housing and driveshaft thoroughly, removing any debris or old gasket material.
6. Lubricate the new impeller with waterproof marine grease or soapy water to ease installation.
7. Install the new impeller onto the driveshaft with blades oriented in the correct rotation direction (typically clockwise when viewed from above).
8. Replace the pump housing gasket and reinstall the water pump cover, tightening bolts in a cross pattern to manufacturer specifications.
9. Reattach the lower unit to the mid-section, ensuring alignment pins are properly seated.
10. Refill the lower unit with fresh gear oil and reinstall the propeller.
11. Reconnect the fuel line and replace the engine cowling.
12. Test the cooling system by running the engine in a test tank or on-water, confirming strong water flow from the telltale port.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki DF2.5?
A: Check your engine's model plate or serial number to verify it's a 4-stroke DF2.5 manufactured in 2003 or later. Cross-reference with OEM part number 17461-97J00 in your parts manual or use the Suzuki parts diagrams linked above.

Q: How often should I replace my water pump impeller?
A: Most manufacturers recommend replacing the impeller every 2–3 years or 200–300 hours of operation, whichever comes first. If you notice overheating, weak water flow from the telltale, or visible blade damage, replace it immediately.

Q: What are the signs that my impeller is failing?
A: Common symptoms include engine overheating, reduced or no water discharge from the telltale port, steam from the engine, and a high-temperature warning alarm. Inspect the impeller if any of these occur.

Q: Can I install this impeller myself, or do I need a professional?
A: If you have basic mechanical skills and tools, you can install it yourself by following the guide above. However, professional installation is recommended if you're unfamiliar with lower unit disassembly to avoid damaging seals or misaligning components.

Q: Is this an OEM part or aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
