17461-96300 Outboard Rubber Impeller with Key/Pin for Suzuki DT20 DT25 DT30 DT35 DT40 DT60 DF25 DF25A DF30 DF30A DF40 DF50

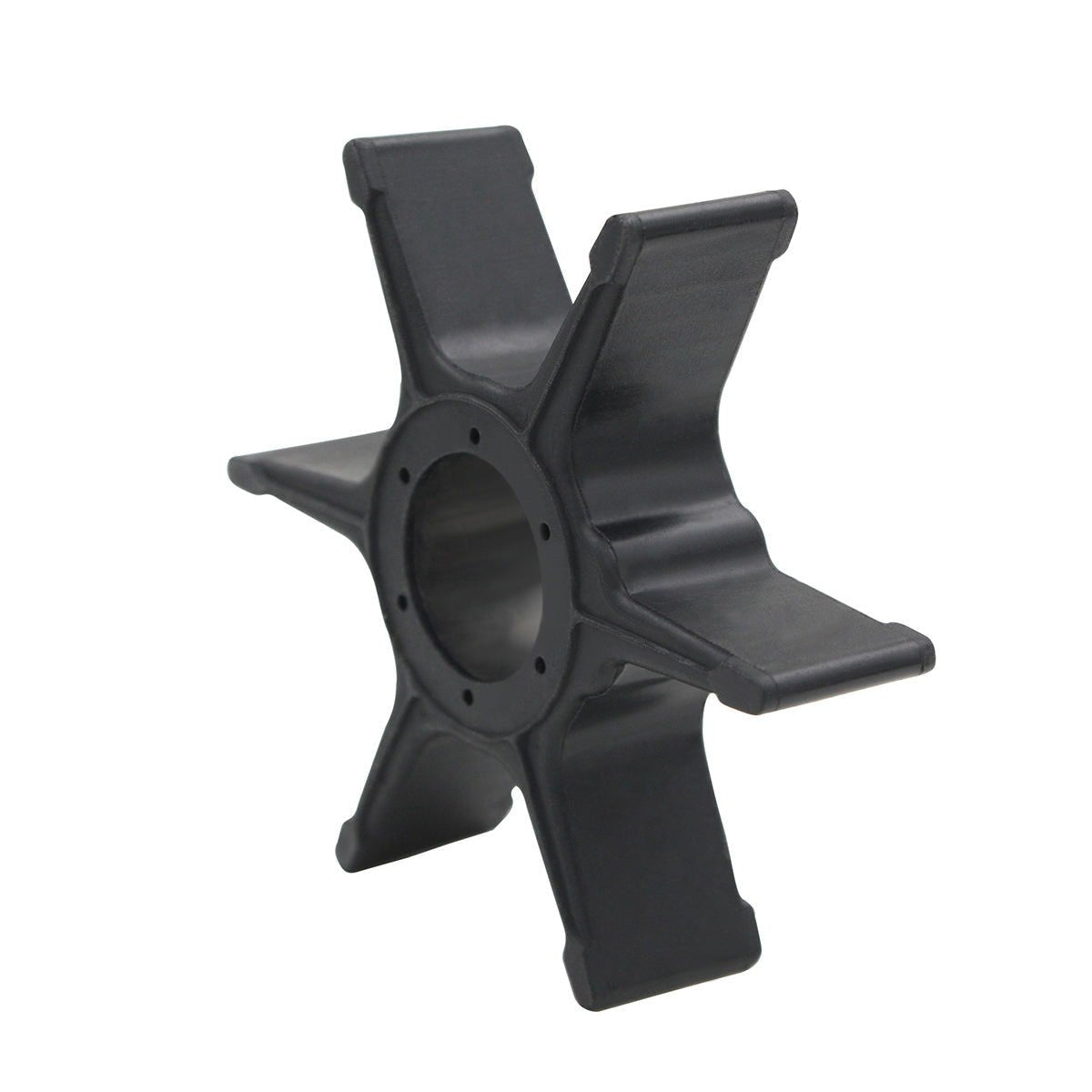

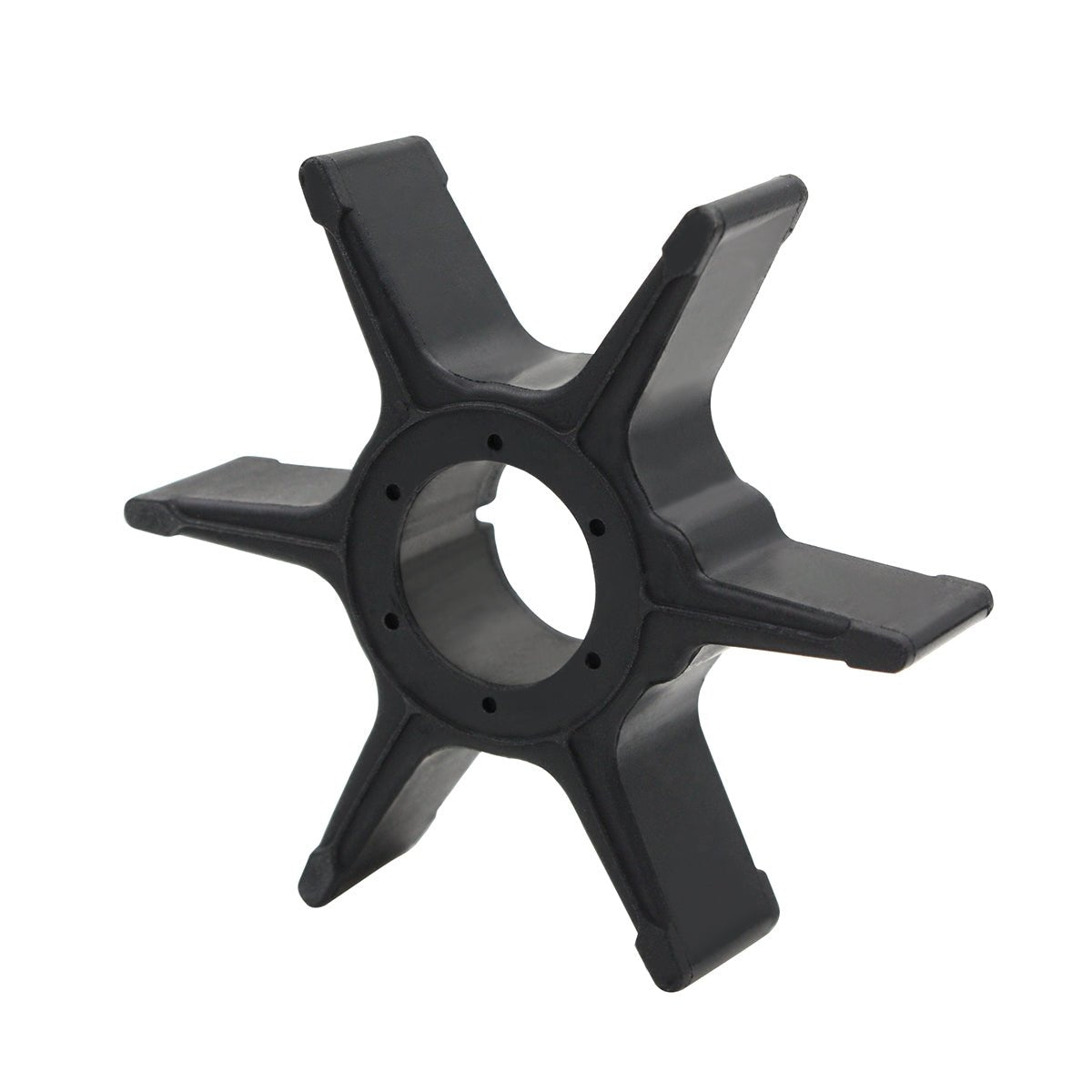

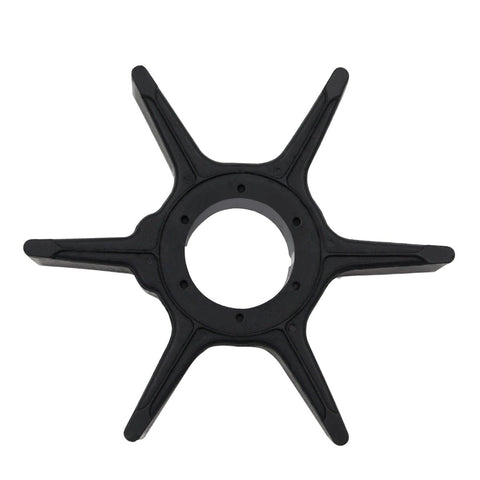

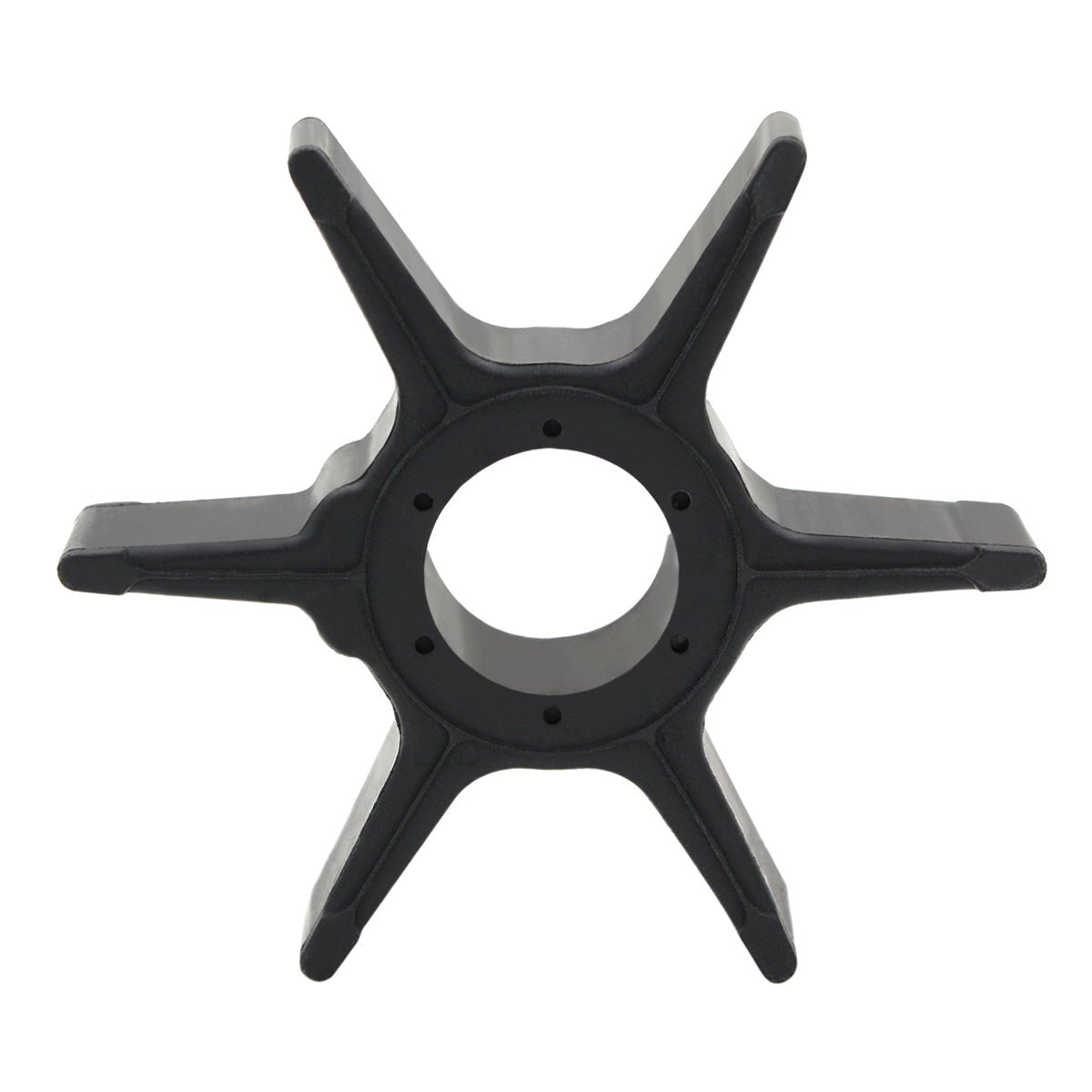

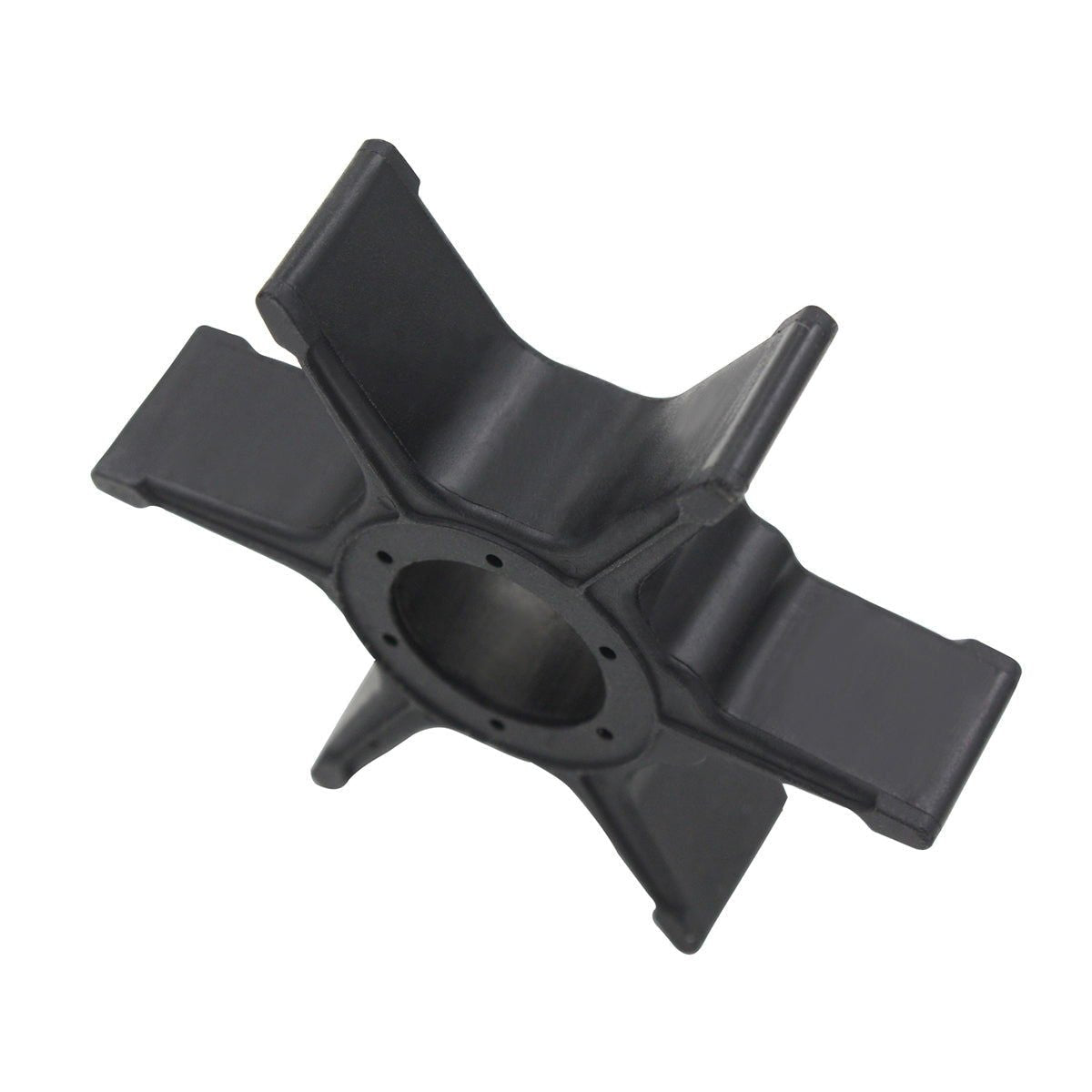

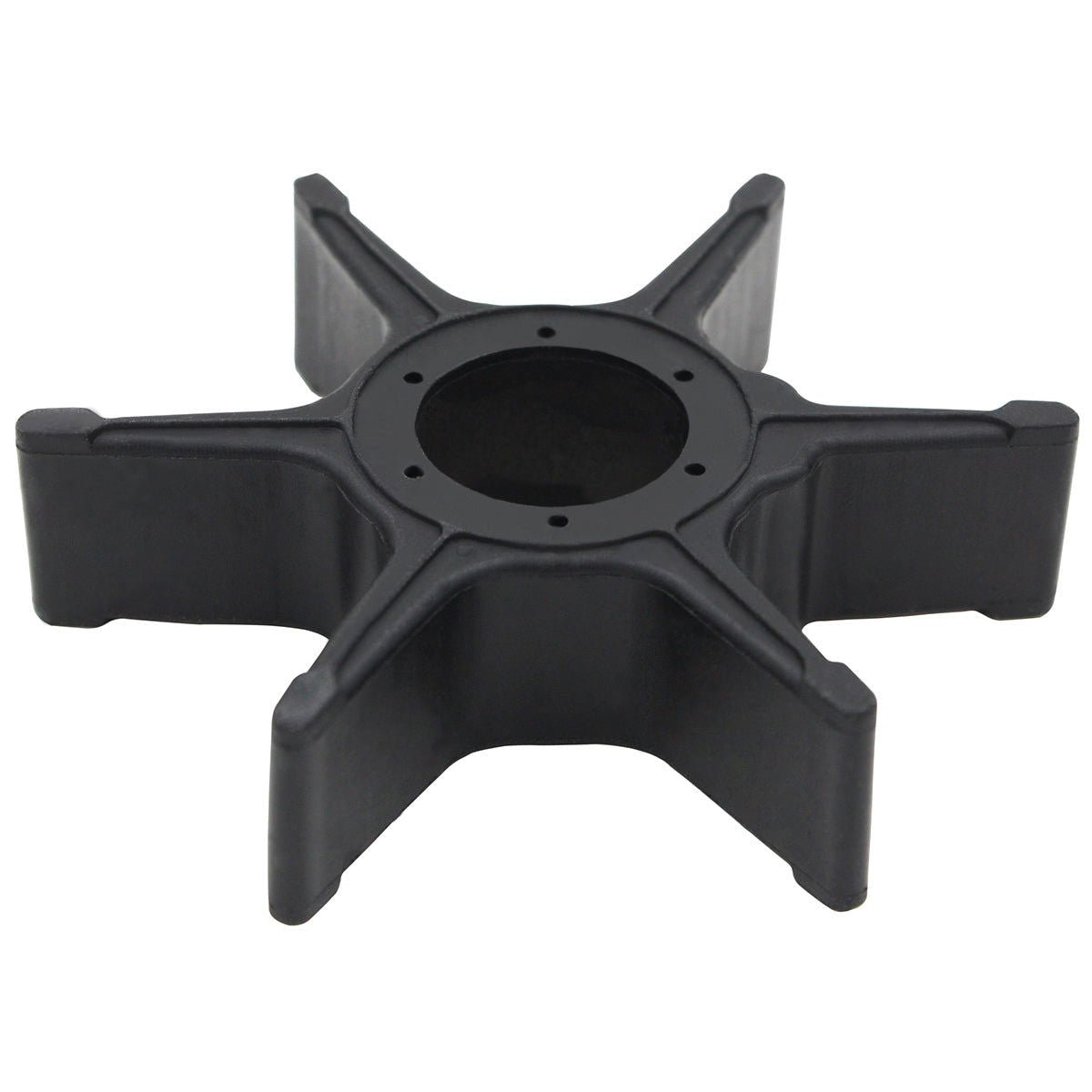

This high-quality aftermarket rubber impeller is designed to fit a wide range of Suzuki 2-stroke and 4-stroke outboard engines from 20 HP to 60 HP. Compatible with both older DT-series and modern DF-series models, it ensures reliable water pump performance across Suzuki's most popular mid-range engines spanning from 1983 to current production.

This impeller directly replaces OEM part number 17461-96300, providing a cost-effective solution for routine maintenance or emergency repairs. Engineered to OEM specifications, it delivers dependable cooling system operation for your Suzuki outboard.

• Complete kit includes rubber impeller with key/pin for immediate installation
• Fits both 2-stroke DT-series (1983–1998) and 4-stroke DF-series (1999–current) Suzuki engines
• Drop-in replacement requiring no modifications

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Package Contents

This package includes:

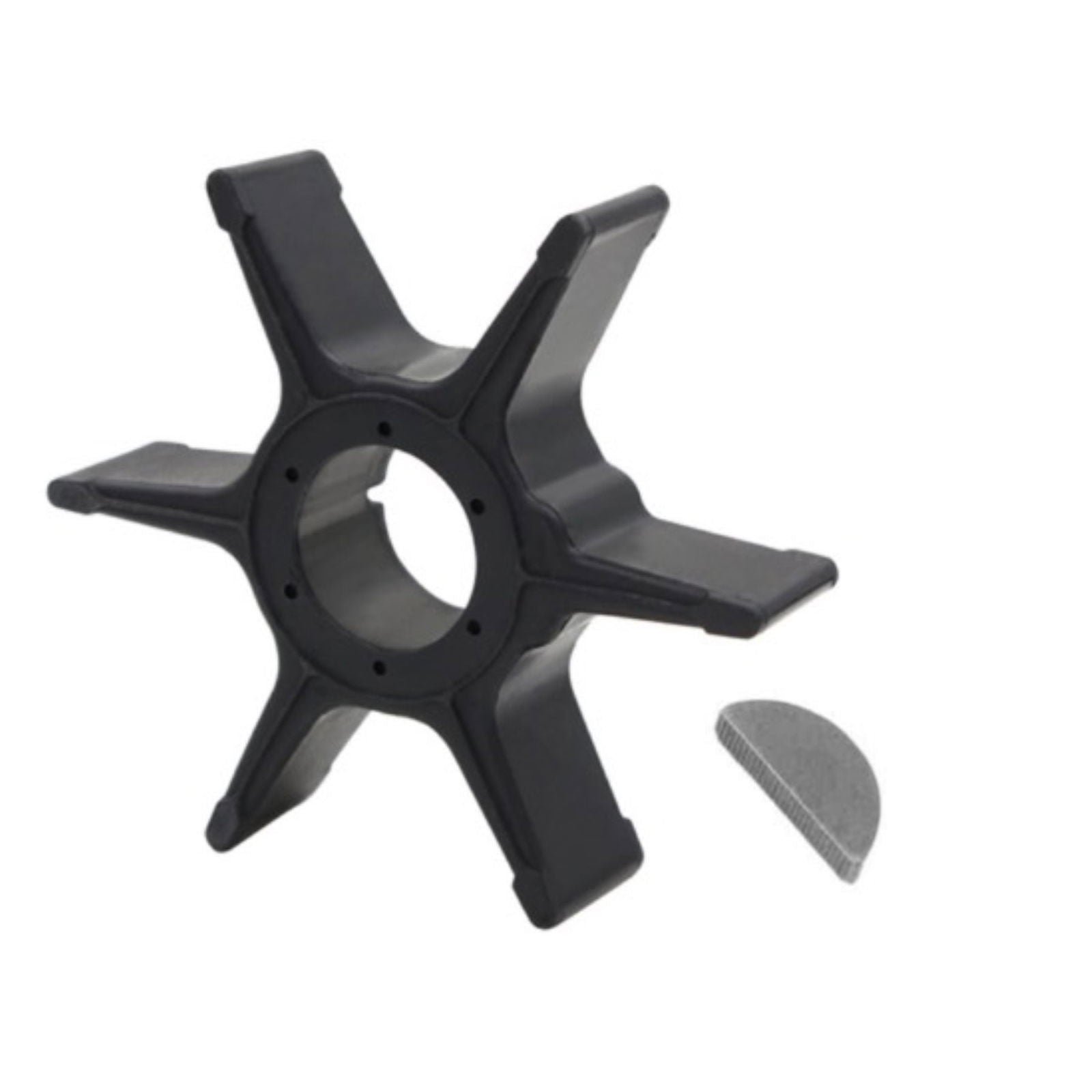

• 1 × Outboard Rubber Impeller with Key/Pin

Installation Guide

1. Disconnect the fuel line and remove the engine cowling to access the lower unit. Position the engine upright on a stable work surface.
2. Drain the lower unit gear oil by removing the drain and vent screws. Disconnect the water hose connections if present.
3. Remove the lower unit by loosening the mounting bolts and gently separating it from the mid-section. Keep all fasteners organized for reassembly.
4. Locate the water pump housing on top of the lower unit gearcase. Remove the bolts securing the pump housing cover.
5. Extract the old impeller carefully, noting the direction of the blade curvature. Clean the pump housing thoroughly, removing any debris or old gasket material.
6. Lubricate the new impeller blades with water pump grease or glycerin to ease installation and prevent initial dry-running damage.
7. Insert the key/pin into the drive shaft slot as specified by your engine's design. Ensure it is properly seated.
8. Install the new impeller onto the drive shaft, rotating it in the correct direction while gently pressing down. The blades should curve in the direction of rotation.
9. Replace the pump housing and gaskets with new components if worn. Torque the housing bolts to manufacturer specifications in a cross pattern.
10. Reattach the lower unit to the mid-section, ensuring the drive shaft engages properly. Secure all mounting bolts to the specified torque.
11. Refill the lower unit with fresh gear oil through the lower drain hole until it flows from the upper vent. Install both plugs securely.
12. Test the cooling system by running the engine in a test tank or on muffs. Verify strong water flow from the indicator hole within 30 seconds of startup.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki engine?
A: Cross-reference your engine model and year with the compatibility table above. You can also verify by checking the OEM part number 17461-96300 in your Suzuki parts diagram or owner's manual for your specific DT or DF model.

Q: How often should I replace my water pump impeller?
A: Suzuki recommends inspecting the impeller annually and replacing it every 2–3 years or 200–300 hours of operation, whichever comes first. If you operate in sandy, silty, or debris-filled waters, inspect and replace more frequently.

Q: What are the signs that my impeller has failed?
A: Common symptoms include weak or no water discharge from the indicator hole, engine overheating, steam from the powerhead, or reduced performance. If you notice any of these, shut down immediately and inspect the impeller.

Q: Does this impeller come with the key or pin needed for installation?
A: Yes, this kit includes the rubber impeller with the key/pin required for proper installation on your Suzuki water pump drive shaft.

Q: Can I install this impeller myself or do I need a mechanic?
A: If you have basic mechanical skills and tools, you can replace the impeller following the installation guide. However, professional installation is recommended if you're unfamiliar with lower unit removal or torque specifications.

Q: Is this an OEM Suzuki impeller or an aftermarket replacement?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
