17461-93J00 Outboard Rubber Impeller with Key/Pin for Suzuki DF200 DF225 DF250 DF300

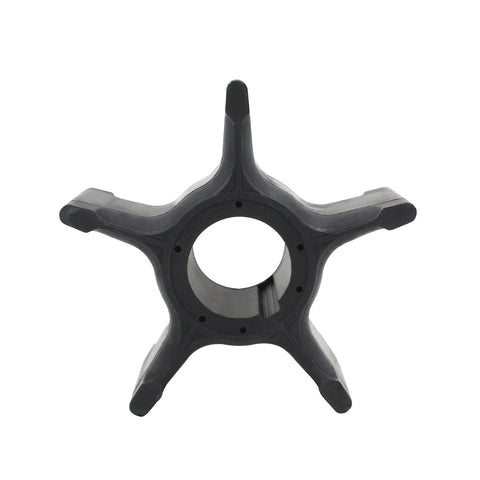

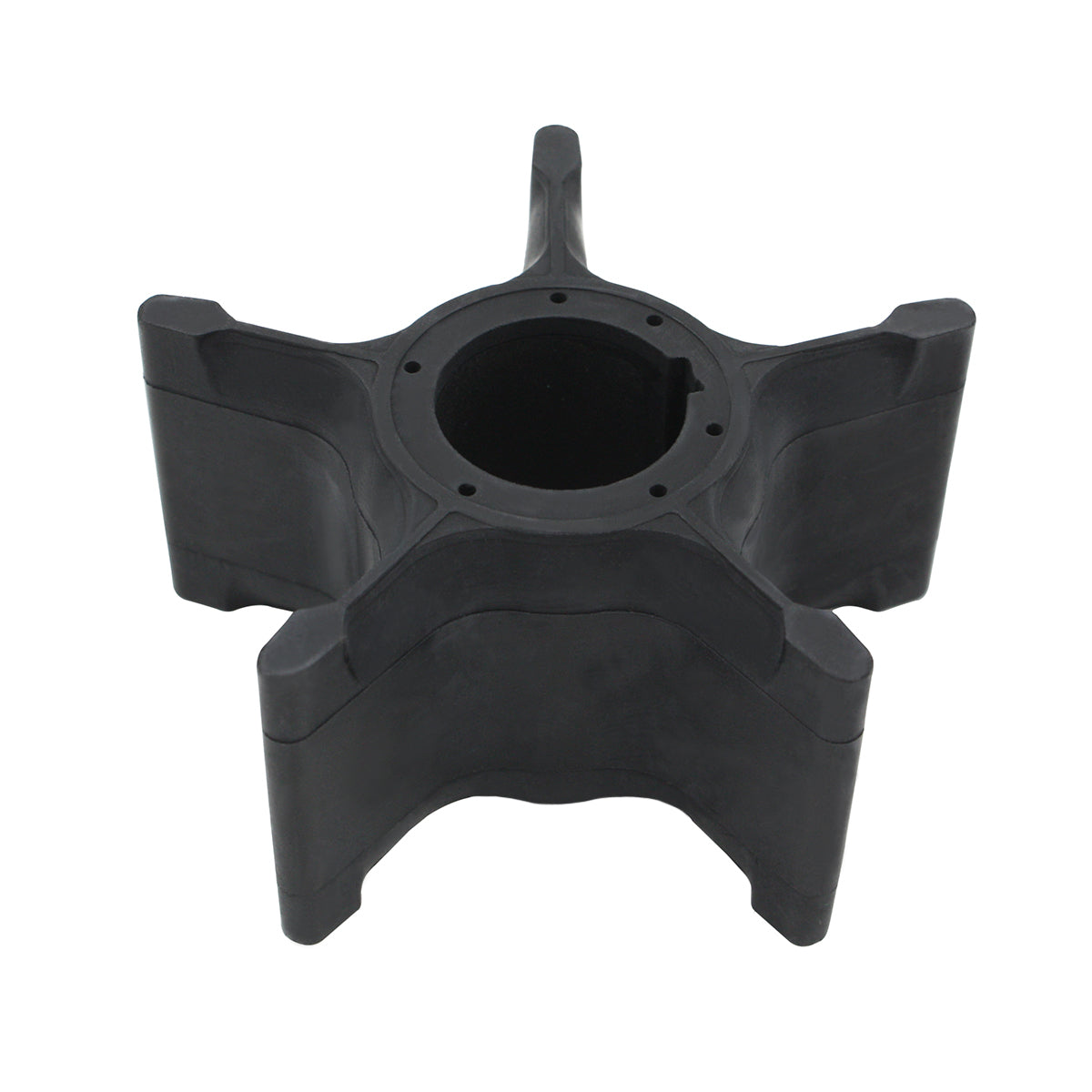

This aftermarket rubber impeller with key/pin is designed for Suzuki 4-stroke outboard engines, including the DF200, DF225, DF250, and DF300 models. Engineered to meet OEM specifications, this impeller ensures reliable water pump performance and engine cooling for your Suzuki outboard.

This impeller directly replaces OEM part number 17461-93J00, providing a cost-effective solution for routine maintenance or emergency repairs.

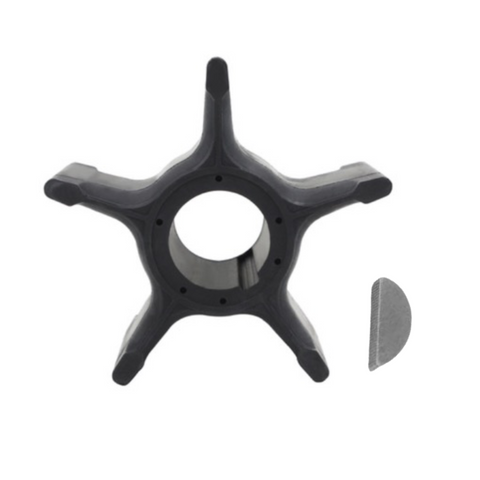

• Complete kit includes rubber impeller and key/pin for straightforward installation
• Compatible with multiple Suzuki DF-series 4-stroke models from 2004–2007 onwards
• Essential maintenance component for optimal cooling system performance

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• Outboard Rubber Impeller with Key/Pin

Installation Guide

1. Preparation: Disconnect the battery and flush the cooling system. Gather the necessary tools including screwdrivers, pliers, and a new impeller kit.
2. Access the Water Pump: Remove the lower unit or water pump housing according to your engine's service manual. Keep track of all fasteners and their locations.
3. Remove the Old Impeller: Extract the worn impeller from the pump housing using pliers if necessary. Note the orientation of the impeller blades for proper reinstallation.
4. Inspect the Housing: Check the pump housing and wear plate for damage, scoring, or debris. Clean all surfaces thoroughly before proceeding.
5. Lubricate the New Impeller: Apply a thin coat of glycerin, dish soap, or impeller grease to the new impeller blades. This helps during installation and initial startup.
6. Install the Key/Pin: Insert the key or pin into the designated slot on the drive shaft. Ensure it is seated properly and securely.
7. Install the Impeller: Carefully slide the new impeller onto the shaft, rotating it gently to align the blades in the correct direction. The blades should face the direction indicated in your service manual.
8. Reassemble the Pump Housing: Place the wear plate and housing back over the impeller, ensuring all components align correctly. Tighten fasteners to the manufacturer's specified torque.
9. Reinstall the Lower Unit: Reattach the lower unit or pump cover, reconnecting all water lines and fittings. Double-check that all fasteners are secure.
10. Test the System: Reconnect the battery and run the engine with a flushing attachment or in a test tank. Verify that water flows strongly from the telltale (pee hole).
11. Final Inspection: Check for leaks around the pump housing and ensure the engine maintains proper operating temperature. Monitor performance during the first few outings.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki outboard?
A: Cross-reference your engine model and year with the compatibility table above. Verify that your OEM part number matches 17461-93J00 by checking your engine's parts diagram or existing impeller.

Q: How often should I replace my water pump impeller?
A: Most manufacturers recommend replacing the impeller every 2–3 years or 200–300 hours of operation, whichever comes first. If you frequently operate in sandy or debris-laden water, inspect and replace more often.

Q: What are the signs that my impeller is failing?
A: Common symptoms include weak or no water flow from the telltale, engine overheating, steam from the engine, or visible damage to impeller blades during inspection. Replace immediately if any of these occur.

Q: Does this kit include everything I need for installation?
A: This kit includes the rubber impeller and key/pin. Depending on your engine's condition, you may also need a gasket set, wear plate, or housing O-rings, which are typically sold separately.

Q: Can I use this impeller in saltwater environments?
A: Yes, this impeller is suitable for both freshwater and saltwater use. However, saltwater environments accelerate wear, so more frequent inspection and replacement are recommended, along with regular flushing after each use.

Q: What is the difference between OEM and aftermarket impellers?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
