Water Pump Impeller – Fits Suzuki DF200/225/250/300/350 Outboards (Replaces 17461-93J00, 17461-93J01)

Water Pump Impeller – Fits Suzuki DF200/225/250/300/350 Outboards (Replaces 17461-93J00, 17461-93J01)

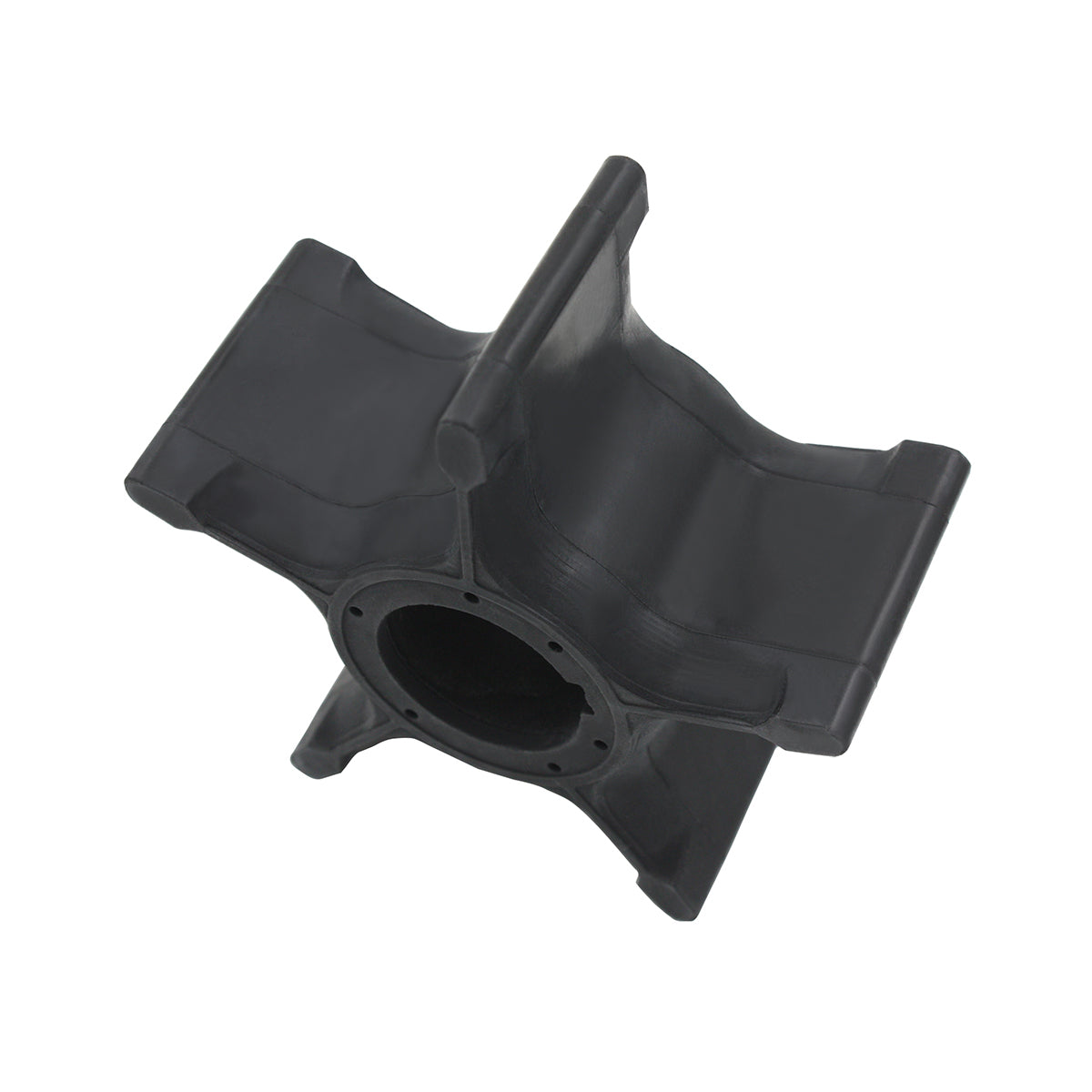

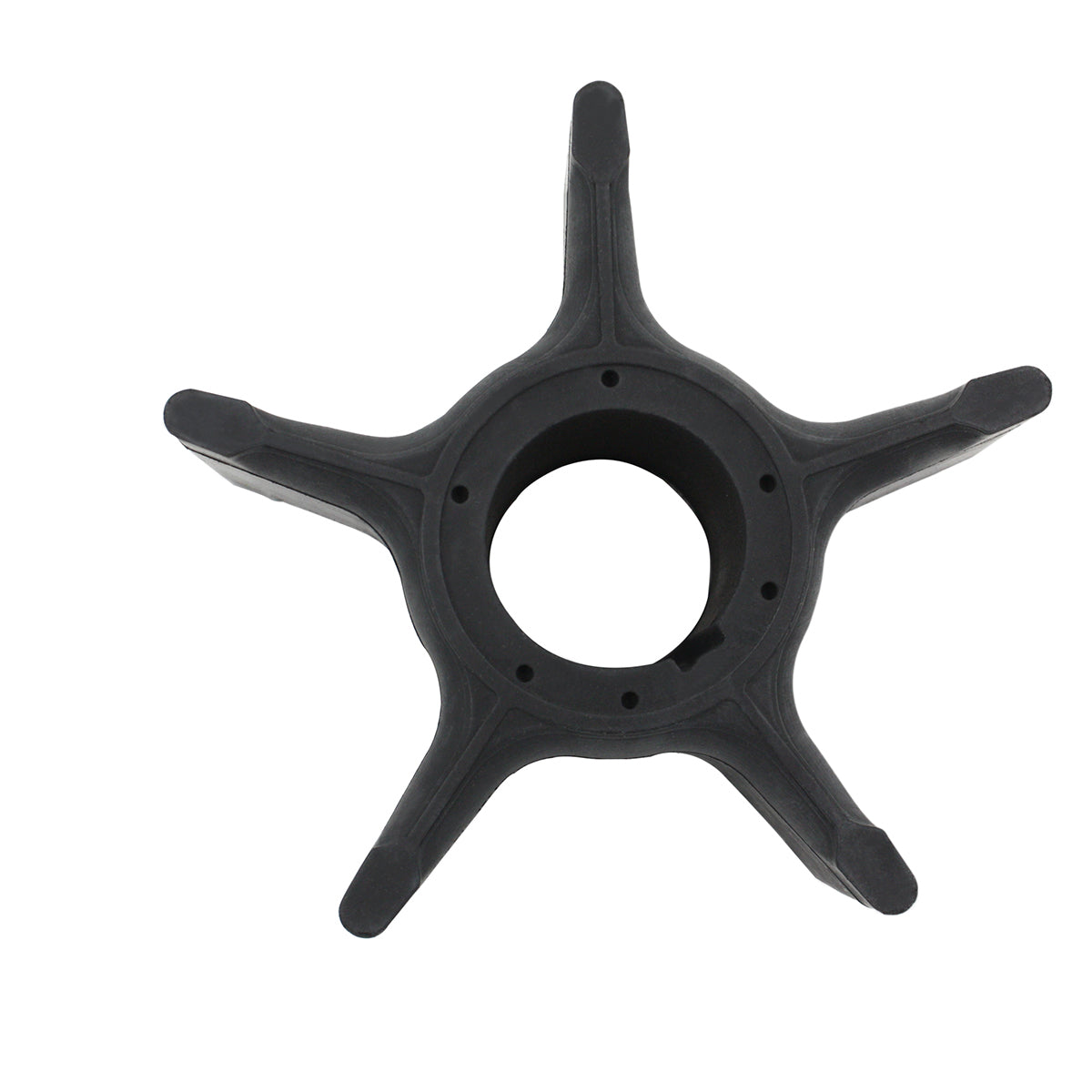

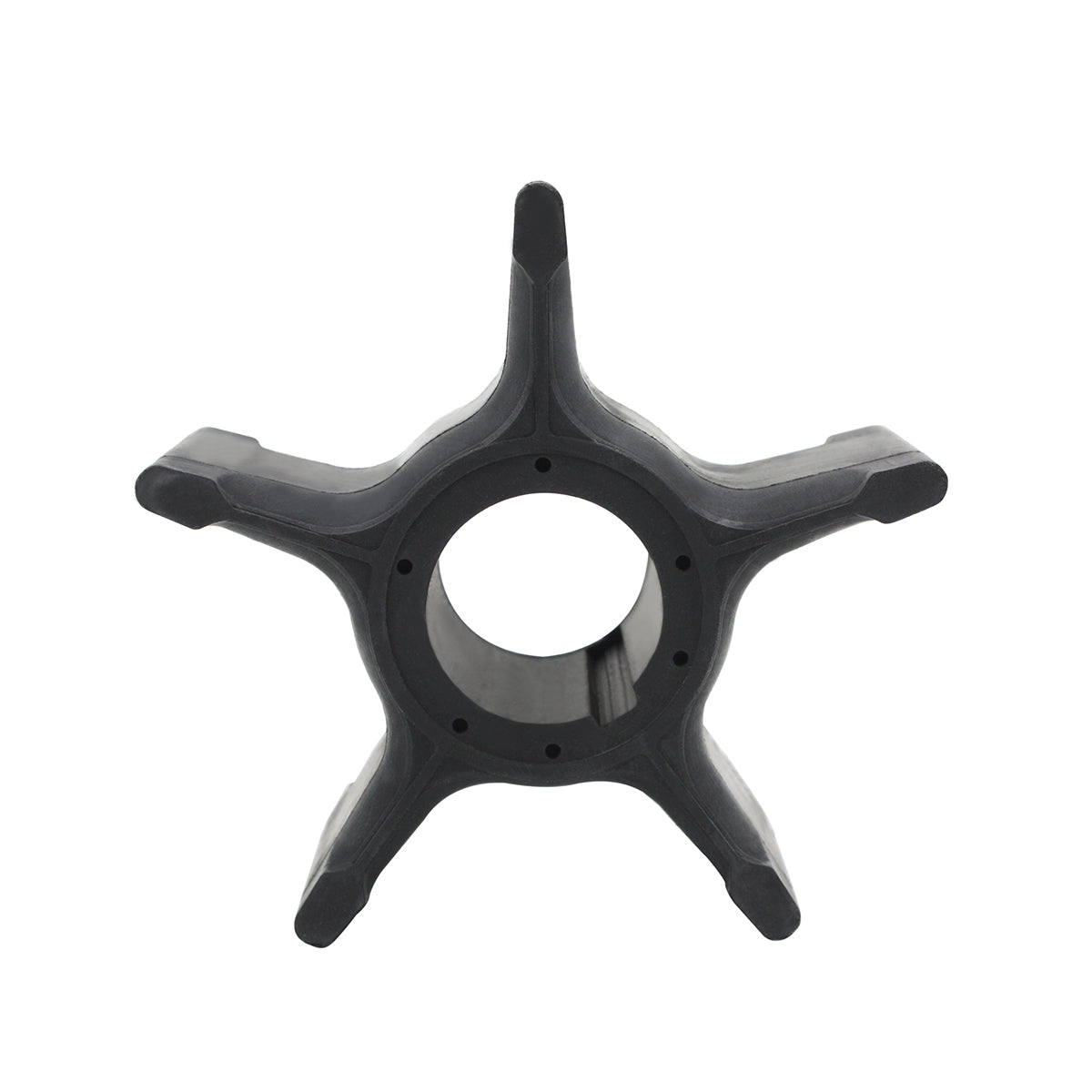

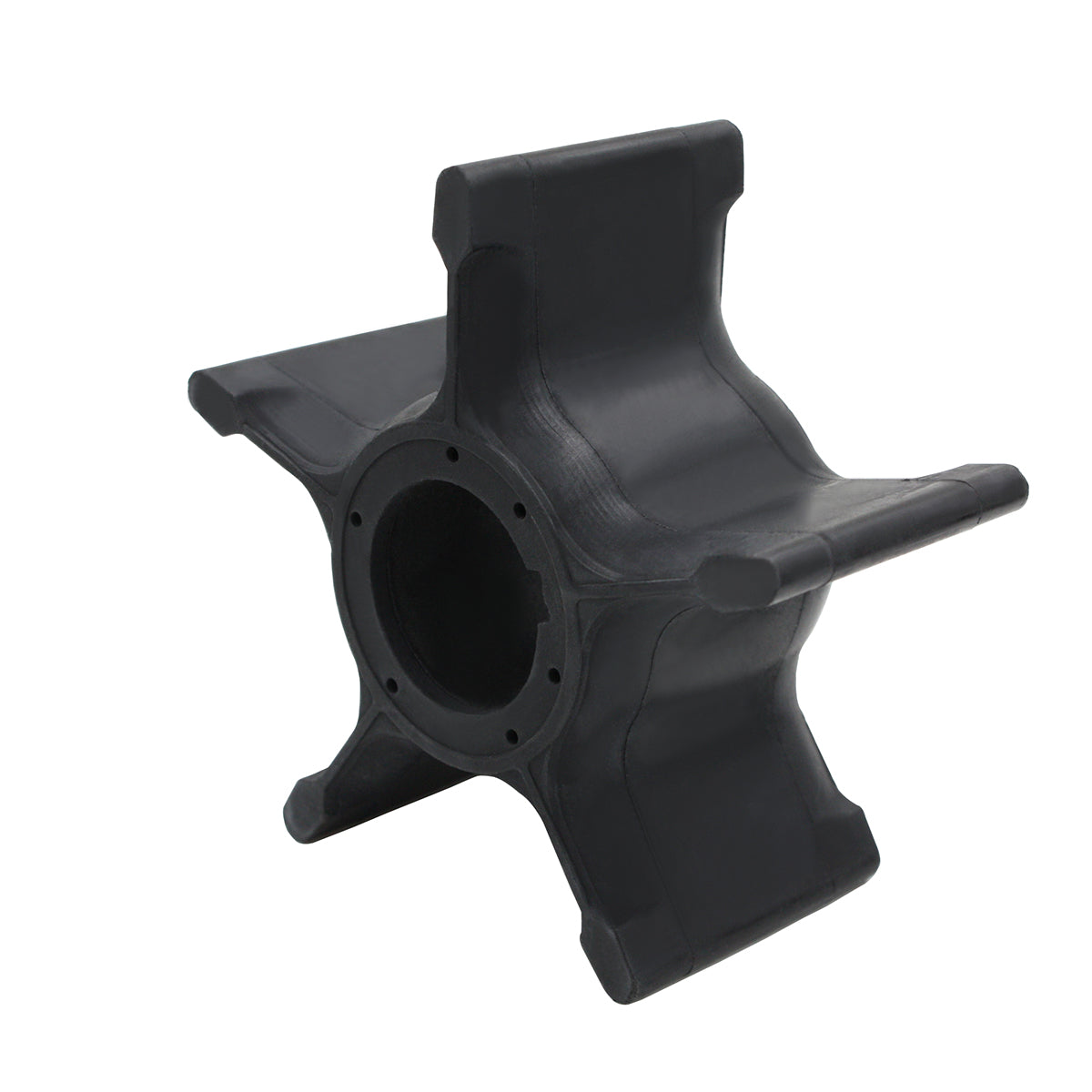

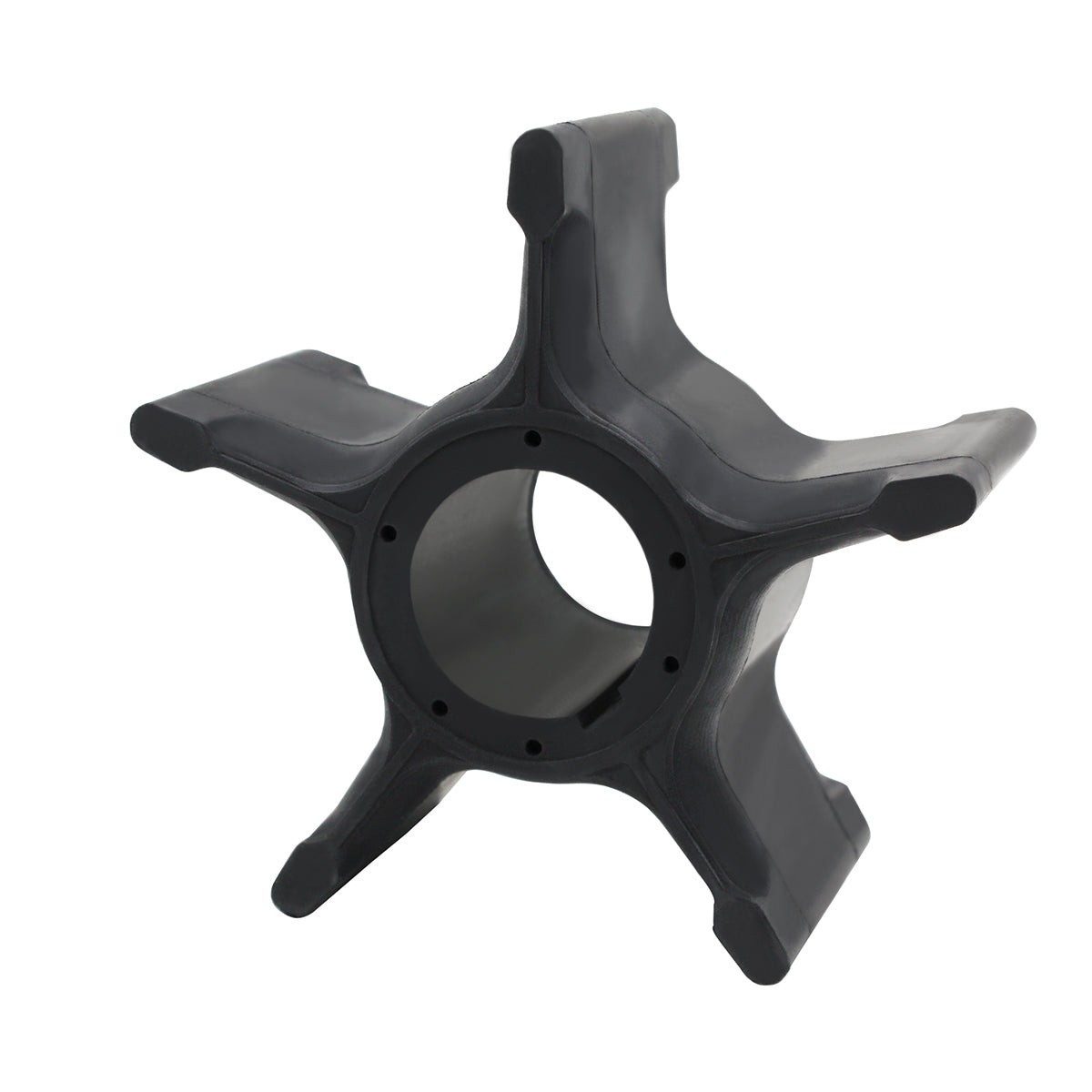

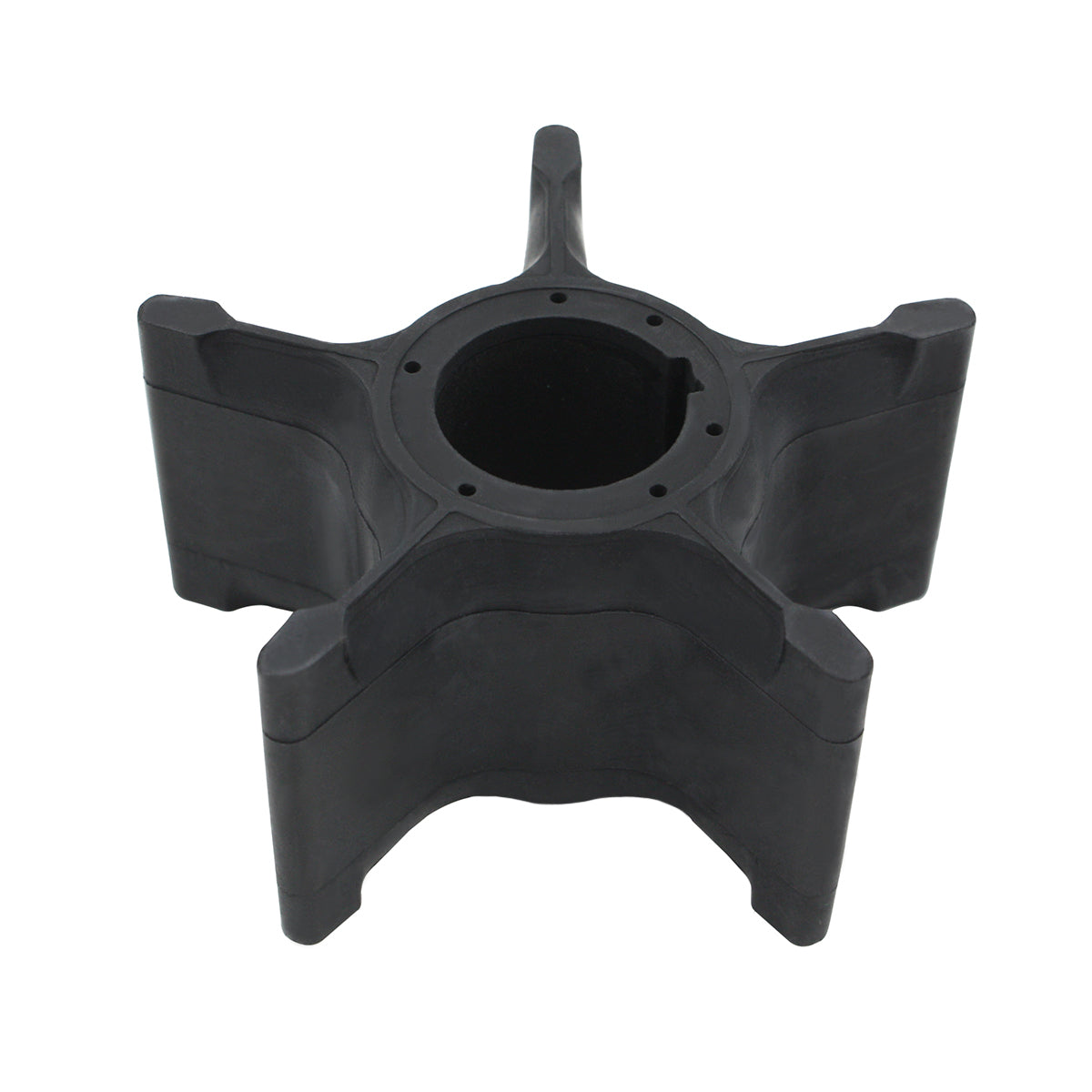

This water pump impeller is designed to fit a wide range of Suzuki 4-Stroke outboards, including the DF200, DF225, and DF250 from 2004 to current, the DF300 from 2007 to current, and select DF350 models. Please verify your specific model application for the DF350 series before purchasing.

It serves as a direct replacement for multiple OEM and aftermarket part numbers, ensuring broad compatibility. This part replaces Suzuki 17461-93J00 and 17461-93J01, Sierra 18-3035, CEF 500393, and Johnson/OMC 5035040.

• Installation Method: Installs as a direct OEM-equivalent replacement.
• Durable Construction: Features a robust nylon hub with flexible neoprene rubber blades for reliable performance.
• Secure Fit: Designed with a key slot to ensure proper and secure installation on the driveshaft.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (Replaces 17461-93J00/17461-93J01)

Explosion Diagram

Installation Guide

1. Disconnect the negative battery cable for safety.
2. Place a drain pan under the lower unit and remove the gearcase drain and vent plugs to drain the gear oil.
3. Remove the bolts securing the lower unit (gearcase) to the engine's midsection.
4. Carefully lower the gearcase away from the engine. The driveshaft will disengage from the powerhead.
5. Locate the water pump housing on top of the gearcase and remove its bolts.
6. Lift the housing off to expose the impeller. Note the rotational direction of the existing impeller's fins for reference.
7. Remove the old impeller and the drive key from the shaft. Clean any debris or corrosion from the housing interior and wear plate.
8. Install the new drive key into the driveshaft slot.
9. Slide the new impeller onto the driveshaft, aligning its keyway with the key.
10. While rotating the driveshaft clockwise, press the water pump housing down over the impeller. This correctly bends the fins.
11. Secure the housing with its bolts and torque to the manufacturer's specification. Reinstall the gearcase and refill with new gear oil before testing.

Troubleshooting & FAQ

How do I confirm this fits my engine?

This impeller is confirmed to fit Suzuki DF200, DF225, and DF250 models from 2004 to current, as well as DF300 models from 2007 to current. For DF350 outboards, compatibility is for select models only; it is critical to verify your specific engine's part number requirements. The surest method is to cross-reference the part numbers 17461-93J00 or 17461-93J01 with your engine's service manual or existing part.

What are the signs of a failing water pump impeller?

A weak or nonexistent stream of water from the engine's tell-tale port is the most common symptom. Other signs include engine overheating alarms, steam from the exhaust, or a noticeable drop in performance as the engine's ECU reduces power to prevent damage.

How often should I replace the impeller?

For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1 to 2 years (or every 100-200 hours of operation). More frequent replacement may be necessary if you operate in sandy, silty, or saltwater environments, which can accelerate wear.

OEM vs. Aftermarket?

This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?

We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?

This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
