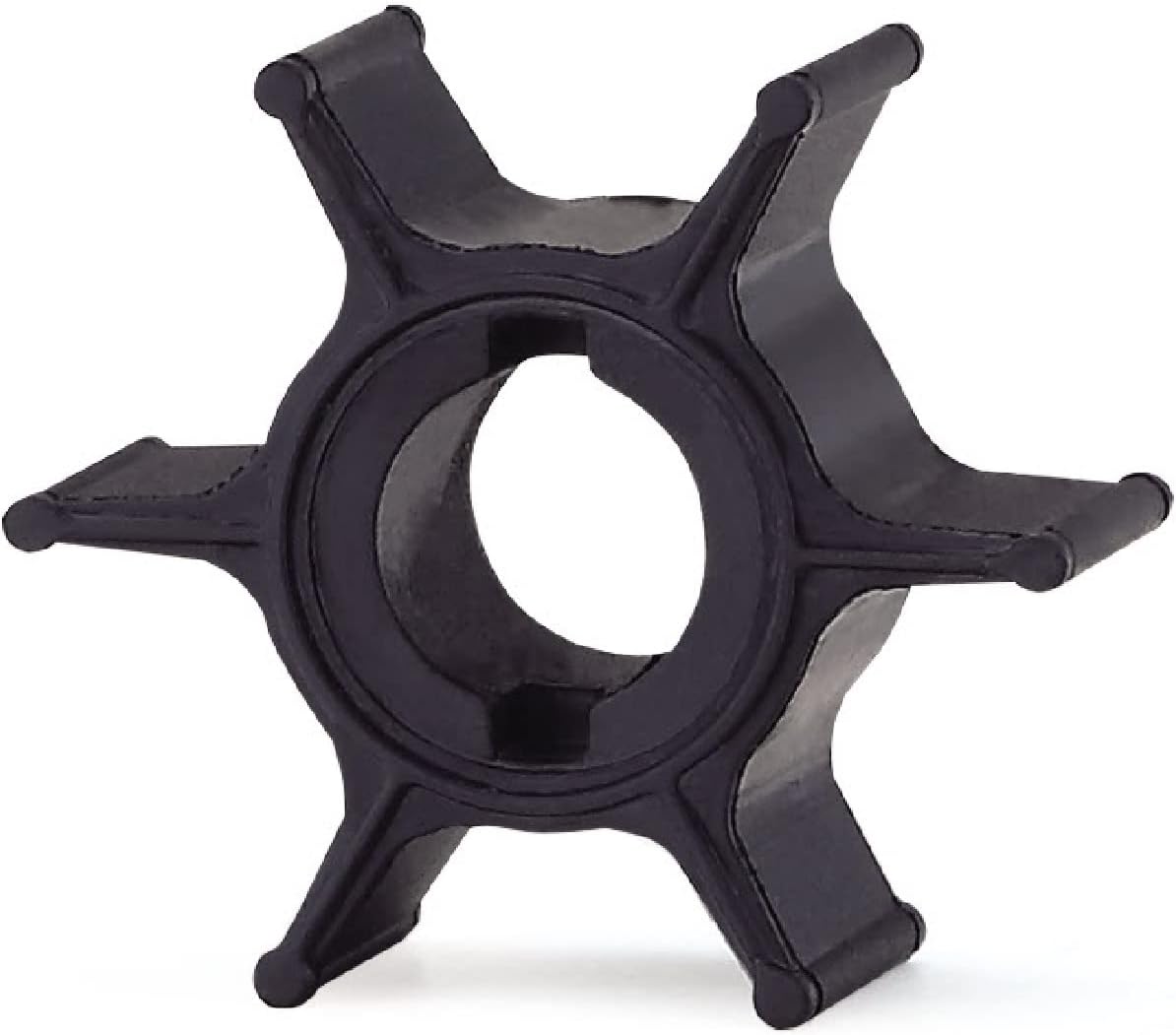

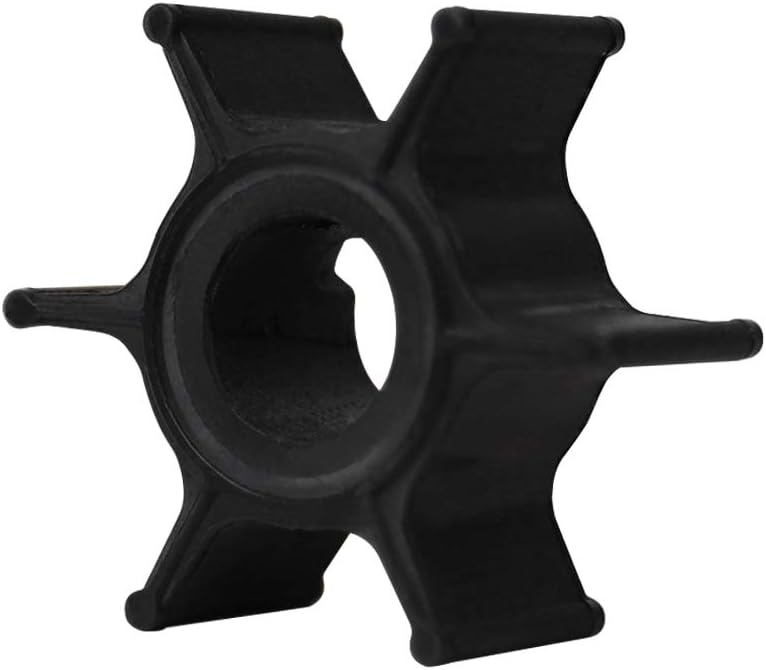

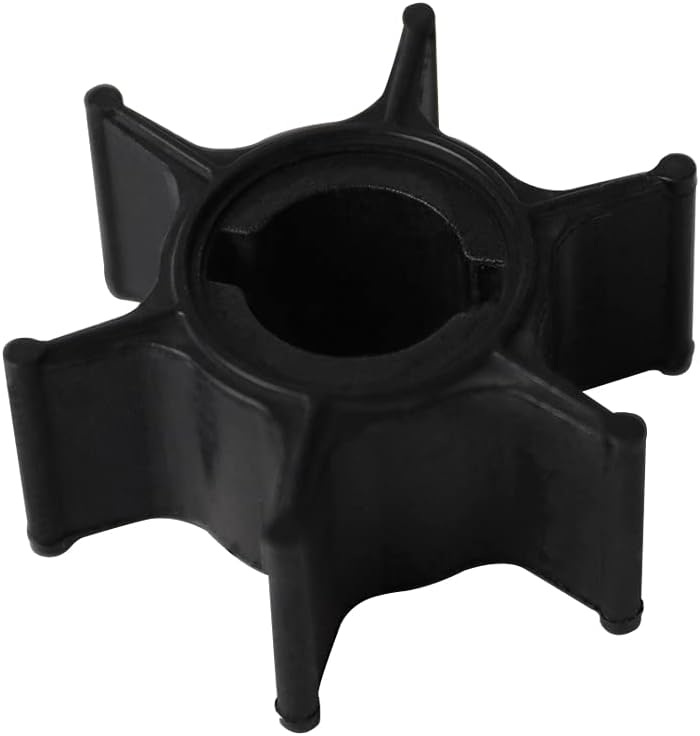

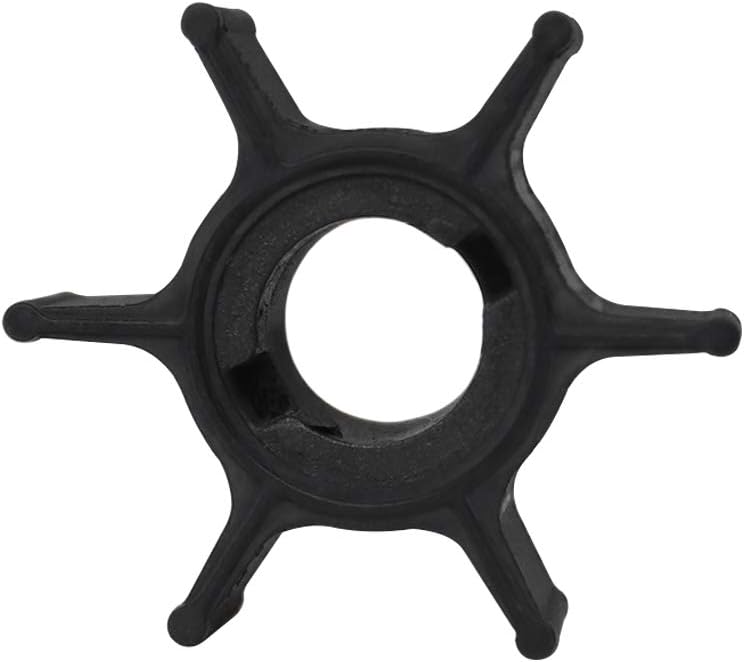

This high-quality aftermarket rubber impeller is engineered to fit Suzuki 4-Stroke DF2.5 outboard engines from 2003 and later. Designed to meet OEM specifications, it ensures reliable water flow and cooling performance for your small outboard motor.

This impeller serves as a direct replacement for OEM part number 17461-97J00, offering dependable performance at a competitive price point.

• Includes drive key/pin for complete installation
• Precision-molded rubber for optimal sealing and durability
• Designed for 4-stroke small outboard applications

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

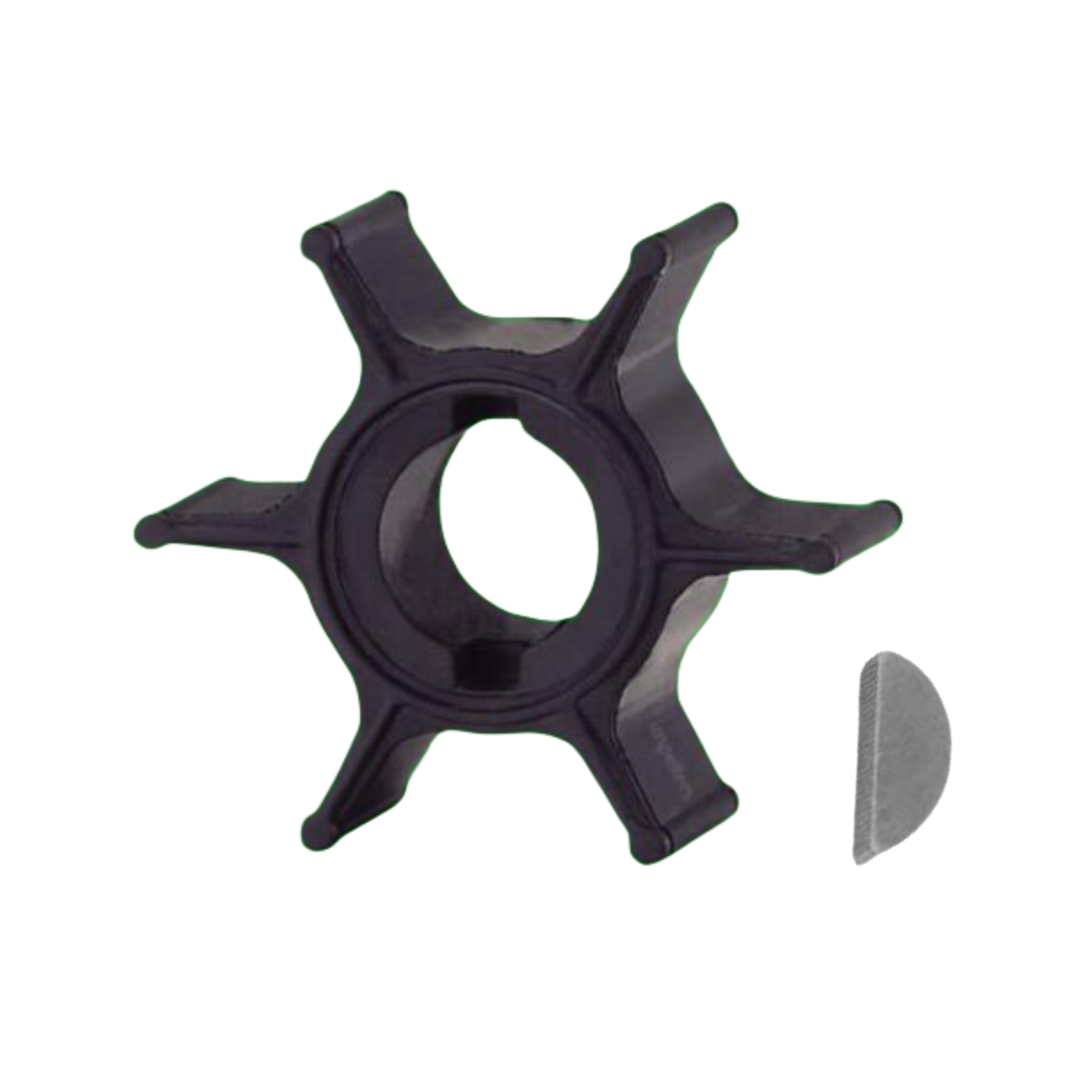

• 1 × Outboard Rubber Impeller
• 1 × Drive Key / Pin

Installation Guide

1. Disconnect the fuel line and remove the lower unit from the outboard engine following your service manual.
2. Locate and remove the water pump housing cover, typically secured by several bolts.
3. Carefully extract the old impeller from the pump housing. Note the direction of the blade curve for reference.
4. Inspect the pump housing and plate for wear, corrosion, or damage; clean thoroughly.
5. Lubricate the new impeller blades with water-resistant marine grease or glycerin.
6. Install the drive key/pin into the impeller hub, ensuring it seats properly.
7. Insert the new impeller into the housing with blades oriented in the correct rotation direction.
8. Reinstall the pump cover plate and gasket, torquing bolts to manufacturer specifications.
9. Reattach the lower unit to the engine, aligning the water tube and drive shaft carefully.
10. Reconnect the fuel line and test the water pump output by running the engine with a flush adapter or in a test tank.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki DF2.5?
A: Verify your engine model is DF2.5 (4-stroke) manufactured in 2003 or later. Cross-check the OEM part number 17461-97J00 in your service manual or on the Suzuki parts diagram.

Q: How often should I replace my water pump impeller?
A: Most manufacturers recommend replacing the impeller every 2–3 years or 200–300 hours of operation, whichever comes first. If you run in sandy, silty, or debris-laden water, inspect it annually.

Q: What are the signs my impeller is failing?
A: Common symptoms include weak water flow from the tell-tale (pee hole), engine overheating, steam from the powerhead, or visible damage such as missing, cracked, or melted blades when inspected.

Q: Does this kit include the gasket and seals for the pump housing?
A: This kit includes the impeller and drive key/pin only. Gaskets and seals are sold separately; we recommend replacing them whenever you service the water pump.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
