17461-93500 Outboard Impeller for Suzuki DT9.9 DT16 | JLM Marine

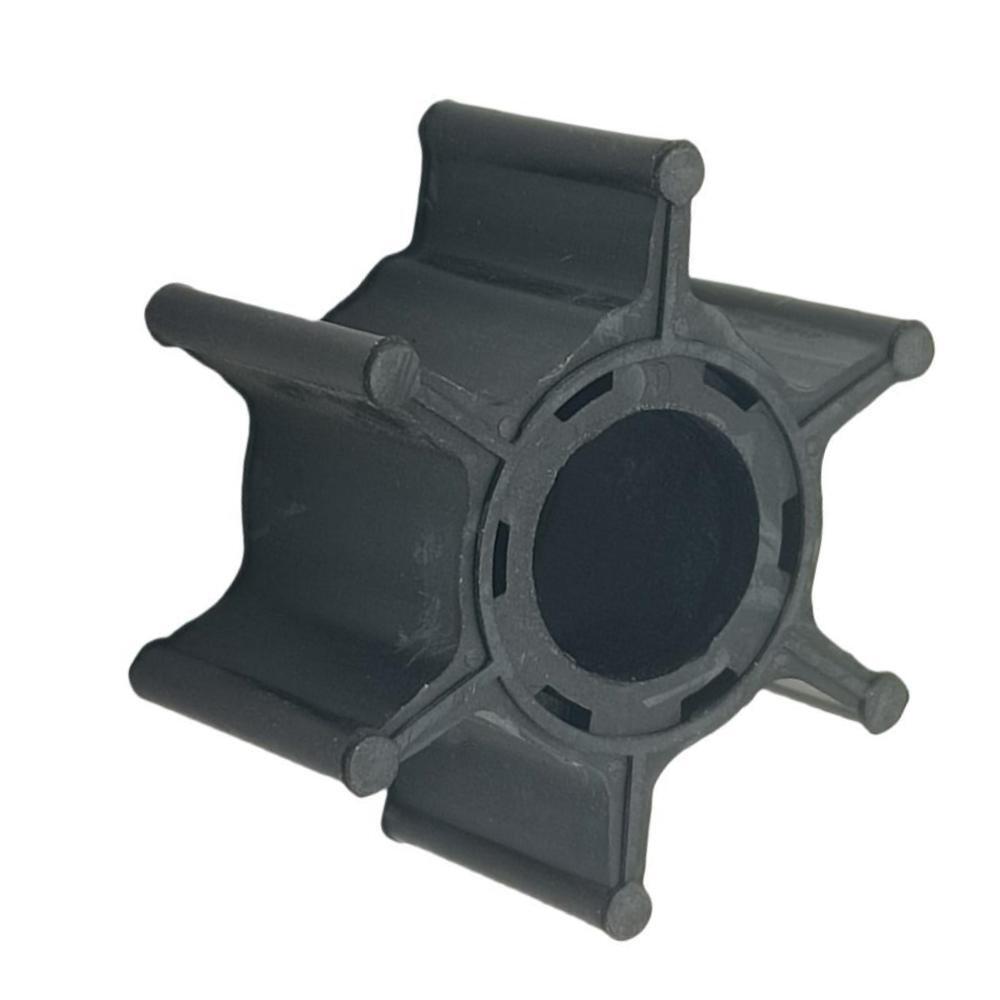

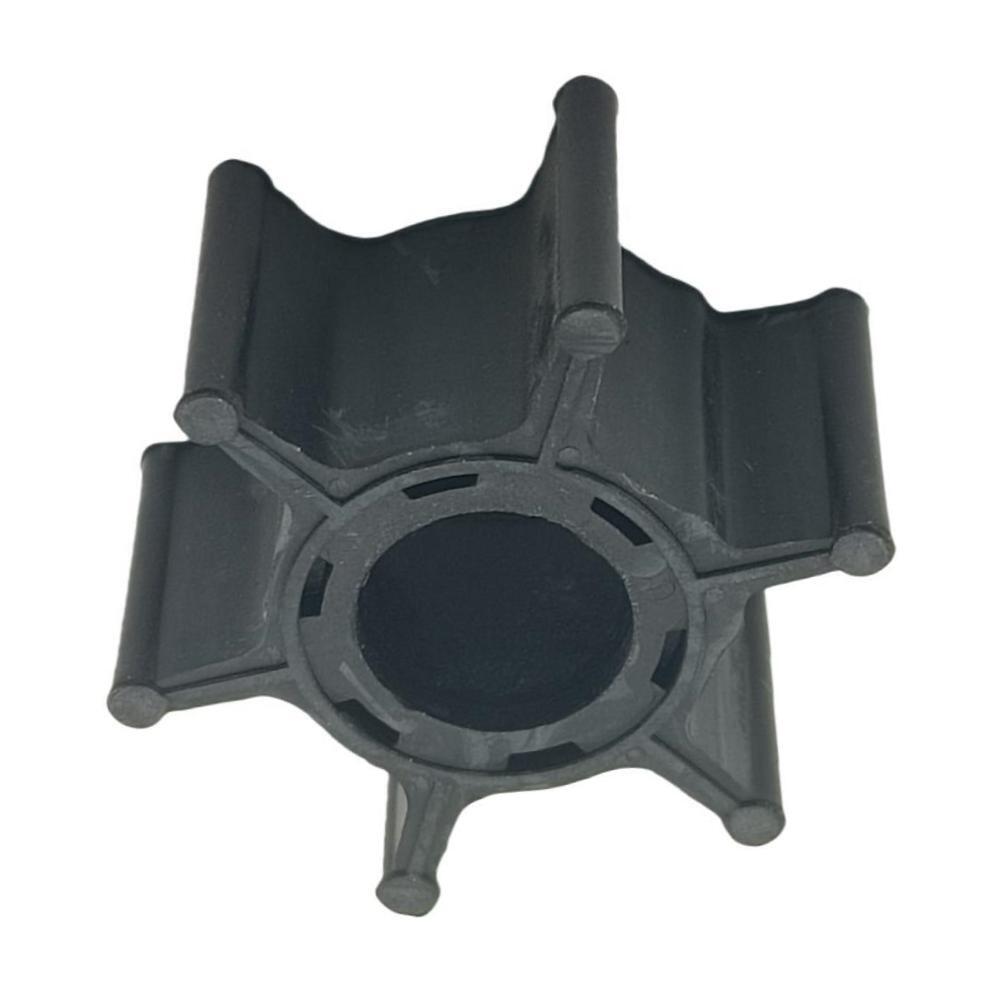

Outboard Impeller for Suzuki 2-Stroke DT9.9 DT16 (1980-1982)

This aftermarket water pump impeller is engineered to fit Suzuki 2-Stroke DT9.9 and DT16 outboard engines manufactured between 1980 and 1982. Designed to deliver reliable cooling performance, it ensures your engine operates within safe temperature ranges during every trip.

This impeller directly replaces OEM part number 17461-93500, providing a cost-effective solution without compromising on quality or fitment.

• Precision-molded to OEM specifications for exact fit and function
• Essential maintenance component for consistent water flow
• Straightforward installation with basic hand tools

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands:

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 × Outboard Impeller

Installation Guide

1. Disconnect the fuel line and remove the engine cowling to access the lower unit.
2. Drain the gear oil from the lower unit and remove the propeller for safety.
3. Remove the bolts securing the water pump housing cover and carefully lift it off.
4. Extract the old impeller using needle-nose pliers or an impeller removal tool, noting the direction of the vanes.
5. Clean the impeller chamber thoroughly, removing any debris, old gasket material, or corrosion.
6. Lubricate the new impeller with glycerin or soapy water (never petroleum-based lubricants).
7. Install the new impeller with vanes oriented in the same direction as the original.
8. Replace the water pump housing gasket with a new one to ensure a watertight seal.
9. Reassemble the water pump housing cover and tighten bolts to manufacturer torque specifications.
10. Reinstall the propeller and refill the lower unit with fresh gear oil.
11. Reattach the engine cowling and reconnect the fuel line.
12. Run the engine in a test tank or on-water to confirm proper water flow from the telltale port.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki engine?
A: Verify that your engine is a 2-stroke DT9.9 or DT16 model manufactured between 1980 and 1982. Cross-check your original impeller against OEM part number 17461-93500. If specifications match, this impeller will fit.

Q: How often should I replace the water pump impeller?
A: Most manufacturers recommend replacing the impeller every 2–3 years or 200–300 hours of operation, whichever comes first. If you frequently operate in sandy or debris-laden water, inspect and replace more often.

Q: What are the signs of a failing impeller?
A: Common symptoms include reduced or no water flow from the telltale port, engine overheating, steam from the cowling, or loss of power. Inspect the impeller immediately if you notice any of these issues.

Q: Can I use petroleum-based grease to lubricate the impeller during installation?
A: No, petroleum-based products will damage the rubber vanes. Use only glycerin, soapy water, or manufacturer-approved impeller lubricant.

Q: What's the difference between this aftermarket impeller and the OEM part?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
