17461-87E00 Outboard Impeller for Suzuki DT90 DT100 DF60 DF70 DF80 DF90

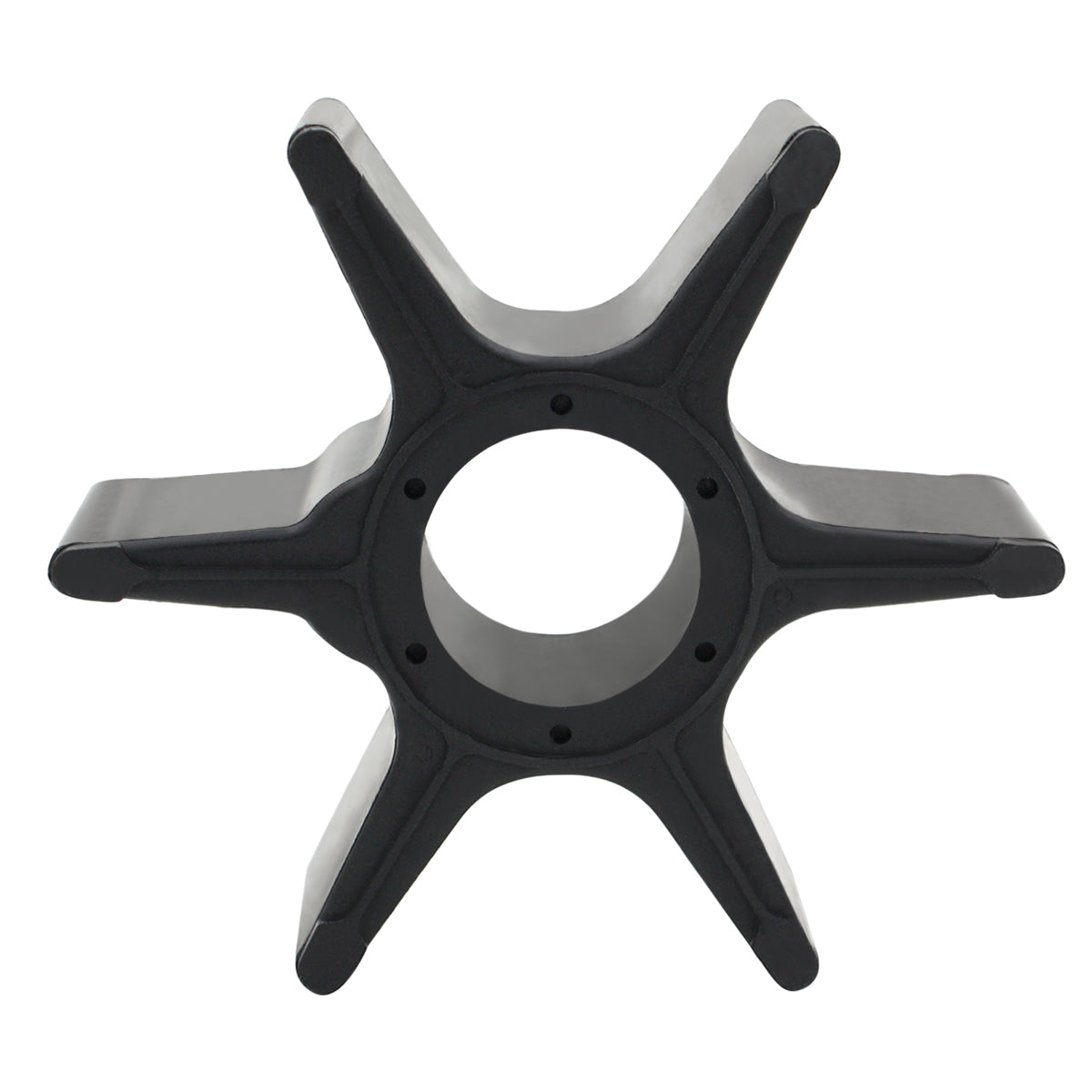

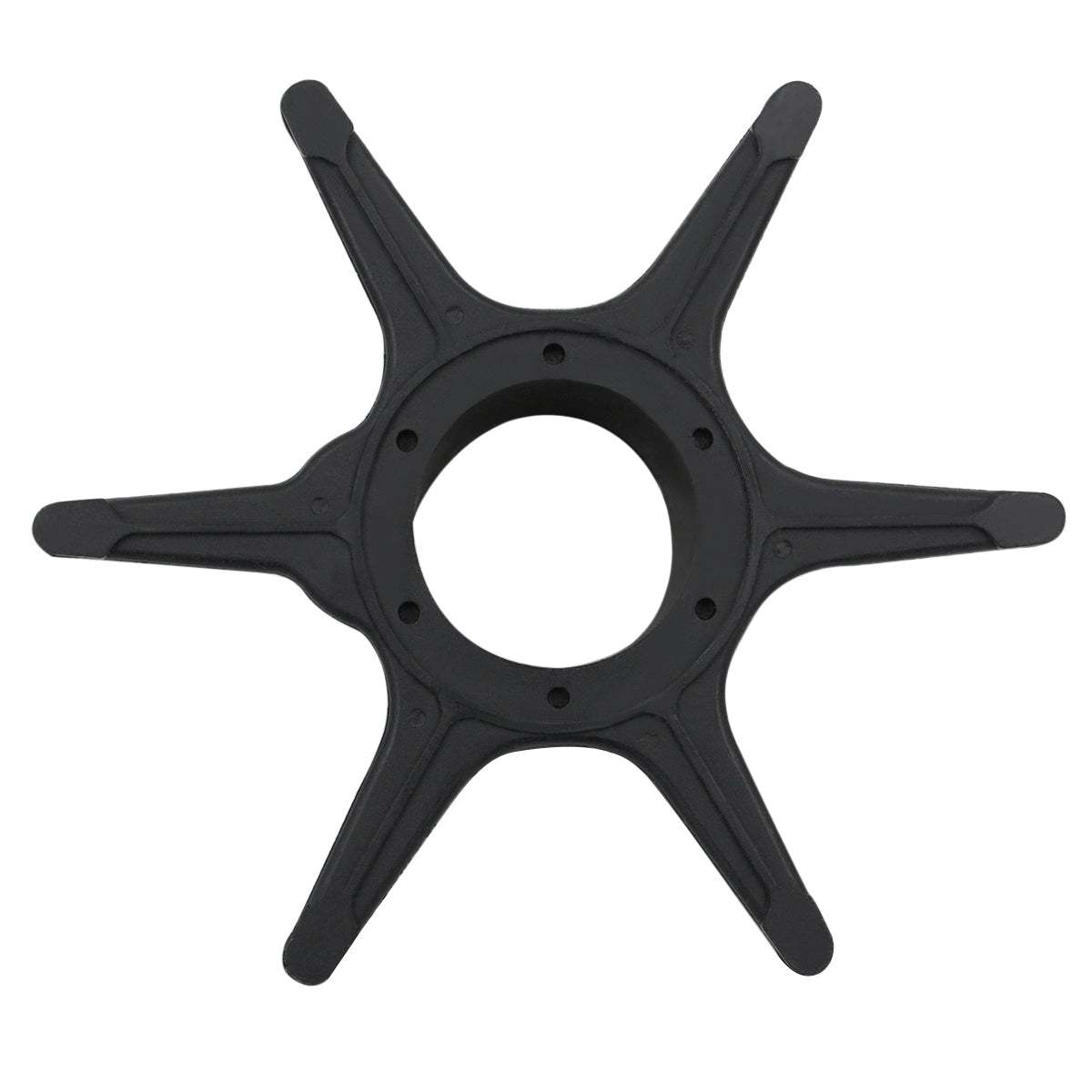

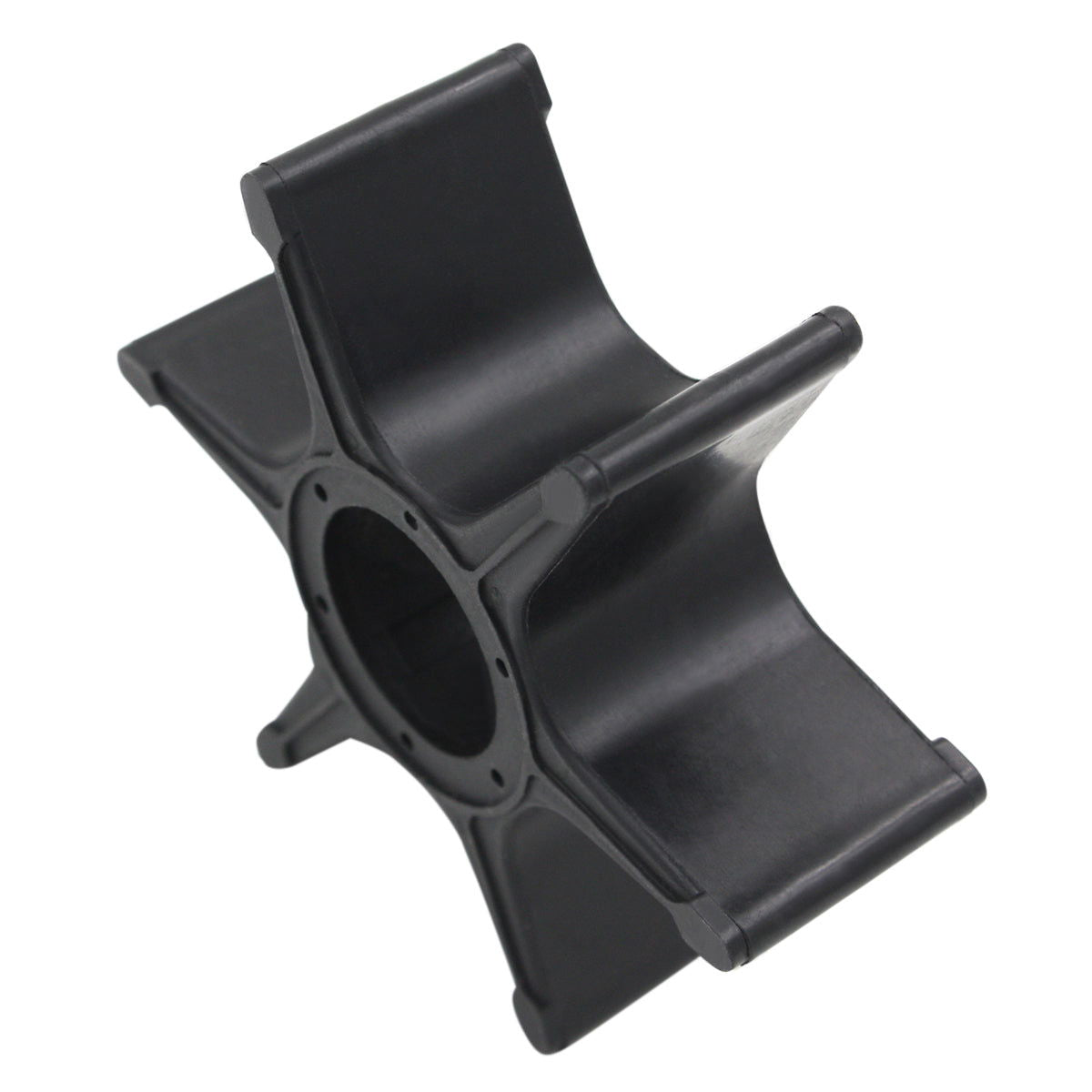

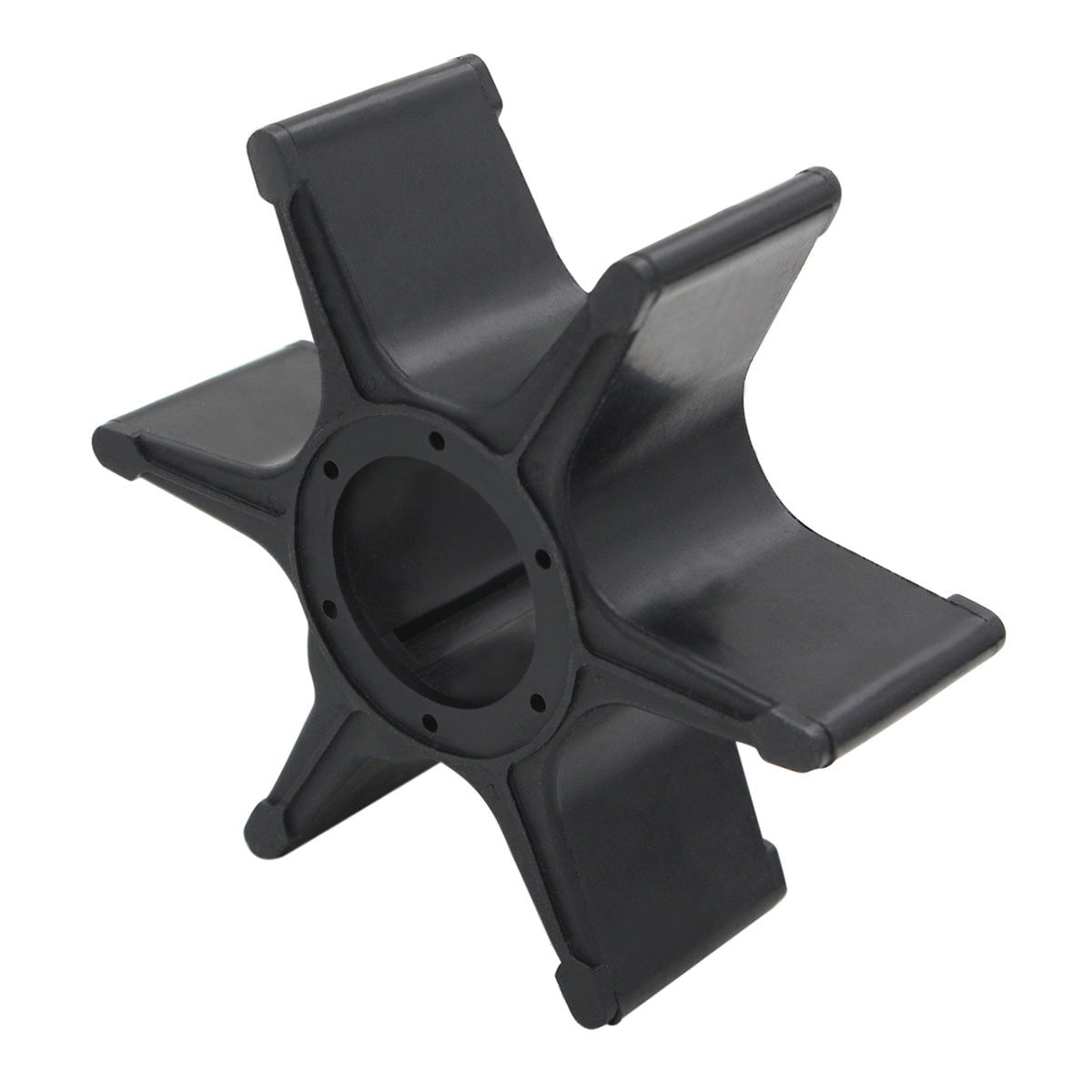

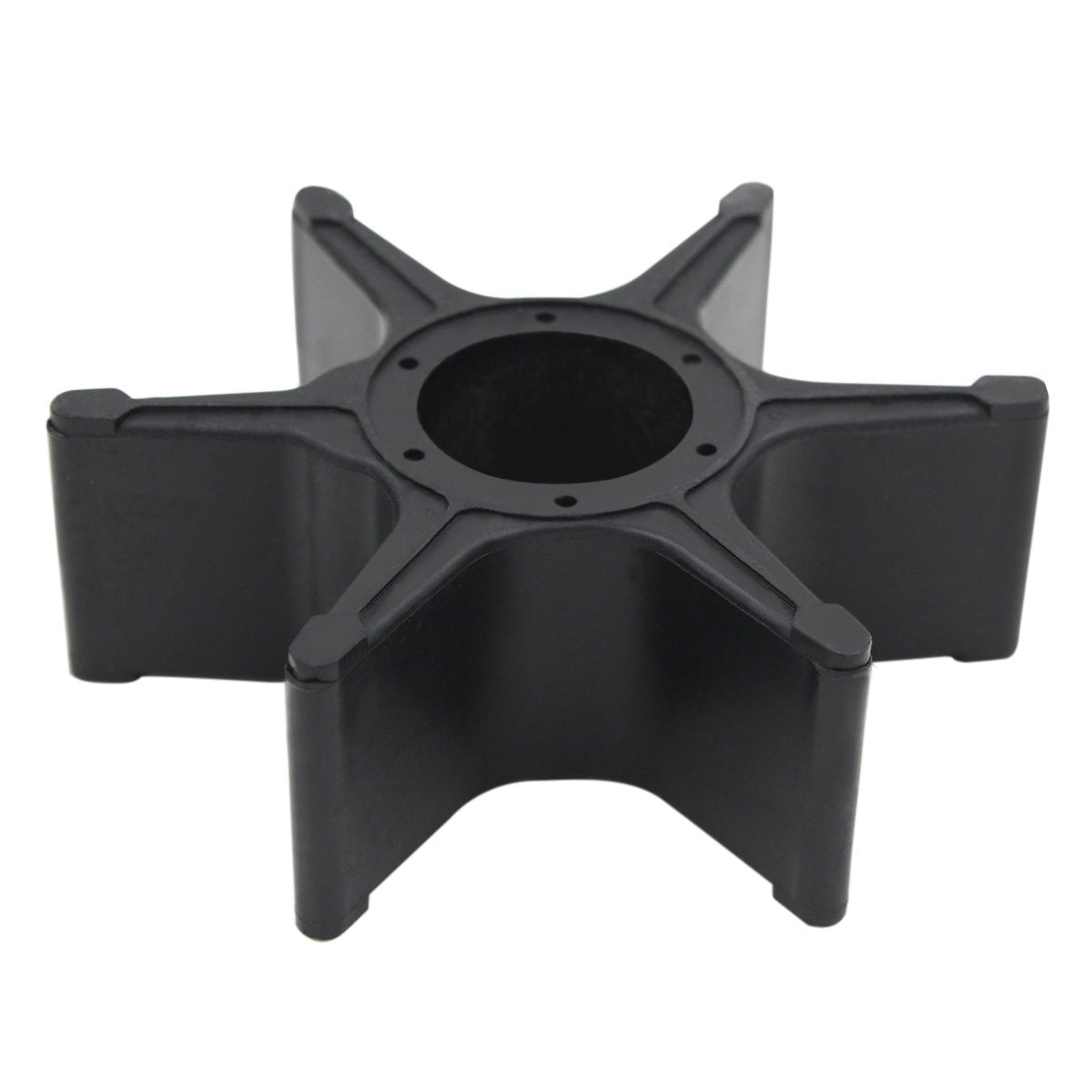

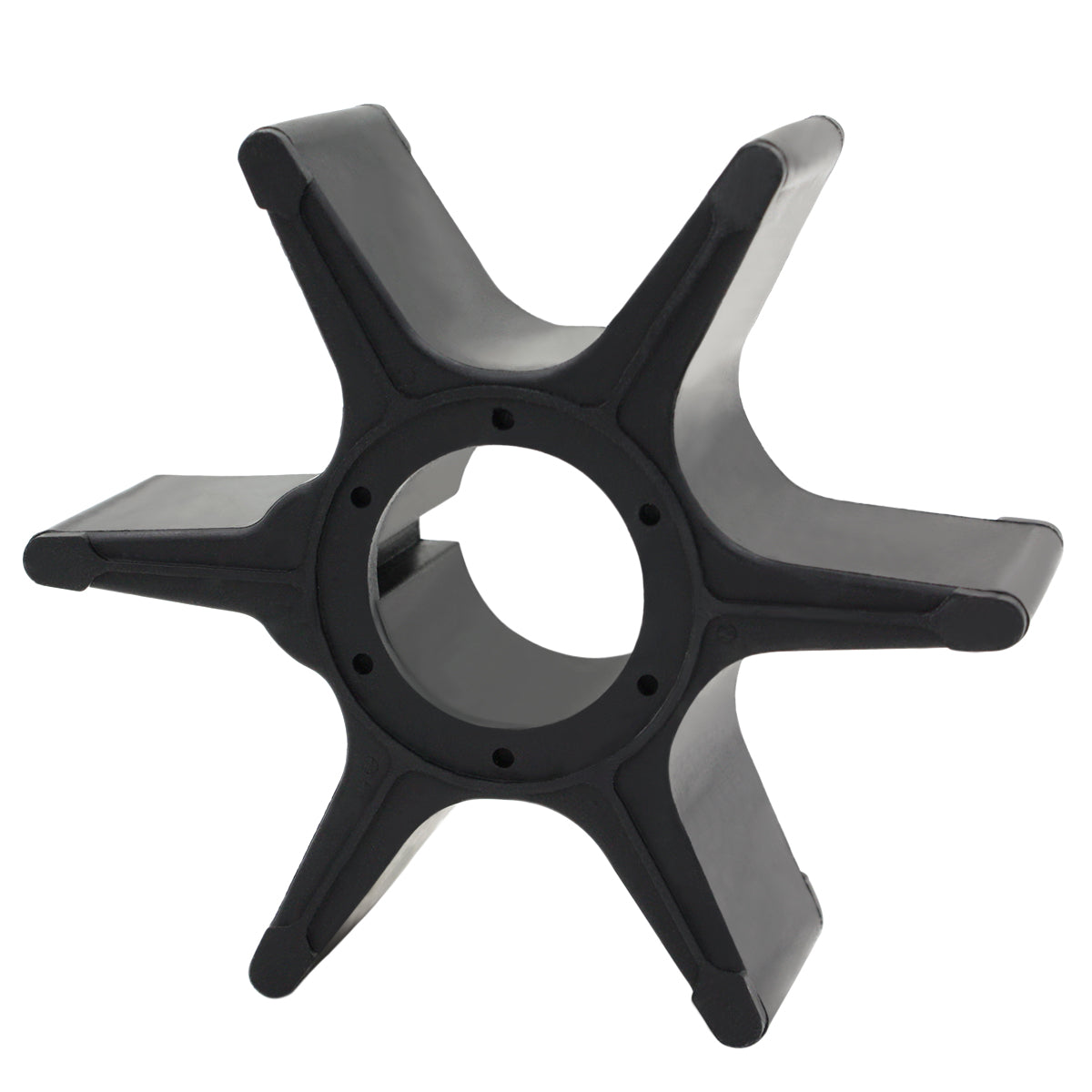

This aftermarket replacement impeller is designed to fit a wide range of Suzuki 2-stroke and 4-stroke outboard engines, including the DT90, DT100, DF60, DF70, DF80, and DF90 models. Engineered to OEM specifications, this impeller ensures reliable cooling performance for your marine engine across multiple model years.

This impeller directly replaces Suzuki OEM part numbers 17461-87E00, 17461-87E10, 17461-87E11, and 17461-87E12, as well as Sierra 18-3049. It provides broad compatibility for both vintage and modern Suzuki outboards, making it an essential maintenance component for engine cooling systems.

• Fits both 2-stroke (DT series) and 4-stroke (DF series) Suzuki outboards
• Includes impeller key for complete installation
• Direct replacement for multiple Suzuki and aftermarket part numbers

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

Your package includes the following components:

• 1 × Outboard Impeller (17461-87E00)
• 1 × Impeller Key (09420-04009)

Installation Guide

1. Safety first: Disconnect the battery and ensure the engine is completely cool before starting work.
2. Access the water pump: Remove the lower unit from the outboard motor according to your engine's service manual.
3. Locate the water pump housing: The impeller is housed within the water pump assembly on the lower unit.
4. Remove the old impeller: Carefully remove the pump housing cover and extract the worn impeller. Note the direction of the impeller blades for proper installation.
5. Inspect the housing: Check the pump housing and wear plate for scoring, corrosion, or damage. Replace if necessary.
6. Lubricate the new impeller: Apply a generous amount of water-resistant grease or glycerin to the impeller blades to ease installation and prevent dry start damage.
7. Install the impeller key: Insert the impeller key into the driveshaft slot before installing the impeller.
8. Position the new impeller: Orient the impeller blades in the correct rotation direction and carefully slide it onto the driveshaft, ensuring the key seats properly.
9. Reassemble the pump housing: Replace the housing cover, gasket, and securing bolts. Tighten bolts to manufacturer's torque specifications in a crisscross pattern.
10. Reinstall the lower unit: Align the lower unit with the midsection and secure all bolts. Check shift linkage and ensure proper engagement.
11. Test the system: Reconnect the battery and run the engine with a flushing attachment or in a test tank. Verify strong water flow from the tell-tale indicator.
12. Final inspection: Check for leaks around the pump housing and ensure the engine maintains proper operating temperature.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my Suzuki engine?
A: Cross-reference your engine model and year with the compatibility table above. You can also verify your OEM part number (17461-87E00, 17461-87E10, 17461-87E11, or 17461-87E12) using the Suzuki parts diagrams linked in the compatibility section.

Q: How often should I replace my water pump impeller?
A: Most manufacturers recommend replacing the impeller every 2-3 years or 200-300 hours of operation, whichever comes first. If you operate in sandy or debris-filled water, inspect and replace more frequently.

Q: What are the signs of a failing impeller?
A: Common symptoms include weak or no water flow from the tell-tale indicator, engine overheating, steam from the engine, or visible damage to impeller blades. If you notice any of these signs, replace the impeller immediately to prevent engine damage.

Q: Does this impeller fit both 2-stroke and 4-stroke Suzuki engines?
A: Yes, this impeller is designed to fit both Suzuki 2-stroke models (DT90, DT100) and 4-stroke models (DF60, DF70, DF80, DF90) as listed in the compatibility table.

Q: Do I need to replace the impeller key every time I change the impeller?
A: It's highly recommended to replace the key with each impeller change. A worn or damaged key can cause improper impeller rotation and cooling system failure. This package includes a new key for your convenience.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
