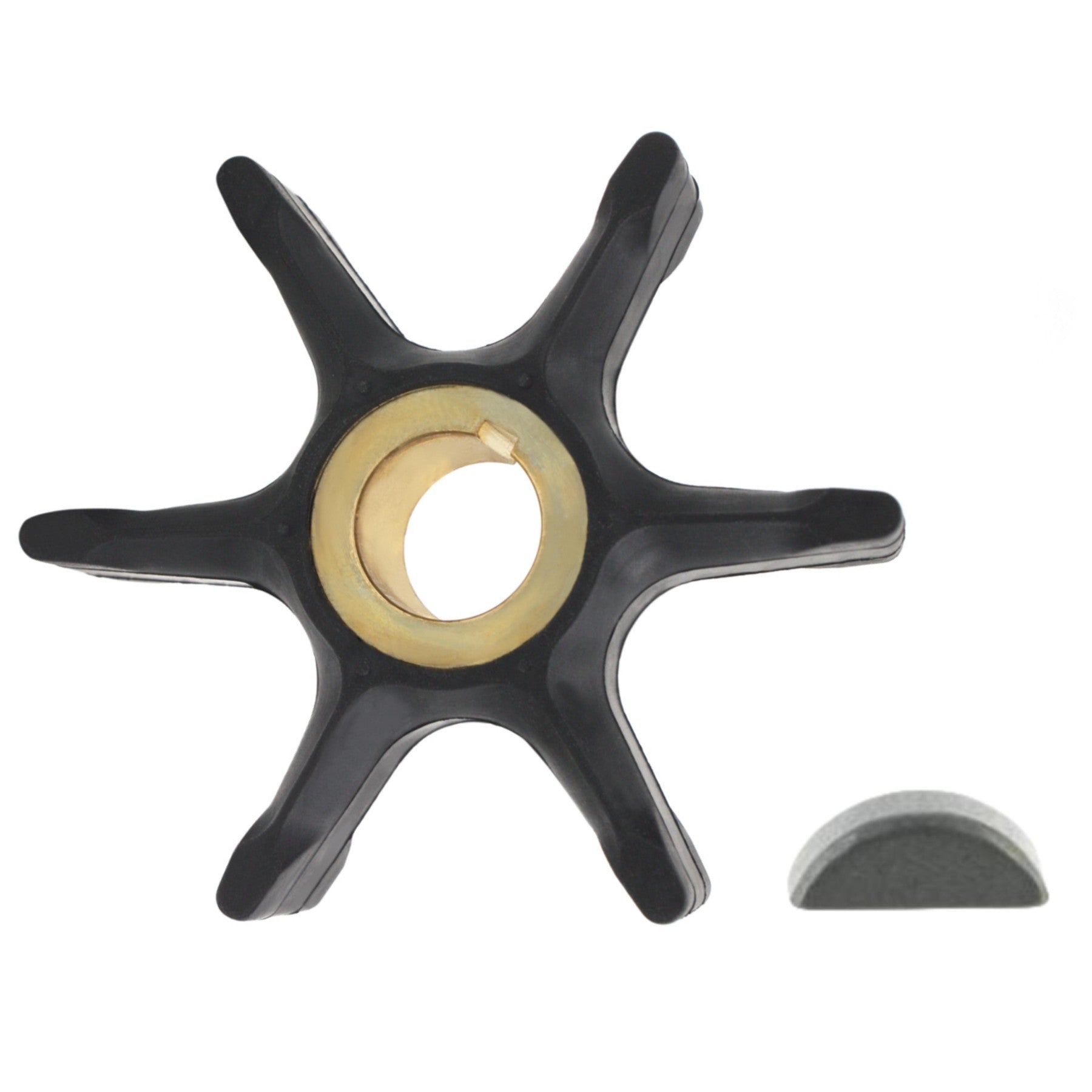

Water Pump Impeller – Fits Johnson/Evinrude 55-75 HP (Replaces 0765431, 0777824, 0382547)
This water pump impeller is designed for Johnson/Evinrude 55-75 HP, 2-Stroke outboard motors manufactured between 1968 and 1978. It serves as a direct replacement for multiple OEM and aftermarket part numbers, ensuring reliable performance for engine cooling systems.
This component is a direct replacement for Sierra 18-3082, GLM 89940, Mallory Marine 9-45213, and SEI Marine 96-366-03AE.
- Engineered for a direct fit with a slotted key drive.
- Constructed from a high-quality, durable neoprene rubber compound.
- Includes one 6-blade water pump impeller for a complete replacement.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
Brand |
Part Number |
Johnson/Evinrude |
0765431 |
Johnson/Evinrude |
0777824 |
Johnson/Evinrude |
0382547 |
Sierra |
18-3082 |
GLM |
89940 |
Mallory Marine |
9-45213 |
SEI Marine |
96-366-03AE |
Compatible Engine Models
Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson/Evinrude Serial Number Guide.
Brand |
Model |
Rated HP |
Stroke |
Years |
OEM Part No. |
Notes |
Johnson/Evinrude |
Various |
55 |
2-Stroke |
1968-1969 |
0765431, 0777824, 0382547 |
2-Cylinder Engines |
Johnson/Evinrude |
Various |
60 |
2-Stroke |
1970-1971 |
0765431, 0777824, 0382547 |
3-Cylinder Engines |
Johnson/Evinrude |
Various |
65 |
2-Stroke |
1972-1973 |
0765431, 0777824, 0382547 |
3-Cylinder Engines |
Johnson/Evinrude |
Various |
70 |
2-Stroke |
1974-1978 |
0765431, 0777824, 0382547 |
3-Cylinder Engines |
Johnson/Evinrude |
Various |
75 |
2-Stroke |
1975-1978 |
0765431, 0777824, 0382547 |
3-Cylinder Engines |
Technical Specifications
Specification |
Value |
Product Type |
Water Pump Impeller |
Installation |
Direct replacement with slotted key |
Housing Material |
Rubber (Neoprene compound) |
Housing Color |
Black |
Dimensions |
Diameter: 54-56 mm (2.1-2.2 inches) |
Weight |
0.06 kg (0.13 lbs) |
Fitting Type |
Slotted key drive |
Operating Temperature |
-29°C to 82°C (-20°F to 180°F) |
Warranty |
Manufacturer specific (varies by brand) |
Other Technical Attributes |
6 rubber blades/vanes |
Package Contents
1 x Water Pump Impeller (Replaces 0765431, 0777824, 0382547)
Explosion Diagram
Installation Guide
-
Safety First: Disconnect the engine's battery cables before beginning work.
-
Access the Lower Unit: Remove the bolts securing the gearcase (lower unit) to the midsection and carefully lower it.
-
Open the Pump Housing: Locate the water pump assembly on top of the gearcase. Remove the bolts holding the pump cover.
-
Remove Old Impeller: Slide the old impeller off the driveshaft. Note the direction of the vanes; the new ones must face the same way.
-
Clean and Inspect: Clean any debris from the pump housing, wear plate, and cover. Inspect for scoring or damage.
-
Install New Impeller: Lightly lubricate the new impeller and housing. Slide the new impeller onto the driveshaft while turning the shaft clockwise to bend the vanes correctly.
-
Reassemble Pump: Secure the pump housing cover, ensuring any seals or gaskets are properly seated.
-
Reattach Lower Unit: Reinstall the lower unit, making sure the driveshaft, shift shaft, and water tube align correctly. Torque bolts to manufacturer specifications.
-
Test Operation: Reconnect the battery. Start the engine using a water supply (flushing muffs) and verify a steady stream of water from the tell-tale port.
Troubleshooting & FAQ
- How do I confirm this fits my engine?
- Verify your engine's horsepower, stroke, and year fall within the ranges listed in the Compatible Engine Models table. Cross-reference your existing part number with those in our Part Number Cross-Reference table for confirmation.
- What are the signs of a failing water pump impeller?
- Common symptoms include the engine overheating, a weak or non-existent water stream from the "tell-tale" outlet, and a melted water pump housing. Failure to replace a worn impeller can lead to severe engine damage.
- How often should I replace the impeller?
- For preventative maintenance, it is recommended to replace the impeller every 1-2 years or every 100-200 hours of operation, whichever comes first. More frequent replacement may be necessary if you operate in sandy or silty water.
- OEM vs. Aftermarket?
- This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
- How fast do you ship and how much does it cost?
- We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
- What is your warranty and return policy?
- This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
- Professional installation is recommended to ensure safety and optimal performance.
