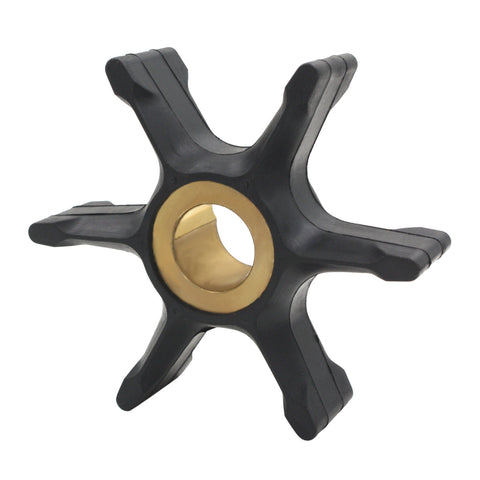

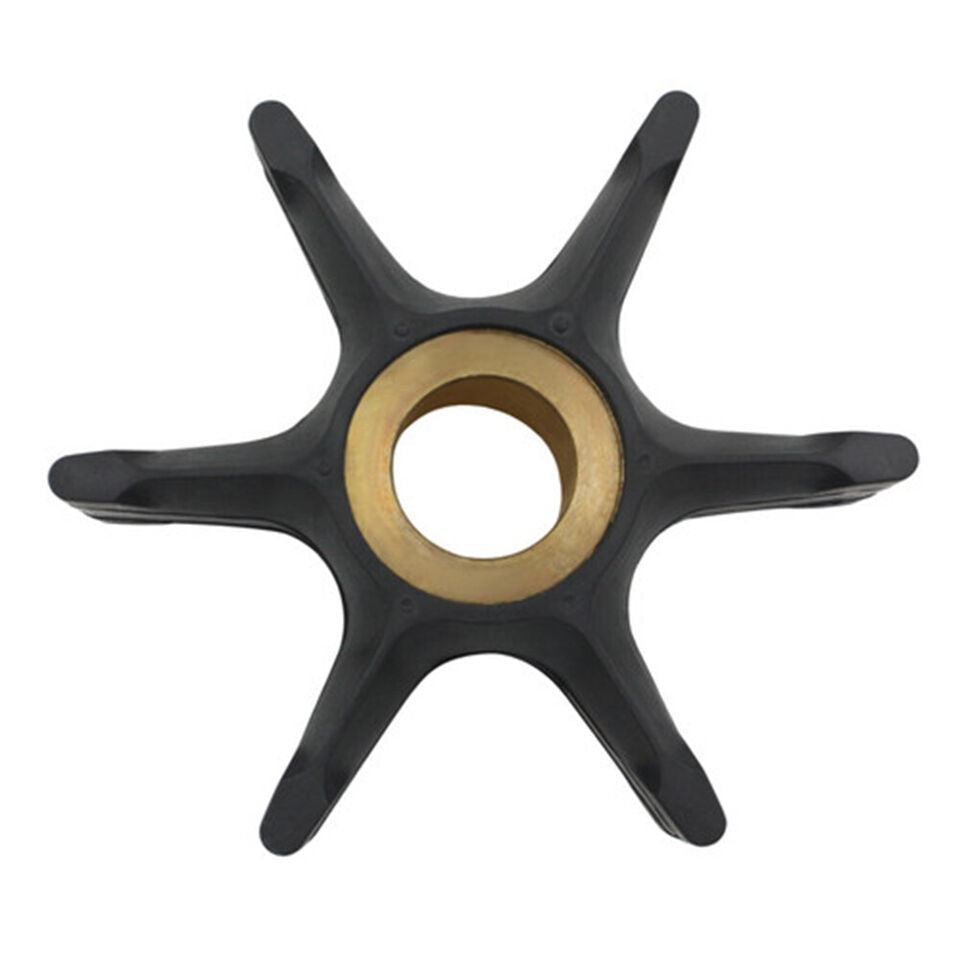

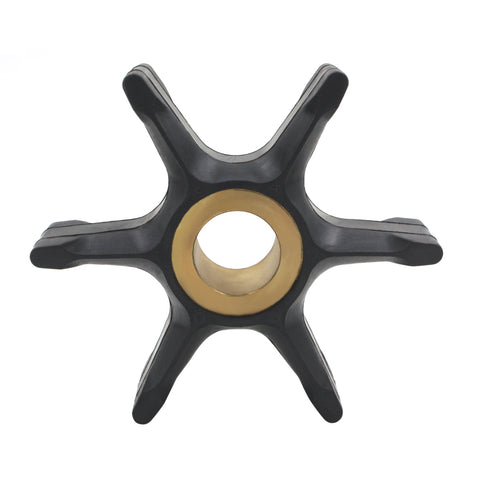

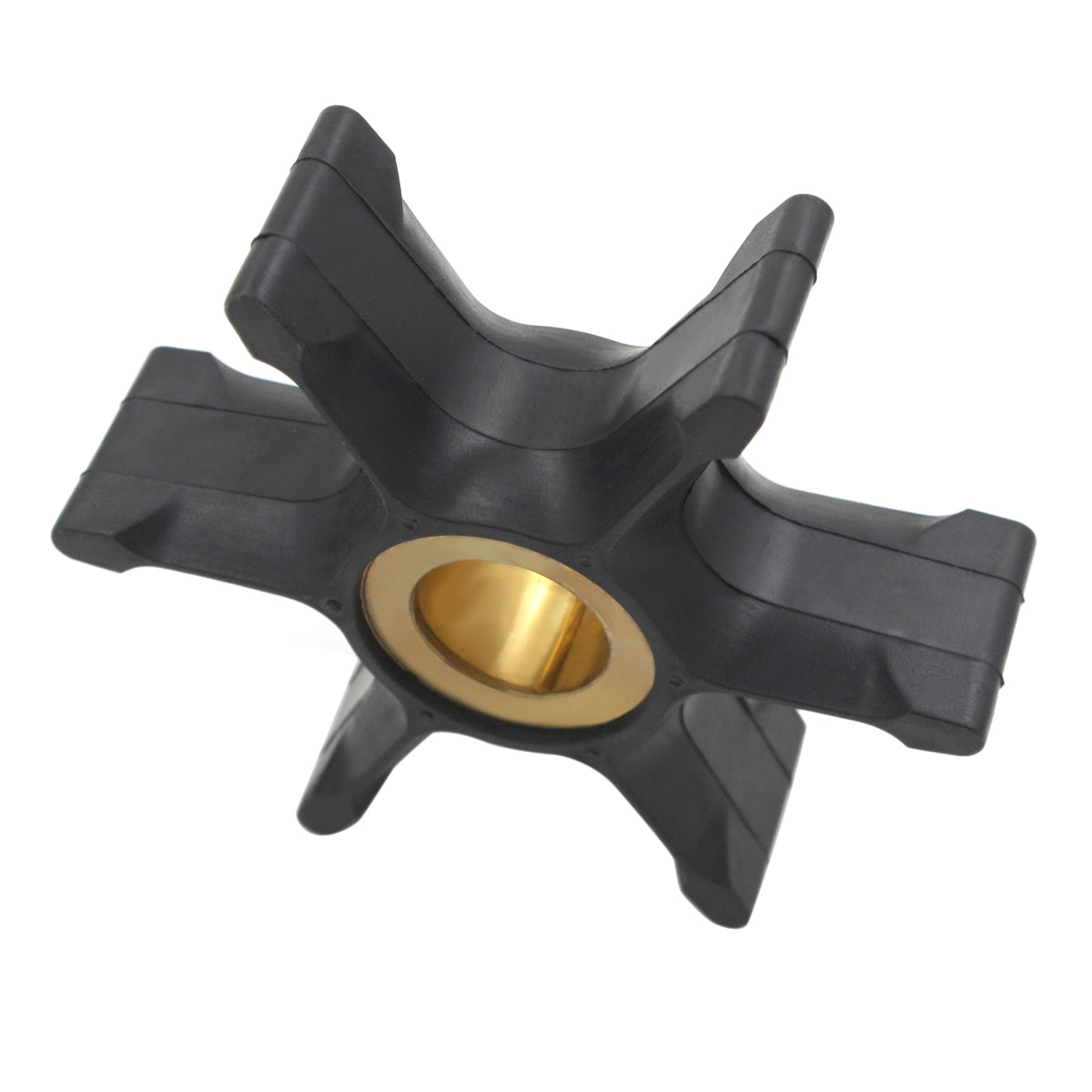

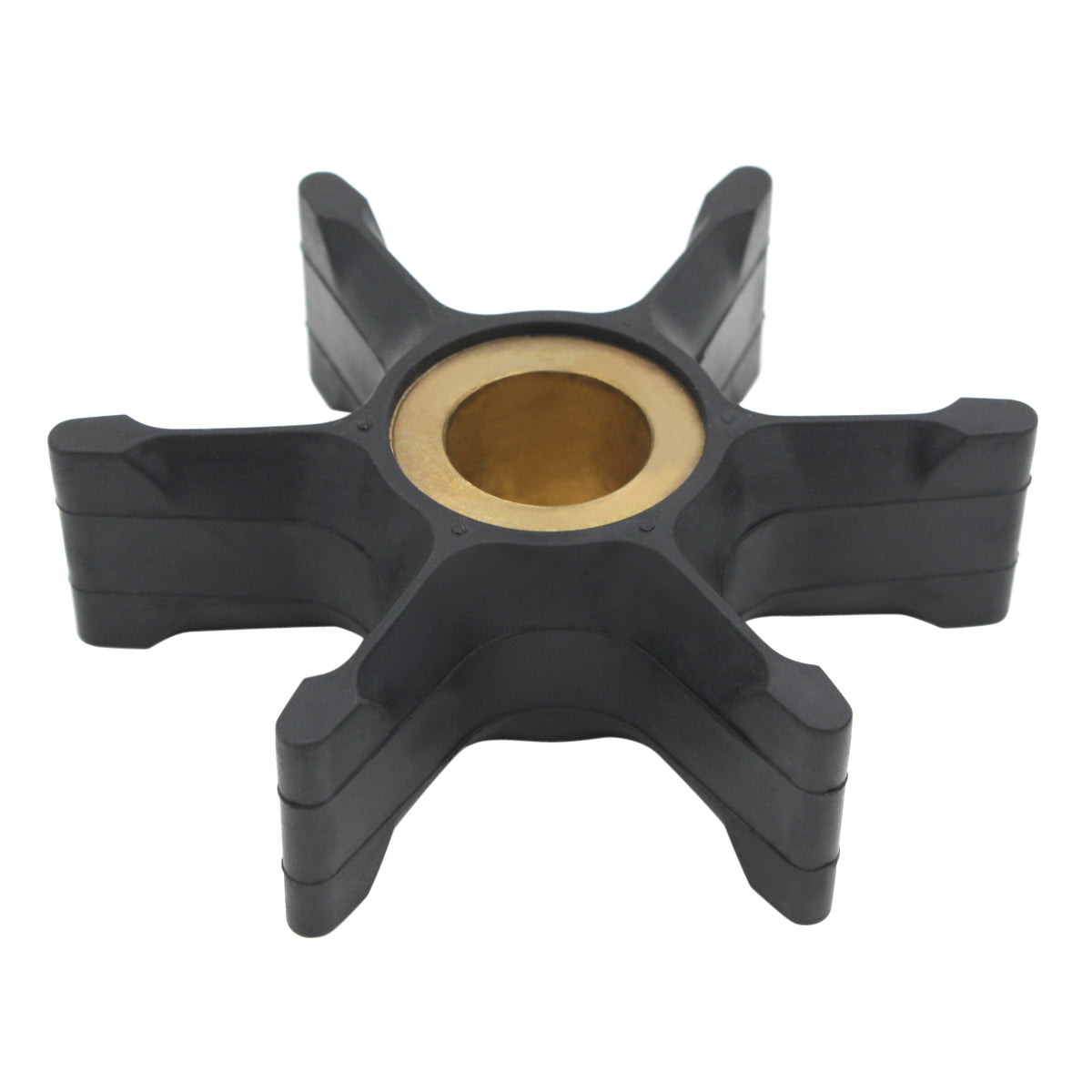

Water Pump Impeller – Fits Johnson/Evinrude 28-75 HP (Replaces 396725)

Water Pump Impeller – Fits Johnson/Evinrude 28-75 HP (Replaces 396725)

This water pump impeller is designed for a wide range of Johnson/Evinrude 28-75 HP, 2-Stroke & 4-Stroke engines manufactured between 1979 and 2005. It is compatible with many F-Type Gear Case models, including select E-Tec engines, ensuring broad application for many outboard motors.

This component is a direct replacement for Johnson/Evinrude part numbers 396725 and 389557, providing an effective solution for routine maintenance or repair.

• Installation Method: Direct OEM-style replacement.
• Included Components: 1 x Water Pump Impeller.
• Engine Compatibility: Bi-directional design works with both standard and counter-rotating engines.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson/Evinrude Serial Number Guide.

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (396725)

Explosion Diagram

Installation Guide

1. Disconnect the negative battery cable to prevent accidental starting.
2. Remove the lower unit (gear case) from the outboard motor by unbolting it from the midsection.
3. Locate and unbolt the water pump housing, typically secured with four to six bolts. Remove the housing cover to expose the impeller.
4. Note the rotational direction of the existing impeller's blades before removal. This will help with correct installation of the new part.
5. Slide the old impeller off the drive shaft. Be sure to remove the small drive key from the shaft if it doesn't come out with the impeller.
6. Thoroughly clean the inside of the pump housing and the wear plate. Inspect for scoring, warping, or grooves and replace if necessary.
7. Lightly lubricate the interior of the pump housing and the new impeller with marine grease. Do not use oil or non-marine lubricants.
8. Install the drive key into the driveshaft keyway. Slide the new impeller onto the shaft while turning the driveshaft clockwise to correctly flex the blades.
9. Reinstall the water pump housing, ensuring any gaskets or o-rings are properly seated. Torque the bolts to the manufacturer's specifications.
10. Reattach the lower unit to the outboard, making sure the driveshaft and water tube are correctly aligned. Securely tighten all bolts.
11. Reconnect the battery. Before launching, test the engine using a flush-muff attachment to confirm water is pumping from the tell-tale port.

Troubleshooting & FAQ

How do I confirm this fits my engine?
First, check your engine's model, horsepower, and year against the compatibility table. Second, match your existing part number to those in the cross-reference list. For Johnson/Evinrude models, use the linked serial number guide to verify your engine details. For final confirmation, we always recommend checking your factory service manual.

What are the signs of a failing impeller?
Common symptoms include the engine overheating, especially at idle or low speeds, and a weak or nonexistent water stream from the "tell-tale" indicator port on the motor. A brittle or cracked impeller discovered during inspection also requires immediate replacement.

How often should I replace my water pump impeller?
For optimal engine protection and preventative maintenance, it is recommended to inspect and/or replace the impeller annually or every 100 hours of engine use, whichever occurs first. This interval can vary based on running conditions (e.g., frequent use in sandy or silty water).

What specific models is this impeller NOT compatible with?
This impeller is not designed for use with E-Tec 60HO, AF 65 HP, or AF 60 HP Jet Drive models. Always confirm your exact model number before purchasing, as fitment can be specific even within the same horsepower range.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
