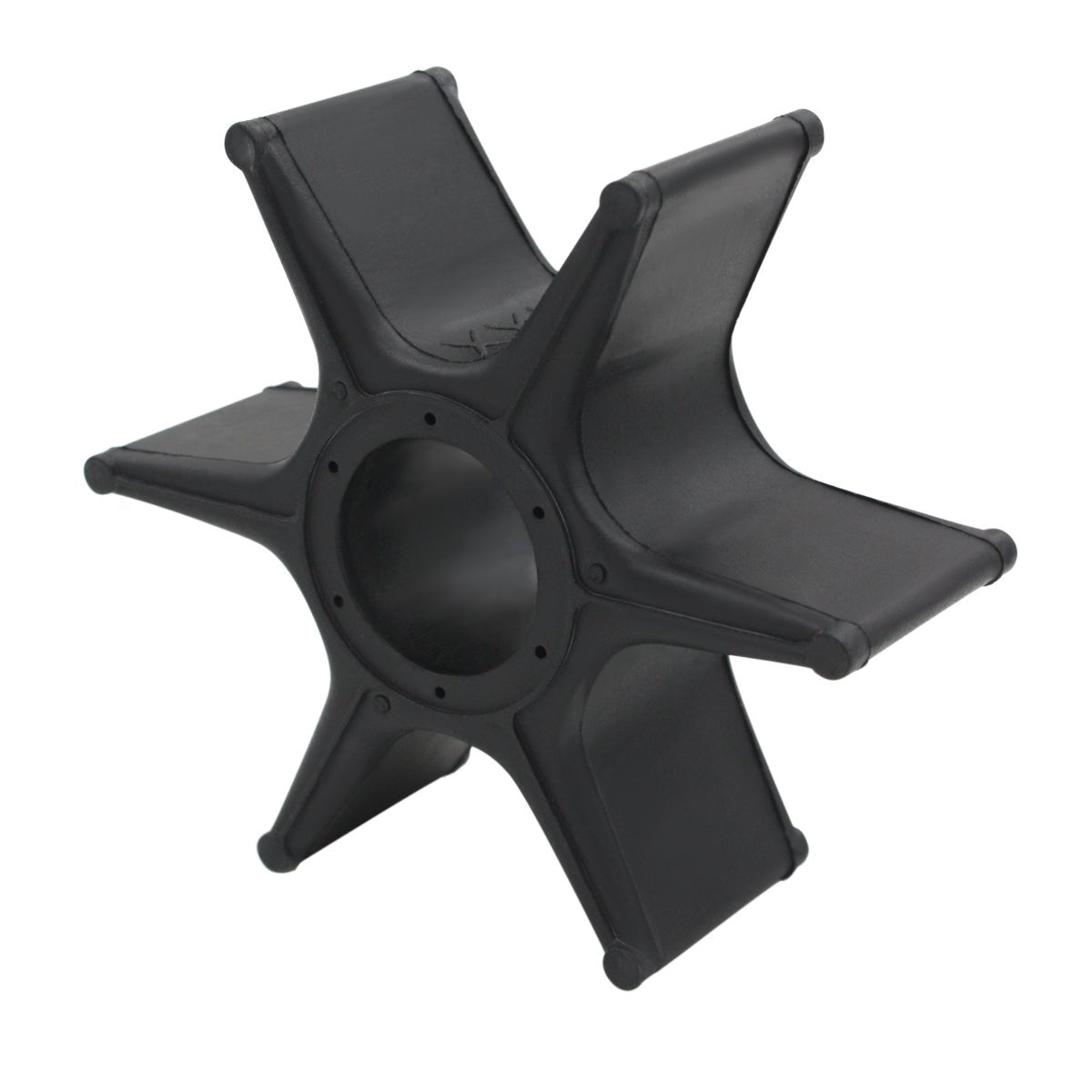

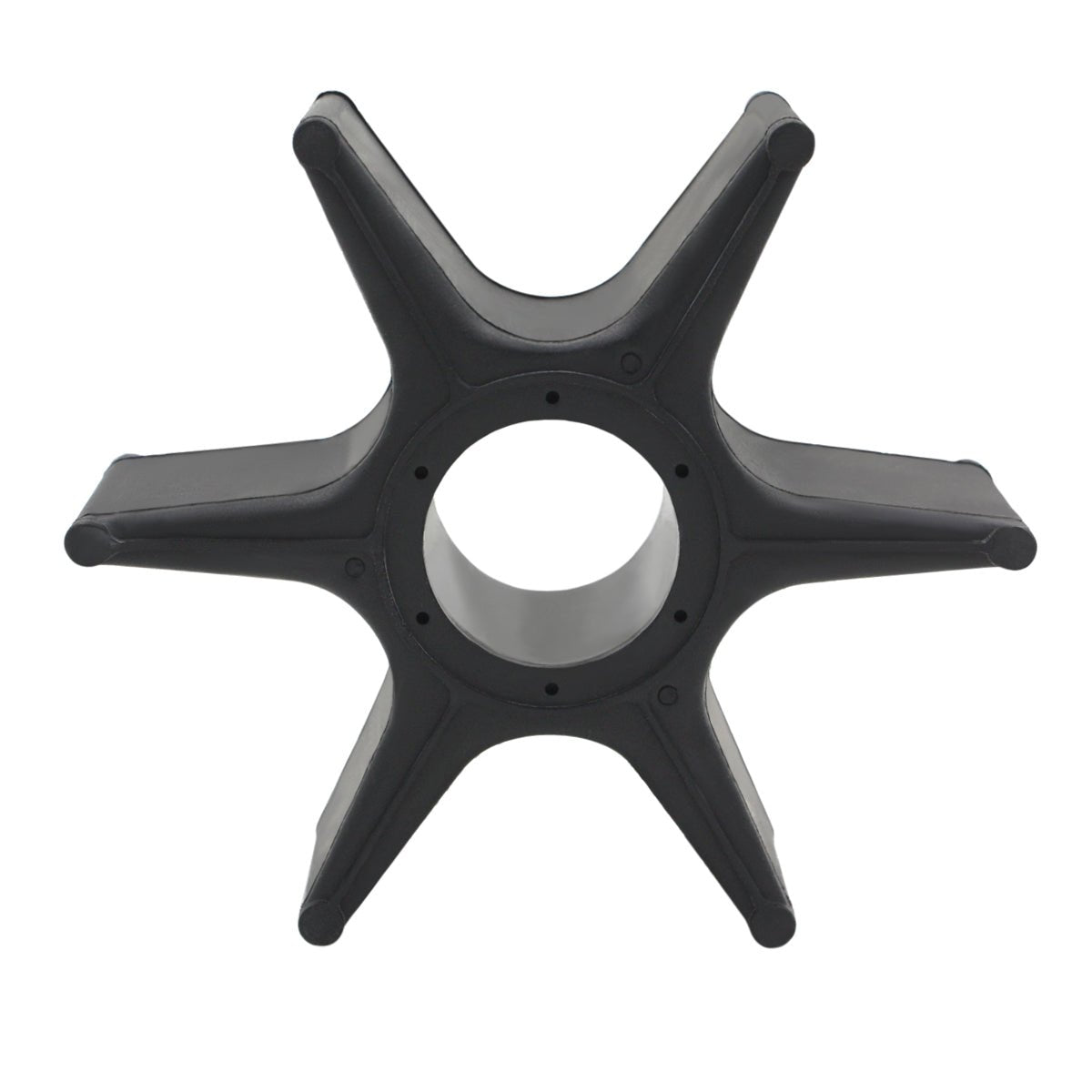

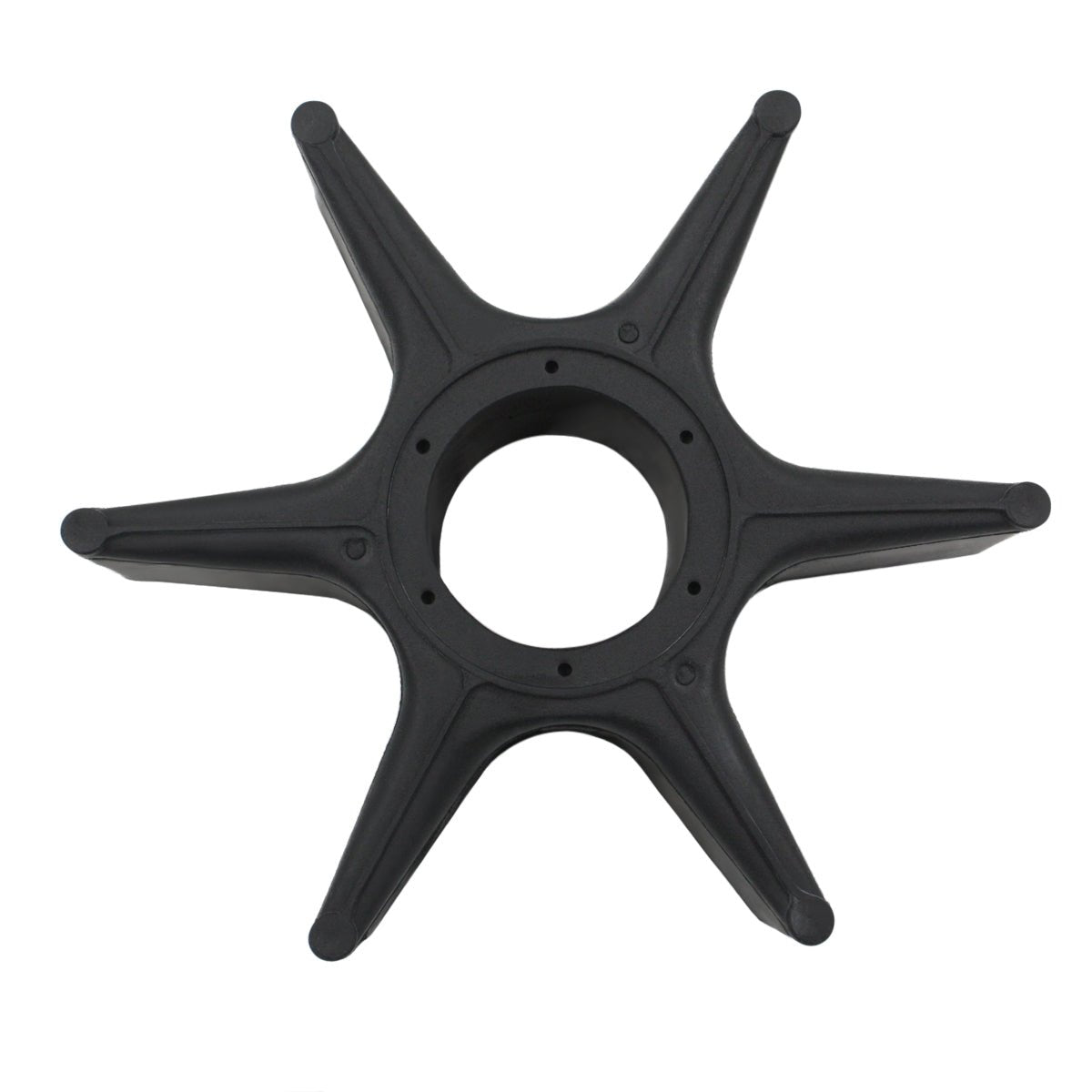

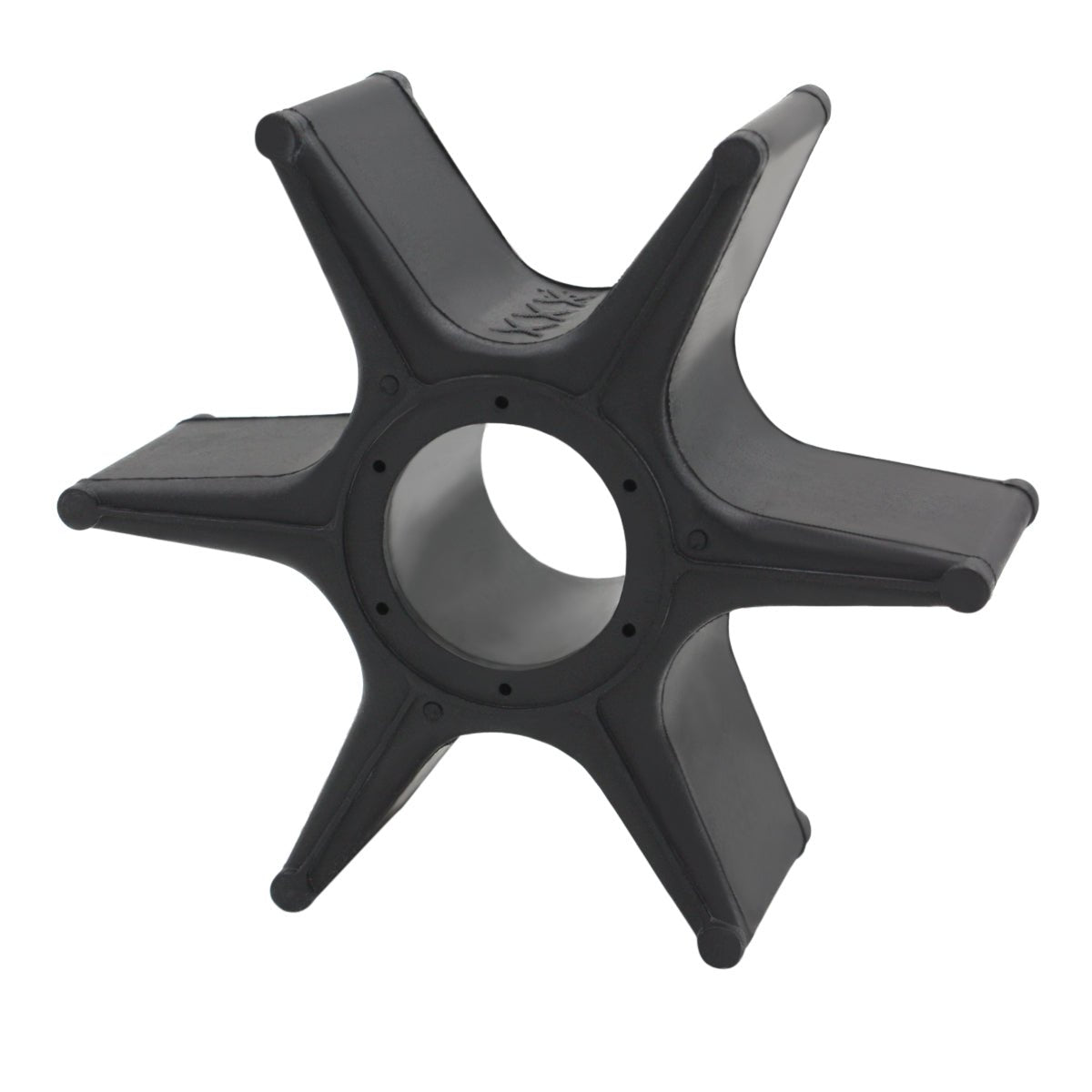

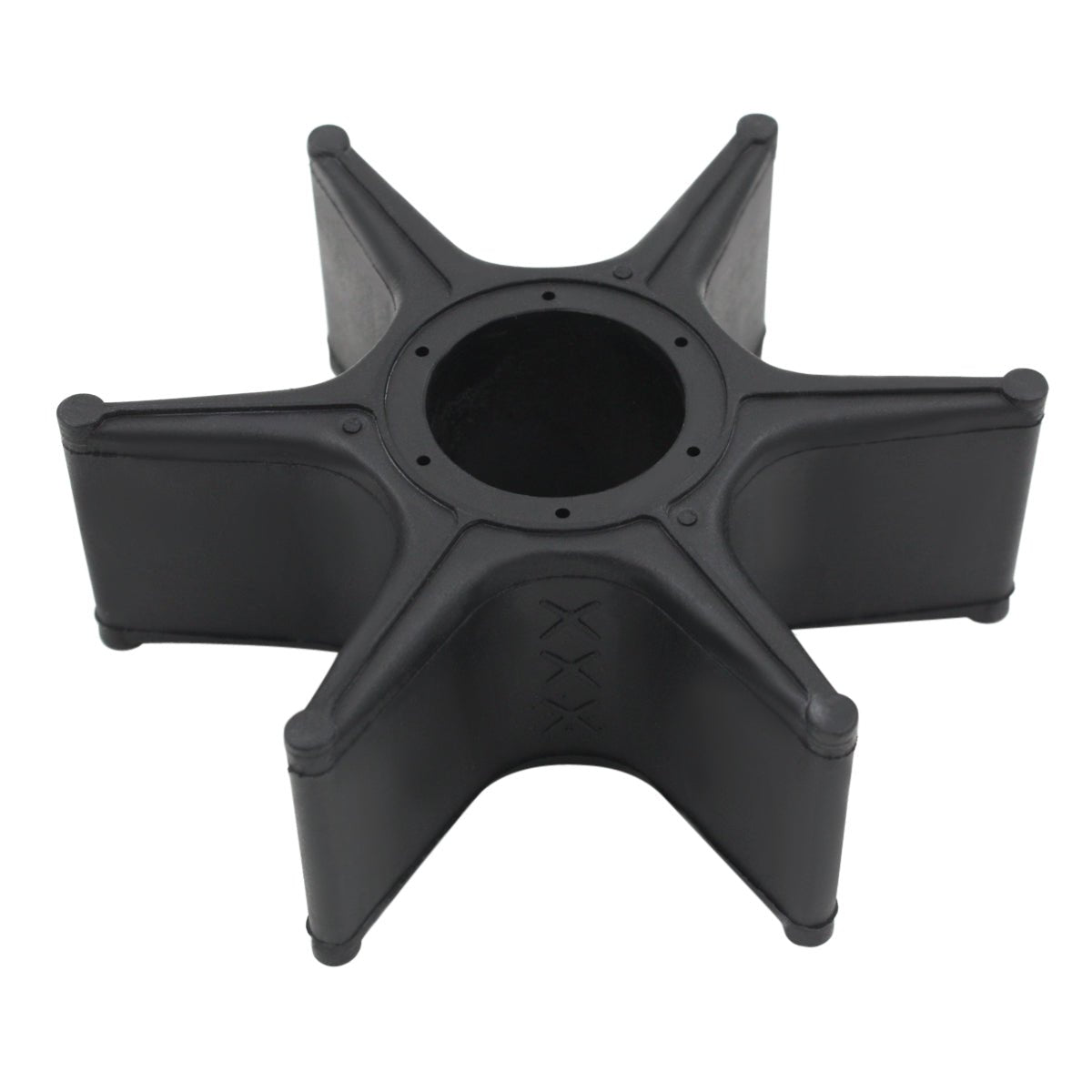

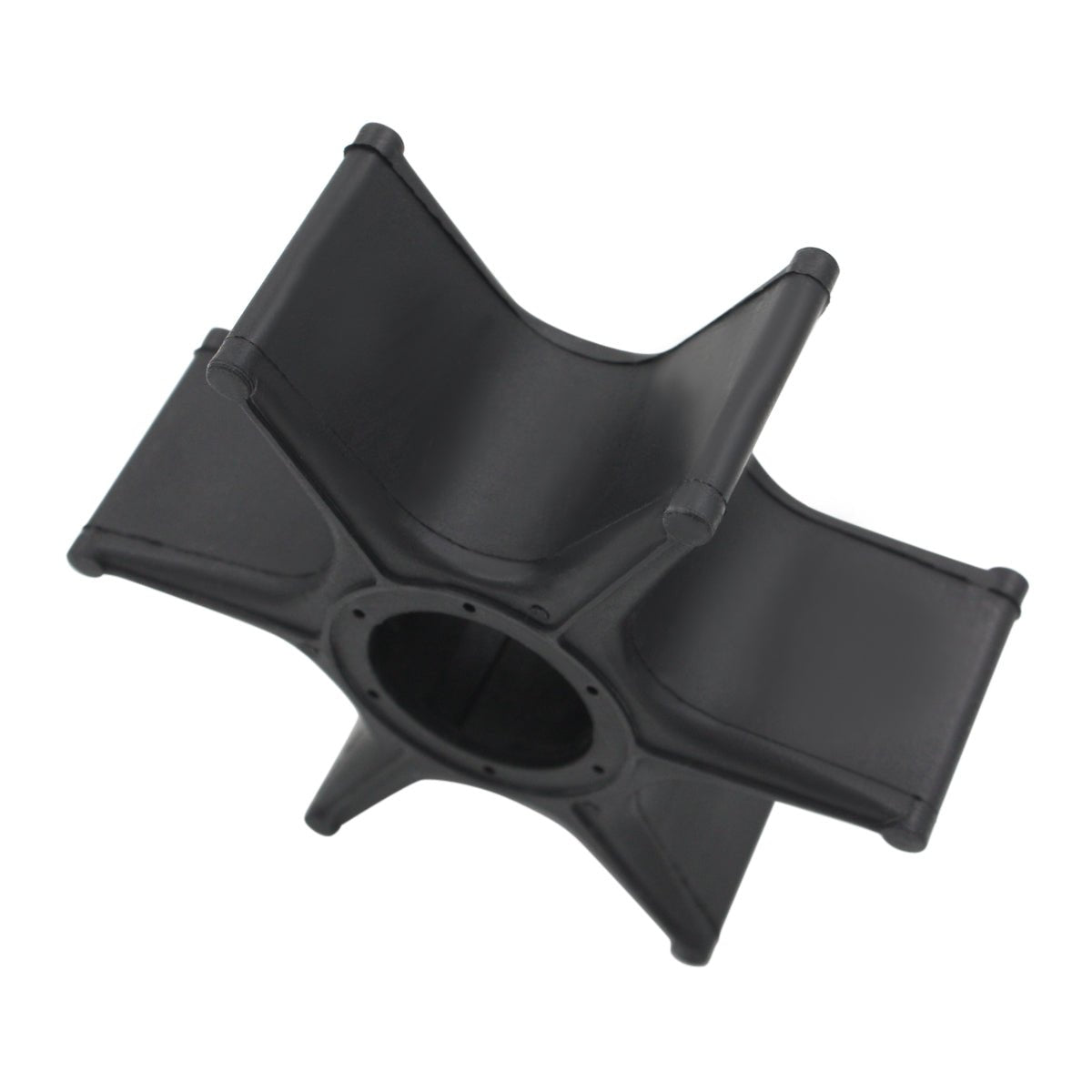

Water Pump Impeller – Fits Honda Marine Outboard 75–150 HP
This water pump impeller is engineered for Honda Marine 4-stroke outboard engines ranging from 75 to 150 HP, manufactured from 1999 to the present. It serves as a direct-fit replacement, ensuring reliable cooling performance for a wide range of models.
This component is a direct replacement for Honda OEM parts 19210-ZW1-B04, 19210-ZW1-B03, and 19210-ZW1-B02, as well as aftermarket numbers from Sierra (18-3250), CEF (500337), Mallory (9-45104), and others.
-
Material: Constructed from durable neoprene rubber with a hardened nylon center for longevity.
-
Installation: Designed for a direct OEM replacement fit, simplifying maintenance.
-
Blade Design: Features 6 blades for efficient water circulation and engine cooling.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
Brand |
Part Number |
Honda |
19210-ZW1-B04 |
Honda |
19210-ZW1-B03 |
Honda |
19210-ZW1-B02 |
Sierra |
18-3250 |
Mallory |
9-45104 |
CEF |
500337 |
Mercury |
879117 |
Tohatsu |
HZW1-19210-B04 |
Compatible Engine Models
Confirm your engine model/year in the table below.
Honda Marine
Brand |
Model |
Rated HP |
Stroke |
Years |
OEM Part No. |
Notes |
Honda |
BF75A/AX/AY/A1-A6 |
75 |
4-Stroke |
1999–2006 |
19210-ZW1-B04 |
Supersedes 19210-ZW1-B03/B02 |
Honda |
BF75D K0/K2 |
75 |
4-Stroke |
All years, through S/N BBAJ-1200000 |
19210-ZW1-B04 |
Supersedes 19210-ZW1-B03/B02 |
Honda |
BF90A/AX/AY/A1-A6 |
90 |
4-Stroke |
1999–2006 |
19210-ZW1-B04 |
Supersedes 19210-ZW1-B03/B02 |
Honda |
BF90D K0/K2 |
90 |
4-Stroke |
All years, through S/N BBCJ-1300000 |
19210-ZW1-B04 |
Supersedes 19210-ZW1-B03/B02 |
Honda |
BF115A/D |
115 |
4-Stroke |
All years |
19210-ZW1-B04 |
Supersedes 19210-ZW1-B03/B02 |
Honda |
BF130A |
130 |
4-Stroke |
All years |
19210-ZW1-B04 |
Supersedes 19210-ZW1-B03/B02 |
Honda |
BF135A |
135 |
4-Stroke |
All years |
19210-ZW1-B04 |
Supersedes 19210-ZW1-B03/B02 |
Honda |
BF150A |
150 |
4-Stroke |
All years |
19210-ZW1-B04 |
Supersedes 19210-ZW1-B03/B02 |
Mercury/MerCruiser (Compatible)
Brand |
Model |
Rated HP |
Stroke |
Years |
OEM Part No. |
Notes |
Mercury |
225 CARB / 225,250 EFI |
Various |
4-Stroke |
|
43026Q02 |
Gear case assembly parts |
Mercury |
30-125 HP (3 & 4-CYL.) |
30-125 |
2 & 4-Stroke |
|
47-43026Q02, 47-43026T2 |
4.25" (107.95mm) Big foot |
Mercury |
135-300 HP VERADO |
135-300 |
4-Stroke |
2006+ |
|
Gear case assembly parts |
Technical Specifications
Specification |
Value |
Product Type |
Water Pump Impeller |
Installation |
Direct OEM replacement |
Material |
Neoprene rubber with hardened nylon center |
Dimensions |
87.8 mm OD × 31.0 mm thickness × 23.4 mm shaft diameter |
Blade Count |
6 blades |
Compatible Engines |
Honda Marine 4-stroke outboards 75–150 HP |
Package Contents
- 1 x Water Pump Impeller (Replaces Honda 19210-ZW1-B04, 19210-ZW1-B03, 19210-ZW1-B02)
Explosion Diagram
Installation Guide
- Disconnect the negative battery cable and remove the engine cover. Unclip the shift linkage.
- Loosen and remove the mounting bolts that secure the lower unit (gearcase) to the outboard's midsection.
- Carefully separate and lower the gearcase from the engine.
- Locate the water pump housing on top of the gearcase and remove its mounting bolts.
- Lift the housing off and slide the old impeller off the driveshaft. Note the rotational direction of the old blades.
- Remove the old wear plate and gaskets. Thoroughly clean all mating surfaces of debris or corrosion.
- Install the new wear plate, gaskets, and keyway.
- Apply a light layer of marine grease inside the pump housing and slide the new impeller onto the driveshaft, rotating it in the direction of engine operation to seat the blades correctly.
- Reinstall the water pump housing and tighten the bolts to the manufacturer's specified torque.
- Apply a light coat of marine grease to the driveshaft splines.
- Carefully guide the lower unit back into place, ensuring the driveshaft, water tube, and shift shaft align properly.
- Reinstall the lower unit bolts, reconnect the shift linkage, and test the engine's cooling system in water.
Troubleshooting & FAQ
How do I confirm this impeller fits my Honda engine?
Check the "Compatible Engine Models" table. It lists specific models like BF75A, BF90D, and BF150A, covering years from 1999 to present. Ensure your model and year range match the information provided.
What are the signs my water pump impeller is failing?
Common signs include the engine overheating, a weak or inconsistent "telltale" water stream, or finding dry, cracked, or brittle blades on the old impeller during inspection.
How often should I replace the water pump impeller?
For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of use, depending on operating conditions (e.g., saltwater vs. freshwater).
OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
- Professional installation is recommended to ensure safety and optimal performance.
