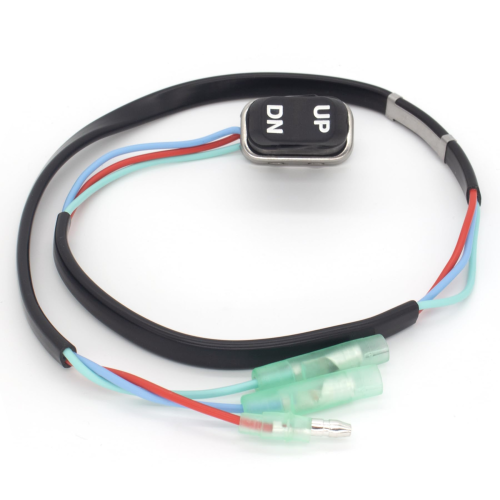

Trim & Tilt Switch Assembly – Fits Yamaha 8-250 HP Outboards (Replaces 703-82563-02-00, 703-82563-01-00)

Trim & Tilt Switch Assembly – Fits Yamaha 8-250 HP Outboards (2001-2003)

This aftermarket trim and tilt switch assembly is designed for a wide range of Yamaha 2-stroke and 4-stroke outboard motors from 8 HP to 250 HP, specifically for models manufactured between 2001–2003. It allows for precise control of the power trim and tilt functions directly from the remote control box, ensuring reliable operation.

As a direct replacement for Yamaha parts 703-82563-02-00 and 703-82563-01-00, this assembly provides a seamless fit and restores original functionality without modification.

• Installation Method: Direct replacement designed for installation in remote control boxes.
• Broad Compatibility: Fits a wide array of Yamaha 2-Stroke & 4-Stroke outboards from 8 to 250 HP.
• Included Components: The package includes one complete trim & tilt switch assembly.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Yamaha Outboard Models (2001)

Yamaha Outboard Models (2002)

Yamaha Outboard Models (2003)

Note: The compatibility list for 2003 models may be incomplete. Please verify your part number visually and by cross-referencing before purchase.

Technical Specifications

Package Contents

• 1 x Trim & Tilt Switch Assembly, replacement for OEM parts 703-82563-02-00 and 703-82563-01-00

Installation Guide

1. Safety First: Disconnect the boat’s battery completely to prevent electrical short-circuits.
2. Access the Control Box: Open the housing of your Yamaha remote control box. This typically involves removing several screws.
3. Locate the Old Switch: Identify the existing trim and tilt switch inside the control box.
4. Disconnect Wiring: Carefully unplug the wiring harness connected to the back of the old switch. Note the wire colors and positions if they are not keyed.
5. Remove the Old Switch: Unclip or unscrew the old switch from its mounting point in the control box handle.
6. Install the New Switch: Position the new switch assembly in place and secure it, ensuring it sits flush and is stable.
7. Reconnect Wiring: Plug the wiring harness into the new switch, making sure the connection is secure.
8. Reassemble Control Box: Close the remote control box housing and fasten the screws.
9. Test Operation: Reconnect the battery and test the trim and tilt functions to ensure the new switch operates correctly.

Troubleshooting & FAQ

Q: How can I be sure this switch fits my specific Yamaha engine?
A: The best way to confirm fitment is to check your engine's model and year against the compatibility tables provided on this page. You should also visually compare your old switch to our product images and cross-reference the OEM part number (703-82563-02-00 or 703-82563-01-00).

Q: What are the common symptoms of a failing trim and tilt switch?
A: Common signs include intermittent operation, the trim/tilt function working in only one direction, or a complete failure to respond when the switch is pressed. This is often due to internal corrosion or wear from exposure to the marine environment.

Q: Is installation difficult? Can I do it myself?
A: For individuals with basic mechanical and electrical skills, installation is straightforward and typically takes less than 30 minutes. However, we recommend professional installation if you are not comfortable working with your boat's electrical system.

Q: Is this an original Yamaha (OEM) part?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.

Why Choose JLM MARINE?

• Quality Assured: As a trusted manufacturer for over 20 years, we supply top marine brands globally.
• Fast Global Shipping: Free delivery worldwide in 5–15 days.
• Direct from Manufacturer: Competitive pricing without compromising quality.
