Trim Sender & Limit Kit 805320A03 – MerCruiser Alpha/Bravo
- $45.77
- $45.77
- Unit price
- per
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders under 1 KG
Worry-Free Returns
How to Match This Part

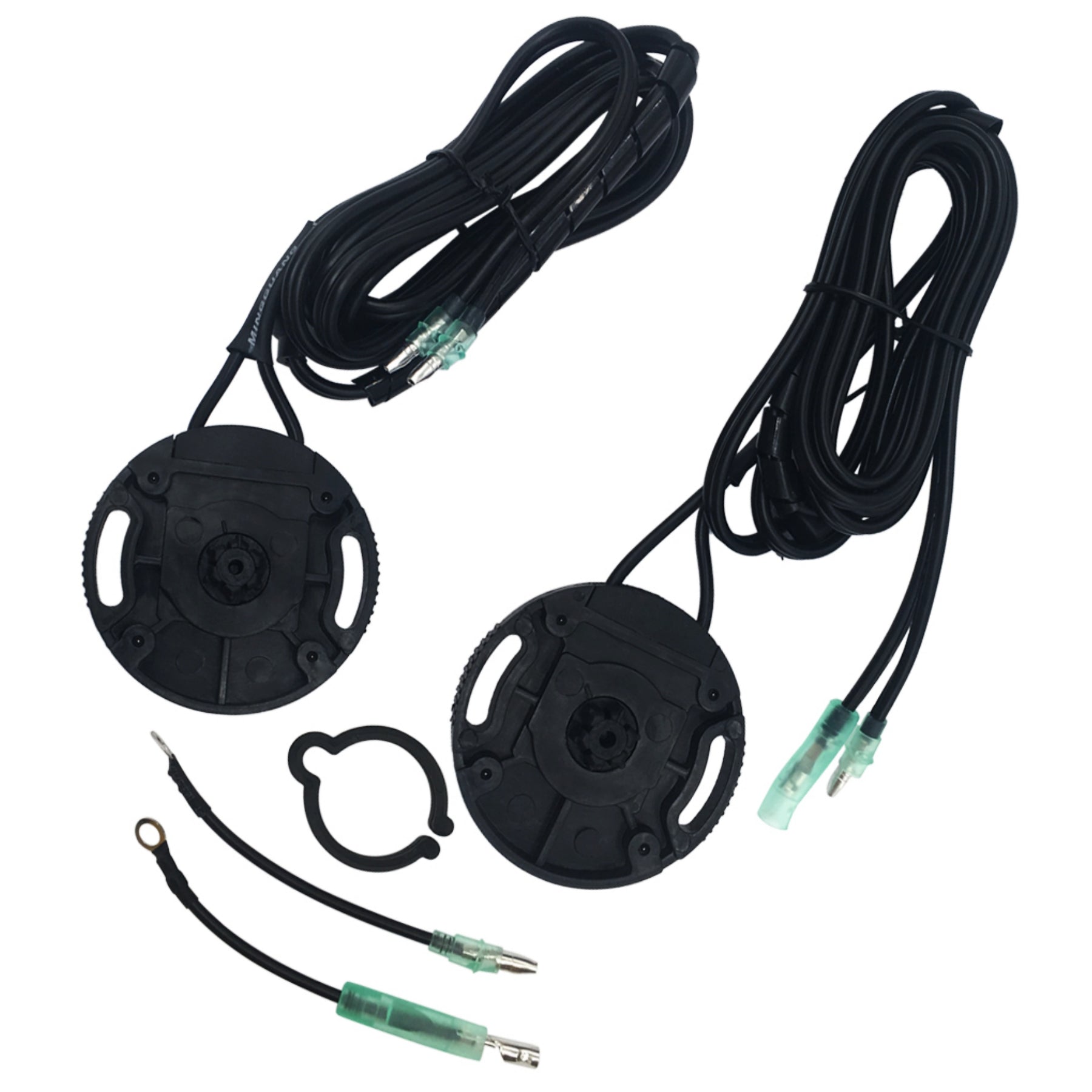

This aftermarket 2-wire power trim kit replaces MerCruiser / Mercury 805320A03. It covers one sterndrive: the trim-position sender (gauge) and the trim-limit switch. It is the analog 2-wire kit for one drive.
Match this part in this order:
1. OEM number — 805320A03, 805320A1, 96863A15, 88678A4, 63115A12, or 17693A2
2. Drive family — MC-I, R, MR, Alpha One, Alpha One Gen II, or Bravo
3. System type — analog 2-wire trim gauge / limit circuit
The port switch is the trim limit; the starboard switch feeds the trim gauge. Both are replaced together as one kit for a single drive.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
| Type | Brand | Part Number | Notes |
|---|---|---|---|
| OEM | Mercury MerCruiser | 805320A03 | Primary 2-wire trim sender / limit kit |
| OEM | Mercury MerCruiser | 805320A1 | Earlier kit number |
| OEM | Mercury MerCruiser | 96863A15 | Earlier catalogue number in the same family |
| Aftermarket | Sierra | 18-7633 | Direct aftermarket replacement |
Also used to identify this kit: 88678A4, 63115A12, and 17693A2. This is an aftermarket part manufactured by JLM Marine and is not sold as a genuine Mercury or MerCruiser component.
Compatible Engine Models
Confirm your drive model before ordering. On MerCruiser sterndrives, identify the drive family on the drive itself — not on an outboard transom serial plate. Cross-check with the Mercury Parts Diagrams for your MerCruiser drive group.
| Drive | Notes |
|---|---|
| MC-I, R, MR | 2-wire analog trim sender / limit kit, one drive |
| Alpha One / Alpha One Gen II | 2-wire analog trim sender / limit kit, one drive |
| Bravo | 2-wire analog trim sender / limit kit, one drive |
Technical Specifications
| Specification | Value |
|---|---|
| Part type | Power trim sender and trim limit switch kit |
| Primary OEM number | 805320A03 |
| Circuit | 2-wire analog (one drive) |
| Functions | Trim gauge sender + trim limit switch |
| Coverage | One sterndrive per kit |
Installation Guide
Disconnect the battery. Support the drive. Replacement typically requires drive and bell-housing access — follow the MerCruiser service manual for your drive. Special hinge-pin tools may be required.
Note wire routing. Remove the old port (limit) and starboard (gauge) switches from the gimbal ring. Compare the OEM number to 805320A03.
Install the new switches in the same port/starboard positions. Do not pinch leads in the gimbal. Use adaptor jumpers only if your harness still uses ring terminals.
Reconnect the battery. Confirm the trim gauge moves with drive angle and that the trim button stops at the limit while the trailer button still raises the drive. Adjust the limit only as specified in the service manual.
Note: Professional installation is recommended to ensure safety and optimal performance.
