Transom Saver – Fits Single Ram Outboard Motors (Mercury, Yamaha, Honda, Suzuki, Tohatsu, Evinrude, Johnson)

Vendor: JLM Marine
Availability: In Stock
Product Type: Transom Saver
$35.99
$35.99
Subtotal: $35.99

Free Shipping

Free standard shipping on all orders under 1 KG

Worry-Free Returns

Learn More.

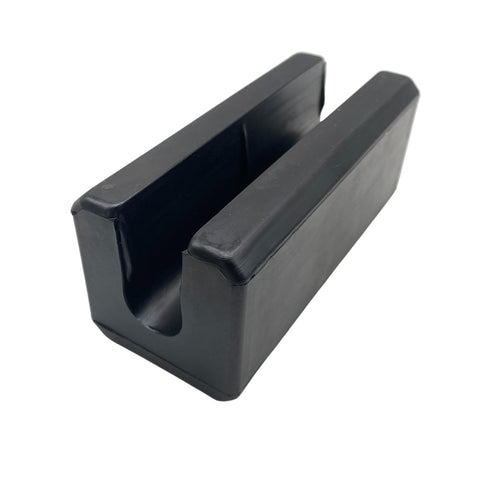

transom saver support JLM Marine single ram outboard for mercury evinrude johnson yamaha honda tohatsu black plastic blocks with notched cutouts

Transom Saver – Fits Single Ram Outboard Motors (Mercury, Yamaha, Honda, Suzuki, Tohatsu, Evinrude, Johnson)

$35.99

Transom Saver – Fits Single Ram Outboard Motors (Mercury, Yamaha, Honda, Suzuki, Tohatsu, Evinrude, Johnson)

$35.99

Transom Saver – Fits Single Ram Outboard Motors

This transom saver support is engineered to protect your boat's transom and the outboard motor's trim/tilt system during trailering. The wedge-style support installs directly onto the single hydraulic ram, absorbing road shock and preventing unwanted engine movement, which can cause damage to the steering and hydraulic systems.

Designed for a wide range of outboard motors, including Mercury, Yamaha, Honda, Suzuki, Tohatsu, Evinrude, and Johnson models with single-ram trim/tilt. This unit is an aftermarket replacement for JLM Marine Transom Saver Support and M-Y Wedge Transom Saver M-YU123.

  • Installation Method: Installs in seconds with no drilling required; slides directly onto the tilt ram.
  • Material: Made from high-density, UV-resistant EPDM rubber to withstand extreme temperatures.
  • Compatibility: Universal fit for most outboards equipped with a single trim/tilt ram.

Part Number Cross-Reference

Use this information to confirm equivalent part numbers across brands.

  • JLM Marine: JLM Marine Transom Saver Support
  • M-Y Wedge: M-YU123

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson Serial Number Guide.

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Confirm your engine model/year in the table below.

Brand Model Rated HP Stroke Years Notes
Mercury Four-Stroke, SeaPro 40-175 HP 4-Stroke Current models Single main tilt shaft
Mercury ProXS, SeaPro 40-175 HP 4-Stroke/2-Stroke Current models Single-ram trim/tilt
Mercury Verado V6/V8 250-400 HP 4-Stroke Current models Requires TWO units
Mercury Racing 300R-500R 4-Stroke Current models Requires TWO units
Mercury Racing 60R 4-Stroke Current models Single unit
Brand Model Rated HP Stroke Years Notes
Yamaha Portable/Midrange 9.9-90 HP 4-Stroke Current models Single-ram trim/tilt
Yamaha F115LB 115 HP 4-Stroke Current models Single-ram trim/tilt
Yamaha VMAX-SHO 90-115 HP 4-Stroke Current models Single-ram trim/tilt
Yamaha Various 30-115 HP 2-Stroke Older models Single-ram trim/tilt
Brand Model Rated HP Stroke Years Notes
Honda BF Series 40-150 HP 4-Stroke Current models Single-ram trim/tilt
Brand Model Rated HP Stroke Years Notes
Suzuki DF Series 40-200 HP 4-Stroke Current models Single-ram trim/tilt
Brand Model Rated HP Stroke Years Notes
Evinrude E-TEC H.O. & Inline 25-130 HP 2-Stroke Up to 2020 Single-ram trim/tilt
Johnson Various 25-130 HP 2-Stroke/4-Stroke Older models Single-ram trim/tilt
Brand Model Rated HP Stroke Years Notes
Tohatsu Various 40-150 HP 4-Stroke Current models Single-ram trim/tilt
Nissan Various 40-150 HP 4-Stroke Older models Single-ram trim/tilt

Technical Specifications

Specification Value
Product Type Transom Saver / Motor Support
Installation No drilling; attaches to single ram tilt shaft
Housing Material High Density EPDM Rubber
Housing Color Black
Dimensions Approx. 5 inches long
Compression Rating Over 2000 lbs
Working Temperature Rated for extreme hot/cold temperatures
Other Technical Attributes 10 inner notches to ensure connection to tilt shaft

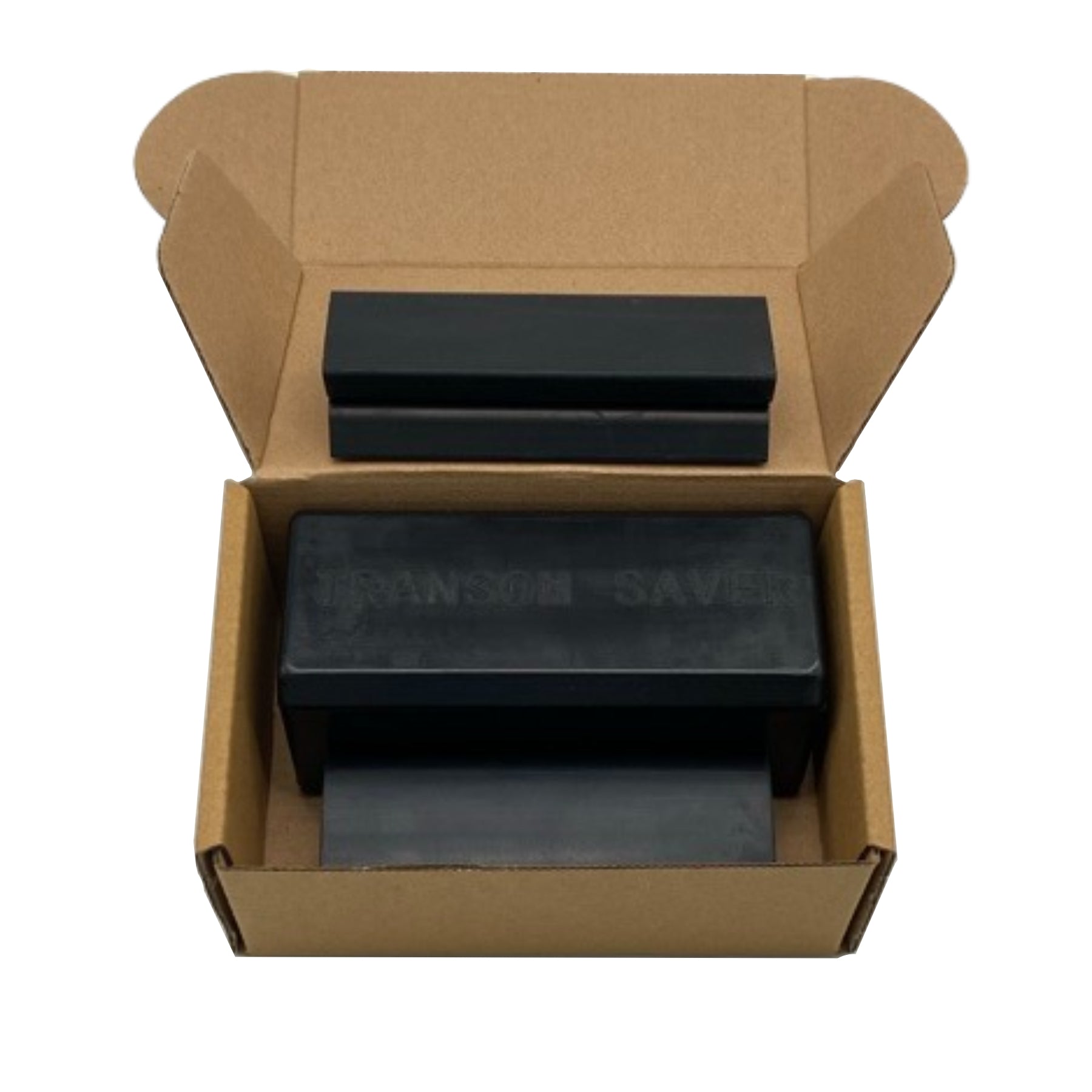

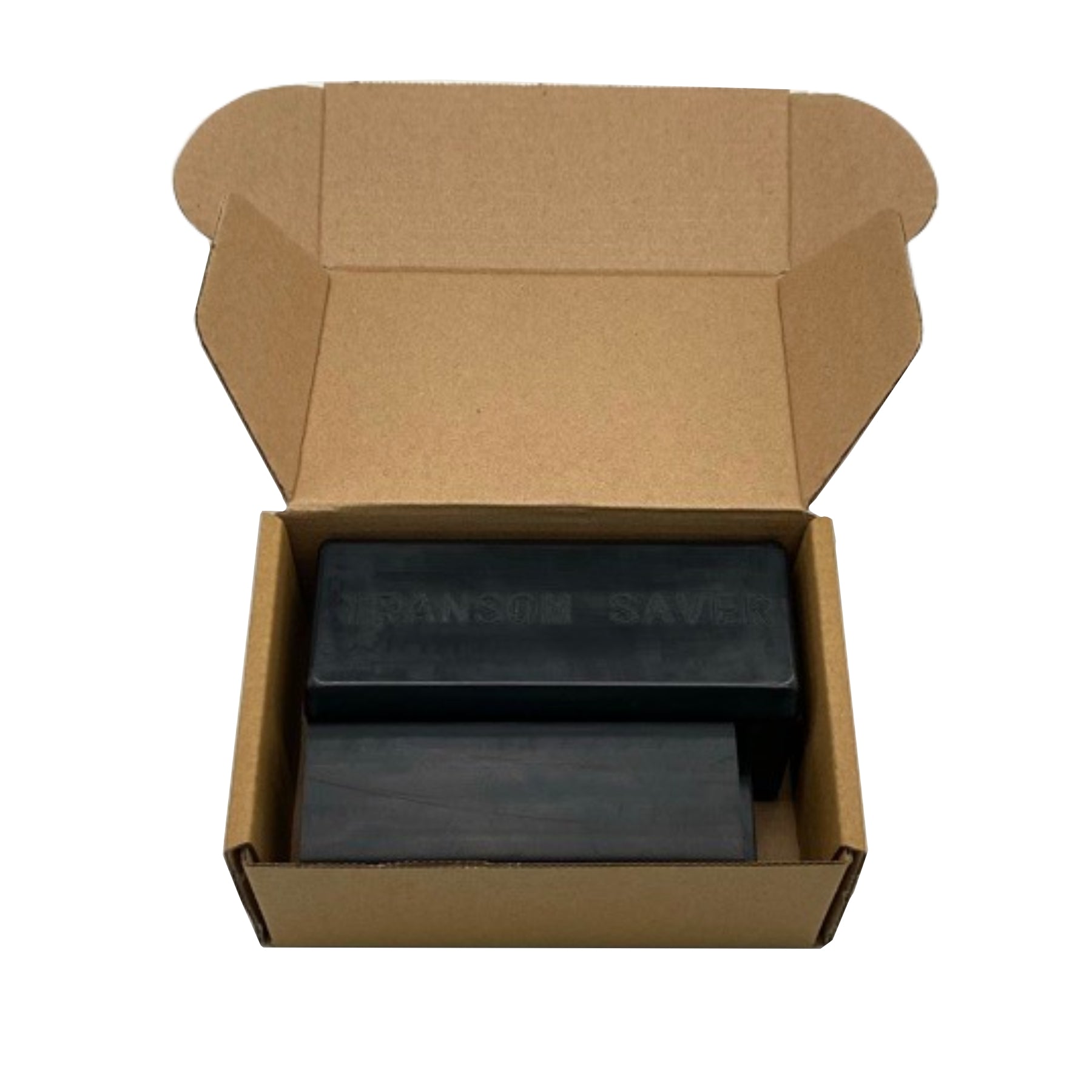

Package Contents

  • 1 x Transom Saver Wedge

Installation Guide

  1. Trim the outboard motor to its highest tilt position.
  2. Identify the main hydraulic trim/tilt ram shaft.
  3. Slide the transom saver wedge firmly onto the exposed ram shaft. The notches inside are designed to help grip the shaft.
  4. Slowly lower the motor until the wedge is held securely between the motor's mounting bracket and the transom assembly.
  5. Confirm the motor is stable and pressure is applied to the wedge before trailering.

Troubleshooting & FAQ

Q: How do I know if this transom saver fits my specific Mercury model?

A: This transom saver fits most single-ram Mercury models from 40-175 HP. For Verado V6/V8 and certain Racing models (300R-500R), two units are required. Always check the compatibility table and verify your engine has a single main tilt shaft.

Q: Can I use this on a dual-ram system?

A: No, this wedge is designed specifically for single-ram trim/tilt systems. Using it on a dual-ram system will not provide proper support and risks damaging your equipment.

Q: What is the benefit of using a rubber wedge over a traditional transom saver bar?

A: This EPDM rubber wedge installs directly on the hydraulic ram, preventing motor "shimmy" and stress on the tilt system without needing a connection to the trailer frame. It's a quick, drill-free installation that effectively dampens vibrations.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
