Thermostat Kit (160°F/71°C) – Fits Mercruiser 3.7L 4-Cylinder Engines (Replaces 99155T1, 99155T2)

Vendor: JLM Marine
Availability: In Stock
Product Type: Thermostat
$30.00
$30.00
Subtotal: $30.00

Free Shipping

Free standard shipping on all orders under 1 KG

Worry-Free Returns

Learn More.
Thermostat Kit (160°F/71°C) – Fits Mercruiser 3.7L 4 - Cylinder Engines (Replaces 99155T1, 99155T2) - JLM Marine Boat Parts Limited

Thermostat Kit (160°F/71°C) – Fits Mercruiser 3.7L 4-Cylinder Engines (Replaces 99155T1, 99155T2)

$30.00

Thermostat Kit (160°F/71°C) – Fits Mercruiser 3.7L 4-Cylinder Engines (Replaces 99155T1, 99155T2)

$30.00

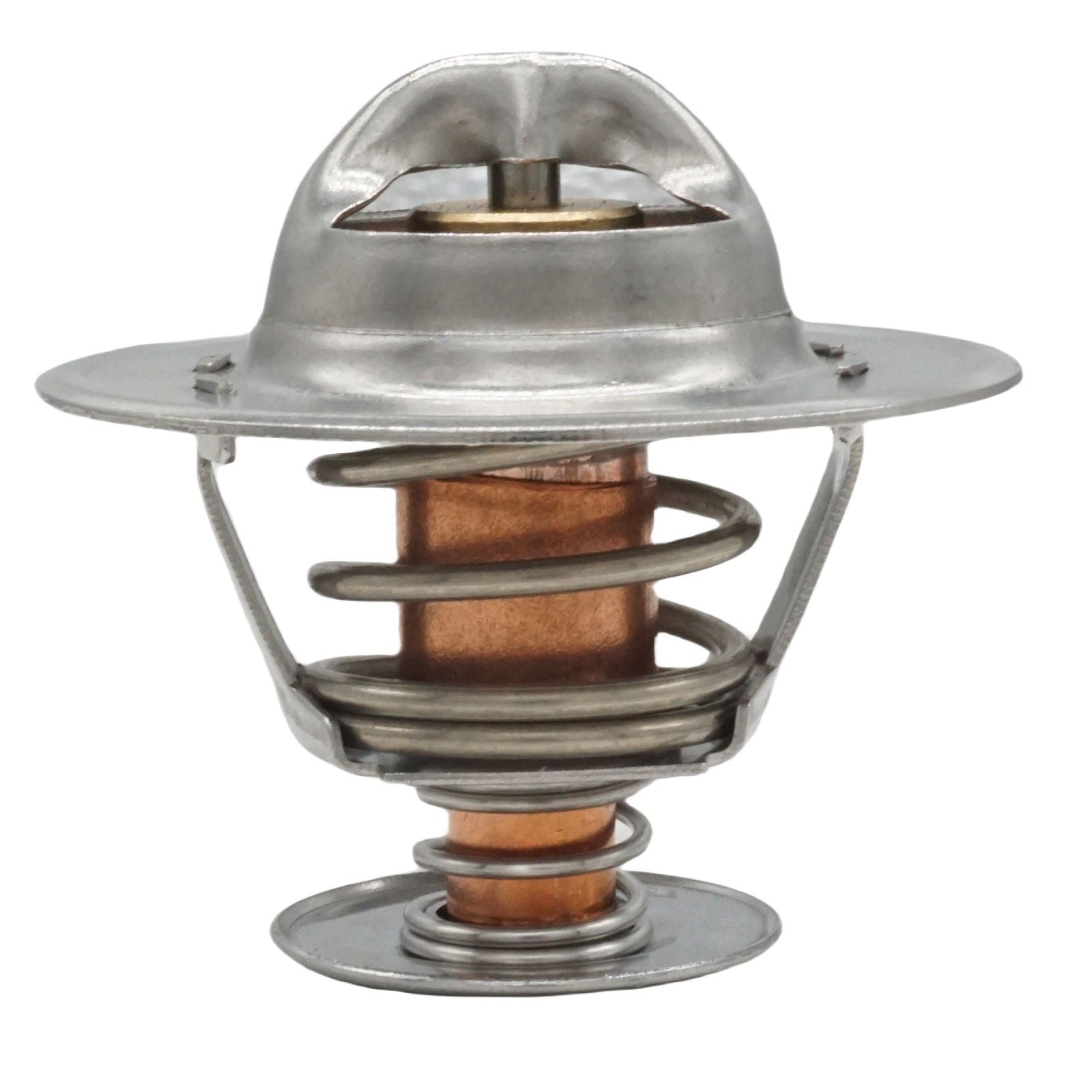

Thermostat Kit (160°F/71°C) – Fits Mercruiser 3.7L 4-Cylinder Engines

This thermostat kit is engineered for Mercruiser 3.7L 4-cylinder (224 CID) engines, including the 165, 170, 180, 190, 470, 485, and 488 series models manufactured between 1976 and 1989.

It serves as a direct replacement for Mercruiser part numbers 99155T1 and 99155T2, as well as Sierra parts 18-3555, 18-3568, and 18-3667.

  • Operating Temperature: Opens at a factory-set 160°F (71°C).
  • Complete Kit: Includes the thermostat and the required gasket/seal for a full replacement.
  • Installation Type: Designed for an OEM direct replacement fit in closed cooling systems.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
Mercruiser 99155T1, 99155T2
Sierra 18-3555, 18-3568, 18-3667

Compatible Engine Models

Confirm your engine model/year in the table below.

Model Rated HP Stroke Years OEM Part No.
165 (2BBL) 165 HP 4-Stroke 1987 99155T1, 99155T2
170 (2BBL) 170 HP 4-Stroke 1985-1986 99155T1, 99155T2
180 (4BBL) 180 HP 4-Stroke 1987 99155T1, 99155T2
190 (4BBL) 190 HP 4-Stroke 1985-1986 99155T1, 99155T2
3.7L (2BBL) 165 HP 4-Stroke 1988-1989 99155T1, 99155T2
3.7LX (4BBL) 180 HP 4-Stroke 1988-1989 99155T1, 99155T2
470 (2BBL) 170 HP 4-Stroke 1976-1984 99155T1, 99155T2
470 MIE 170 HP 4-Stroke 1980-1981 99155T1, 99155T2
485 (2BBL) 185 HP 4-Stroke 1980-1982 99155T1, 99155T2
488 (4BBL) 190 HP 4-Stroke 1983-1984 99155T1, 99155T2

Technical Specifications

Specification Value
Product Type Marine Engine Thermostat Kit
Installation OEM direct replacement
Thermostat Rating 160°F (71°C)
Application Closed cooling system
Operating Temperature 160°F (71°C) opening temperature

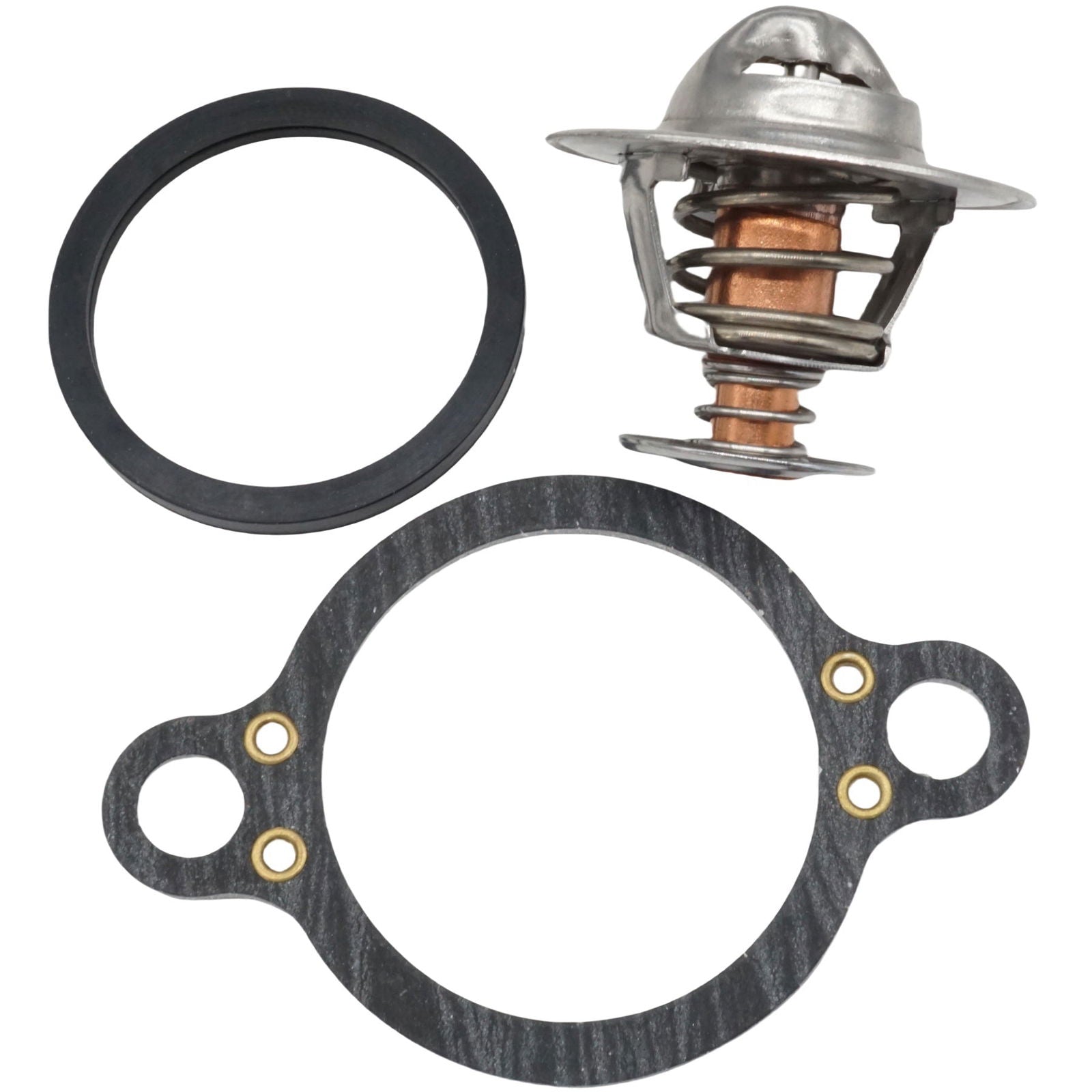

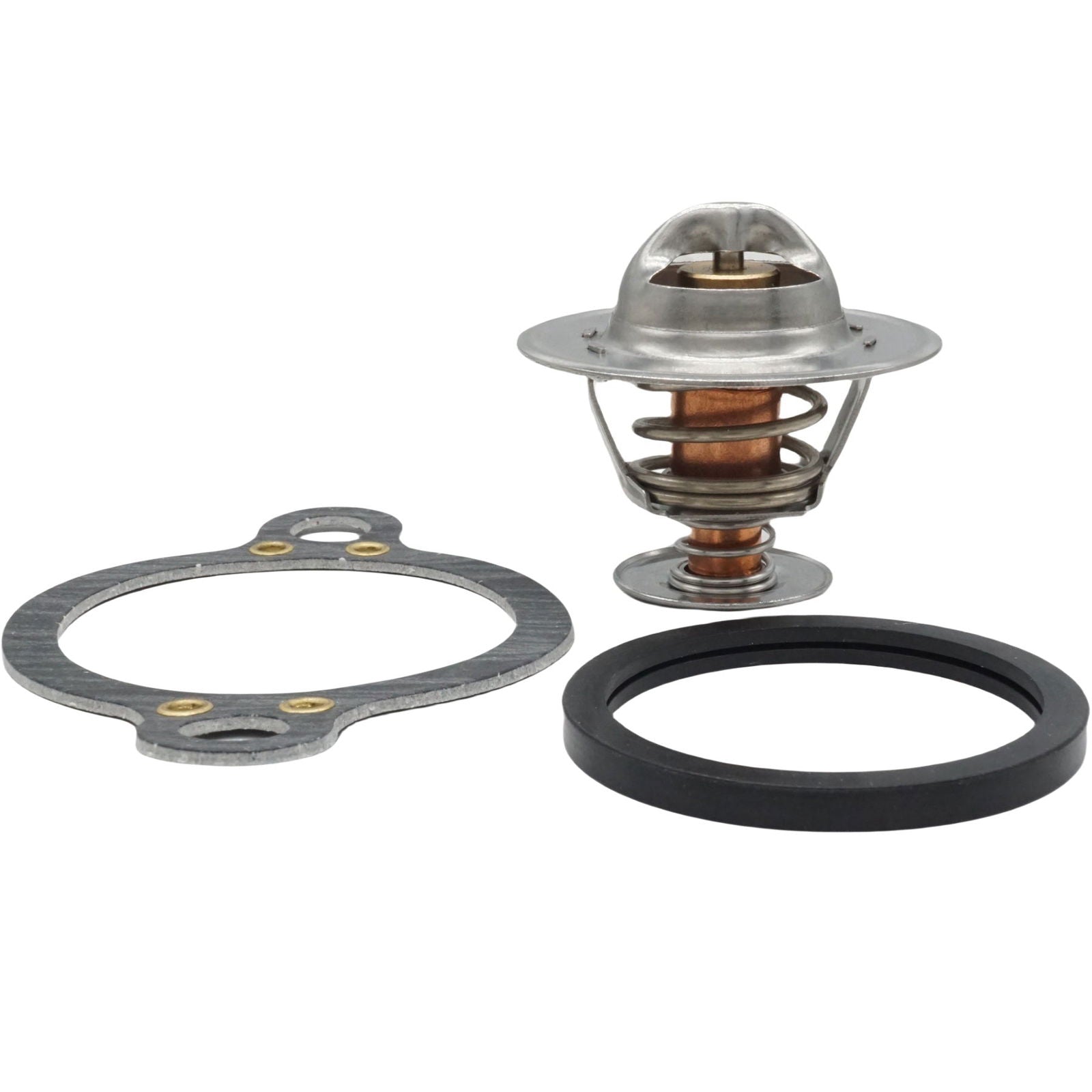

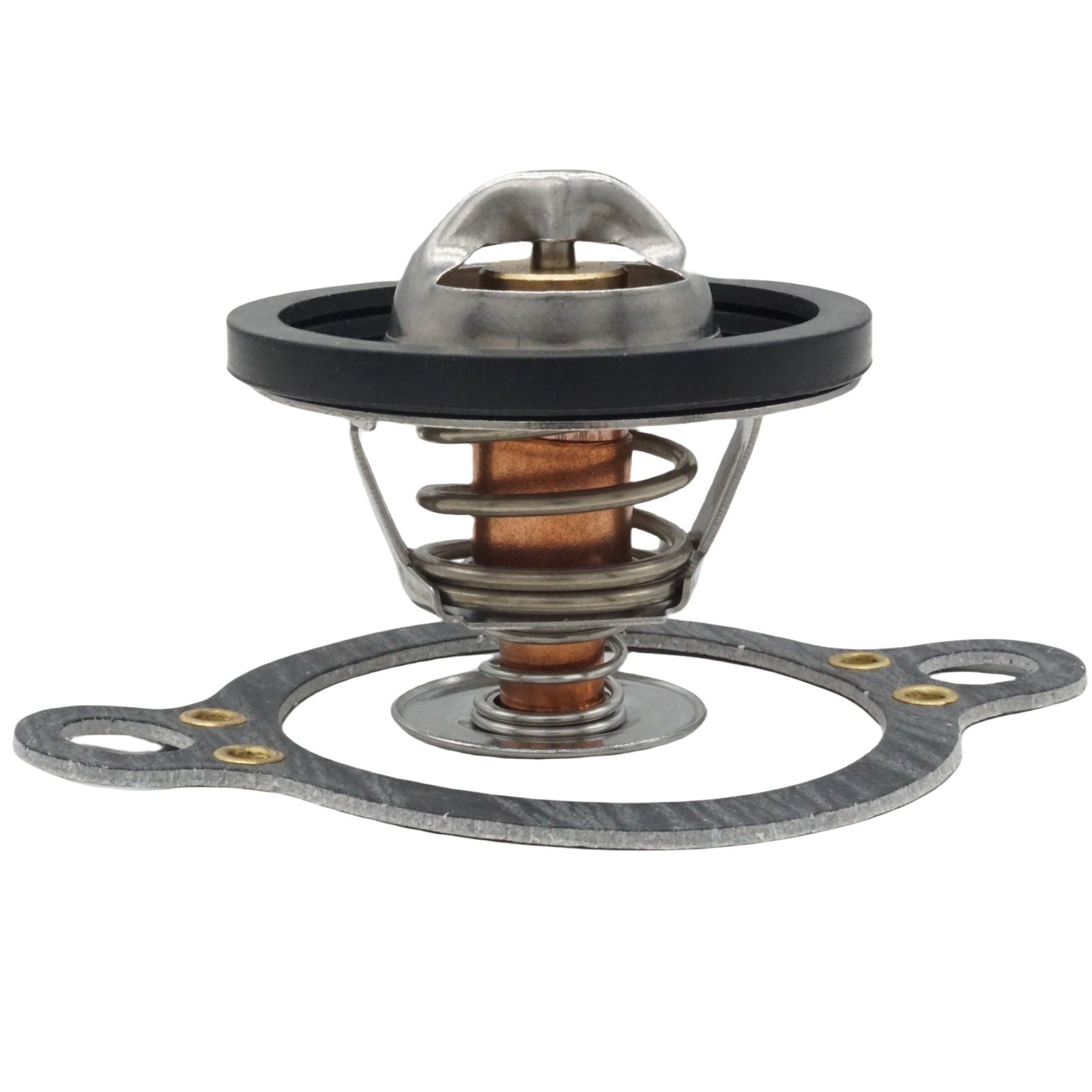

Package Contents

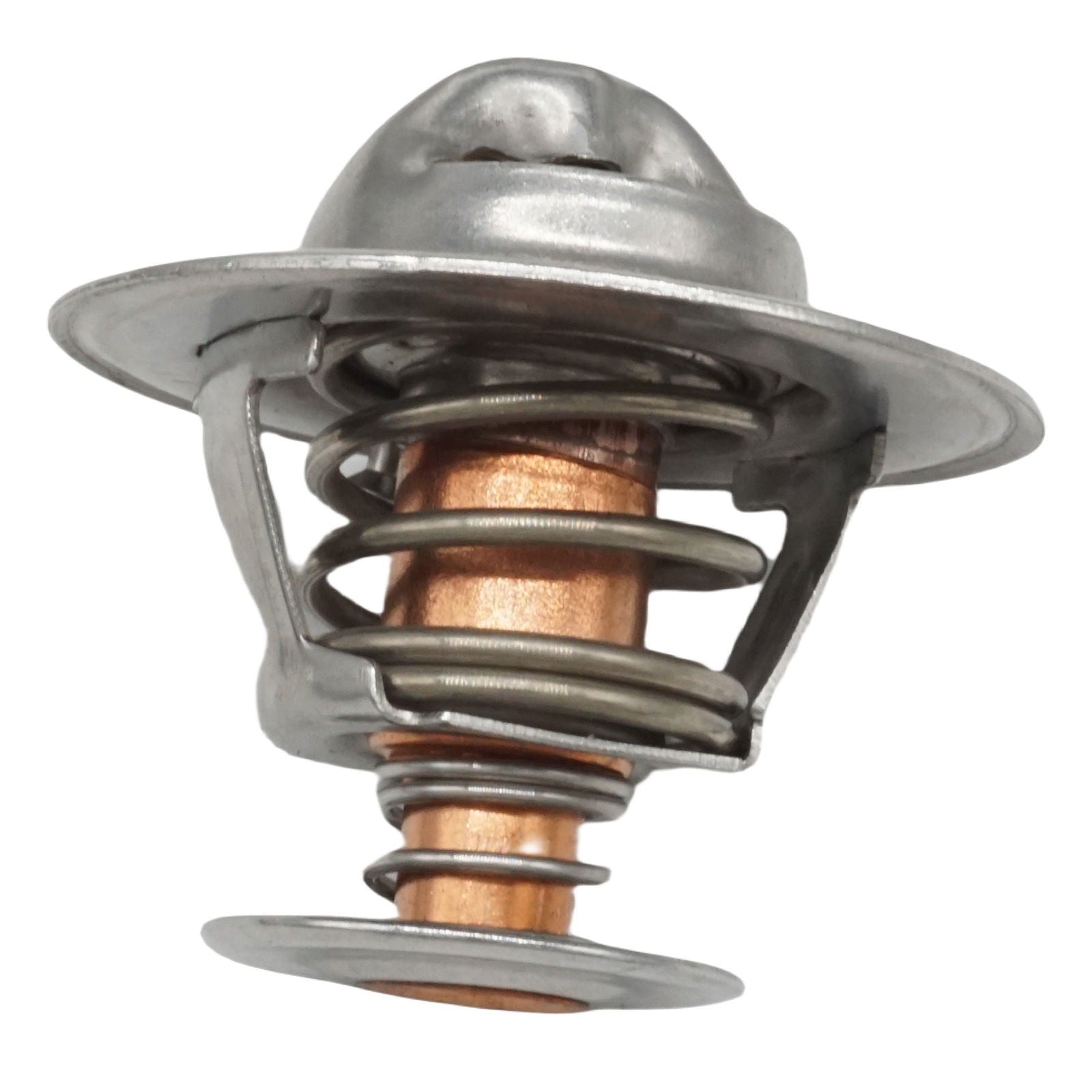

  • 1 x Thermostat (99155A1)

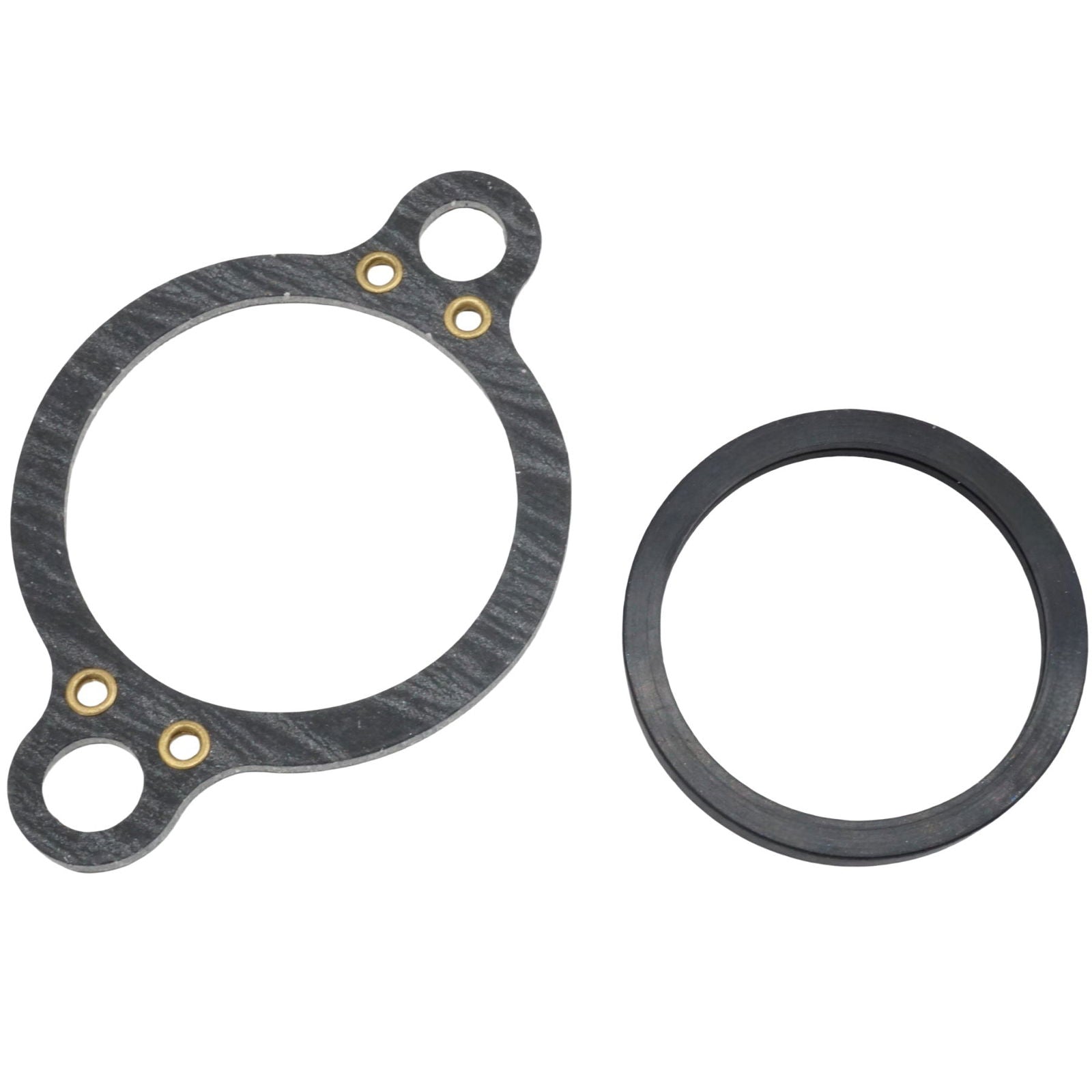

  • 1 x Gasket/Seal (25-807134-1)

Installation Guide

  1. Ensure the engine has completely cooled before starting.
  2. Drain the coolant from the engine's closed cooling system.
  3. Locate and carefully unbolt the thermostat housing.
  4. Remove the old thermostat and gasket/seal, noting their orientation.
  5. Thoroughly clean the mating surfaces of the housing and the engine manifold.
  6. Install the new thermostat and gasket in the correct position.
  7. Re-attach the thermostat housing and tighten the bolts to the manufacturer's specified torque.
  8. Refill the cooling system with the correct type and amount of coolant.
  9. Start the engine, check the temperature gauge for normal operation, and carefully inspect for any leaks.

Troubleshooting & FAQ

How do I confirm this fits my engine?
This kit is designed for Mercruiser 3.7L 4-cylinder (224 CID) engines from 1976–1989, including the 165, 170, 180, 190, 470, 485, and 488 series. Please verify your engine model and year against the compatibility chart and cross-reference the OEM part numbers (99155T1, 99155T2) to ensure a perfect match.
What are the signs of a failing thermostat?
Common symptoms include the engine overheating or running too cold (not reaching the standard 160°F operating temperature). You may also notice fluctuating temperature gauge readings or coolant leaks around the thermostat housing.
What is the difference between part numbers 99155T1 and 99155T2?
Both 99155T1 and 99155T2 are used for the same application. The different numbers likely represent minor revisions by the manufacturer over time, but they are functionally interchangeable. This kit replaces both versions.
OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
