Thermostat Repair Service Kit for Mercury 75 90 120 HP Outboard Motors and Mercury SportJet 90 95 120 HP Jet Drives F664068

Vendor: JLM Marine
Availability: In Stock
Product Type: Thermostat
$37.50
$37.50
Subtotal: $37.50

Free Shipping

Free standard shipping on all orders under 1 KG

Worry-Free Returns

Learn More.
thermostat kit for force 70-150hp 1990-1999 f664068 brass thermostat green gasket black seal

Thermostat Repair Service Kit for Mercury 75 90 120 HP Outboard Motors and Mercury SportJet 90 95 120 HP Jet Drives F664068

$37.50

Thermostat Repair Service Kit for Mercury 75 90 120 HP Outboard Motors and Mercury SportJet 90 95 120 HP Jet Drives F664068

$37.50

Thermostat Repair Kit – Fits Mercury/Mariner 75-120 HP & SportJet 90-95-120 HP

This thermostat repair kit is designed for a range of Mercury/Mariner outboards (75-120 HP) from approximately 1990-1999 and Mercury SportJet models (90-120 HP) from 1993-1997. It provides a reliable solution for maintaining optimal engine operating temperature.

This kit is a direct replacement for Mercury part numbers F664068, 859620, 828319, and F476067, as well as other aftermarket equivalents.

  • Includes the thermostat, housing gasket, and seal for a complete installation.
  • Engineered as a direct OEM-quality replacement for straightforward fitment.
  • Maintains a consistent engine temperature of 130°F (54°C).

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
Mercury F664068
Mercury 859620
Mercury 828319
Mercury F476067
Sierra 18-0854
JUWEVAZU F664068
GHmarine F664068

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Mercury Outboard Engines

Brand Model Rated HP Years OEM Part No. Notes
Mercury Outboard 75 1998-1999 F664068 Serial Range: 0E288000-0E344999, 0E345000-0E369299
Mercury Outboard 90 1990-1992 F664068 Serial Range: 1991E-1992C
Mercury Outboard 90 1990-1994 F664068 Serial Range: 0E000001-0E093699
Mercury Outboard 90 1990 F664068 Multiple serial ranges including 903X90A-Up, 906A90A-Up, 906F90A-Up, etc.
Mercury Outboard 90 1996-1997 F664068 Serial Range: 0E138600-0E202999, 0E203000-0E287999
Mercury Outboard 90 1999 F664068 Serial Range: 0E345000-0E369299
Mercury Outboard 120 1995 F664068 Serial Range: 0E093700-0E138599
Mercury Outboard 120 1996-1997 F664068 Serial Range: 0E138600-0E202999, 0E203000-0E287999
Force Outboard 70, 75, 85, 90, 120, 125, 150 1990-1999 F664068 As referenced in JLM Marine catalog

Mercury Jet Drives

Brand Model Rated HP Years OEM Part No. Notes
Mercury SportJet 90 1993 F664068 Non-Oil Injection, Powerhead: Serial Range 0E023150-0E033710
Mercury SportJet 90 1993 F664068 Jet Drive: Serial Range 0E021000-0E036999
Mercury SportJet 90 1994 F664068 Non-Oil Injection, Powerhead: Serial Range 0E033711-0E066619
Mercury SportJet 90 1994 F664068 Oil Injection, Powerhead: Serial Range 0E066620-0E095087
Mercury SportJet 95XR 1996 F664068 Powerhead: Serial Range 0E141089-0E202999
Mercury SportJet 95XR 1996 F664068 Jet Drive: Serial Range 0E145580-0E151579
Mercury SportJet 95XR 1997 F664068 Powerhead: Serial Range 0E203000-0E315904
Mercury SportJet 95XR 1997 F664068 Jet Drive: Serial Range 0E151580-0E288445
Mercury SportJet 120 1995 F664068 Powerhead: Serial Range 0E095088-0E141088
Mercury SportJet 120 1995 F664068 Jet Drive: Serial Range 0E080400-0E145579

Technical Specifications

Specification Value
Product Type Thermostat Kit with Gasket and Seal
Installation Direct OEM replacement
Housing Material Metal
Housing Color Brass/Gray
Operating Temperature 130°F (54°C)

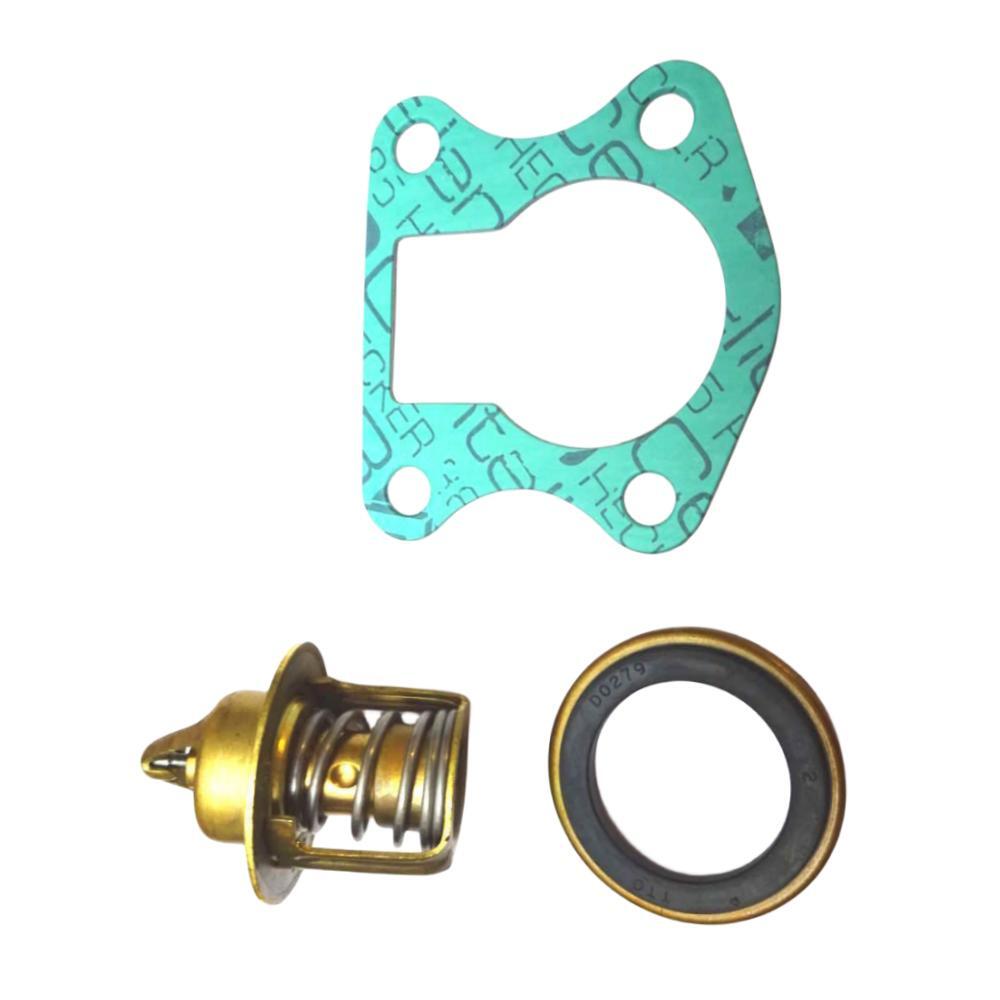

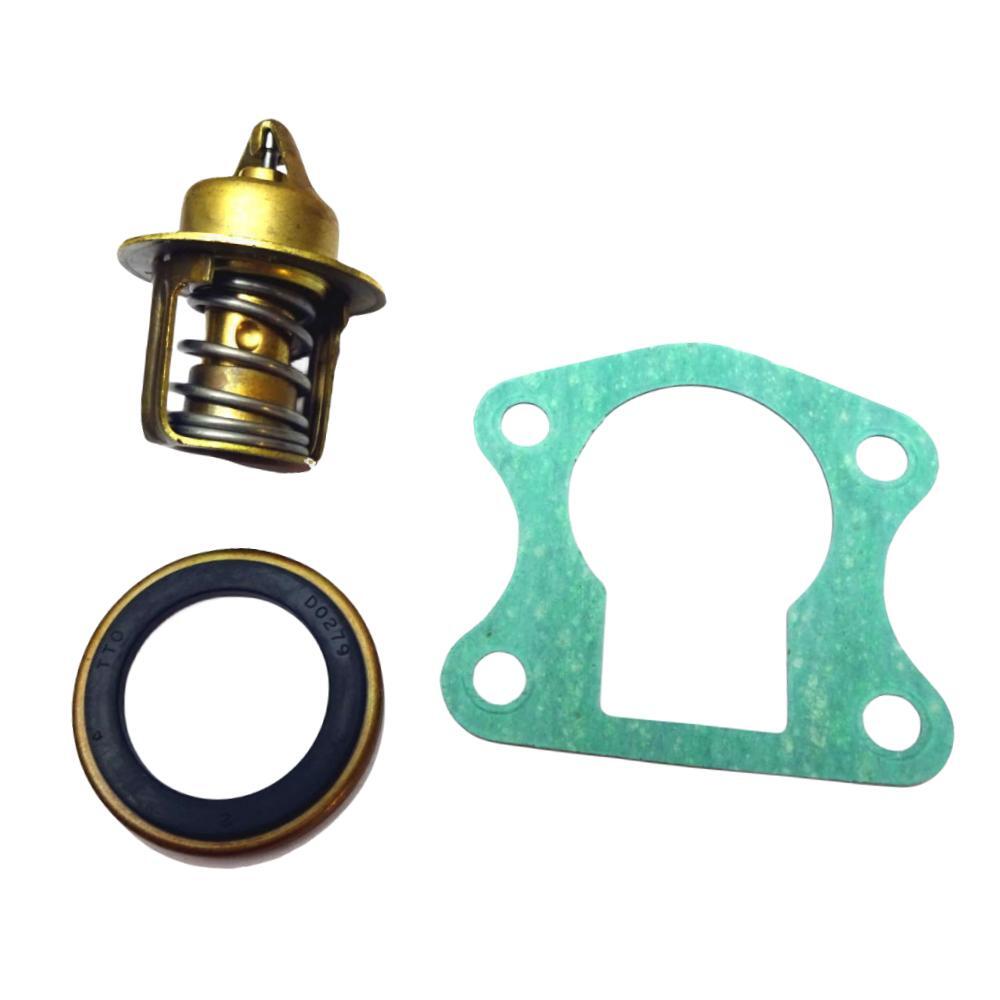

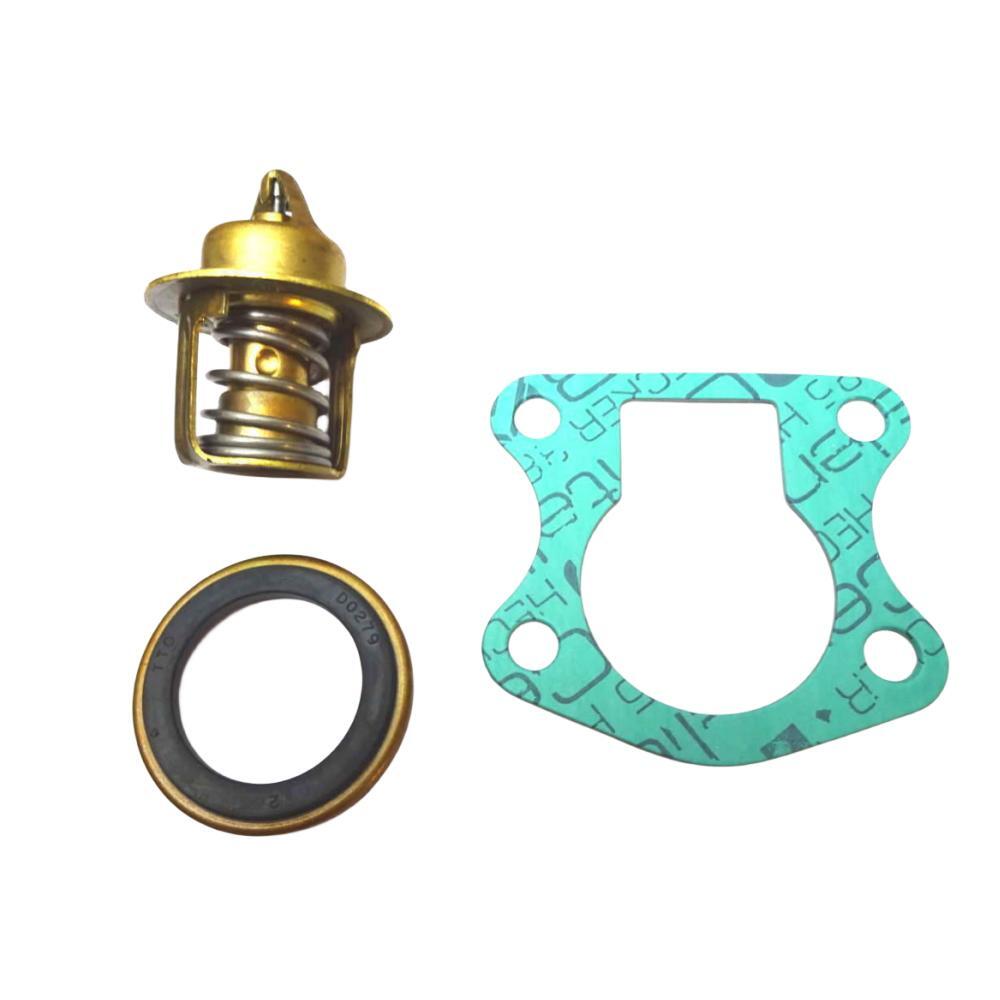

Package Contents

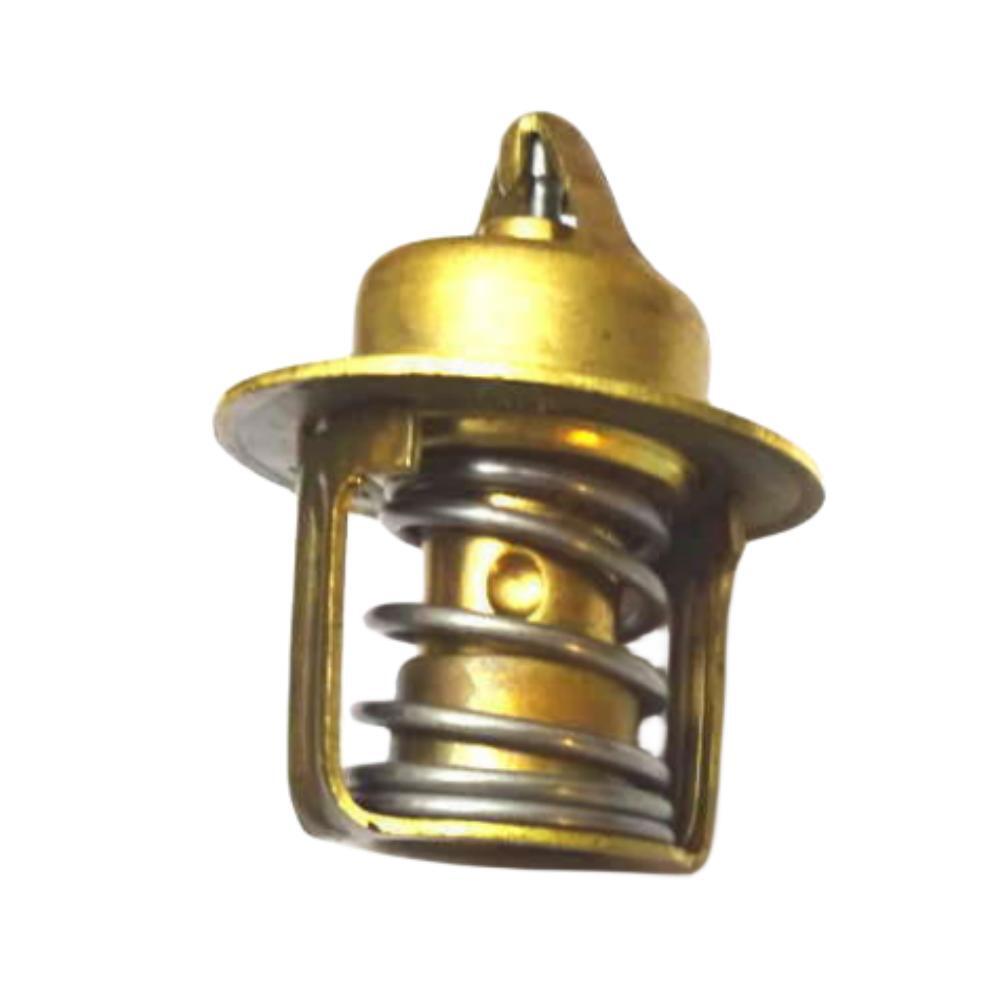

  • 1 x Thermostat (F664068)

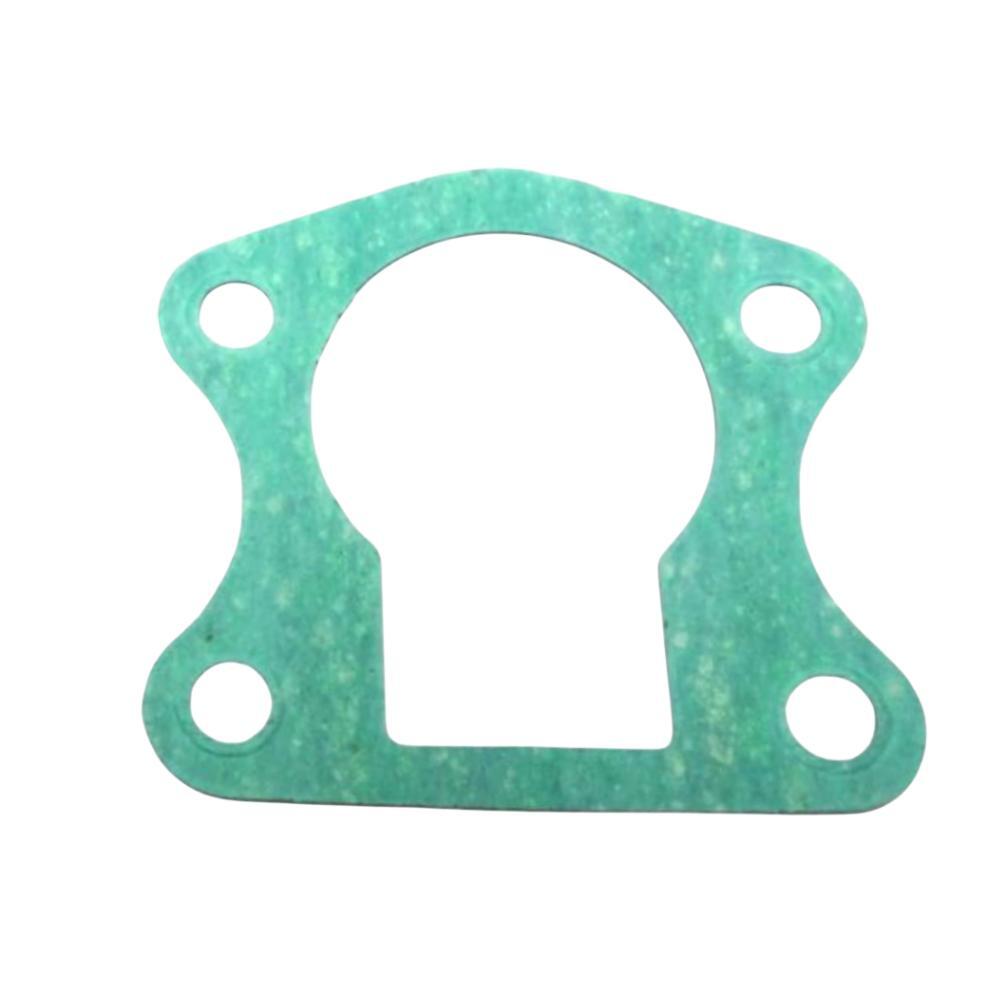

  • 1 x Thermostat Housing Gasket (828319)

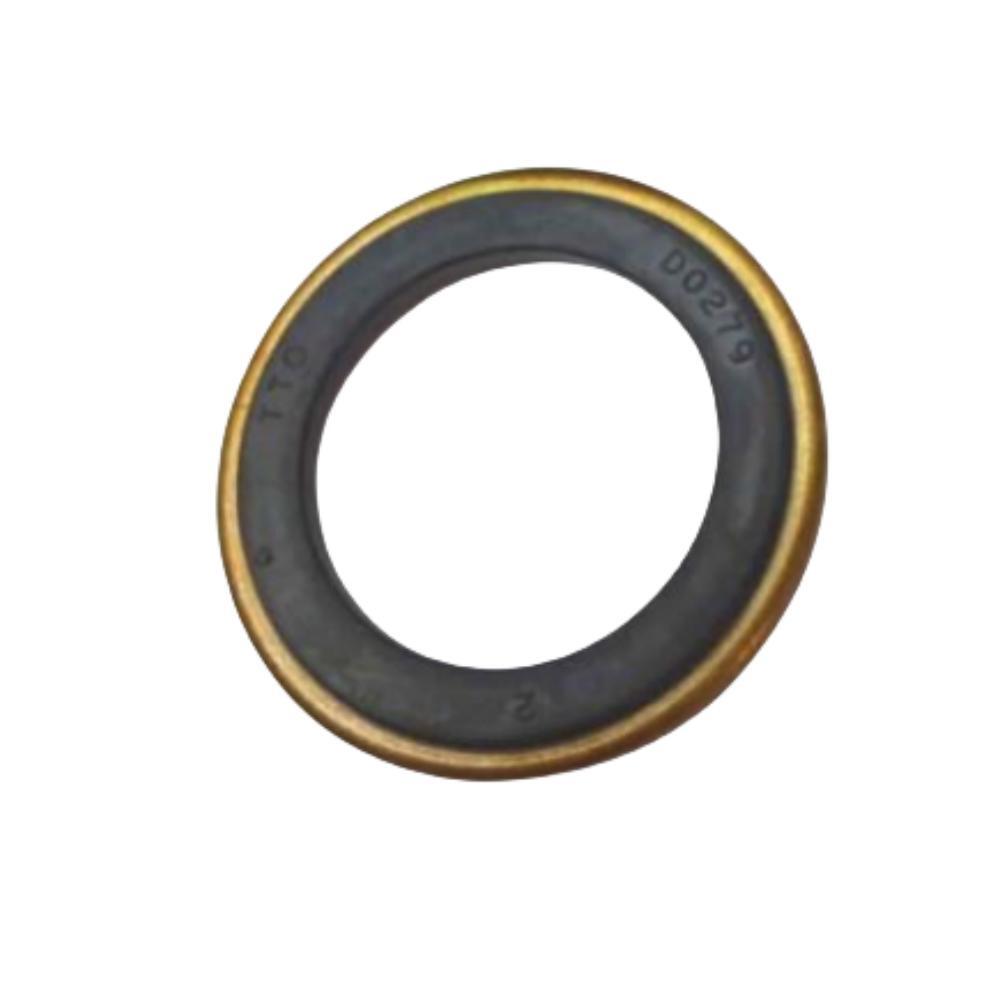

  • 1 x Thermostat Seal (F664914)

Installation Guide

  1. Safety First: Ensure the engine is off and cool. Disconnect the battery.
  2. Drain Coolant: Partially drain the engine coolant below the level of the thermostat housing.
  3. Locate Housing: Find the thermostat housing on the engine block or cylinder head.
  4. Remove Housing: Unscrew the bolts holding the thermostat housing cover. Note their positions if they are different lengths.
  5. Remove Old Parts: Take out the old thermostat, gasket, and seal. Remember the thermostat's orientation.
  6. Clean Surfaces: Thoroughly clean the mating surfaces of the housing and cover, removing all old gasket material.
  7. Install New Parts: Place the new thermostat, seal, and gasket in position, ensuring correct orientation.
  8. Reassemble: Re-attach the housing cover and tighten the bolts to the manufacturer's recommended torque.
  9. Refill Coolant: Top off the engine with the appropriate coolant.
  10. Check for Leaks: Reconnect the battery, start the engine, and let it reach operating temperature. Carefully check for any leaks around the housing.

Troubleshooting & FAQ

Q: How do I confirm this kit fits my engine?

A: The best way is to match your engine's serial number to the ranges listed in the compatibility tables above. You can also verify by cross-referencing your existing part number with those listed in the "Part Number Cross-Reference" section. Using our linked Mercury Serial Number Guide can also help you confirm your model and year.

Q: What are the signs of a faulty thermostat?

A: Common symptoms include the engine overheating (running too hot) or taking too long to reach its proper operating temperature (running too cold). An erratic temperature gauge reading can also indicate a problem.

Q: What temperature does this thermostat operate at?

A: This thermostat is rated to open at 130°F (54°C) to regulate engine temperature.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.

Why Choose JLM MARINE?

  • Quality Assured: As a trusted manufacturer for over 20 years, we supply top marine brands globally.
  • Fast Global Shipping: Free delivery worldwide in 5–15 days.
  • Direct from Manufacturer: Competitive pricing without compromising quality.

We can ship to virtually any address in the world with free shipping available for most regions.

For our typical US and Canadian customers , our shipping timeframes are as follows:

  • Amazon FBA: orders will be delivered within 1-5 business days after placing the order (during certain special periods such as major promotions, Christmas, etc., the delivery time of Amazon FBA may be affected).
  • US warehouse shipment: orders will be delivered within 5 days after placing the order.
  • China warehouse shipment: orders will be delivered about 12 days after placing the order.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Founded in 2002, JLM Marine has established itself as a dedicated manufacturer of high-quality marine parts, based in China. Our commitment to excellence in manufacturing has earned us the trust of top marine brands globally.

As a direct supplier, we bypass intermediaries, which allows us to offer competitive prices without compromising on quality. This approach not only supports cost-efficiency but also ensures that our customers receive the best value directly from the source.

We are excited to expand our reach through retail channels, bringing our expertise and commitment to quality directly to boat owners and enthusiasts worldwide.
