Tension Pulley – Fits Volvo Penta KAD Series 170–285 HP (Replaces 3582324)

$24.99

Tension Pulley – Fits Volvo Penta KAD Series 170–285 HP (Replaces 3582324)

$24.99

Tension Pulley – Fits Volvo Penta KAD Series 170–285 HP (Replaces 3582324)

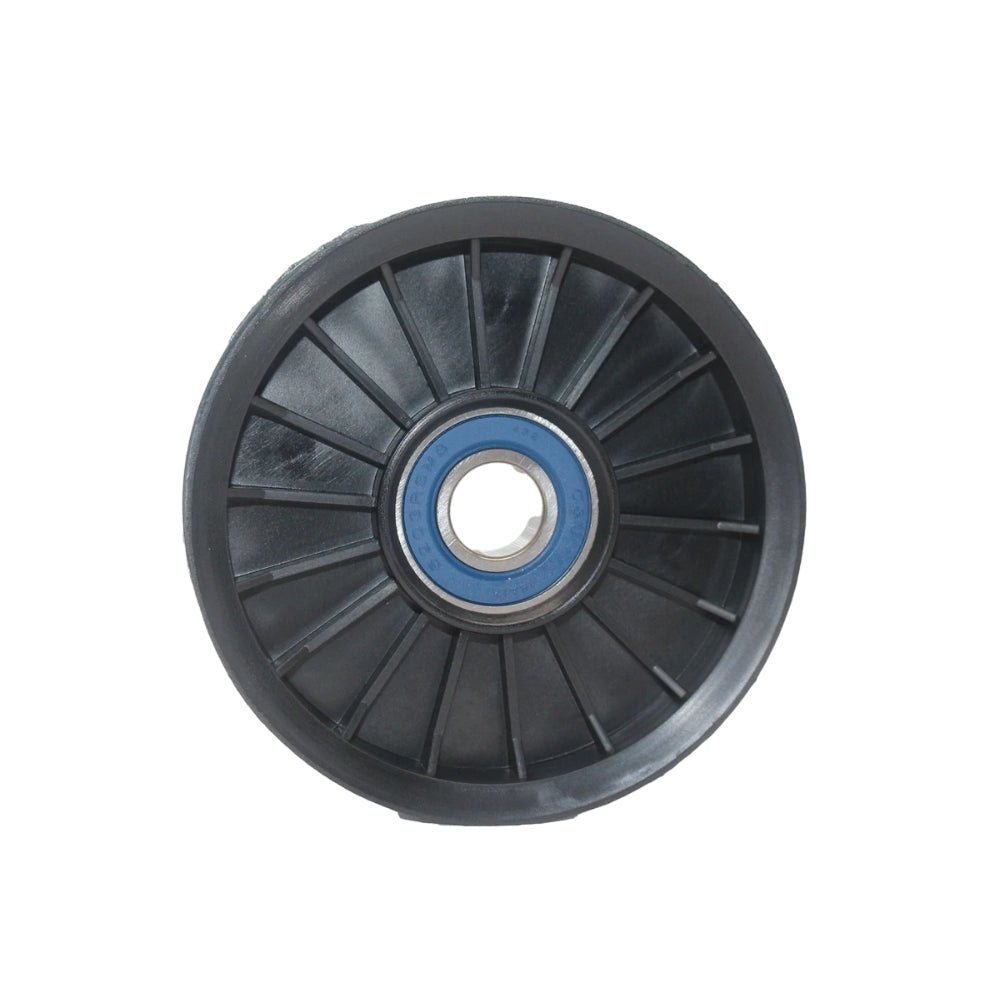

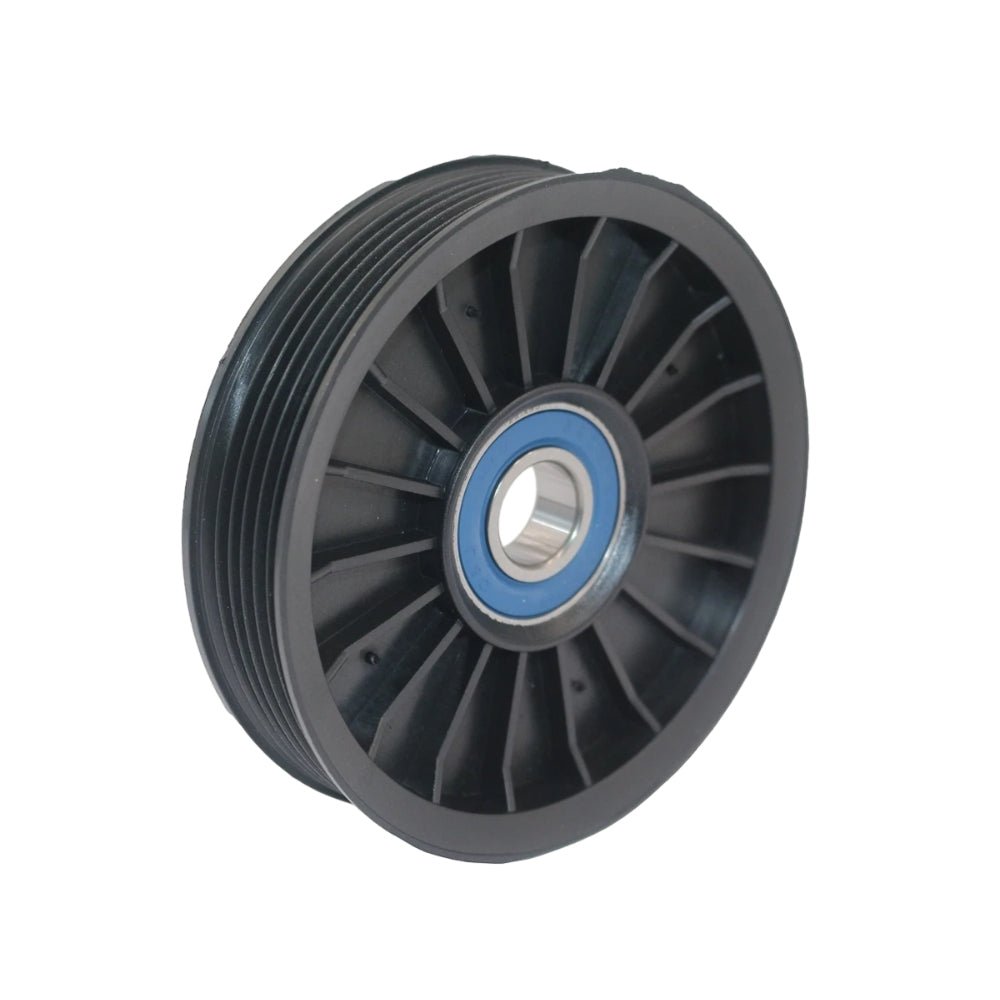

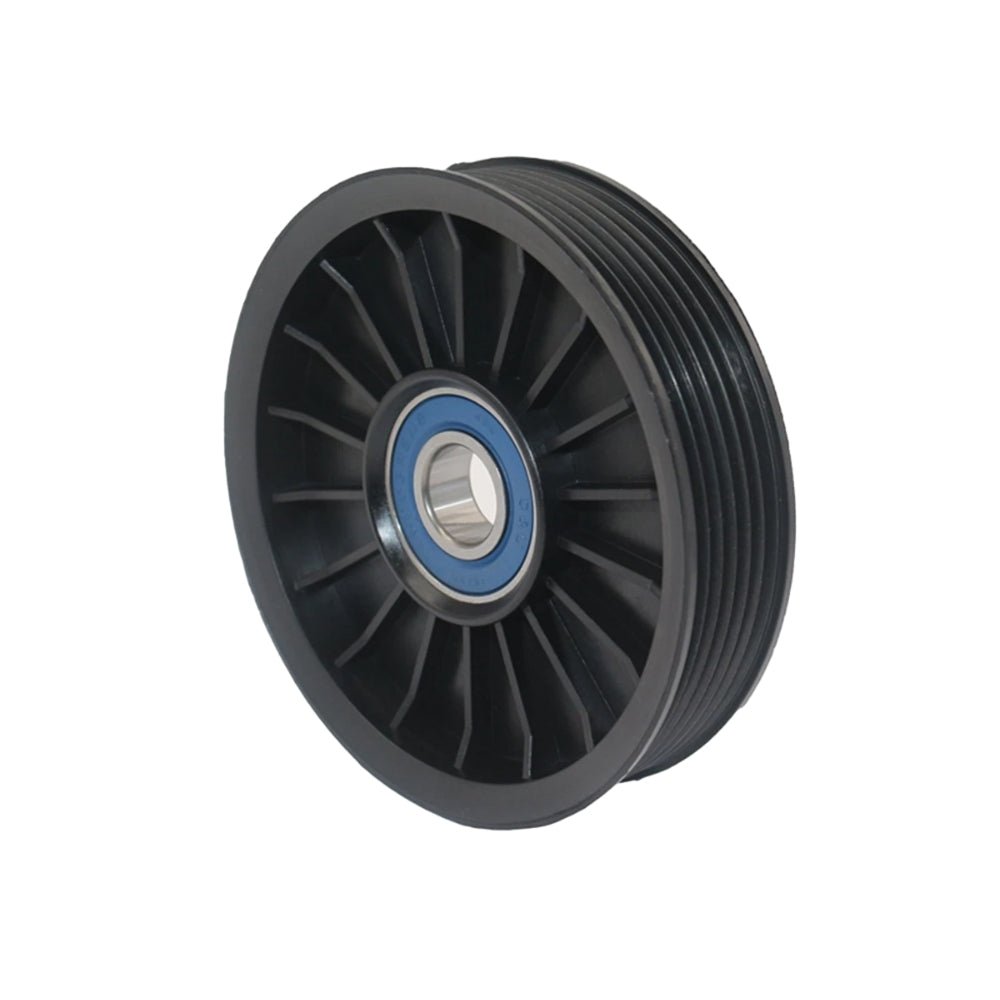

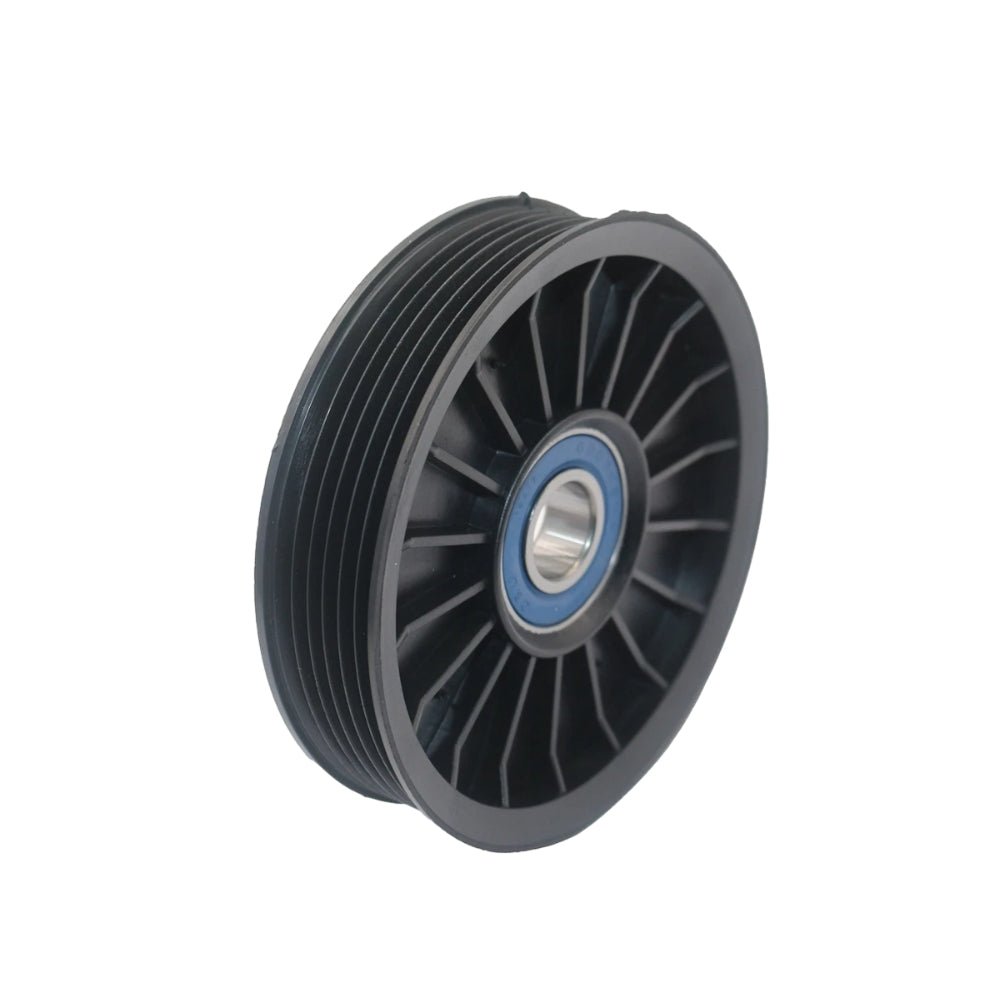

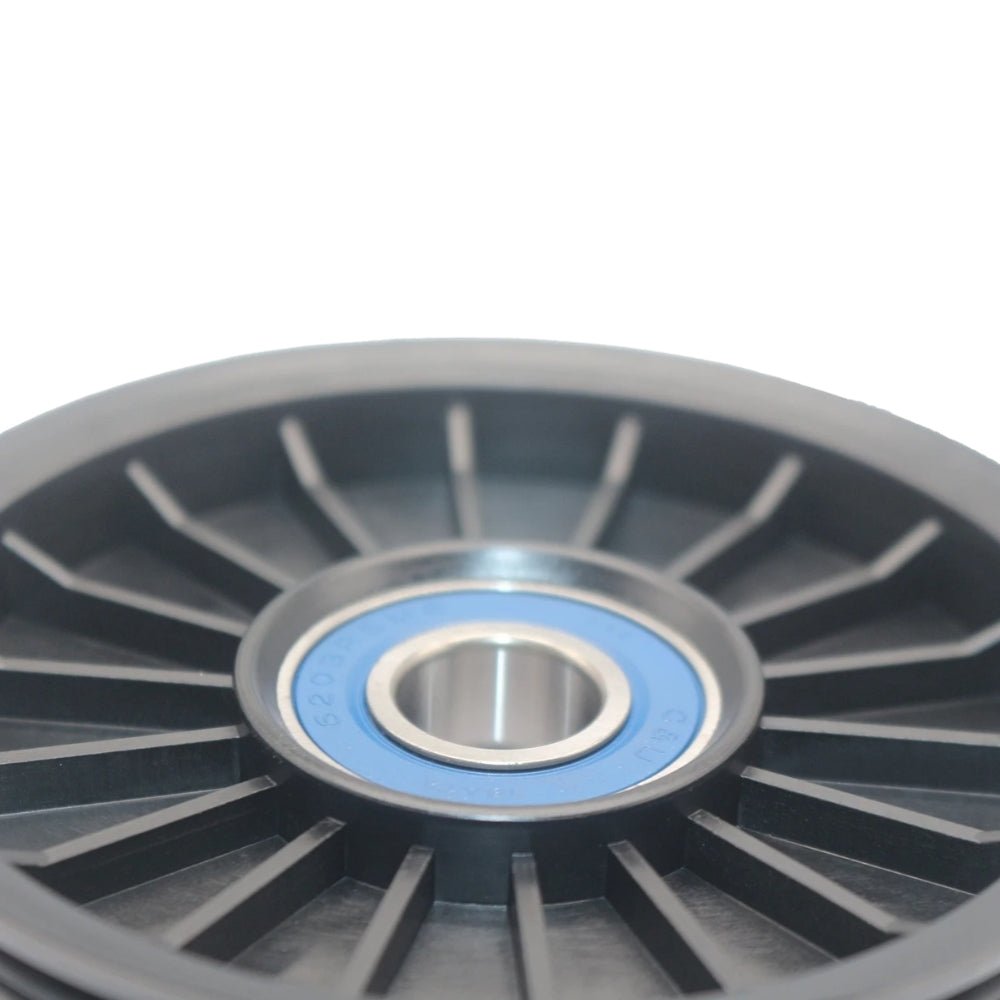

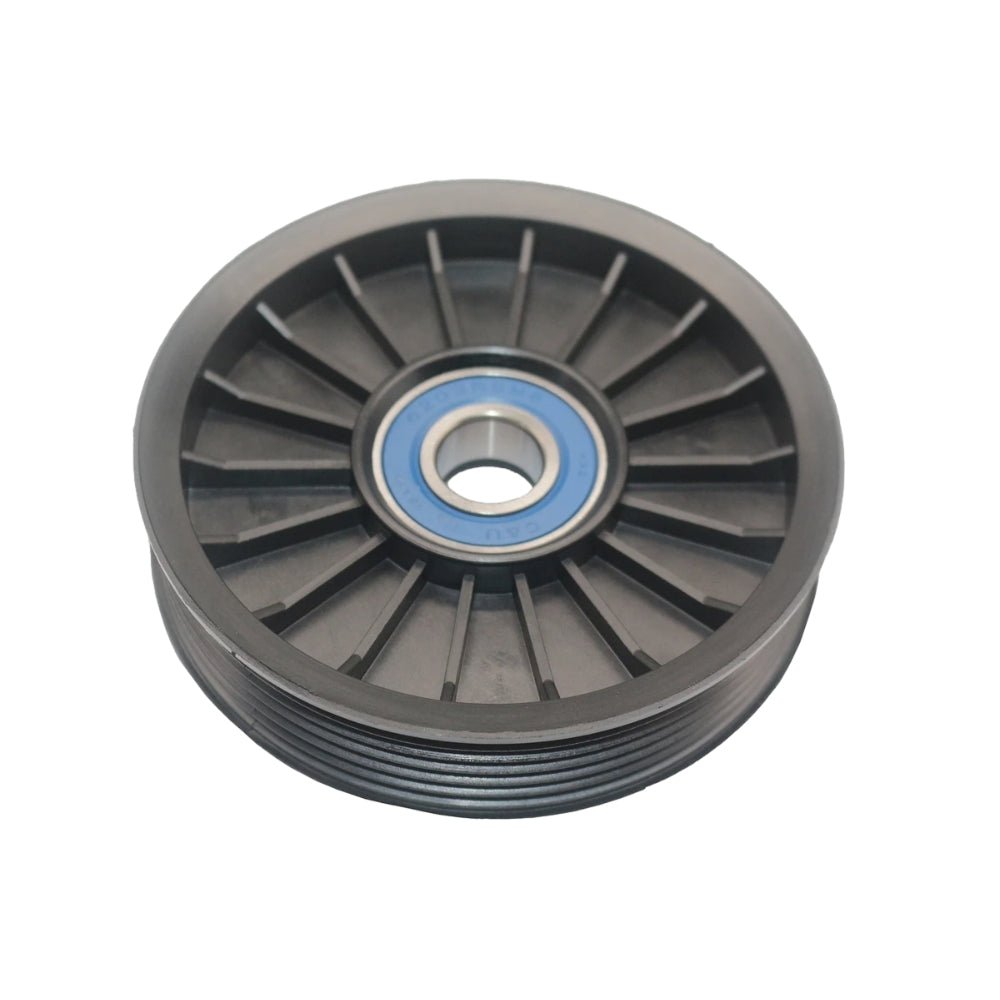

This tension pulley is a direct replacement component for Volvo Penta KAD and KAMD series marine diesel engines manufactured between 1993 and 2005, covering the 170–285 horsepower range. It plays a critical role in maintaining proper belt tension for the compressor and water pump systems.

This component directly replaces Volvo Penta part number 3582324 and equivalents from other brands including Repower Marine, Recmar, and Orbitrade Marine. Please verify your original part number before ordering.

  • Installation Method: Adjustable with standard spanners or wrenches.
  • Engine Compatibility: Designed specifically for Volvo Penta diesel engines.
  • Durable Construction: Made from metal with a corrosion-resistant coating to withstand harsh marine environments.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
Volvo Penta 3582324
Volvo OE VOE3582324
Repower Marine RM3582324
Recmar REC3582324
MarineSpareParts AM3582324
Orbitrade Marine 12324

Compatible Engine Models

Confirm your engine model/year in the table below.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Volvo Penta D32 170 HP 4-Stroke 1993–2005 3582324
Volvo Penta D42 230 HP 4-Stroke 1993–2005 3582324
Volvo Penta D43 230 HP 4-Stroke 1993–2005 3582324
Volvo Penta D44 260 HP 4-Stroke 1993–2005 3582324
Volvo Penta D300 285 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAD32P-A 170 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAD42 230 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAMD42 230 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAD43P-A 230 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAMD43P 230 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAMD43P-A 230 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAD44P-A 260 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAD44P-B 260 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAD44P-C 260 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAMD44P-A 260 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAMD44P-C 260 HP 4-Stroke 1993–2005 3582324
Volvo Penta KAD300-A 285 HP 4-Stroke 2002–2005 3582324
Volvo Penta KAMD300-A 285 HP 4-Stroke 2002–2005 3582324
Volvo Penta TAMD42WJ-A 230 HP 4-Stroke 1993–2005 3582324

Technical Specifications

Specification Value
Product Type Tension/Idler Pulley
Installation Wrench adjustment
Fuel Type Diesel
Connection Bolt mounting hole (central)
Housing Material Metal with corrosion-resistant coating
Housing Color Silver/Steel
Dimensions 95mm diameter
Weight 0.322 kg (0.71 lbs)
Fitting Type Central bolt mounting
Warranty 1-year against manufacturing defects

Package Contents

  • 1 x Tension Pulley (Replaces 3582324)

Explosion Diagram

Explosion Diagram

Installation Guide

Note: Most compatible engines require two of these pulleys—one on the compressor and one on the water pump. This version is adjustable with spanners/wrenches. Professional installation is recommended.

  1. Turn off the engine and allow it to cool completely. Disconnect the battery.
  2. Remove the engine cover to access the belt system.
  3. Release belt tension by adjusting the tensioner mechanism with a suitable wrench.
  4. Carefully slide the belt off the old tensioner pulley.
  5. Remove the mounting bolt(s) securing the old tensioner pulley assembly.
  6. Note the orientation of the original pulley before removal.
  7. Position the new tensioner pulley in the same orientation as the original.
  8. Secure the new pulley using the mounting bolts, tightening them to the manufacturer's recommended torque specifications.
  9. Return the tensioner mechanism to its neutral position using the wrench.
  10. Reinstall the belt, ensuring it is correctly seated on all pulleys.
  11. Apply proper tension according to your engine's service manual specifications.
  12. Verify belt alignment and the tensioner's smooth operation before starting the engine. Replace the engine cover.

Troubleshooting & FAQ

How do I confirm this fits my engine?
First, check your engine model and year against the compatibility list above. Second, verify that your current part number matches one of the numbers in our cross-reference table, such as the primary OEM number 3582324.

How many of these pulleys are on my engine?
Most Volvo Penta KAD and KAMD series engines use two of these adjustable pulleys per engine. One is typically located on the compressor and the other on the water pump. Please check your specific engine configuration.

What are the signs of a failing tension pulley?
Common signs of a worn or failing tension pulley include persistent squealing or grinding noises from the engine bay, a visibly wobbling or loose serpentine belt, or physical damage and excessive wear on the pulley surface.

What tools are needed for installation?
This pulley is designed for wrench adjustment, so you will need a set of standard spanners or wrenches to release and apply tension. You will also need the appropriate socket or wrench to remove the central mounting bolt.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
