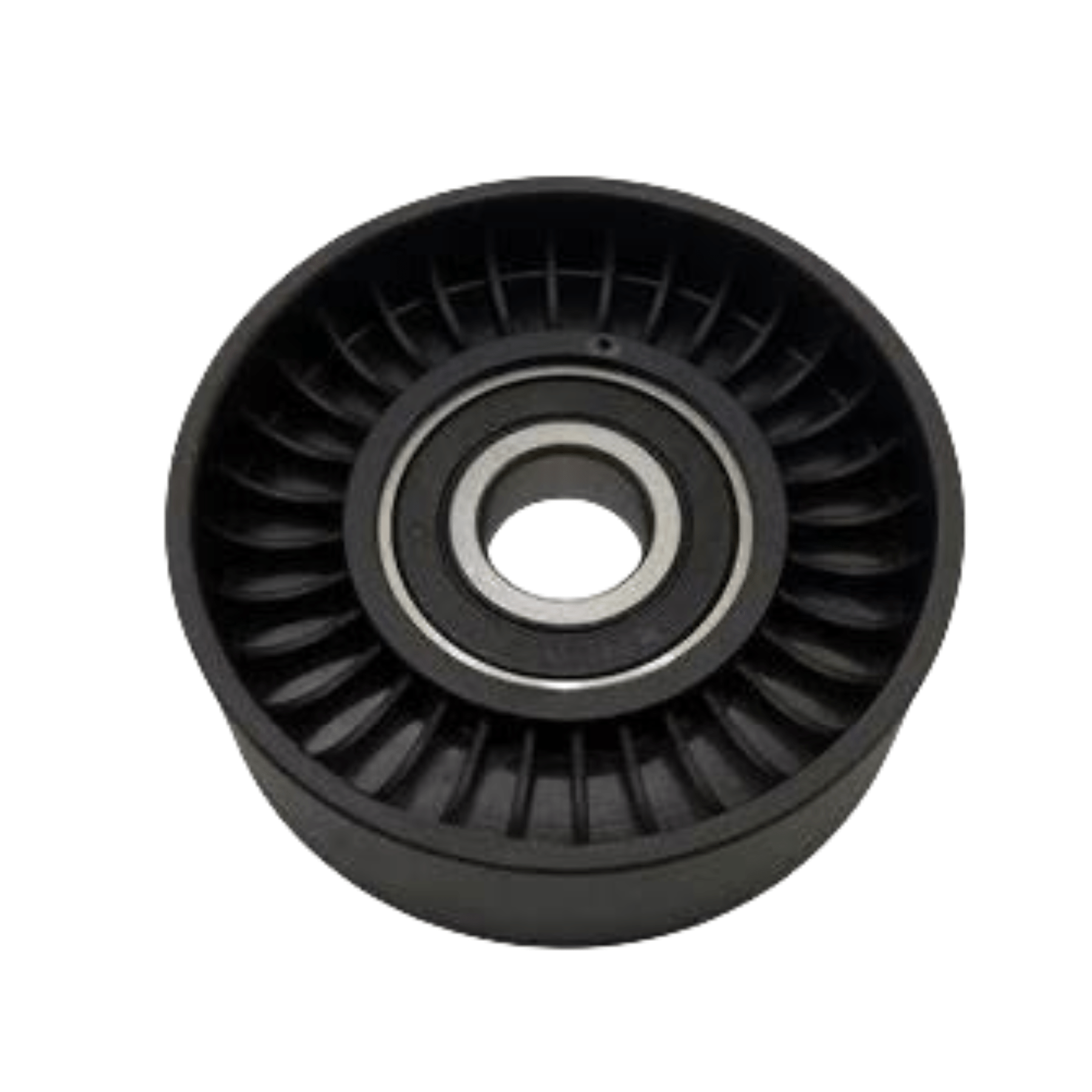

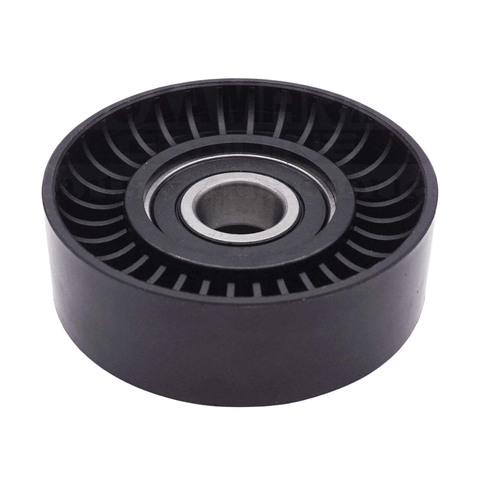

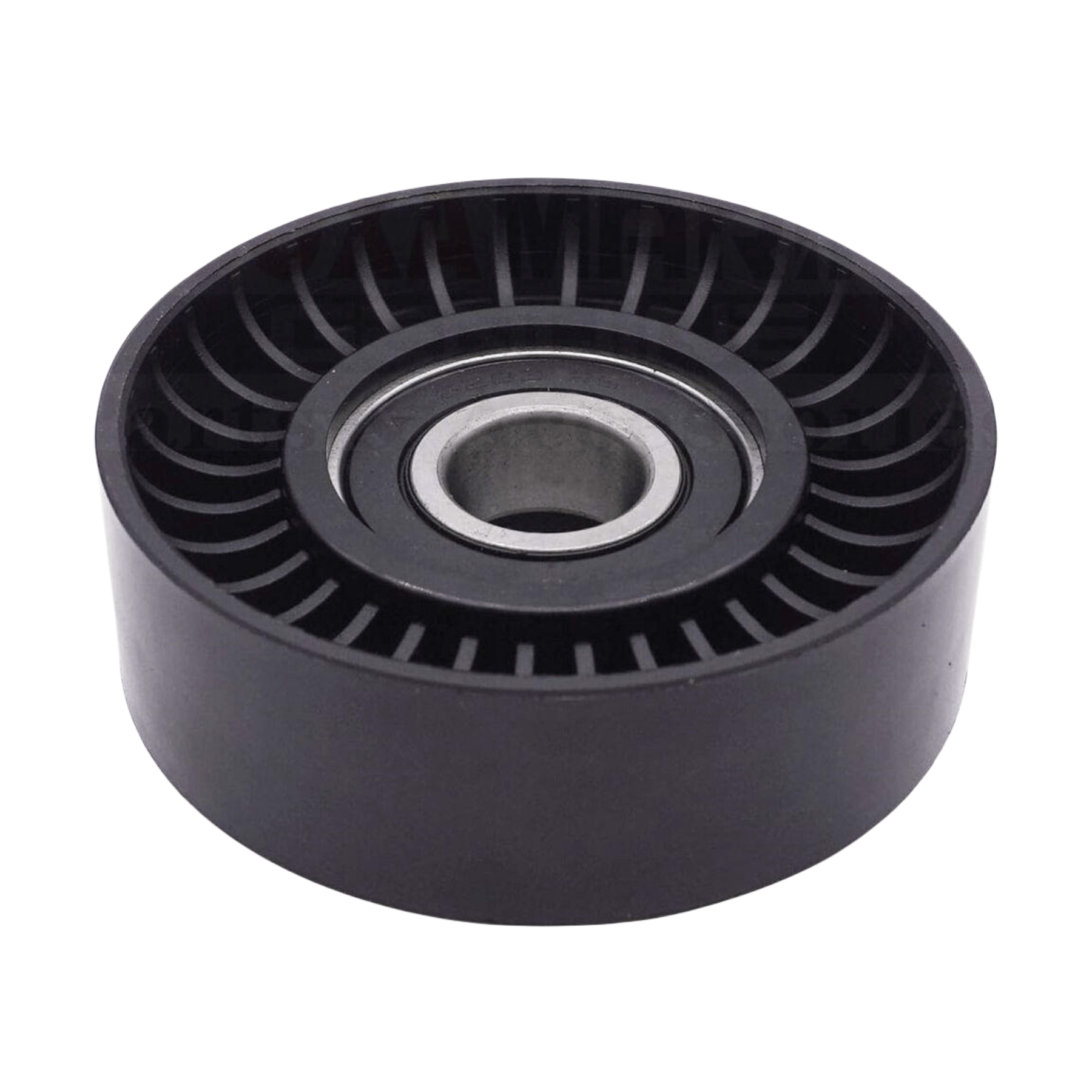

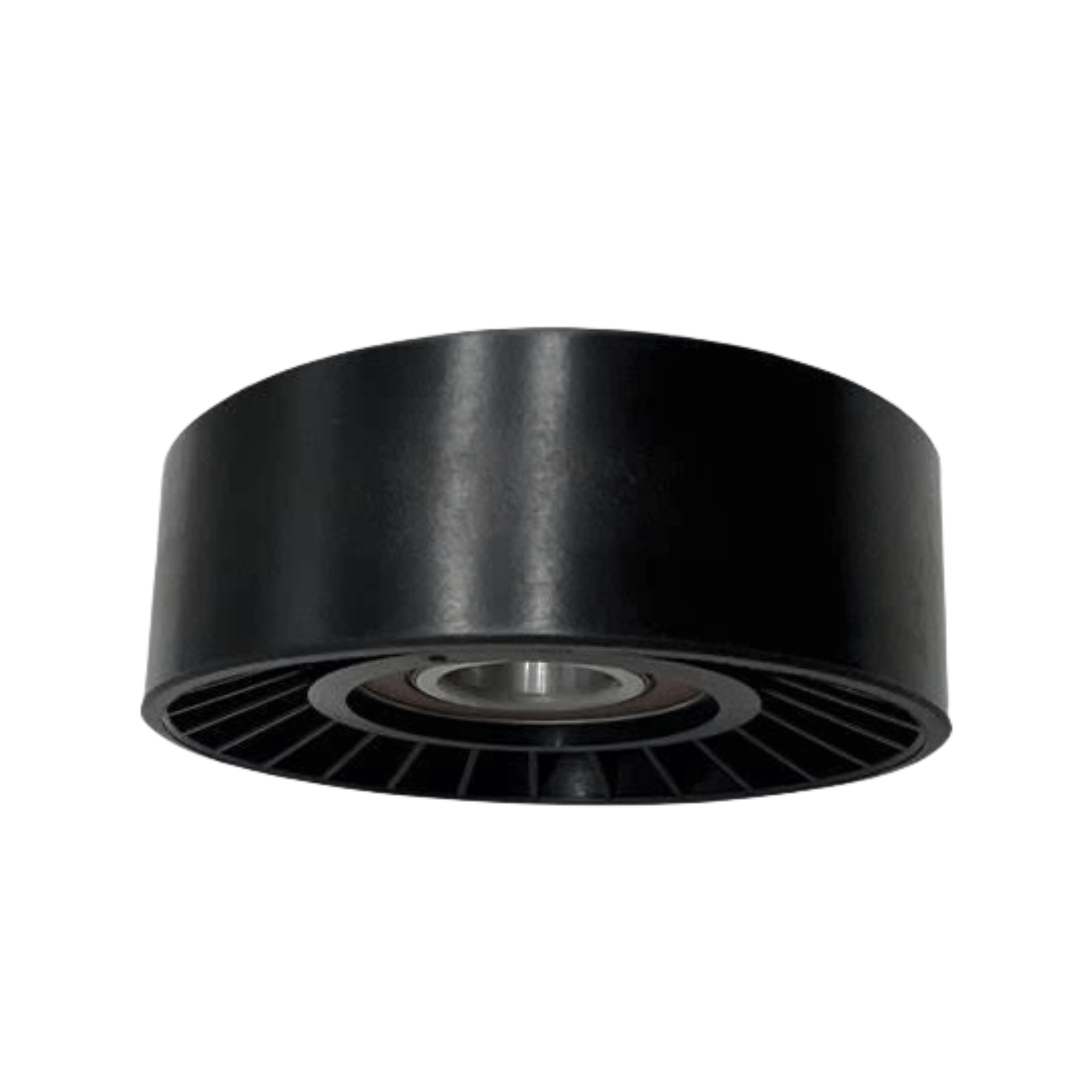

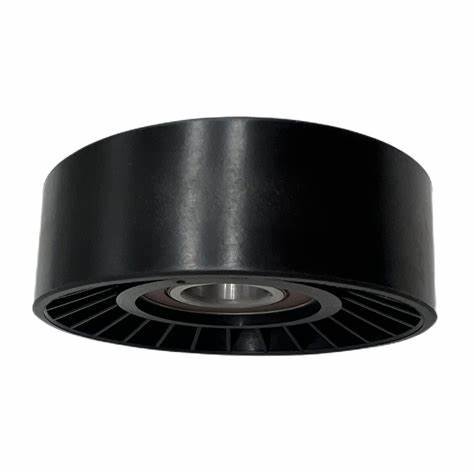

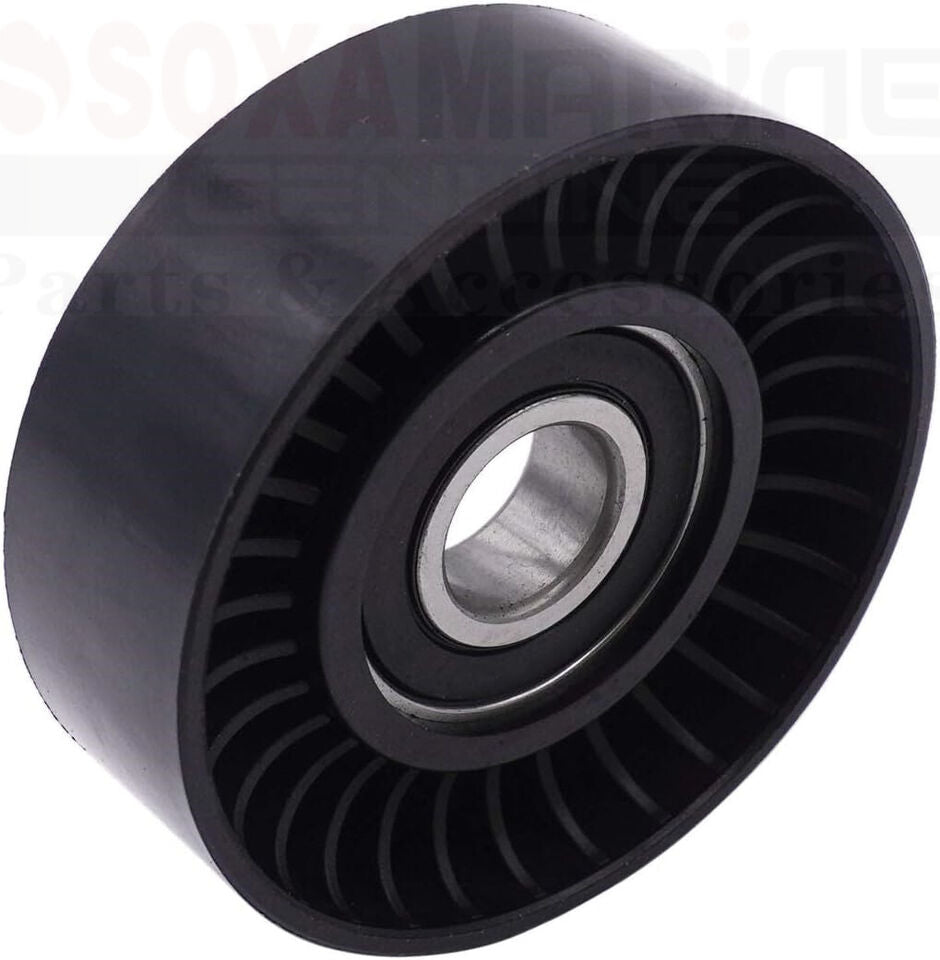

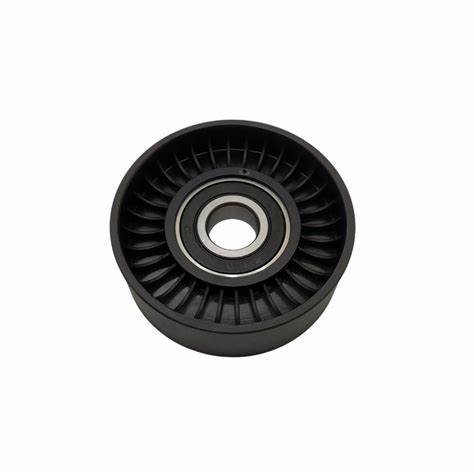

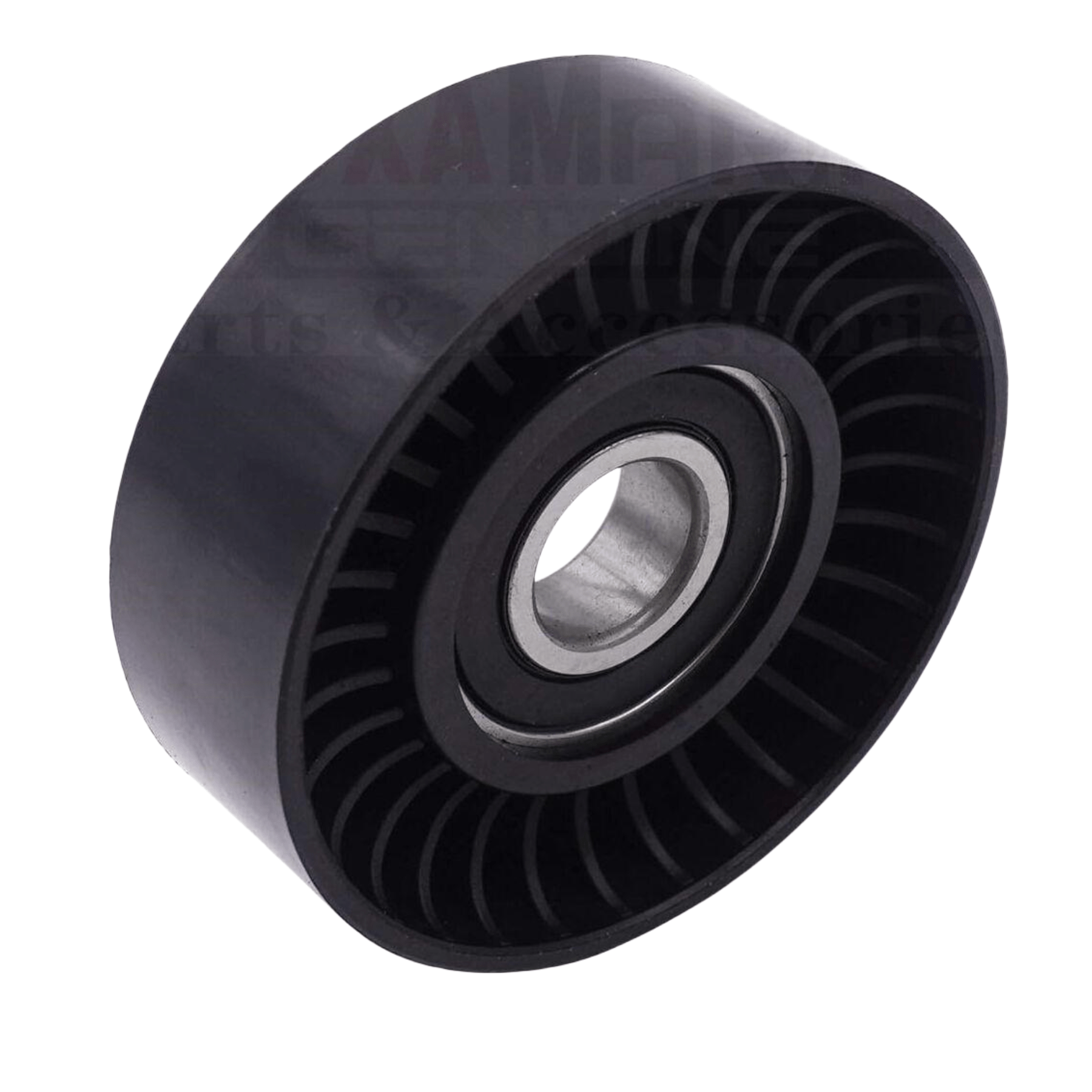

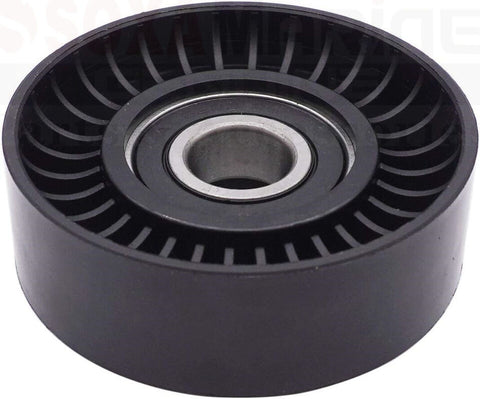

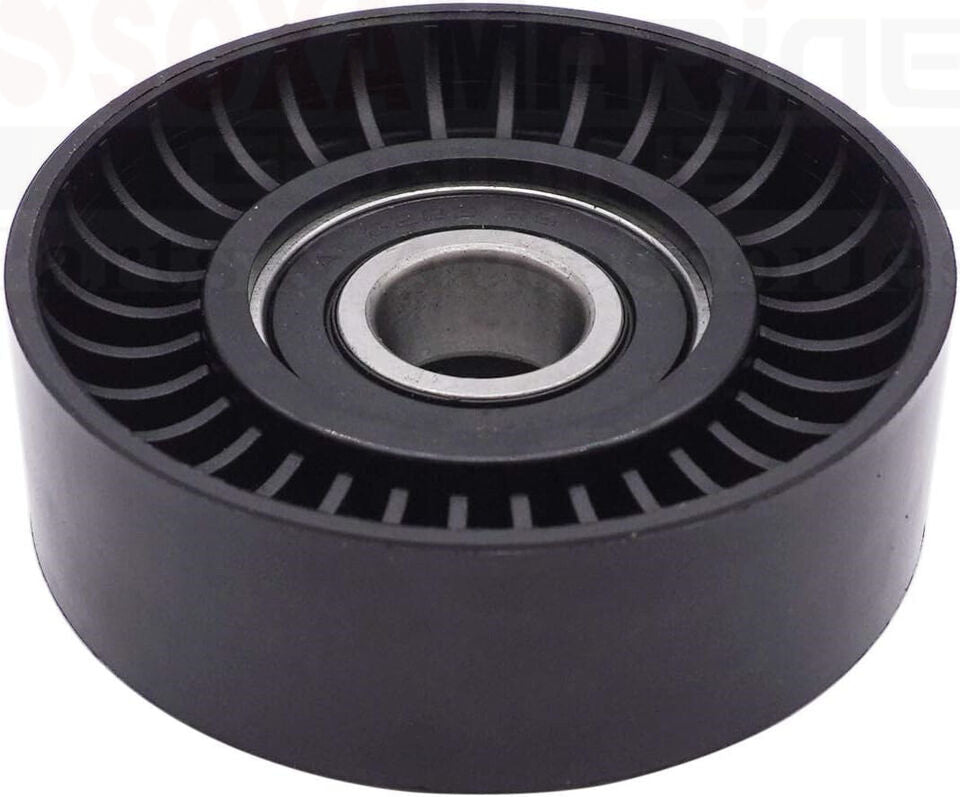

Serpentine Belt Idler Pulley for Mercruiser V6 & V8 Engines (1996-2025) (8M6500024)
- $19.99
- $19.99
- Unit price
- per
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders under 1 KG
Worry-Free Returns
OEM Part Numbers
818382, 865598, 8M6500024
(Replaces 865598 and 818382)
Compatible Models
Mercruiser
- 4.3L V6 (262 CID) (1996–2025, 190–220 HP)
- 5.0L V8 (305 CID) (1996–2020, 220–260 HP)
- 5.7L V8 (350 CID) (1996–2025, 250–350 HP)
- 5.8L V8 (2000–2010, 320–380 HP)
- 6.2L V8 (377 CID) (2009–2025, 300–350 HP)
- 8.1L V8 (496 CID) (1996–2020, 375–425 HP)
General Motors
- 262 CID (4.3L) V6 (Vortec 4300 series) (1996–2014)
- 305 CID (5.0L) V8 (Small block Chevrolet engine) (1976–1995)
Drives: Alpha One, Alpha One Gen II, Bravo One, Bravo Two, Bravo Three
Explosion Diagram
Technical Specifications
| Specification | Value |
|---|---|
| Material | Thermoplastic resin composite (PA6/POM + 15-20% glass fiber) |
| Outer Diameter | 3.00 inches (76.2 mm) |
| Inner Diameter | 5/8 inches (15.875 mm) |
| Width | 1.00 inch (25.4 mm) |
| Total Thickness | 1.25 inches (31.75 mm) |
| Weight | 0.23 lb (104 g) |
| Bearing Type | Sealed deep groove ball bearing (ABEC-3) |
| Max RPM | 8000 RPM |
| Radial Load Capacity | 500 N |
| Operating Temperature | -30°C to +120°C |
| Bearing Life | 3000 hours |
| Salt Spray Certification | ASTM B117 (1000 hours) |
| Quality Standard | ISO9002 |
Package Contents
- 1 × Serpentine Belt Idler Pulley
- Protective packaging materials
Installation Instructions
- Disconnect the battery before beginning.
- Release tension from the serpentine belt using the tensioner tool.
- Remove the serpentine belt from the pulley system.
- Clean the mounting surface to ensure proper contact.
- Remove the existing pulley mounting bolt using appropriate socket tools.
- Install the new pulley onto the mounting bracket.
- Torque the mounting bolt to 15-25 Nm using a torque wrench.
- Confirm pulley rotation is smooth without binding.
- Verify alignment with other pulleys (≤0.5mm tolerance).
- Reroute the serpentine belt following the engine diagram.
- Apply proper tension to the belt per specifications.
- Reconnect battery and test engine operation.
Important Notes
- Verify all images match your specific part before installation.
- This is an aftermarket replacement part; not original manufacturer equipment.
- Professional installation is recommended for optimal performance and safety.
Warranty Information
This product comes with a 1-year warranty against manufacturing defects under normal use conditions. Contact our customer service team for warranty claims or additional information.
Product Features
- High Quality: Manufactured to OEM specifications using identical materials.
- Production Standards: ISO9002 certified factory production.
