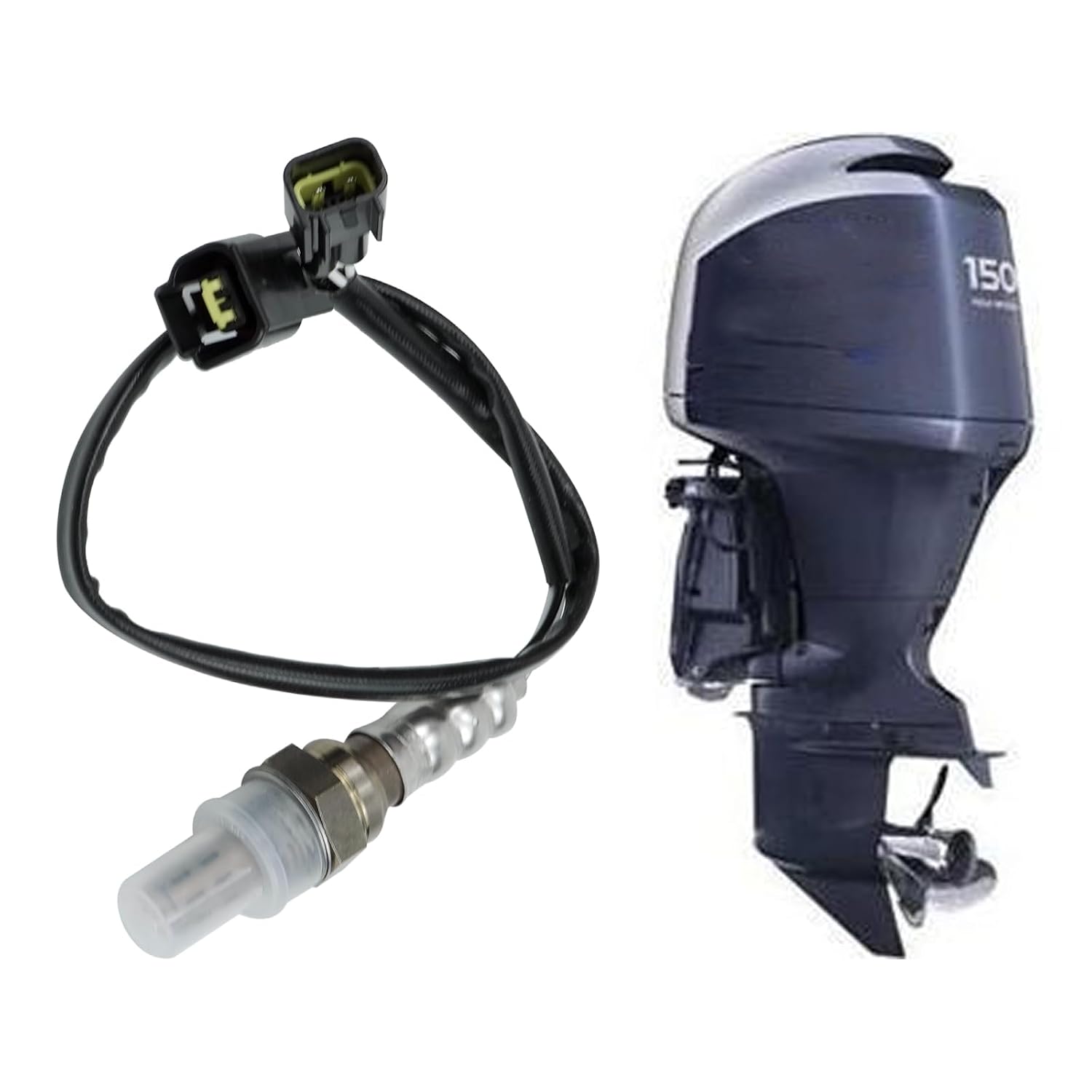

Oxygen Sensor 65L-8592A-01 – Fits Yamaha 150–250HP V6 EFI
Oxygen Sensor 65L-8592A-01 – Fits Yamaha 150–250HP V6 EFI
Oxygen Sensor 65L-8592A-01 – Fits Yamaha 150–250HP V6 EFI
Oxygen Sensor 65L-8592A-01 – Fits Yamaha 150–250HP V6 EFI
Oxygen Sensor 65L-8592A-01 – Fits Yamaha 150–250HP V6 EFI
Oxygen Sensor 65L-8592A-01 – Fits Yamaha 150–250HP V6 EFI

Oxygen Sensor 65L-8592A-01 – Fits Yamaha 150–250HP V6 EFI

Vendor: JLM Marine
Availability: In Stock
Product Type: Sensor
$272.99
$272.99
Subtotal: $272.99

Free Shipping

Free standard shipping on all orders under 1 KG

Worry-Free Returns

Learn More.
Oxygen Sensor 65L-8592A-01 – Fits Yamaha 150–250HP V6 EFI

Oxygen Sensor 65L-8592A-01 – Fits Yamaha 150–250HP V6 EFI

$272.99
Description

How to Match This Part

This aftermarket oxygen sensor replaces Yamaha 65L-8592A-01 (catalog form 65L-8592A-01-00). It threads into the exhaust on selected Yamaha V6 two-stroke HPDI and EFI outboards from 150 to 250 HP and reports exhaust oxygen so the ECU can trim fuel. This unit is new production, not a remanufactured core.

Match this part in this order:
1. OEM number on the removed sensor or in your parts catalog (65L-8592A-01 / 65L-8592A-01-00, 65L-8592A-00 / 65L-8592A-00-00, or 68F-8592A-00 / 68F-8592A-00-00)
2. Model code and year in the table below

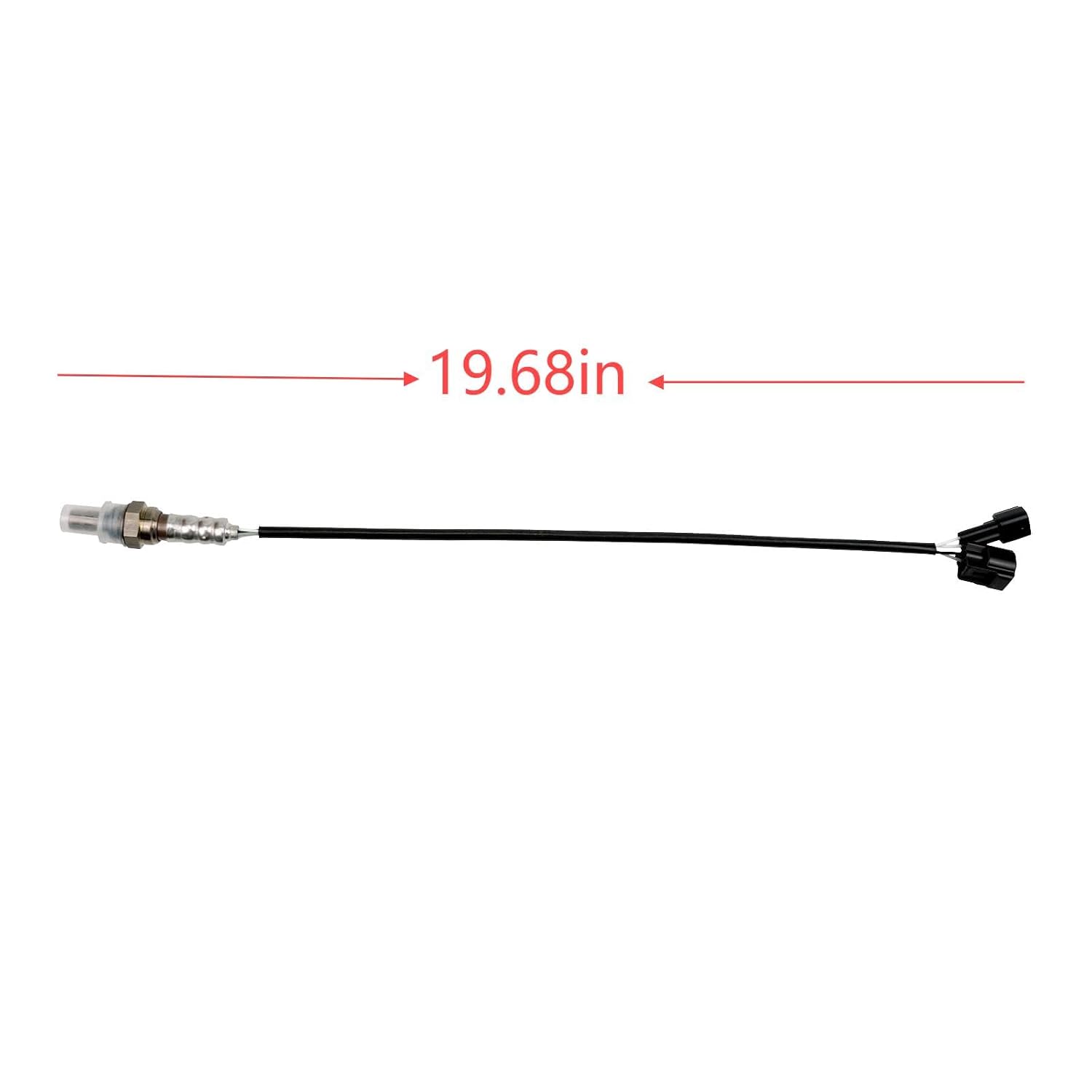

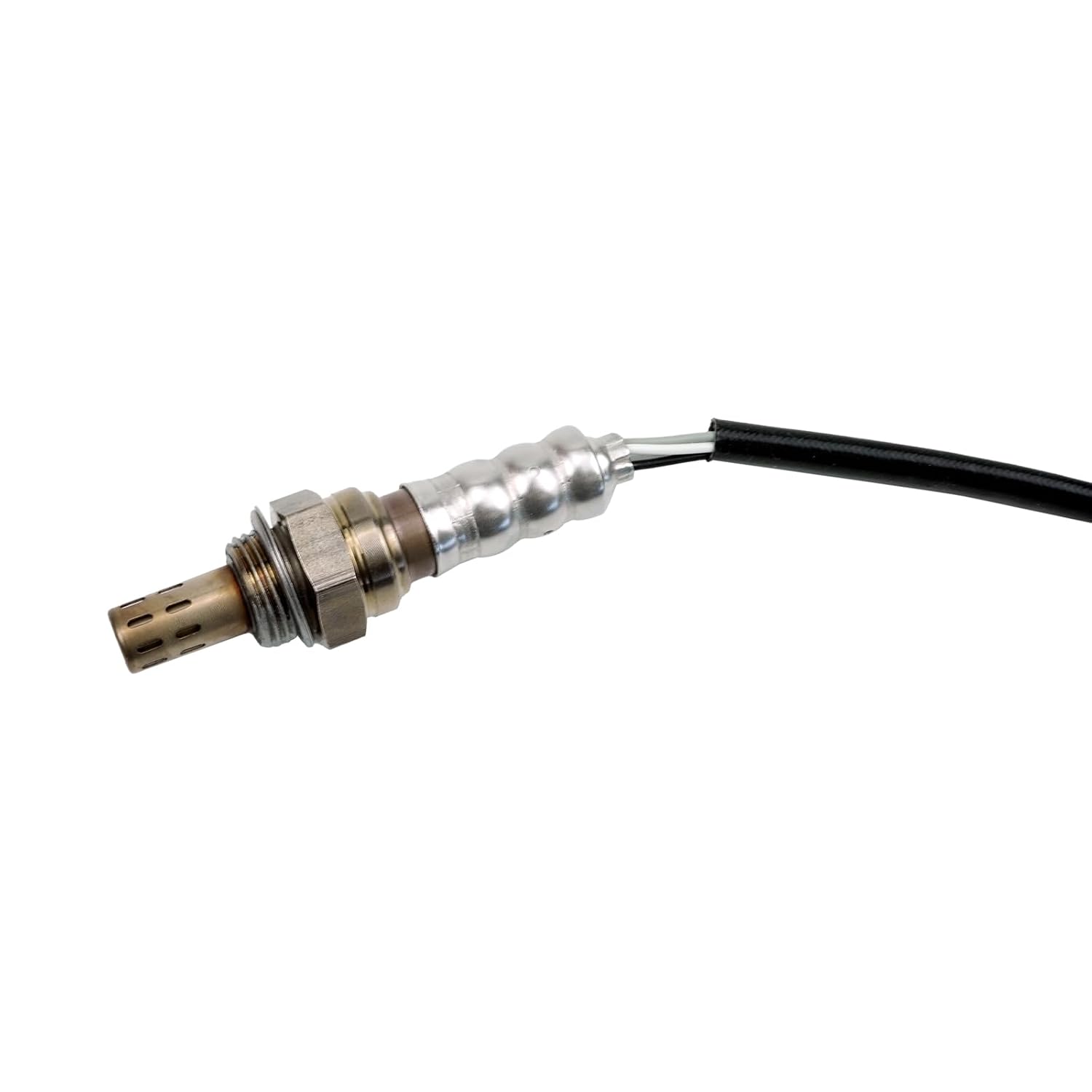

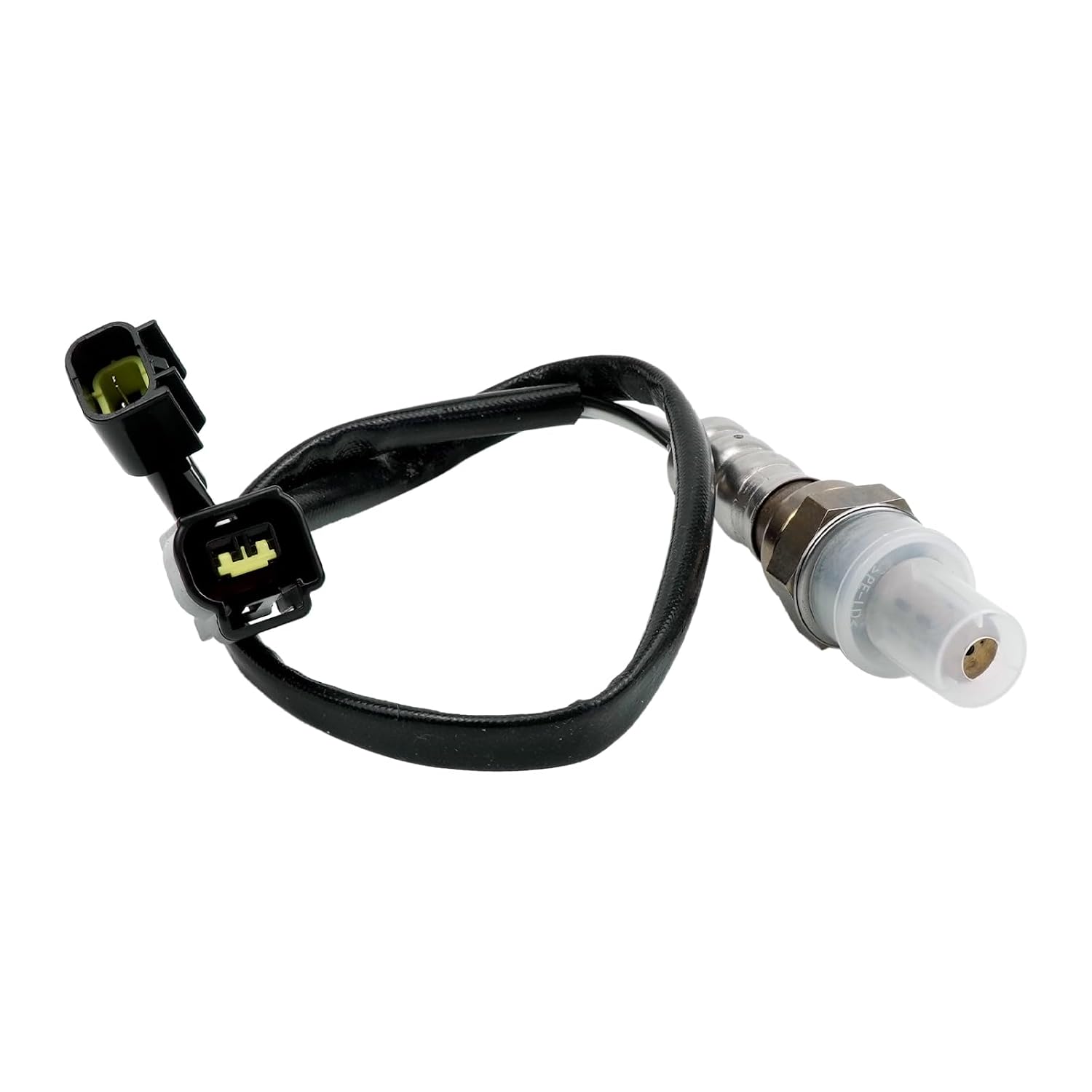

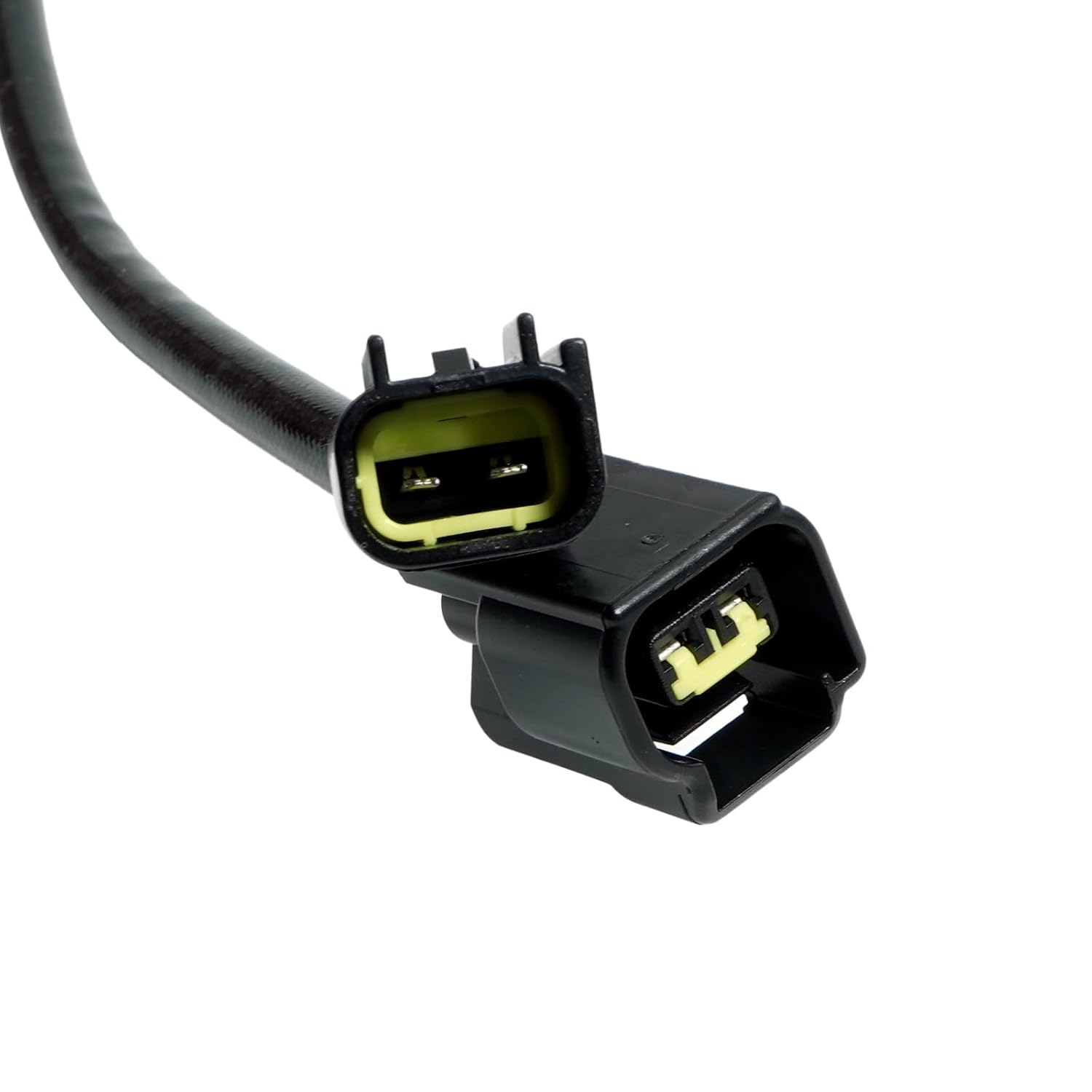

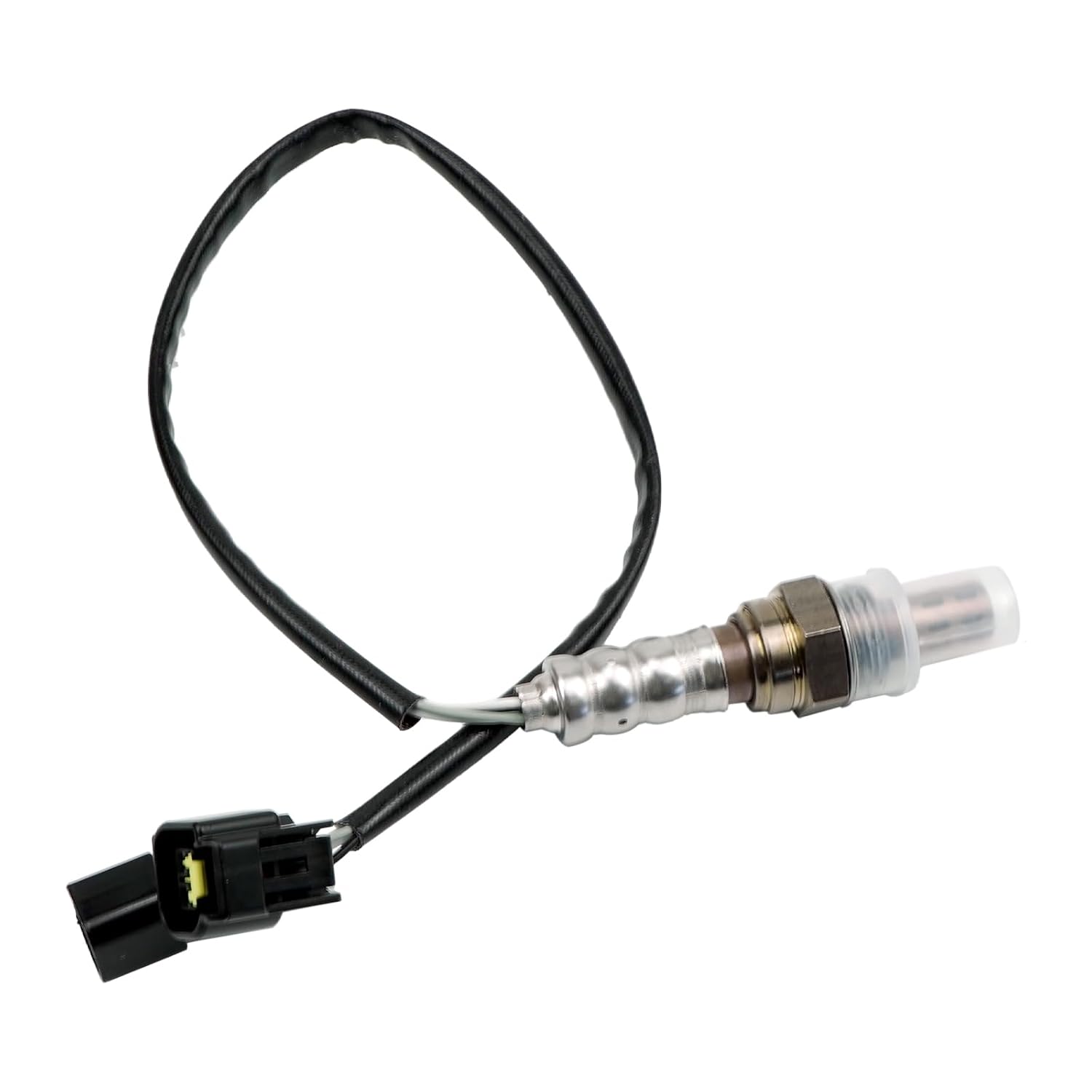

3. Physical form — hex body, slotted tip, integral lead with an inline cylindrical module, and a two-piece plug

This is not Yamaha 67H-8592A (the two 2-pin-connector sensor used on DX/LX/SX/VX 150–200). If your original uses two small 2-pin plugs and no inline module, order the 67H listing instead.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers. Yamaha catalogs these sensors with a trailing -00 suffix.

Type Brand Part Number Notes
OEM Yamaha Outboard 65L-8592A-01 Primary reference; also listed as 65L-8592A-01-00
OEM Yamaha Outboard 65L-8592A-00 Superseded by 65L-8592A-01; also listed as 65L-8592A-00-00
OEM Yamaha Outboard 68F-8592A-00 Equivalent Yamaha number; also listed as 68F-8592A-00-00
Aftermarket Sierra 18-7656 Direct aftermarket replacement

Part numbers are listed for identification only. This is an aftermarket part manufactured by JLM Marine and is not sold as a genuine Yamaha component.

Compatible Engine Models

Confirm your engine model and year in the table below. For Yamaha owners: Yamaha Serial Number Guide and Yamaha Parts Diagrams. On Yamaha outboards the identification plate is on the port-side transom clamp bracket.

Engine Model HP Years Notes
LZ150 150 2000–2005 V6 2-stroke HPDI
VZ150 150 2000–2014 V6 2-stroke HPDI
Z150 150 2000–2005 V6 2-stroke HPDI
VZ175 175 2001–2012 V6 2-stroke HPDI
Z175 175 2001–2005 V6 2-stroke HPDI
LZ200 200 2000–2012 V6 2-stroke HPDI
V200 200 1998–1999 V6 2-stroke EFI
VX200 200 2000–2005 V6 2-stroke EFI
VZ200 200 2001–2004 V6 2-stroke HPDI
Z200 200 2000–2012 V6 2-stroke HPDI
L225 225 1997–1999 V6 2-stroke EFI
LX225 225 2000–2003 V6 2-stroke EFI
S225 225 1997–1999 V6 2-stroke EFI
SX225 225 2000–2003 V6 2-stroke EFI
V225 225 1998–1999 V6 2-stroke EFI
VX225 225 1998–2005 V6 2-stroke EFI
L250 250 1997–1999 V6 2-stroke EFI
LX250 250 2000–2003 V6 2-stroke EFI
S250 250 1997–1999 V6 2-stroke EFI
SX250 250 2000–2003 V6 2-stroke EFI
VX250 250 2002–2004 V6 2-stroke EFI

Do not use this sensor for DX150, LX150, SX150, VX150, LX200, or SX200 applications that call for 67H-8592A-00.

Technical Specifications

Specification Value
Part type Oxygen (O2 / lambda) sensor for EFI / HPDI exhaust
Primary OEM number 65L-8592A-01
Mounting Threaded into the exhaust housing
Electrical connection Integral lead with inline module and two-piece plug
Visible form Hex body, slotted/louvered tip shield
Condition New production — not remanufactured

Installation Guide

1

Allow the engine and exhaust housing to cool fully. Disconnect the battery negative cable before unplugging the sensor lead.

2

Note the routing of the two-piece plug and inline module, then unplug the connector. Unscrew the old sensor from the exhaust housing with an oxygen-sensor socket on the hex — do not pull on the lead or crush the inline module.

3

Confirm the OEM number and the inline-module / two-piece-plug layout match this 65L-8592A-01 assembly. Thread the new sensor in by hand, then tighten snugly on the hex. Follow the Yamaha service manual for your model for tightening and thread treatment.

4

Reconnect the two-piece plug until it locks, restore the battery, start the engine, and confirm there is no exhaust leak at the bung and that the EFI/HPDI system runs without an oxygen-sensor fault.

Note: Professional installation is recommended to ensure safety and optimal performance.

Troubleshooting & FAQ

Is this an OEM or aftermarket part?+

This is an aftermarket JLM Marine replacement matched to Yamaha 65L-8592A-01. It is not a genuine Yamaha part.

Will this replace 67H-8592A-00 on my DX/SX 150–200?+

No. 67H-8592A is a different Yamaha oxygen-sensor family with two 2-pin connectors and no inline module. Use this 65L/68F sensor only when your catalog or removed part shows 65L-8592A or 68F-8592A.

Is 68F-8592A-00 the same sensor?+

Yes — 68F-8592A-00 is a Yamaha equivalent number for this assembly. 65L-8592A-00 is the earlier 65L number superseded by 65L-8592A-01.

Is this a remanufactured sensor?+

No. This listing is new production, not a rebuilt or remanufactured core.

Why Choose JLM MARINE?

  • Precision Fit: Form and connector layout matched to Yamaha 65L-8592A-01 oxygen sensor applications.
  • Quality Control: Each batch is inspected for dimensional consistency and workmanship.
  • Direct from Manufacturer: Aftermarket marine parts engineered for reliable EFI and HPDI exhaust sensing.
