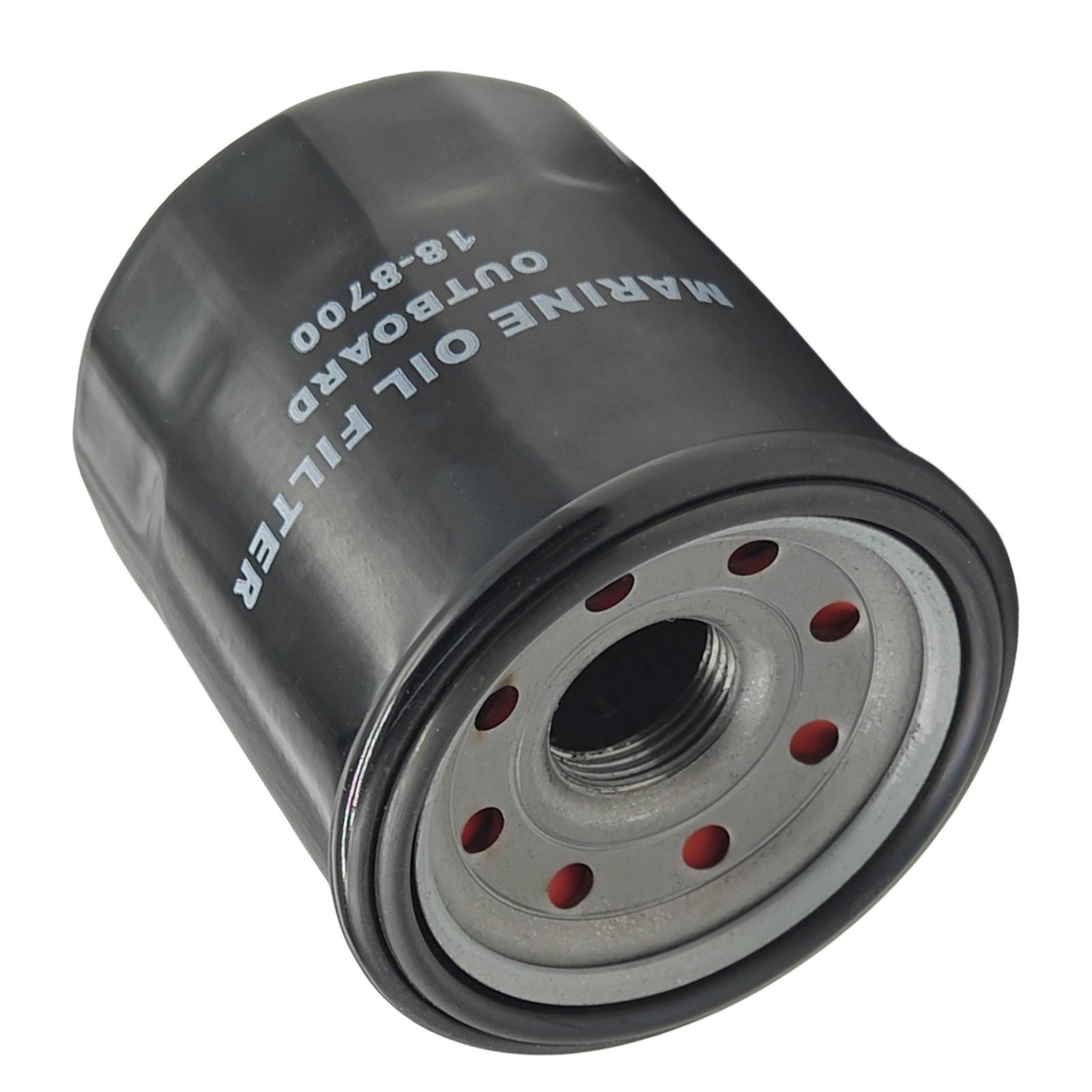

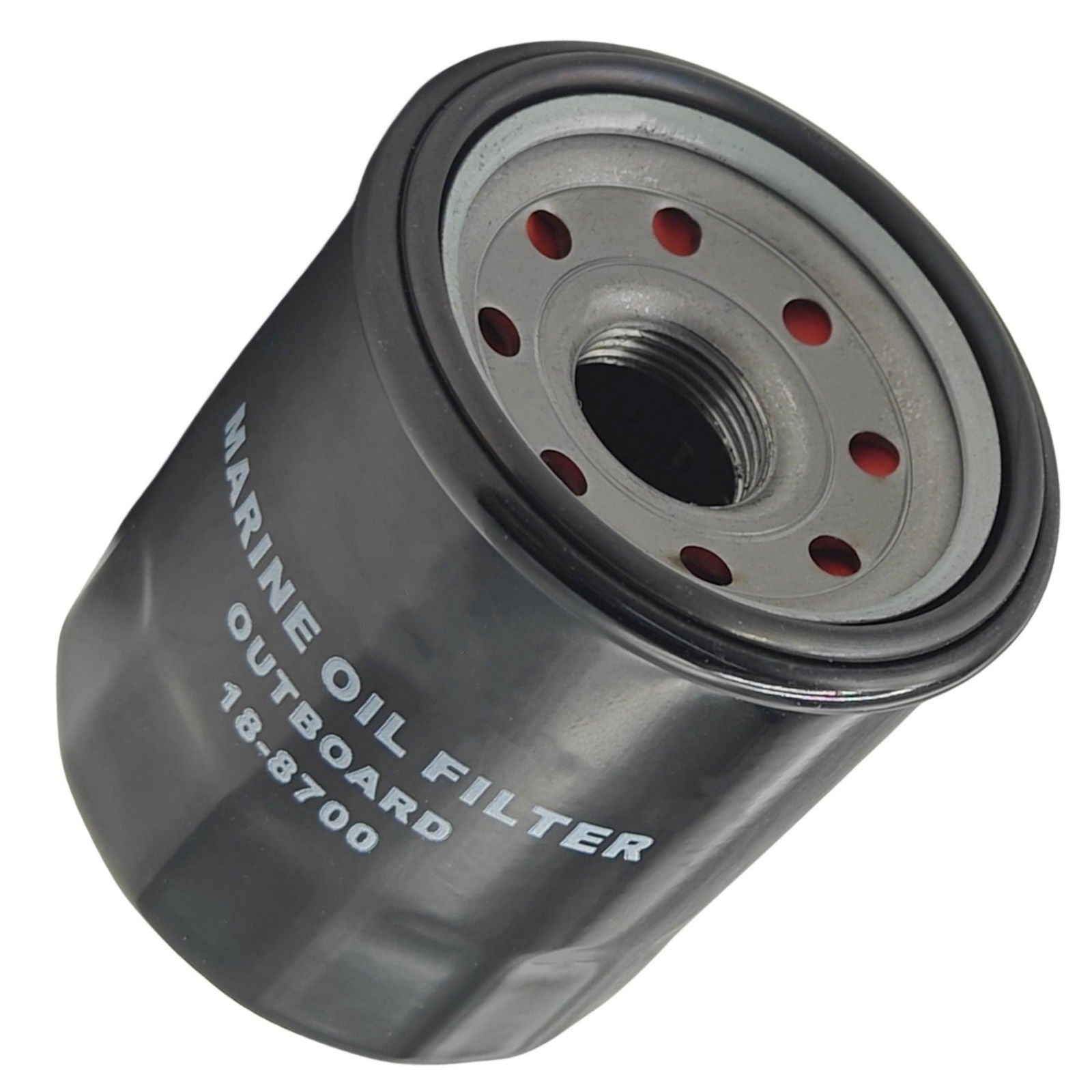

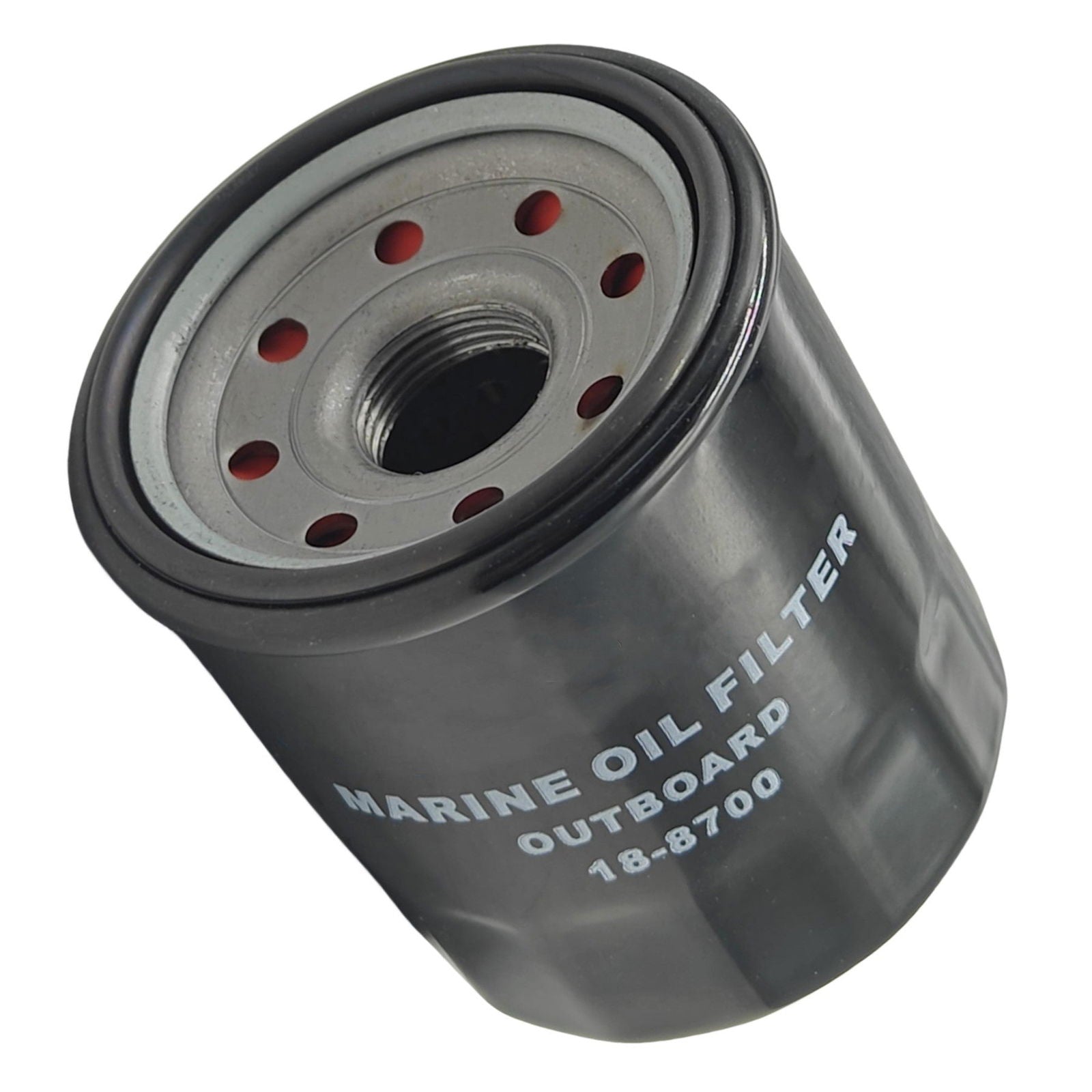

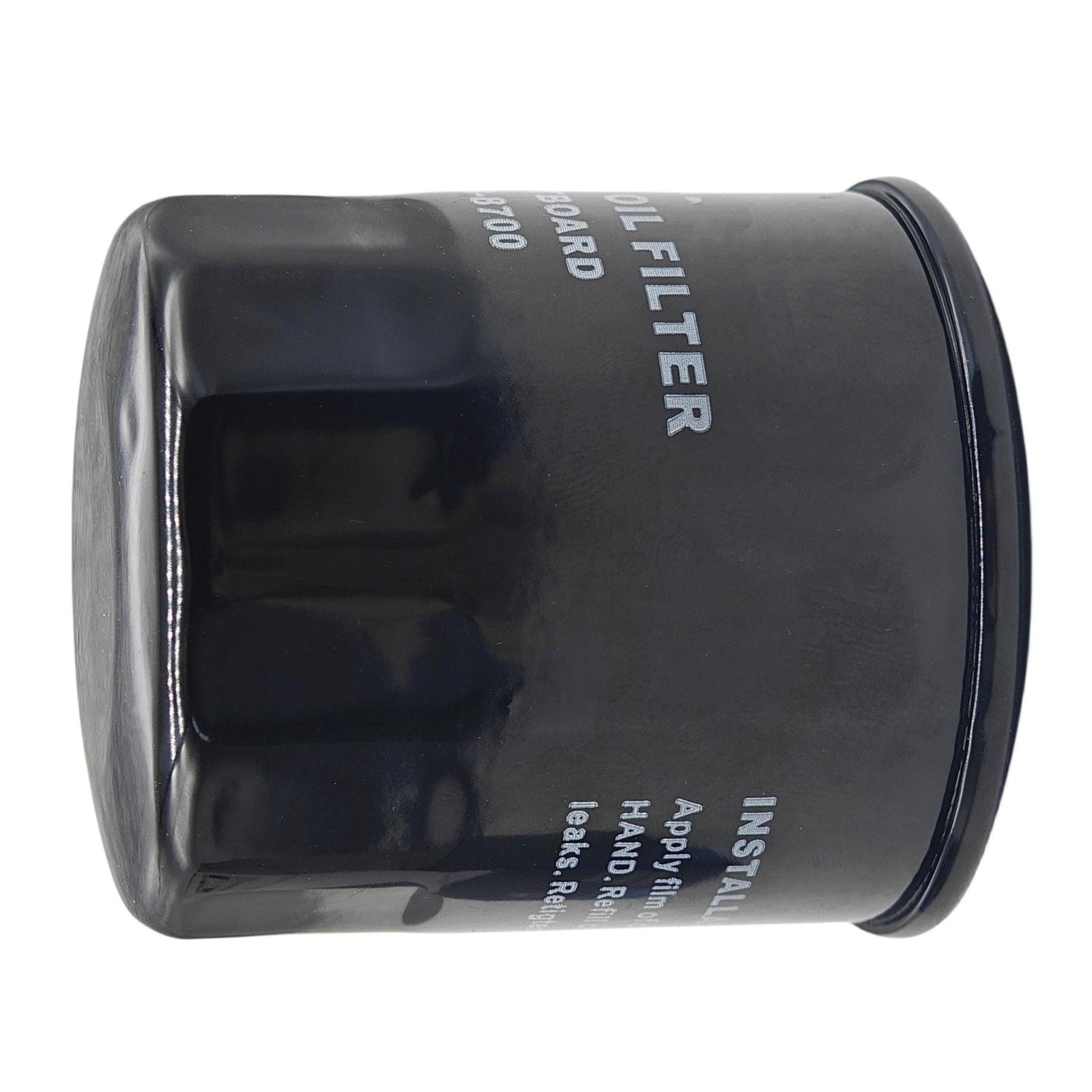

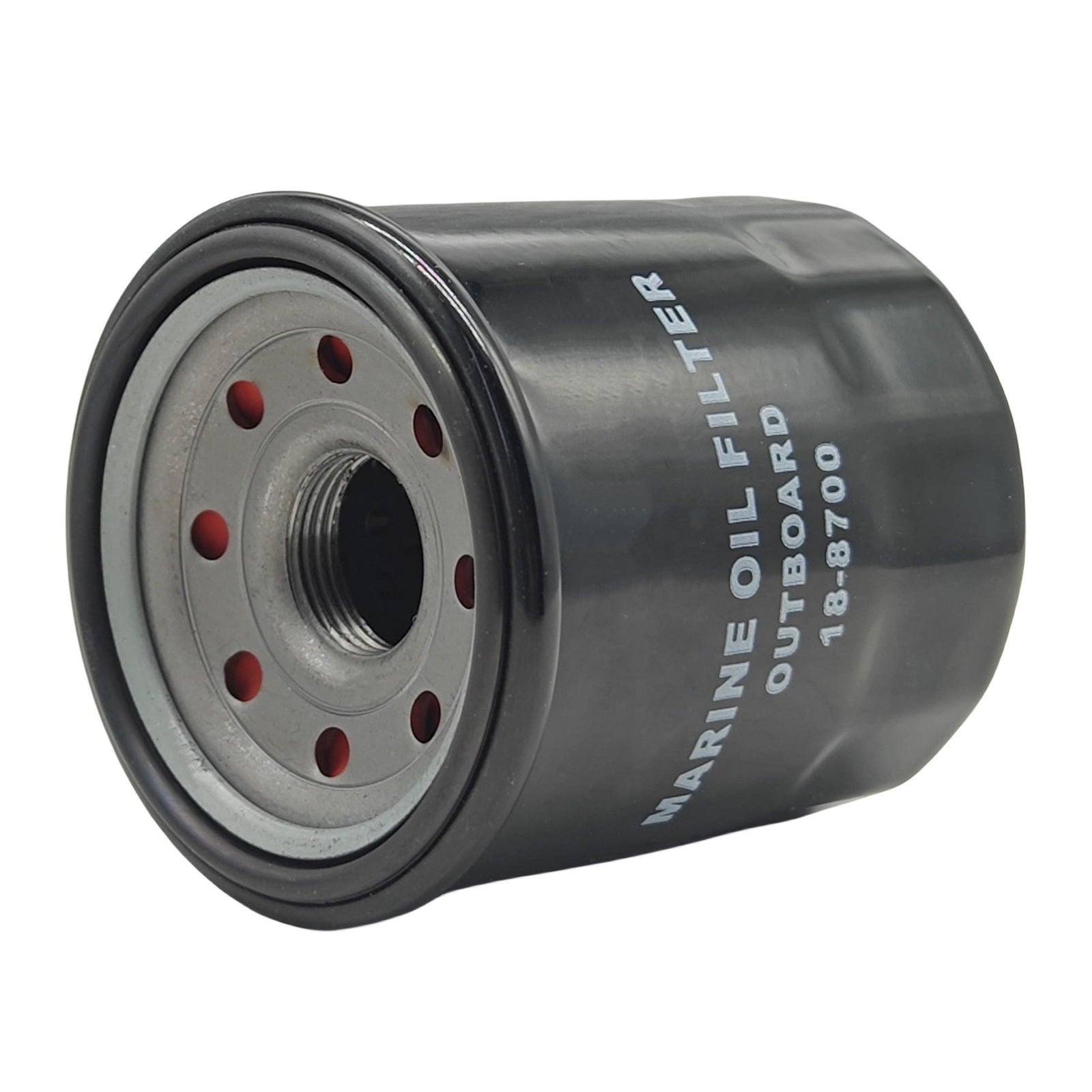

Oil Filter – Fits Yamaha 15-70 HP 4-Stroke (Replaces 5GH-13440-60-00, 5GH-13440-61-00)
This high-quality aftermarket oil filter is engineered for Yamaha 4-Stroke outboard engines from 15 HP to 70 HP (model years 2004–2023). It ensures reliable filtration and performance, protecting your engine from harmful contaminants.
It serves as a direct replacement for multiple Yamaha and Sierra part numbers, including 5GH-13440-20-00, 5GH-13440-50-00, 5GH-13440-60-00, 5GH-13440-61-00, 5GH-13440-80-00, and Sierra 18-8700.
-
Installation Type: Spin-On for easy replacement.
-
Warranty: Includes a 1-year aftermarket warranty.
-
Guaranteed Fit: Designed to meet or exceed OEM specifications.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
Brand |
Part Number |
Yamaha |
5GH-13440-20-00 |
Yamaha |
5GH-13440-50-00 |
Yamaha |
5GH-13440-60-00 |
Yamaha |
5GH-13440-61-00 |
Yamaha |
5GH-13440-80-00 |
Sierra |
18-8700 |
Compatible Engine Models
Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.
Brand |
Model |
Rated HP |
Stroke |
Years |
OEM Part No. |
Notes |
Yamaha |
F15C |
15 |
4-Stroke |
2004-2010 |
5GH-13440-60-00/61-00 |
Superseded by 5GH-13440-61-00 |
Yamaha |
F15L |
15 |
4-Stroke |
2011-2016 |
5GH-13440-60-00/61-00 |
Including LEHA, LMHA, LPHA, SEHA, SMHA |
Yamaha |
F20 |
20 |
4-Stroke |
2004-2020 |
5GH-13440-60-00/61-00 |
All variants including ELH, ESH, MLH, MSH, PLH models |
Yamaha |
F20A/B |
20 |
4-Stroke |
2006-2023 |
5GH-13440-60-00/61-00 |
Multiple variants including LEA, LEHA, LMHA, LPA, LPHA, SEA, SEHA, SMHA |
Yamaha |
F25 |
25 |
4-Stroke |
2009-2019 |
5GH-13440-60-00/61-00 |
Including LA, LEA, LEHA, LMHA, SEA, SEHA, SMHA models |
Yamaha |
F25B |
25 |
4-Stroke |
2012-2018 |
5GH-13440-60-00/61-00 |
Including LEHB, LMHB variants |
Yamaha |
F25C |
25 |
4-Stroke |
2016-2023 |
5GH-13440-60-00/61-00 |
|
Yamaha |
F30 |
30 |
4-Stroke |
2013-2023 |
5GH-13440-60-00/61-00 |
Including LA, LEHA variants |
Yamaha |
F40A |
40 |
4-Stroke |
2008-2023 |
5GH-13440-60-00/61-00 |
Including JEA, JEHA, LA, LEHA variants |
Yamaha |
F50 |
50 |
4-Stroke |
2006-2023 |
5GH-13440-60-00/61-00 |
Including LB, TLR variants |
Yamaha |
F60 |
60 |
4-Stroke |
2006-2023 |
5GH-13440-60-00/61-00 |
Including JB, LB, TJR, TLR variants |
Yamaha |
F70 |
70 |
4-Stroke |
2010-2015 |
5GH-13440-60-00/61-00 |
All F70LA models |
Yamaha |
T25 |
25 |
4-Stroke |
2009-2019 |
5GH-13440-60-00/61-00 |
|
Yamaha |
T25C |
25 |
4-Stroke |
2018-2023 |
5GH-13440-60-00/61-00 |
|
Yamaha |
T50 |
50 |
4-Stroke |
2006 |
5GH-13440-60-00/61-00 |
Including LB, TLR variants |
Yamaha |
T60 |
60 |
4-Stroke |
2006 |
5GH-13440-60-00/61-00 |
Including LB, TLR variants |
Technical Specifications
Specification |
Value |
Product Type |
Oil Filter |
Installation |
Spin-On |
Fuel Type |
N/A (Oil Only) |
Connection |
Spin-On Thread |
Housing Material |
Metal |
Housing Color |
Black/Silver |
Fitting Type |
Threaded |
Warranty |
1 Year (Aftermarket) |
Package Contents
- 1 x Oil Filter (5GH-13440-60-00/5GH-13440-61-00)
Explosion Diagram
Installation Guide
- Ensure the engine is off and cool to prevent burns. Place an oil drain pan beneath the filter.
- Use a suitable oil filter wrench to turn the old filter counter-clockwise until it is loose enough to remove by hand.
- Carefully remove the old filter, keeping it upright to minimize oil spillage.
- Wipe the engine's filter mounting surface clean with a lint-free cloth, making sure the old gasket is not stuck to the engine.
- Apply a thin layer of new, clean engine oil to the gasket of the new filter.
- Gently screw the new filter onto the threaded mount by hand until the gasket makes contact with the engine surface.
- Tighten the filter an additional three-quarters of a turn. Do not overtighten.
- Refill the engine with the manufacturer-specified oil to the correct level.
- Start the engine and let it run for a minute, carefully checking for any leaks around the new filter.
- Turn the engine off, wait a few minutes for the oil to settle, and re-check the oil level, topping off if needed.
- Properly dispose of the used oil and old filter according to local environmental regulations.
Troubleshooting & FAQ
Q: How do I confirm this filter fits my Yamaha engine?
A: Check the "Compatible Engine Models" table on this page. Match your engine's model, horsepower, and year with the listed applications. You can also cross-reference your existing filter's part number with our "Part Number Cross-Reference" list.
Q: What is the difference between this filter and the original Yamaha 5GH-13440-61-00?
A: This is an aftermarket filter designed to meet or exceed OEM specifications for fit, form, and function. It provides a reliable alternative to the original Yamaha part at a competitive price while ensuring proper filtration and engine protection.
Q: How often should I replace my outboard oil filter?
A: It is best to follow your Yamaha outboard's service manual for recommended maintenance intervals. Typically, the oil filter should be replaced with every oil change, which is often every 100 hours of use or annually, whichever comes first.
Q: What are the signs of a failing oil filter?
A: Common signs include low oil pressure warnings from your gauge or monitoring system, a noticeable decrease in engine performance, or unusually dirty/dark exhaust smoke. During a visual inspection, look for physical damage or oil leaks from the filter housing.
Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
-
Professional installation is recommended to ensure safety and optimal performance.
