Marine Engine Drive Belt – Fits Volvo Penta 2001-2003, MD11/70 Series (Replaces 966906)

$25.80

Marine Engine Drive Belt – Fits Volvo Penta 2001-2003, MD11/70 Series (Replaces 966906)

$25.80

Marine Engine Drive Belt – Fits Volvo Penta 2001-2003, MD11/70 Series (Replaces 966906)

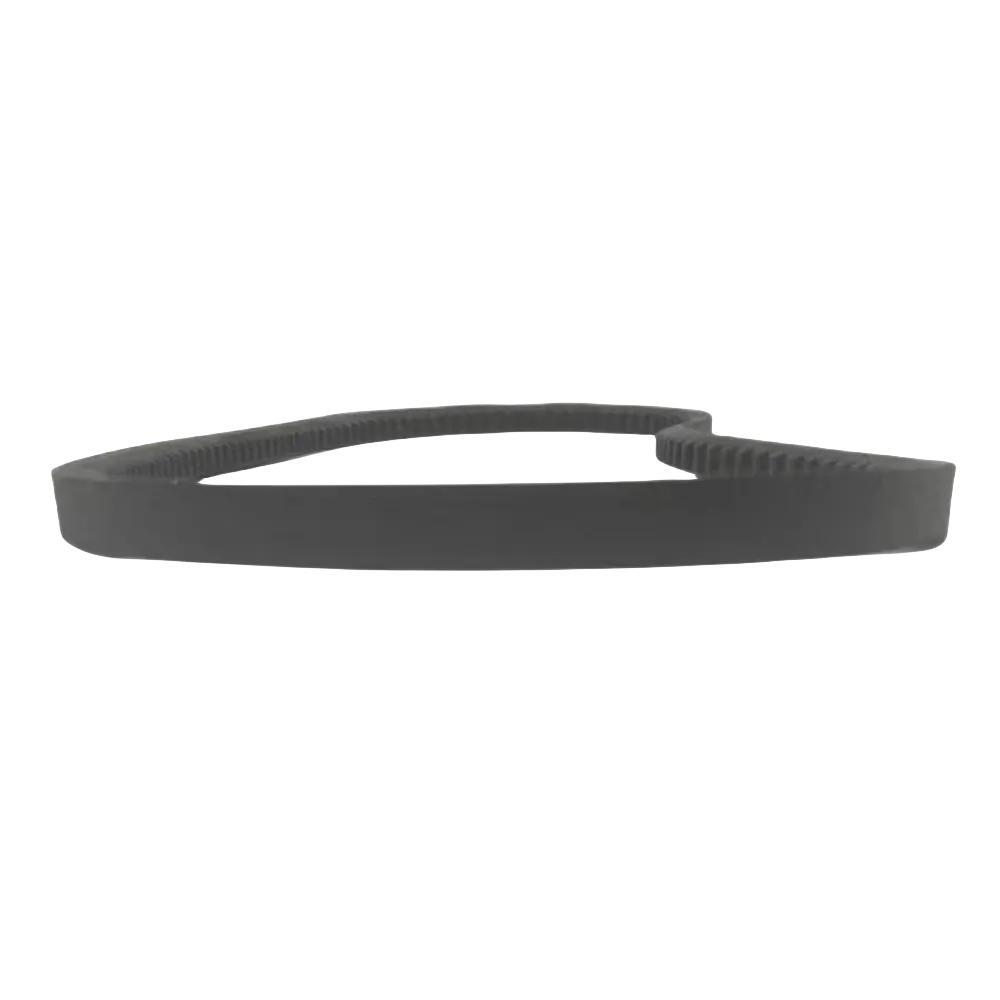

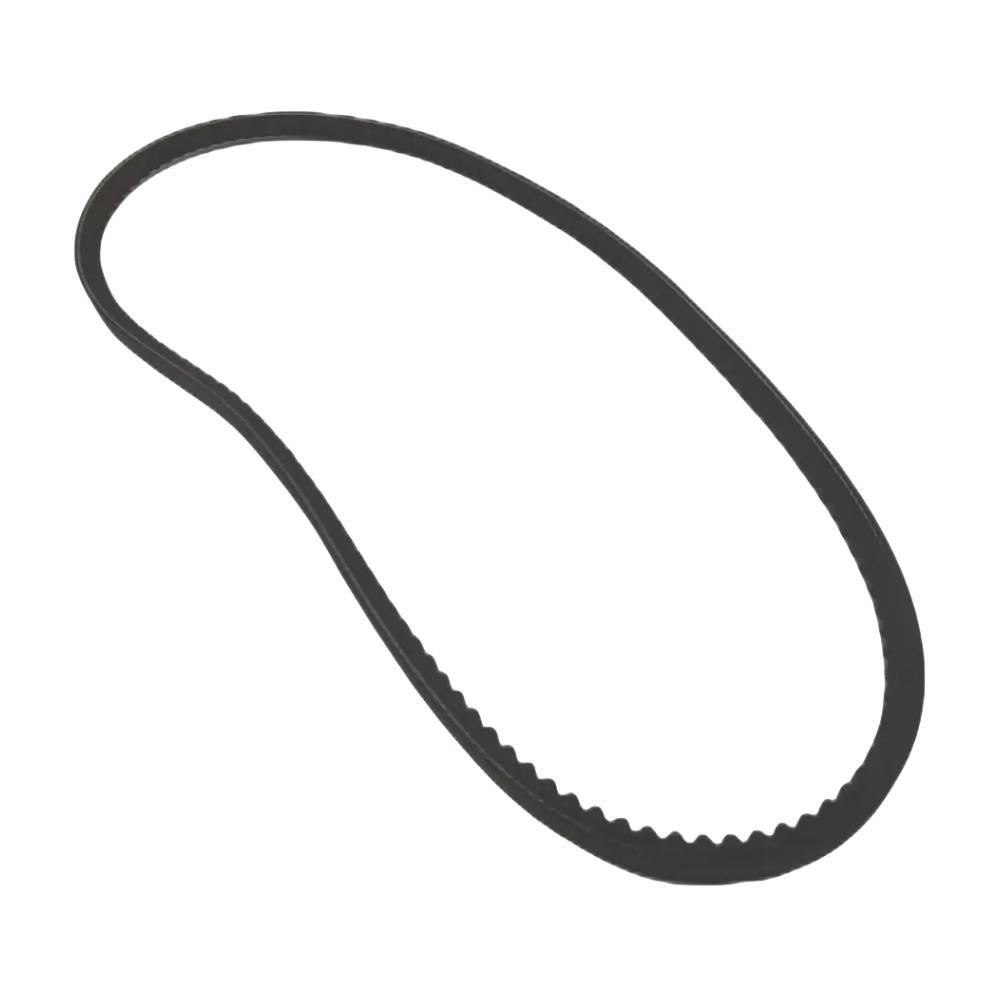

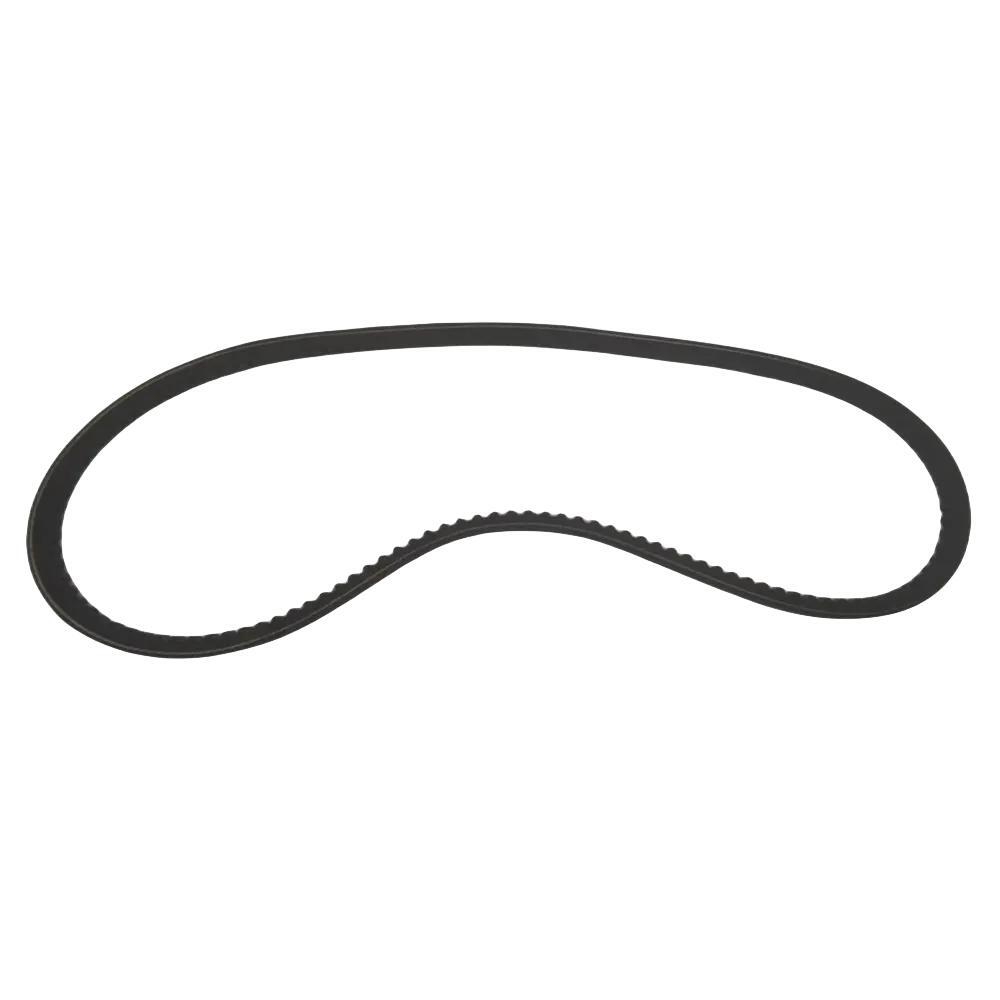

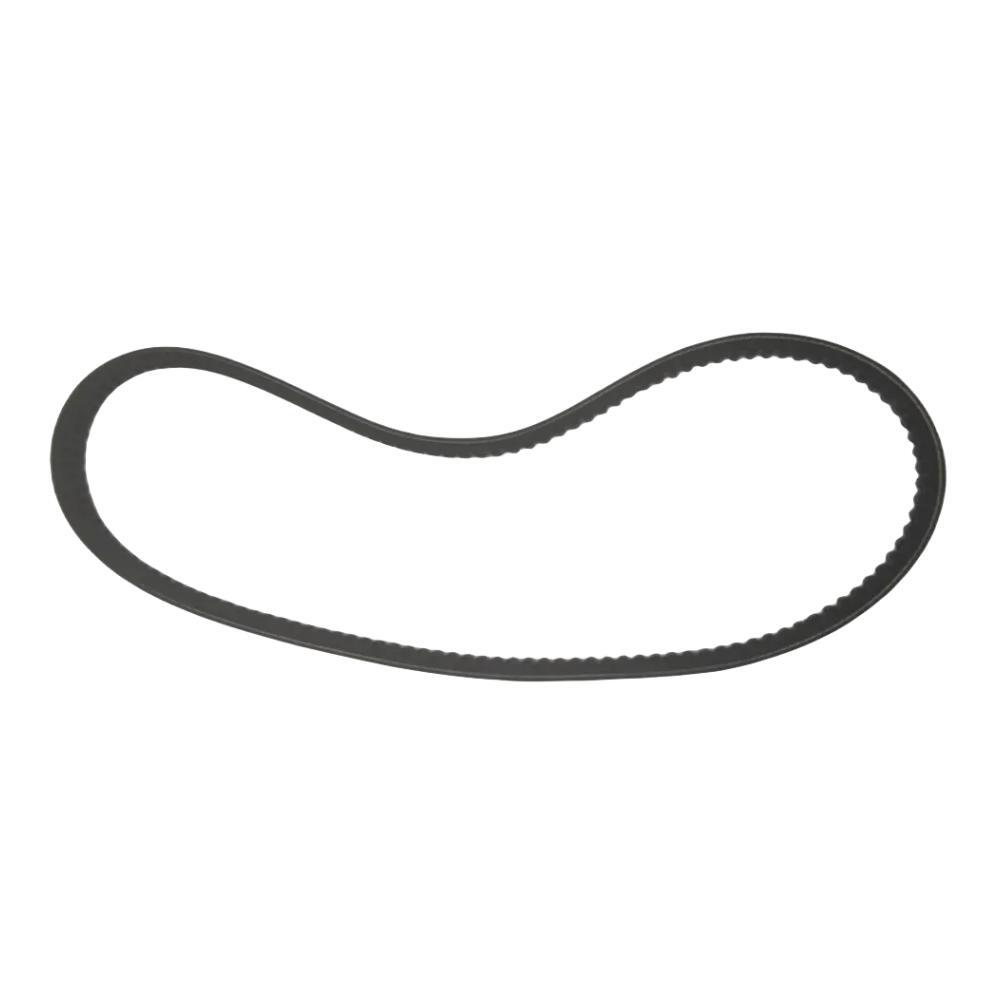

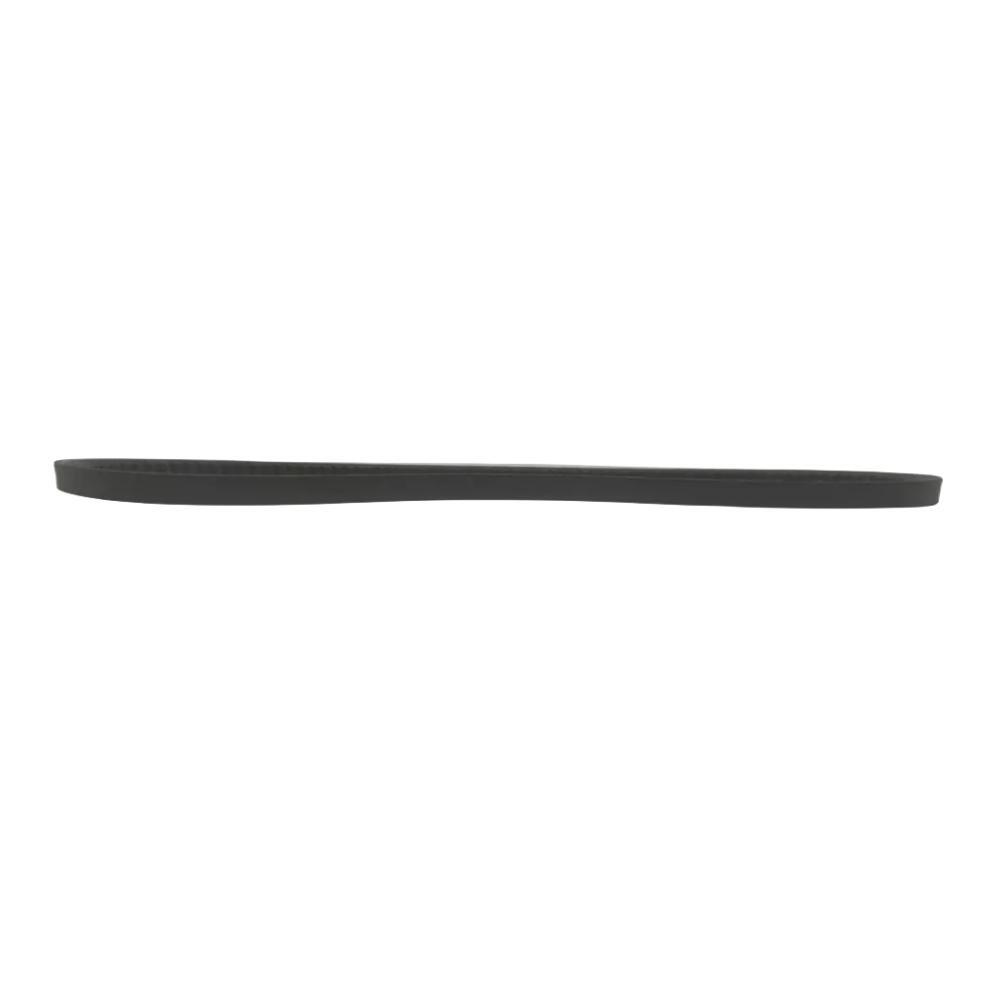

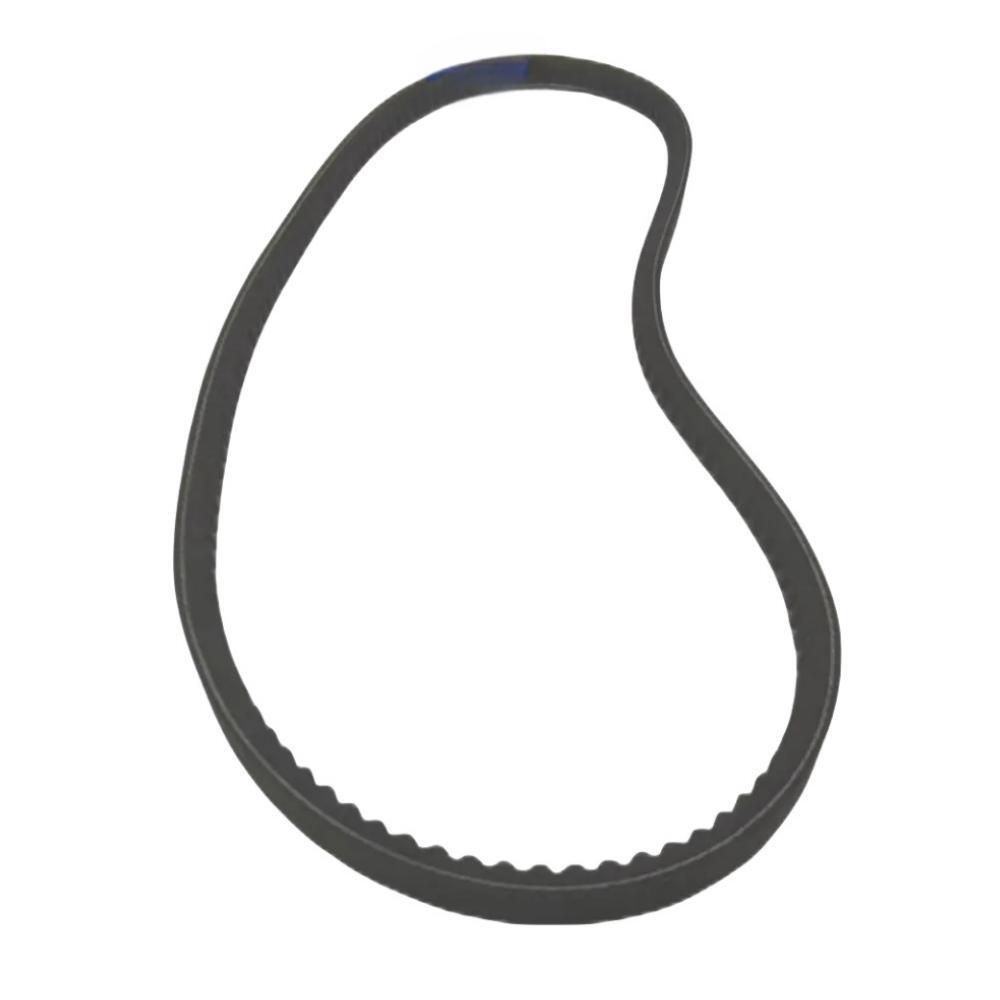

This V-belt is engineered to serve as a high-quality replacement for the engine alternator drive belt on a wide range of Volvo Penta diesel engines. It is designed for specific models within the 2000, MD/AQD, and TAMD/TMD series, ensuring reliable power transmission to the alternator.

This part is a direct replacement for Volvo Penta OEM part numbers: 966906, 958306, 419250, 958351, and 807266.

  • Installation Position: Engine Alternator Drive Belt
  • Fuel Compatibility: Diesel
  • Included Component: One durable, cogged V-belt

Compatible Engine Models

Confirm your engine model/year in the table below.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Volvo Penta 2001, 2001B, 2001AG, 2001BG 9-23 4-Stroke 1977-2006 966906 Fresh water cooling
Volvo Penta 2002, 2002B, 2002D, 2002AG, 2002BG 9-23 4-Stroke 1977-2006 966906 Fresh water cooling
Volvo Penta 2003, 2003B, 2003D, 2003AG, 2003BG, 2003T, 2003TB, 2003 SOLAS 28-43 4-Stroke 1977-2006 966906 Fresh water cooling
Volvo Penta MD11, MD11C, MD11D 23-25 4-Stroke 1975-1999 966906
Volvo Penta MD1B, MD2B, AQD2B 7-11 4-Stroke 1977-1985 966906 AQD2B/MD2B for crankshaft pulley dia 150 mm
Volvo Penta TAMD60A, TAMD60B, TAMD60C 60 4-Stroke 1985-1999 966906
Volvo Penta MD70A, MD70B, MD70C 70 4-Stroke 1975-1990 966906
Volvo Penta TMD70A, TMD70AB, TMD70B, TMD70C 70 4-Stroke 1975-1990 966906
Volvo Penta TAMD70B, TAMD70C, TAMD70D, TAMD70E 70 4-Stroke 1985-1995 966906

Technical Specifications

Specification Value
Product Type V-Belt
Installation Engine Alternator Drive Belt
Fuel Type Diesel
Material Rubber with Fiber Reinforcement
Dimensions Length: 900 mm (35.43 in)
Belt Type Auto Cogged (AW-15)
Belt Width 11.18 mm (0.44 in)
Belt Depth 7.94 mm (0.31 in)
Other Technical Attributes For crankshaft pulley diameter 150 mm (on certain models)

Package Contents

  • 1 x V-Belt (Replaces 966906/958306)

Installation Guide

  1. Safety First: Ensure the engine is off and cool. Disconnect the negative battery cable to prevent accidental starts.
  2. Locate the Belt: Identify the alternator and the existing drive belt path around the crankshaft and alternator pulleys.
  3. Release Tension: Loosen the alternator's mounting and tensioning bolts. This will allow the alternator to pivot, releasing tension on the belt.
  4. Remove Old Belt: Carefully slide the old belt off the pulleys. Take this opportunity to inspect the pulleys for damage or misalignment.
  5. Install New Belt: Route the new V-belt around the pulleys, ensuring it is properly seated in the grooves.
  6. Apply Tension: Pry the alternator away from the engine to apply tension to the belt. The correct tension typically allows for about 1/2 inch (13 mm) of deflection with firm thumb pressure at the longest span.
  7. Tighten Bolts: While maintaining tension, securely tighten the alternator's mounting and tensioning bolts.
  8. Final Check: Reconnect the battery cable. Start the engine and listen for any unusual noises. Check that the alternator is charging correctly.

Troubleshooting & FAQ

How do I confirm this belt fits my engine?
Start by checking the 'Compatible Engine Models' table on this page. It is critical to match your engine's model, year, and OEM part number (966906). For models like the MD1B and AQD2B, also confirm the crankshaft pulley diameter as noted in the compatibility chart.

What are common signs my drive belt is failing?
Key indicators of a failing belt include loud squealing noises upon startup or acceleration, visible cracks or fraying on the belt's surface, and a glazed or shiny appearance. A worn belt can slip, leading to poor alternator performance and battery charging issues.

How often should I replace my V-belt?
There is no fixed interval, as lifespan depends on engine hours and operating conditions. We recommend inspecting the belt during every routine service. Replace it immediately if you notice any signs of wear, such as cracking, glazing, or material loss, or as a preventative measure every few years.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
