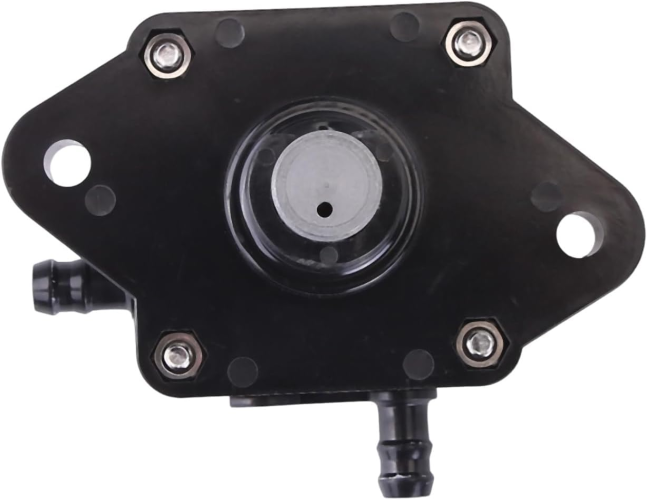

Low Pressure Fuel Pump - Fits Suzuki Outboard DF40-DF140 (Replaces 15100-90J11, 15100-90J1V, 15100-90J10)

Low Pressure Fuel Pump – Fits Suzuki Outboard DF40-DF140 (Replaces 15100-90J11)

This low-pressure fuel pump is a direct replacement for Suzuki 4-stroke outboard engines from 40 to 140 HP (2001–2021) and select Johnson/Evinrude 4-stroke models from 90 to 140 HP (2003–2006) that share the Suzuki platform.

It is designed to replace Suzuki part numbers 15100-90J11, 15100-90J1V, 15100-90J10, 15100-90J01, and 15100-90J00, as well as Johnson/Evinrude numbers 5036797 and 5033699, ensuring a precise fit and function.

• Operation: Mechanically operated piston pump.
• Installation: Mounts directly to the engine with a direct-fit electrical harness plug.
• Fuel Type: Compatible with gasoline.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across compatible brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson/Evinrude Serial Number Guide.

Suzuki

Johnson/Evinrude

Technical Specifications

Package Contents

• 1 x Low Pressure Fuel Pump (15100-90J11)

Installation Guide

1. Safety First: Disconnect the battery and ensure the engine is cool. Work in a well-ventilated area.
2. Locate the Pump: Identify the old low-pressure fuel pump on the engine block.
3. Disconnect Lines: Carefully disconnect the fuel inlet and outlet lines. Have a rag ready to catch any residual fuel.
4. Disconnect Electrical Connector: Unplug the electrical harness from the pump.
5. Remove Old Pump: Unbolt the old fuel pump from its mounting point.
6. Clean Surface: Clean the mounting surface to ensure a proper seal with the new pump.
7. Install New Pump: Mount the new fuel pump and tighten the bolts to the manufacturer's recommended torque.
8. Reconnect Lines: Securely attach the fuel inlet and outlet lines.
9. Reconnect Electrical Plug: Connect the electrical harness to the new pump.
10. Prime System: Prime the fuel system according to your engine's service manual to fill the pump and lines with fuel.
11. Check for Leaks: Reconnect the battery. Start the engine and carefully inspect for any fuel or oil leaks around the pump and fittings.
12. Final Check: Let the engine run for a few minutes and perform a final check for leaks before taking your boat on the water.

Troubleshooting & FAQ

Q: How can I confirm this fuel pump fits my specific Suzuki engine model?

A: The best way is to match your existing part number to the cross-reference list (e.g., 15100-90J11, 15100-90J1V). Additionally, check your engine's model, horsepower, and year against our compatibility table. This pump is a long shaft version, so verify its dimensions against your old part.

Q: What are the signs of a failing low-pressure fuel pump?

A: Common symptoms include difficulty starting, engine sputtering or stalling (especially at low speeds), rough idling, and loss of power. The engine may run fine at high RPMs but struggle at idle if the pump is weak.

Q: Is there any regular maintenance required for this fuel pump?

A: The pump itself is a sealed unit, but maintaining a clean fuel system is key. Regularly replace your boat’s fuel filters to prevent debris from damaging the pump’s internal components. Failure to do so is a common cause of premature pump failure.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
