Inline Fuel Filter – Fits Honda Outboard Motors 8-30 HP (Replaces 16910-ZV4-015)

Vendor: JLM Marine
Availability: In Stock
Product Type: Fuel Filter
$14.79
$14.79
Subtotal: $14.79

Free Shipping

Free standard shipping on all orders under 1 KG

Worry-Free Returns

Learn More.
Inline Fuel Filter – Fits Honda Outboard Motors 8 - 30 HP (Replaces 16910 - ZV4 - 015) - JLM Marine Boat Parts Limited

Inline Fuel Filter – Fits Honda Outboard Motors 8-30 HP (Replaces 16910-ZV4-015)

$14.79

Inline Fuel Filter – Fits Honda Outboard Motors 8-30 HP (Replaces 16910-ZV4-015)

$14.79

Inline Fuel Filter – Fits Honda Outboard Motors 8-30 HP (Replaces 16910-ZV4-015)

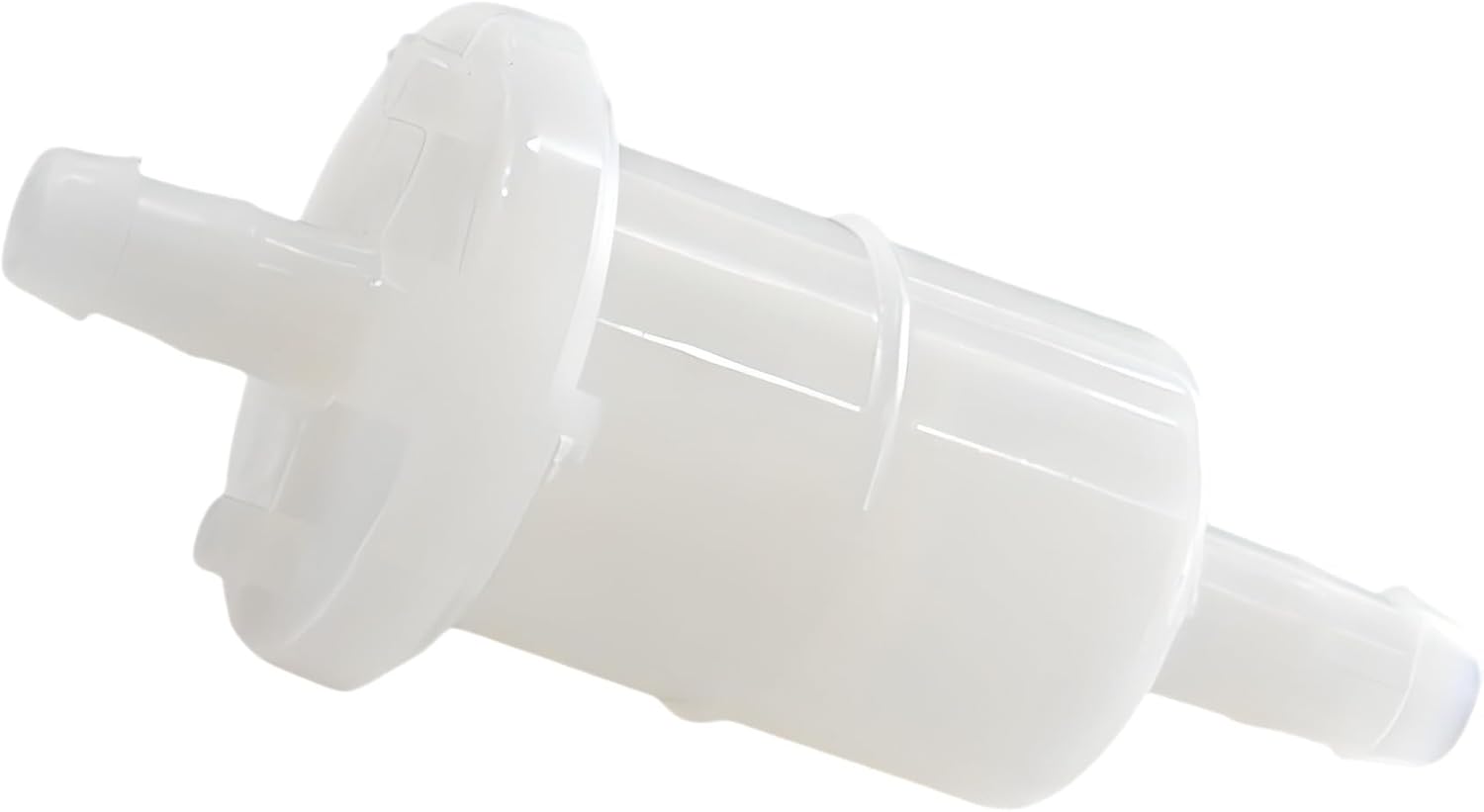

This inline fuel filter is designed for Honda 4-Stroke Outboard Motors from 8 HP to 30 HP (1998–Present). It ensures your engine receives clean fuel, protecting it from harmful debris and water that can cause performance issues and damage.

It serves as a direct replacement for several OEM and aftermarket part numbers, including Honda 16910-ZV4-015, 16910-ZV4-005, Sierra 18-8226, and Mallory 9-37957.

  • Easy in-line installation on a standard 5/16" (8mm) fuel hose.
  • Features a clear, transparent housing for easy inspection of fuel quality.
  • Engineered with sonically sealed end caps for maximum durability and leak prevention.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number Notes
Honda 16910-ZV4-015 Supersedes part number 16910-ZV4-005
Honda 16910-ZV4-005 -
Sierra 18-8226 -
Mallory 9-37957 -

Compatible Engine Models

Confirm your engine model/year in the table below.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Honda BF8 8 4-Stroke 1998–Present 16910-ZV4-015 Supersedes 16910-ZV4-005
Honda BF9.9 9.9 4-Stroke 1998–Present 16910-ZV4-015 Supersedes 16910-ZV4-005
Honda BF10 10 4-Stroke 1998–Present 16910-ZV4-015 Supersedes 16910-ZV4-005
Honda BF15 15 4-Stroke 1998–Present 16910-ZV4-015 Supersedes 16910-ZV4-005
Honda BF20 20 4-Stroke 1998–Present 16910-ZV4-015 Supersedes 16910-ZV4-005
Honda BF25 25 4-Stroke 1998–Present 16910-ZV4-015 Supersedes 16910-ZV4-005
Honda BF30 30 4-Stroke 1998–Present 16910-ZV4-015 Supersedes 16910-ZV4-005

Technical Specifications

Specification Value
Product Type Inline Fuel Filter
Installation In-line, on fuel hose
Fuel Type Gasoline
Connection 5/16" (8mm) Inline Fuel Hose
Housing Material Clear/Transparent
Fitting Type Barbed
Thread Size N/A (Hose Connection)
Other Technical Attributes Sonically sealed end caps, designed for maximum performance with no flow restrictions

Package Contents

  • 1 x Inline Fuel Filter (16910-ZV4-015)

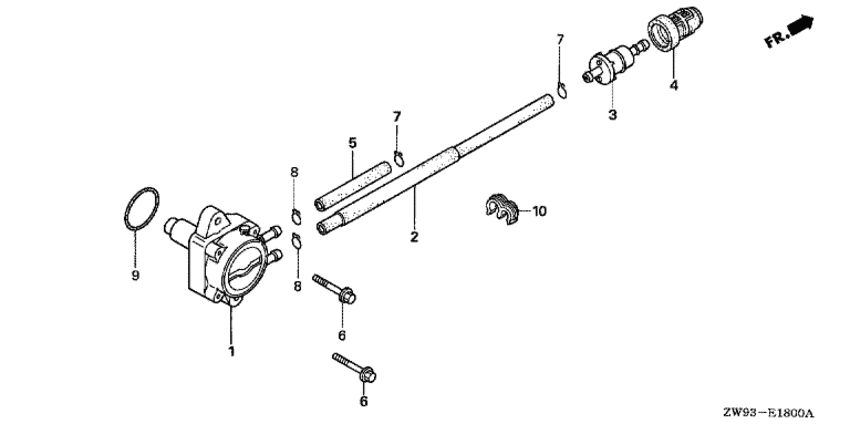

Explosion Diagram

Explosion Diagram

Installation Guide

  1. Ensure the engine is off and the area is well-ventilated.
  2. Locate the existing fuel filter on the fuel line between the fuel tank and the engine.
  3. Place a rag underneath the filter to absorb any fuel spillage.
  4. Loosen the hose clamps on both ends of the old filter.
  5. Gently twist and pull the fuel hoses off the old filter. Note the direction of the fuel flow arrow printed on the filter body.
  6. Position the new filter, making sure the arrow points in the same direction as the fuel flow (towards the engine).
  7. Securely attach the fuel hoses to the new filter and tighten the clamps.
  8. Squeeze the primer bulb (if equipped) until it becomes firm to fill the new filter with fuel.
  9. Check carefully for any leaks around the connections before starting the engine.

Troubleshooting & FAQ

How do I confirm this fits my Honda engine?
This filter is compatible with most Honda 4-stroke outboards from 8 to 30 HP manufactured between 1998 and the present. It directly replaces OEM part number 16910-ZV4-015. Please review the detailed "Compatible Engine Models" table to verify your specific model and year.

What are the signs my fuel filter needs replacing?
Common symptoms of a clogged filter include the engine sputtering, losing power, being difficult to start, or stalling at low speeds. The clear housing also allows for a quick visual check for dirt, debris, or water contamination.

How often should I replace this fuel filter?
For best performance and engine protection, we recommend replacing the fuel filter annually or every 100 hours of use, whichever occurs first. This interval may need to be shorter if you frequently use fuel from questionable sources.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
