Impeller Repair Kit – Fits Jabsco, Johnson, Volvo Penta Inboard Engines (Replaces 22405-0001-P, 09-808B-1)

Impeller Repair Kit – Fits Jabsco, Johnson, Volvo Penta Inboard Engines

This is a neoprene impeller repair kit for various inboard marine engines, compatible with models from Jabsco, Johnson, Volvo Penta, Westerbeke, Onan, and others. It is designed for use in engine cooling systems and raw water pumps.

This kit is a direct replacement for the following part numbers: Jabsco 22405-0001/22405-0001-P, Johnson 09-808B/09-808B-1/09-45589, Volvo Penta 875583/875583-7/833995/3586496/21951342, Westerbeke 33032/32620, Onan 132-0310/132-0311, Vetus 601/00601, CEF 500121, Sierra 18-3076/23-2001, Mallory 9-45709, DJ Pump 08-31-0601, JMP 7000, Nanni 434013, and Ancor 50021/J050021.

• Material: Flexible Neoprene Rubber Compound
• Application: Marine Engine Cooling Pumps
• Included Components: Impeller, Gasket, and O-ring

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below.

Jabsco Pumps

Volvo Penta

Other Manufacturers

Technical Specifications

Package Contents

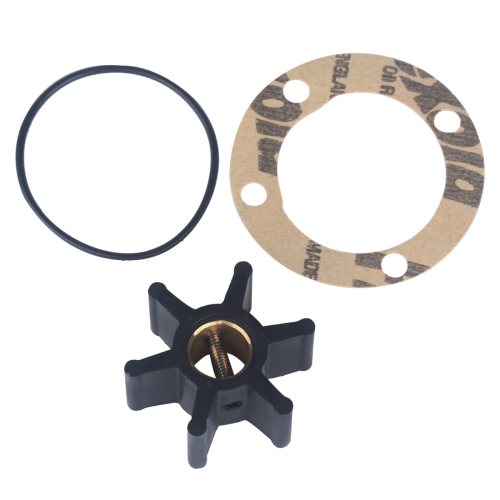

• 1 x Impeller (33046/033046/45766/045766)
• 1 x Gasket (33032/033032)
• 1 x O-ring

Installation Guide

1. Ensure the engine is off and has cooled down. Close the raw water intake seacock.
2. Locate the raw water pump on your engine. Place a rag underneath to catch any spilled coolant.
3. Remove the screws holding the pump cover plate in place.
4. Carefully pry the cover plate off. Note the orientation of the old impeller blades.
5. Use needle-nose pliers or impeller pullers to remove the old impeller from the pump housing.
6. Clean the inside of the pump housing and the cover plate, removing any old gasket material or debris.
7. Lightly lubricate the new impeller and the inside of the pump housing with a suitable marine lubricant.
8. Install the new impeller, bending the blades in the same direction as the old one was oriented.
9. Install the new gasket and/or O-ring on the cover plate.
10. Re-secure the cover plate with the screws, tightening them evenly in a star pattern.
11. Open the raw water seacock.
12. Start the engine and check immediately for proper water flow from the exhaust and inspect the pump for leaks.

Troubleshooting & FAQ

How do I confirm this impeller fits my pump?
The best method is to match your existing part number to those listed in our Part Number Cross-Reference table. You can also verify fitment by checking your pump or engine model against our compatibility tables. Finally, comparing the dimensions (Diameter, Width, Shaft) to your old impeller can confirm a match.

What are the signs of a failing impeller?
Common signs include engine overheating, a noticeable reduction in water flow from the exhaust outlet, and visible cracks or missing blades on the impeller itself upon inspection. A worn impeller will lose its flexibility and efficiency.

How often should I replace the impeller?
As a general rule, it is recommended to inspect your impeller annually and replace it every 1-2 years, depending on usage and operating conditions (e.g., sandy or debris-filled water). Always consult your engine's service manual for specific maintenance intervals.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
