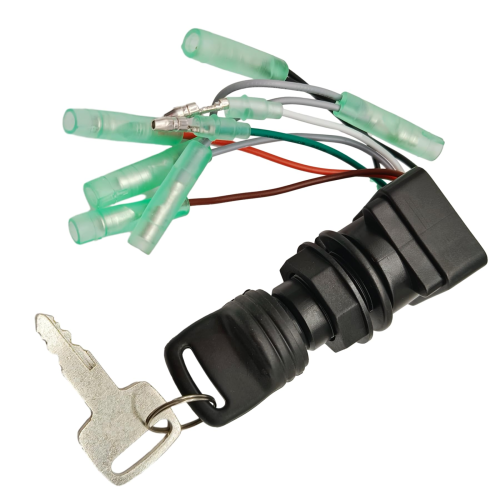

Ignition Key Switch – Fits Suzuki 8–225 HP Outboard Motors (Replaces 37110-92E01, 37110-99E02)

Ignition Key Switch – Fits Suzuki 8–225 HP Outboard Motors

This ignition key switch assembly is designed for a wide range of Suzuki outboard engines, including 2-Stroke models from 8 HP to 225 HP (1983–2003) and 4-Stroke models from 9.9 HP to 140 HP (1996–2011). It is built to meet or exceed OEM specifications for reliable performance.

This part is a direct replacement for Suzuki OEM part numbers: 37110-92E01, 37110-92E02, 37110-99E00, 37110-99E01, and 37110-99E02.

• Installation: Mounts in the remote control box.
• Connection: Features a simple push-in terminal connection.
• Durability: Constructed with a sealed, waterproof housing to protect against the elements.

Part Number Cross-Reference

This part is a direct replacement for the following Suzuki OEM part numbers. The newest part number in the supersession chain is 37110-99E02.

Compatible Engine Models

Confirm your engine model and year in the tables below. For Suzuki owners, you can review exploded diagrams to verify part numbers here: Suzuki Parts Diagrams & Catalog.

Suzuki 2-Stroke Outboard Engines

Suzuki 4-Stroke Outboard Engines

Technical Specifications

Package Contents

• 1 x Ignition Key Switch Assembly (Replaces 37110-99E02)
• 2 x Ignition Keys

Installation Guide

1. Safety First: Before starting, disconnect the battery cables (negative first, then positive) to prevent electrical shorts.
2. Access the Switch: Open the remote control box housing to access the back of the old ignition switch.
3. Disconnect Wiring: Carefully note the position of each wire on the old switch terminals. Disconnect the push-in terminal connectors.
4. Remove Old Switch: Unscrew the mounting nut on the front of the control box that holds the ignition switch in place. Remove the old switch.
5. Install New Switch: Insert the new ignition switch into the mounting hole and secure it with the provided nut.
6. Reconnect Wiring: Attach the wire connectors to the corresponding terminals on the new switch, matching the original configuration.
7. Test Operation: Reconnect the battery (positive first, then negative). Test the Off, Run, and Start positions with the key. Verify the push-to-choke function engages correctly.
8. Secure Housing: Once functionality is confirmed, securely close and fasten the remote control box housing.

Troubleshooting & FAQ

How do I confirm this fits my engine?
First, check the comprehensive "Compatible Engine Models" tables on this page to see if your engine's model and year are listed. Second, verify that your existing part number matches one of the numbers in our "Part Number Cross-Reference" table. Matching both is the best way to ensure compatibility.

What is the "push to choke" feature?
The push-to-choke function is activated by pushing the key inward while in the "Run" position. This enriches the fuel mixture, which is necessary for starting a cold carbureted engine. It replaces the need for a separate choke knob or lever.

What are the signs my ignition switch is failing?
Common symptoms of a faulty ignition switch include the engine failing to crank, the key feeling loose or difficult to turn, intermittent power loss to the console, or the engine not shutting off when the key is turned to the "Off" position.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
