Hydrofoil Stabilizer – Fits Yamaha, Honda, Suzuki, Tohatsu 5-150 HP (Replaces SeaSierra FO2001)

Hydrofoil Stabilizer – Fits Yamaha, Honda, Suzuki, Tohatsu 5-150 HP

This marine hydrofoil stabilizer fits most outboard motors and stern drives from 5 to 150 HP. It is compatible with a wide range of Yamaha, Mercury, Honda, Suzuki, Tohatsu, Johnson, and Evinrude outboards, as well as Mercruiser and OMC stern drives. It is suitable for both 2-Stroke and 4-Stroke engines.

This part is a direct replacement for SeaSierra FO2001, UanofCn FO2001, QuickMarine HS001, and NorthBoat HS001.

• Installs via a simple bolt-on process to the anti-ventilation plate with included hardware.
• Constructed from high-strength, UV-resistant Marine Grade Nylon PA66 Plastic.
• Package includes the hydrofoil, all necessary stainless steel mounting hardware, and a drill bit.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson Serial Number Guide.

For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Confirm your engine model/year in the table below.

Technical Specifications

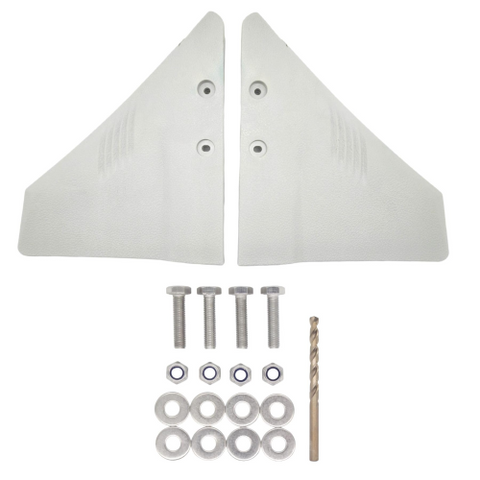

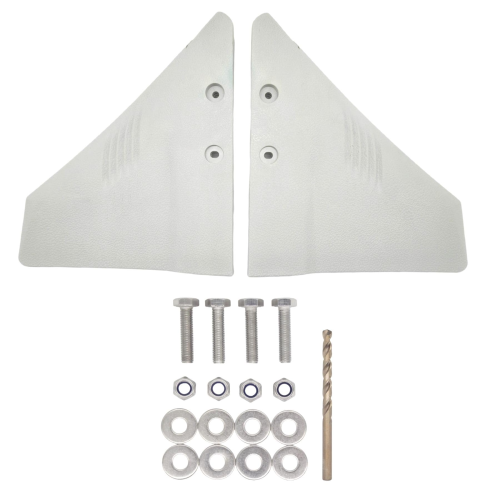

Package Contents

• 1 x Hydrofoil Stabilizer (FO2001)
• 4 x Sets Stainless Steel Screws and Nuts
• 1 x 6.5mm Drill Bit
• 1 x Installation Instruction

Installation Guide

1. Safety First: Before starting, ensure the engine is off, disconnected from power, and the boat is securely trailered.
2. Position the Hydrofoil: Place the hydrofoil onto the anti-ventilation plate of your outboard motor. Center it side-to-side and position it fore-and-aft according to the included instructions.
3. Mark the Holes: Once positioned correctly, use a marker to carefully mark the four drill hole locations through the mounting holes of the hydrofoil onto the plate.
4. Drill the Holes: Remove the hydrofoil. Using the included 6.5mm drill bit, carefully drill the four marked holes through the anti-ventilation plate.
5. Mount the Hydrofoil: Realign the hydrofoil with the newly drilled holes. Insert the provided stainless steel screws from the top.
6. Secure the Hardware: Attach the nuts to the screws from the underside and tighten them securely. Do not over-tighten, as this could damage the plate or hydrofoil. Periodically check tightness after use.

Troubleshooting & FAQ

Q: How do I confirm this hydrofoil will fit my motor?

A: This hydrofoil has a universal design intended for most outboard and stern drive motors from 5 to 150 HP, including major brands like Yamaha, Mercury, Honda, and Suzuki. The key requirement is a suitable anti-ventilation plate with enough flat surface area to drill into for mounting. Please check your motor's horsepower and plate dimensions before ordering.

Q: Does installation require any special tools or extra hardware?

A: No. The package includes all necessary mounting hardware, including four sets of stainless steel screws and nuts. We also provide a 6.5mm drill bit, so you will only need a power drill and basic hand tools to complete the installation.

Q: What is the main benefit of installing this type of hydrofoil?

A: This dorsal fin style hydrofoil provides hydrodynamic lift at the stern, helping your boat get on plane much faster and at lower speeds. This can significantly reduce bow rise, stop porpoising, prevent propeller cavitation, and often improves overall stability and fuel efficiency.

Q: Is the plastic material strong enough for regular use in saltwater?

A: Absolutely. It is manufactured from Marine Grade Nylon PA66 plastic, which is specifically chosen for its high strength, impact resistance, and excellent resistance to UV rays and saltwater corrosion, ensuring long-lasting performance.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
