Fuel Pump Assembly – Fits Yamaha 30-60 HP 4-Stroke Outboard Motors (Replaces 6C5-24410-00-00)

Vendor: JLM Marine
Availability: In Stock
Product Type: Fuel Pump
$44.90
$50.00
$44.90
Subtotal: $44.90

Free Shipping

Free standard shipping on all orders under 1 KG

Worry-Free Returns

Learn More.

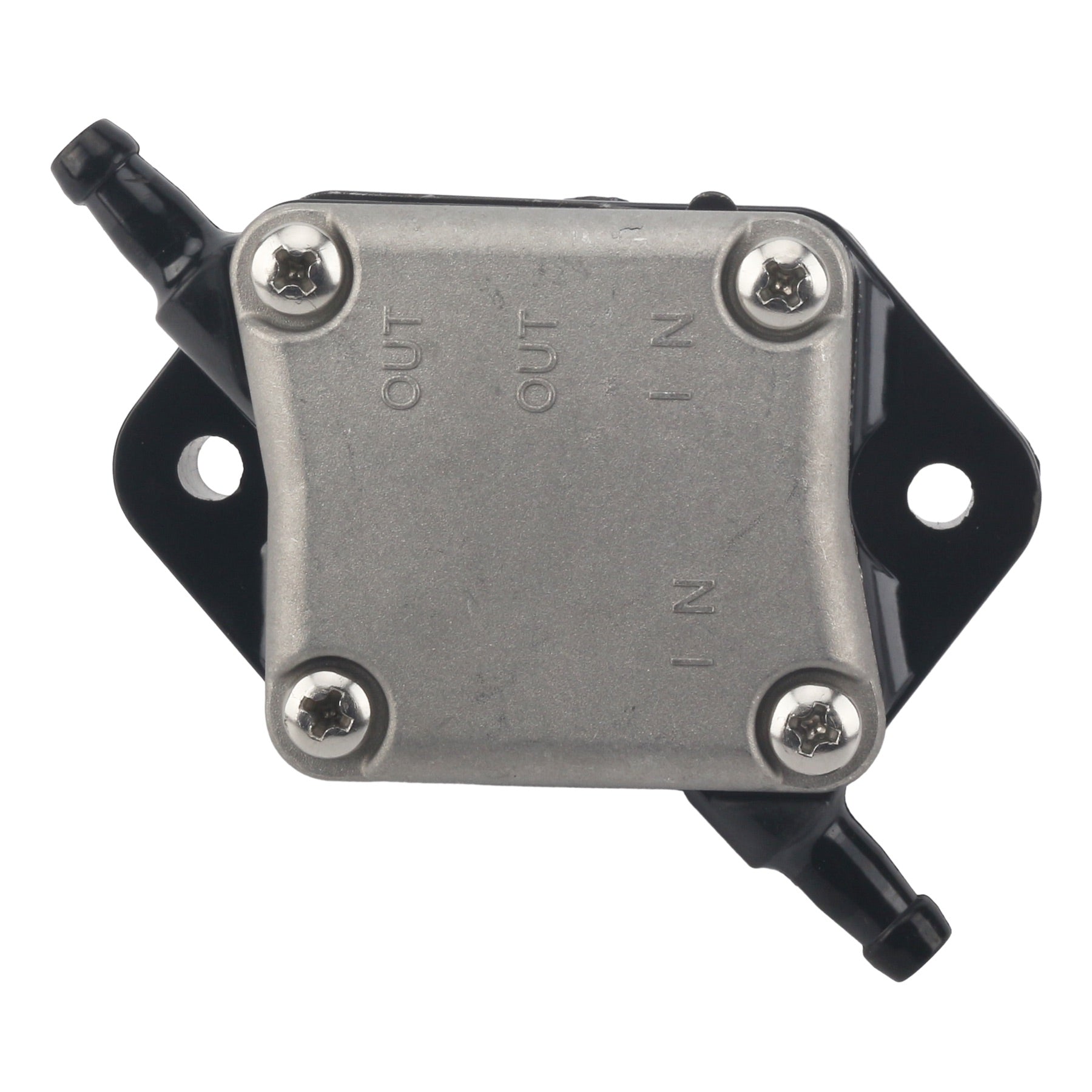

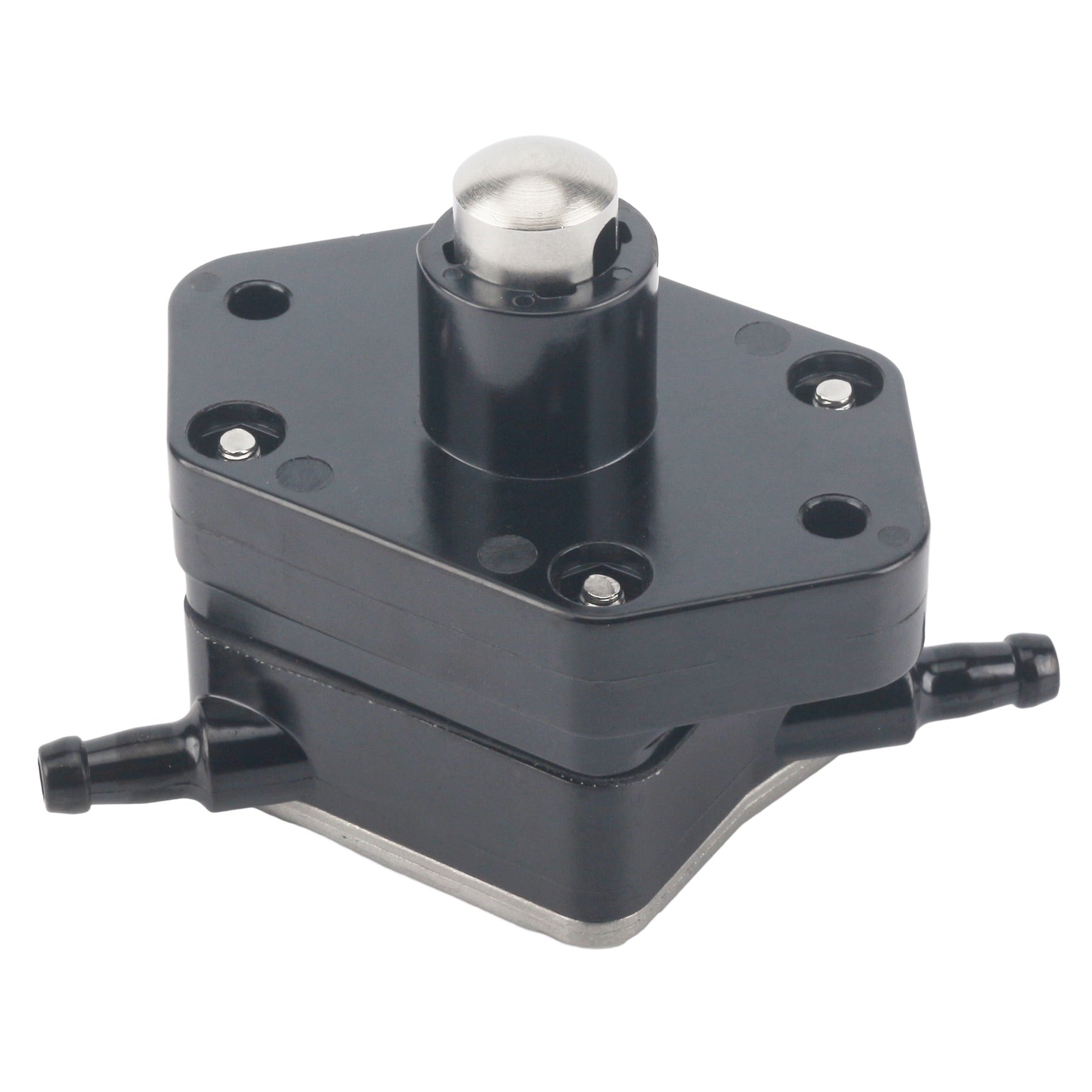

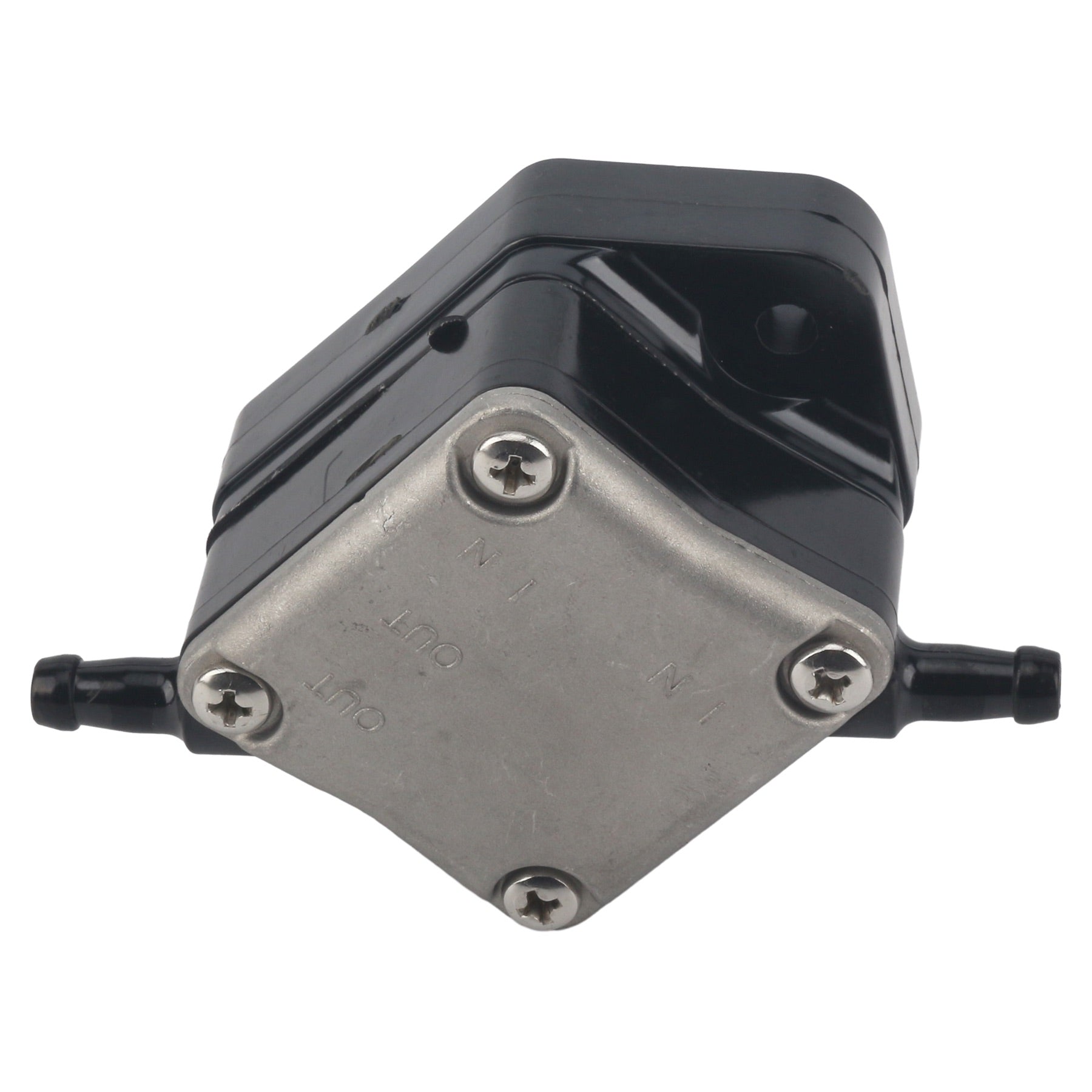

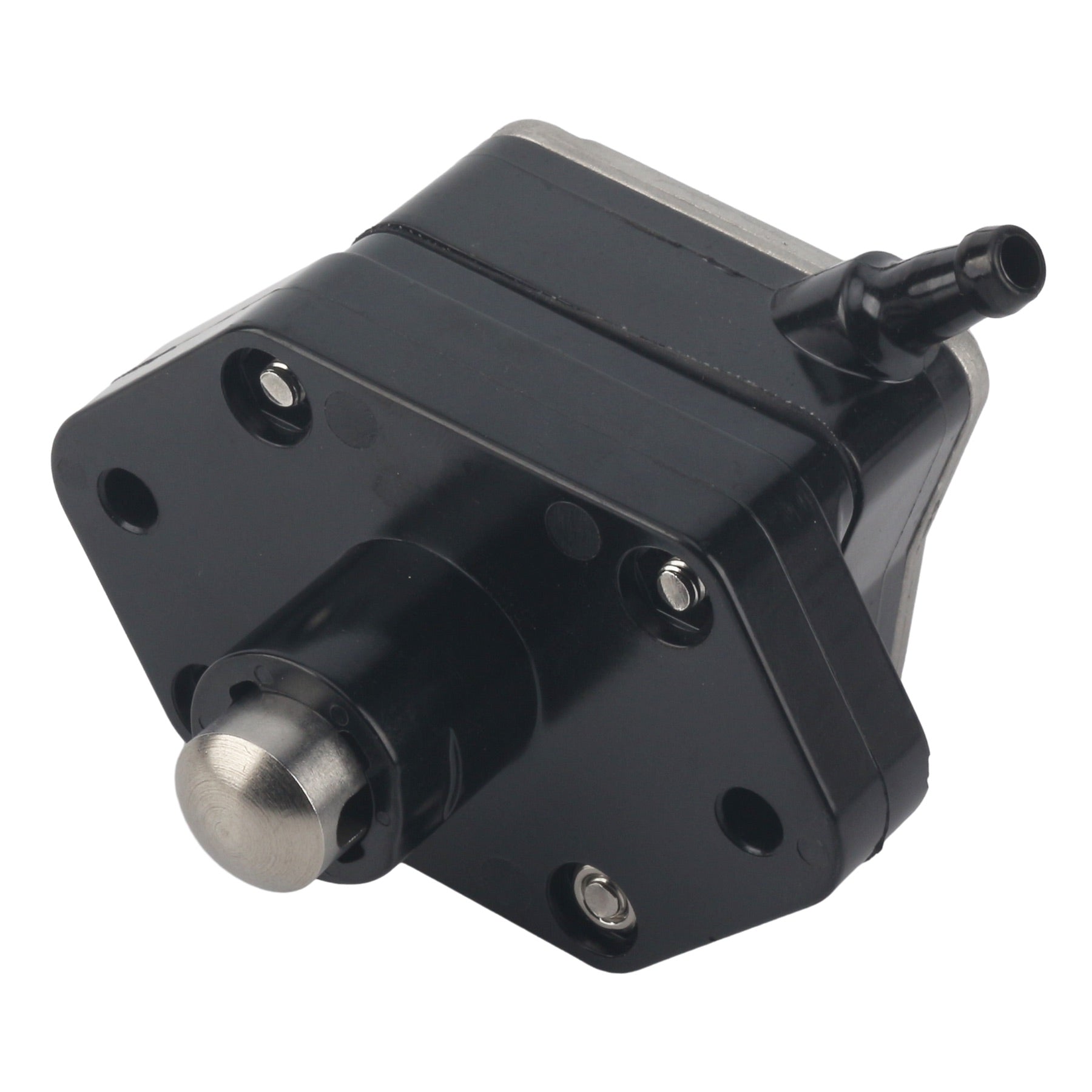

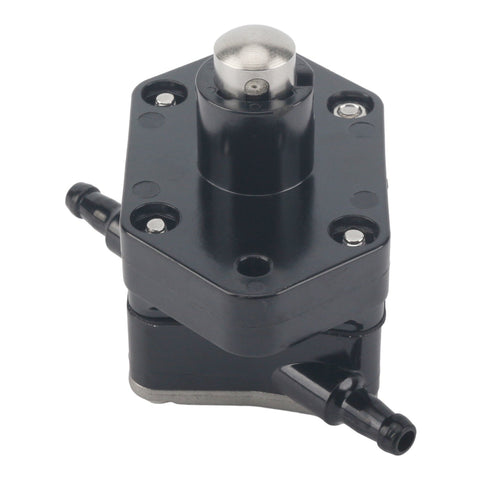

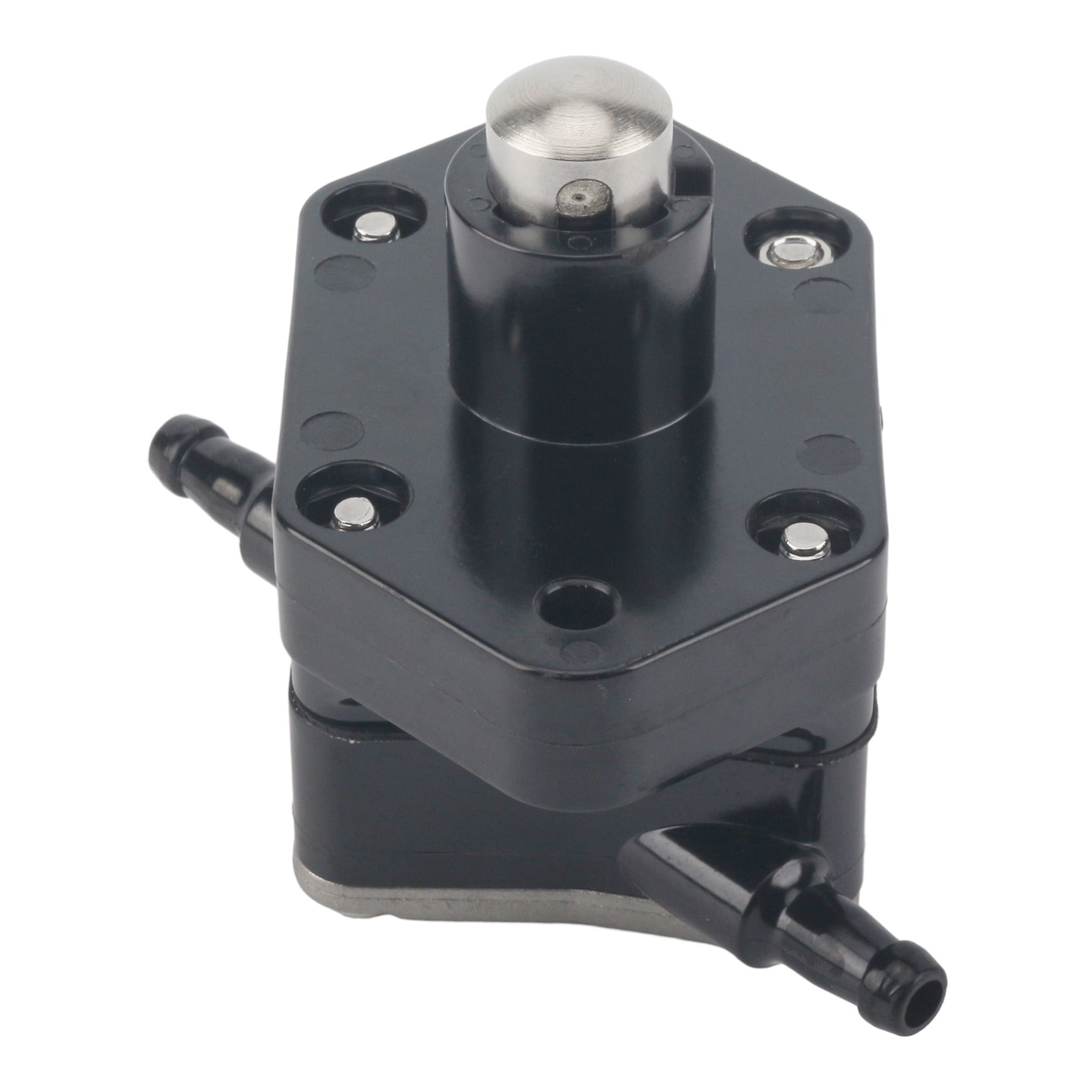

photo of jlm marine fuel pump 6c5-24410-00-18 for yamaha 30-60 hp, black with silver plunger and two hose barb connectors

Fuel Pump Assembly – Fits Yamaha 30-60 HP 4-Stroke Outboard Motors (Replaces 6C5-24410-00-00)

$50.00 $44.90

Fuel Pump Assembly – Fits Yamaha 30-60 HP 4-Stroke Outboard Motors (Replaces 6C5-24410-00-00)

$50.00 $44.90

Fuel Pump Assembly – Fits Yamaha 30-60 HP 4-Stroke Outboard Motors (Replaces 6C5-24410-00-00)

This fuel pump assembly is designed for Yamaha 30-60 HP 4-stroke outboard motors from 2005 to present, including F30B, F40A/D/F/H, F50F/G/H/J/T, and F60A/B/C/D/F/G/T models. It ensures reliable fuel delivery for consistent engine performance.

This unit is a direct replacement for Yamaha part number 6C5-24410-00-00 and Sierra part number 18-7384.

  • Engineered for direct replacement to ensure a straightforward installation process.
  • Compatible with standard marine gasoline fuel systems.
  • The package includes the fuel pump, a new O-ring, and a hose clamp for a complete installation.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
Yamaha 6C5-24410-00-00
Sierra 18-7384

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Yamaha F30B 30 4-Stroke 2009+ 6C5-24410-00-00
Yamaha F40A/D/H/F 40 4-Stroke 2006+ 6C5-24410-00-00
Yamaha F50F/T/H/J/G 50 4-Stroke 2005+ 6C5-24410-00-00
Yamaha F60A/B/C/D/F/G/T 60 4-Stroke 2005+ 6C5-24410-00-00

Technical Specifications

Specification Value
Product Type Outboard Fuel Pump Assembly
Installation Direct replacement
Fuel Type Gasoline
Housing Color Black
Weight 368g (0.81 lb)

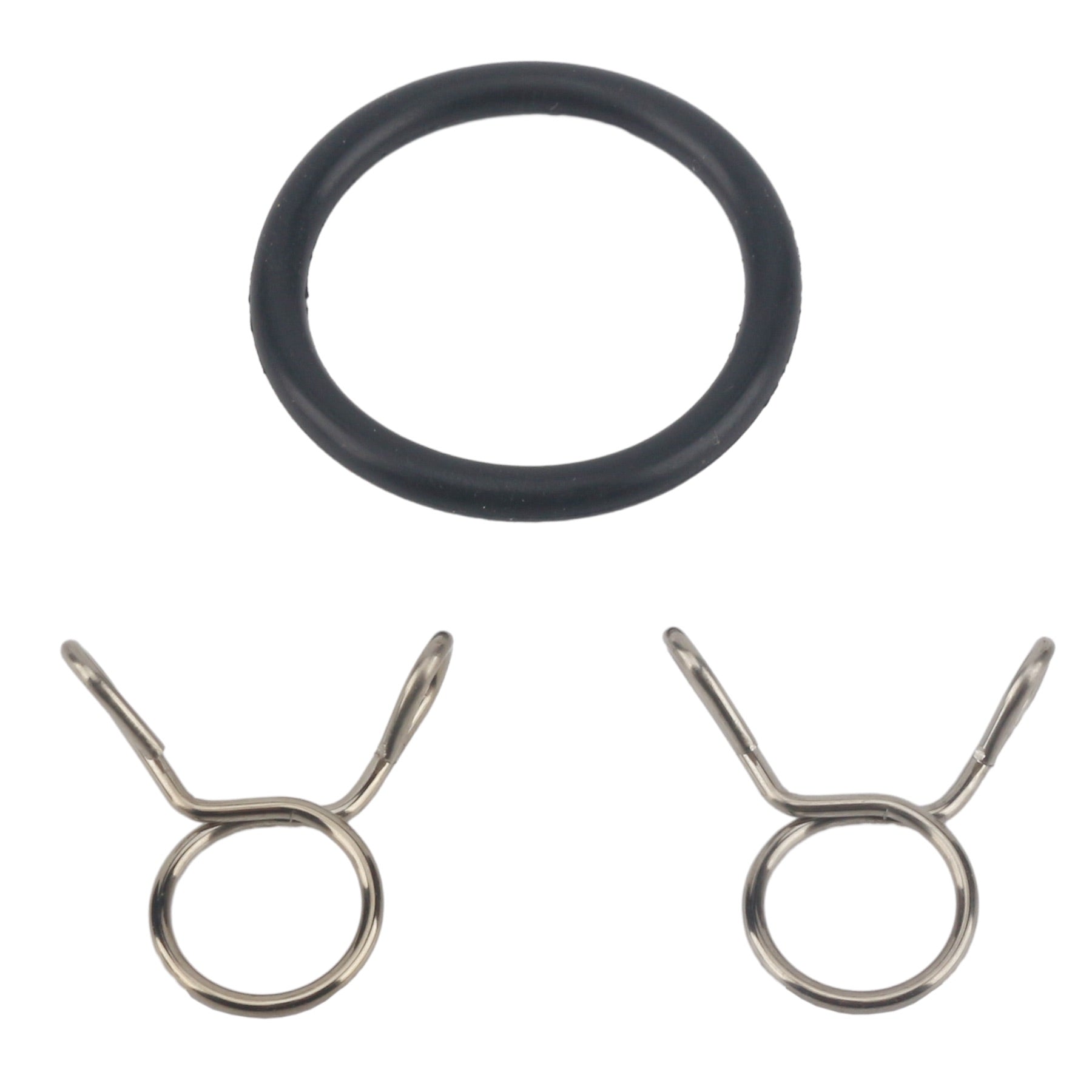

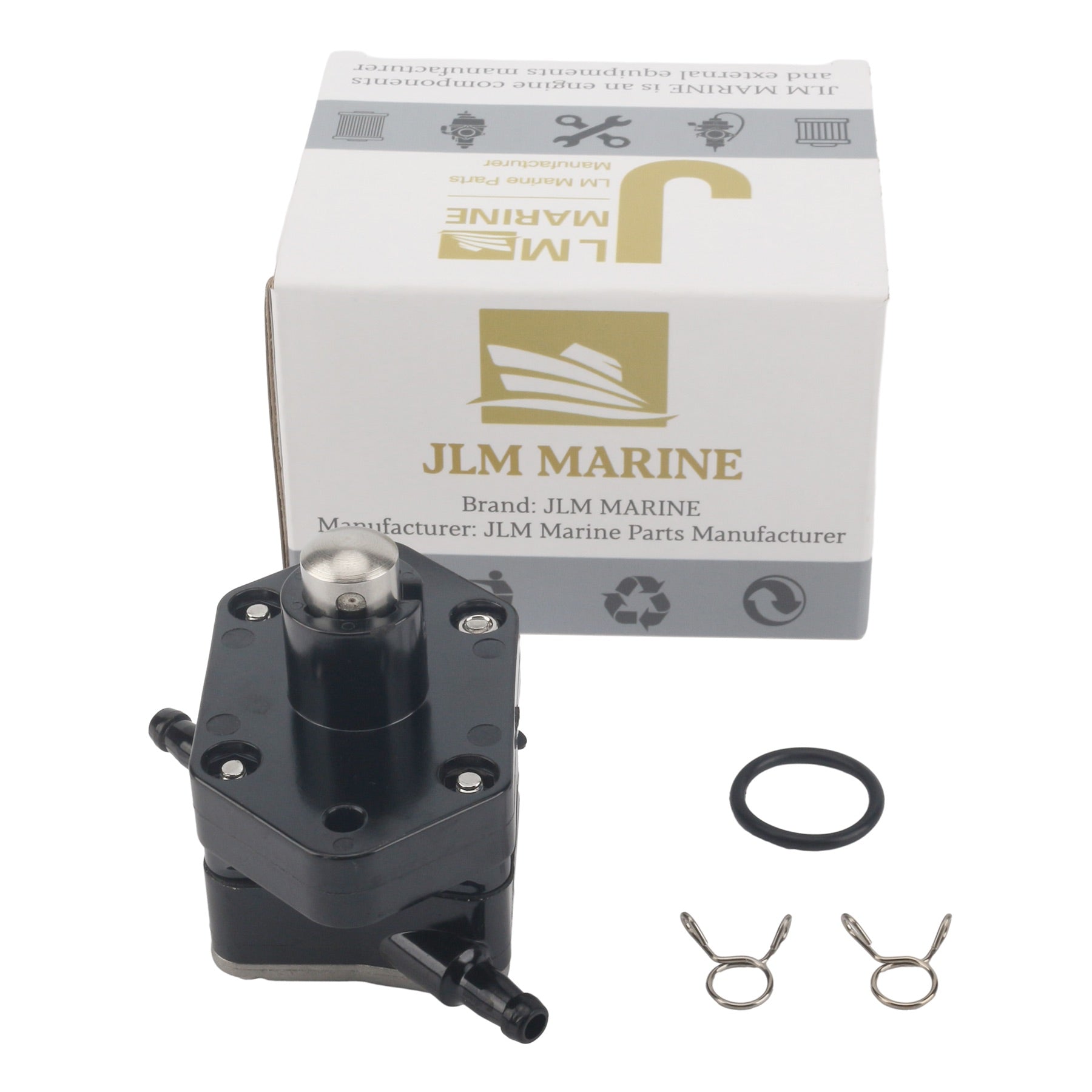

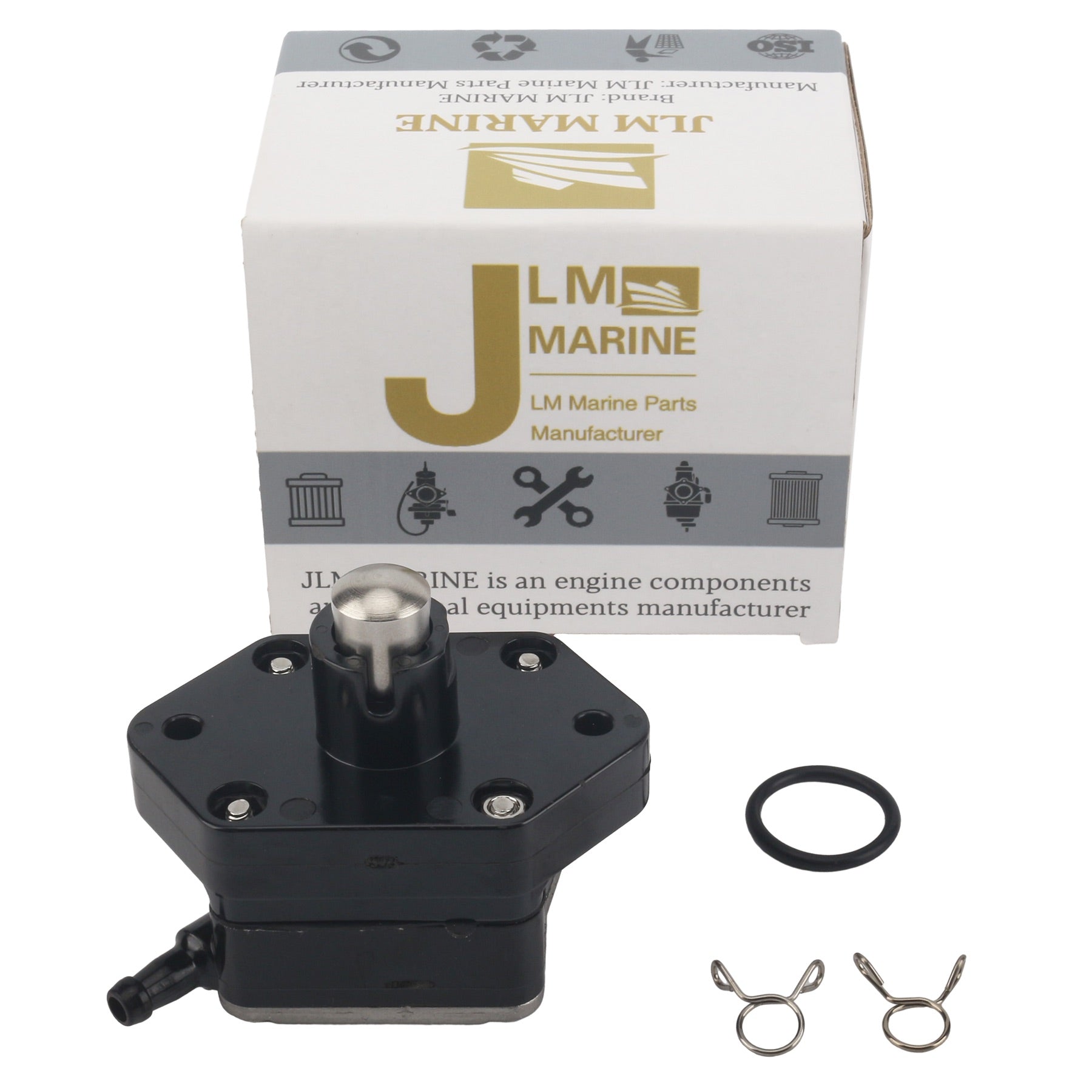

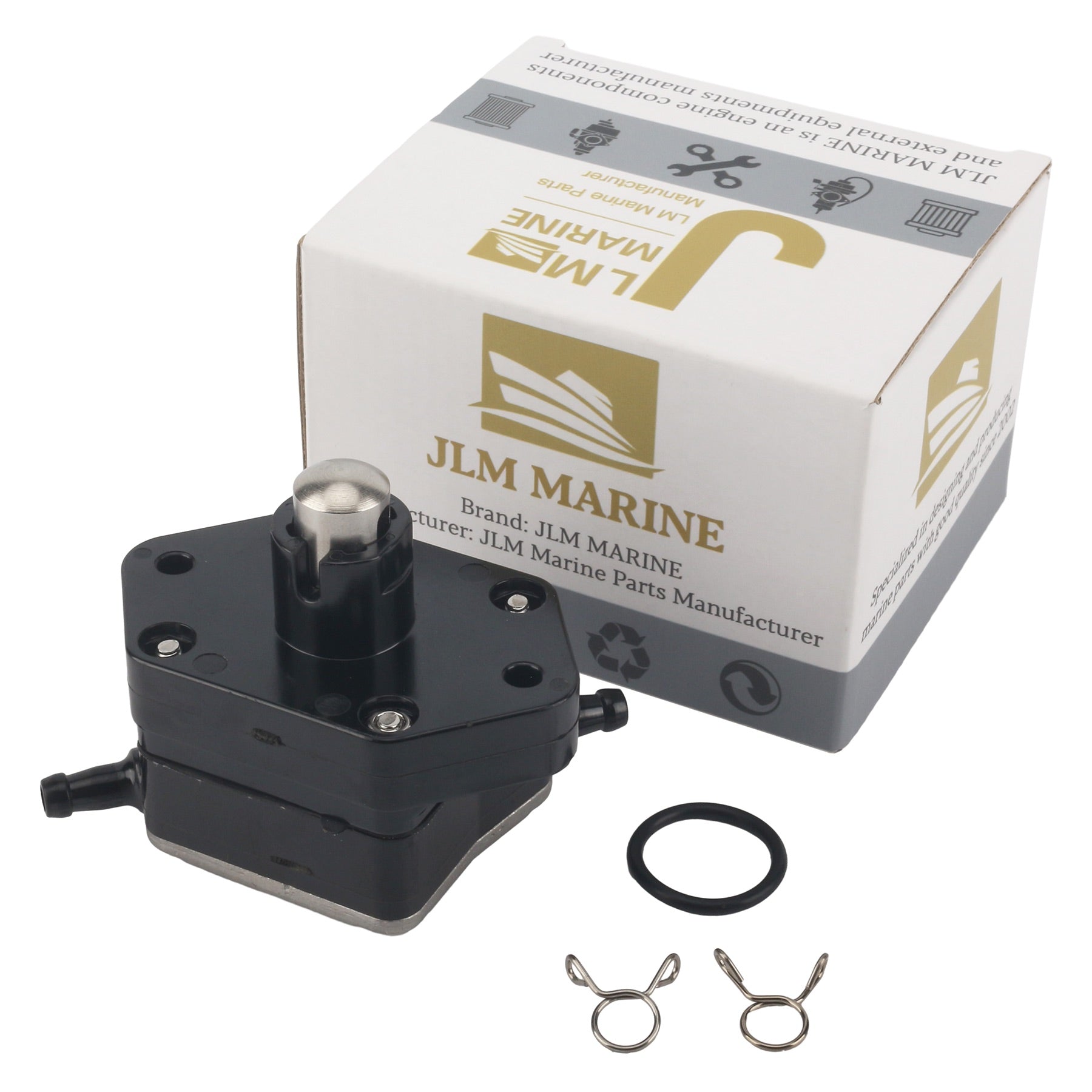

Package Contents

  • 1 x Fuel Pump Assembly (6C5-24410-00-00)
  • 1 x Hose clamp (90467-10M04-00)
  • 1 x O-ring (93210-24235-00)

Explosion Diagram

Explosion Diagram

Installation Guide

  1. Safety First: Ensure the engine is off and cool. Disconnect the battery terminals.
  2. Relieve Fuel Pressure: Follow your engine’s service manual to safely relieve pressure from the fuel system.
  3. Disconnect Lines: Carefully disconnect the fuel lines and electrical connectors from the old fuel pump.
  4. Remove Old Pump: Unbolt and remove the old fuel pump assembly from the engine block.
  5. Install New Pump: Mount the new fuel pump assembly, ensuring it is seated correctly.
  6. Secure Fittings: Install the new O-ring and secure the fuel hose with the new clamp.
  7. Reconnect: Reattach the fuel lines and electrical connectors to the new pump.
  8. Final Checks: Reconnect the battery. Prime the fuel system according to your owner's manual and carefully check all connections for leaks before starting the engine.

Troubleshooting & FAQ

Q: How do I confirm this fits my engine?
A: Start by checking your engine model, HP, and year against our compatibility chart. The most reliable method is to verify that your existing part has the OEM part number 6C5-24410-00-00 stamped on it.

Q: What are the symptoms of a failing fuel pump?
A: Common signs include the engine sputtering at high speeds, loss of power, difficulty starting ("hard starts"), or the engine failing to start at all.

Q: Is this an OEM part?
A: This is a high-quality aftermarket part, not an OEM component. We build our parts to meet or exceed OEM specifications using comparable materials in an ISO9002-certified facility. Each batch is inspected for performance and durability.

Q: How fast do you ship and what are the costs?
A: We offer fast global shipping, with most orders arriving within 5–15 days. Standard shipping is free for all orders. Expedited shipping options are available at checkout and vary by location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If you encounter an issue, contact our support team with your order details. Returns are accepted for unused items in their original condition within our standard return window; please see our policy page for full details.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
