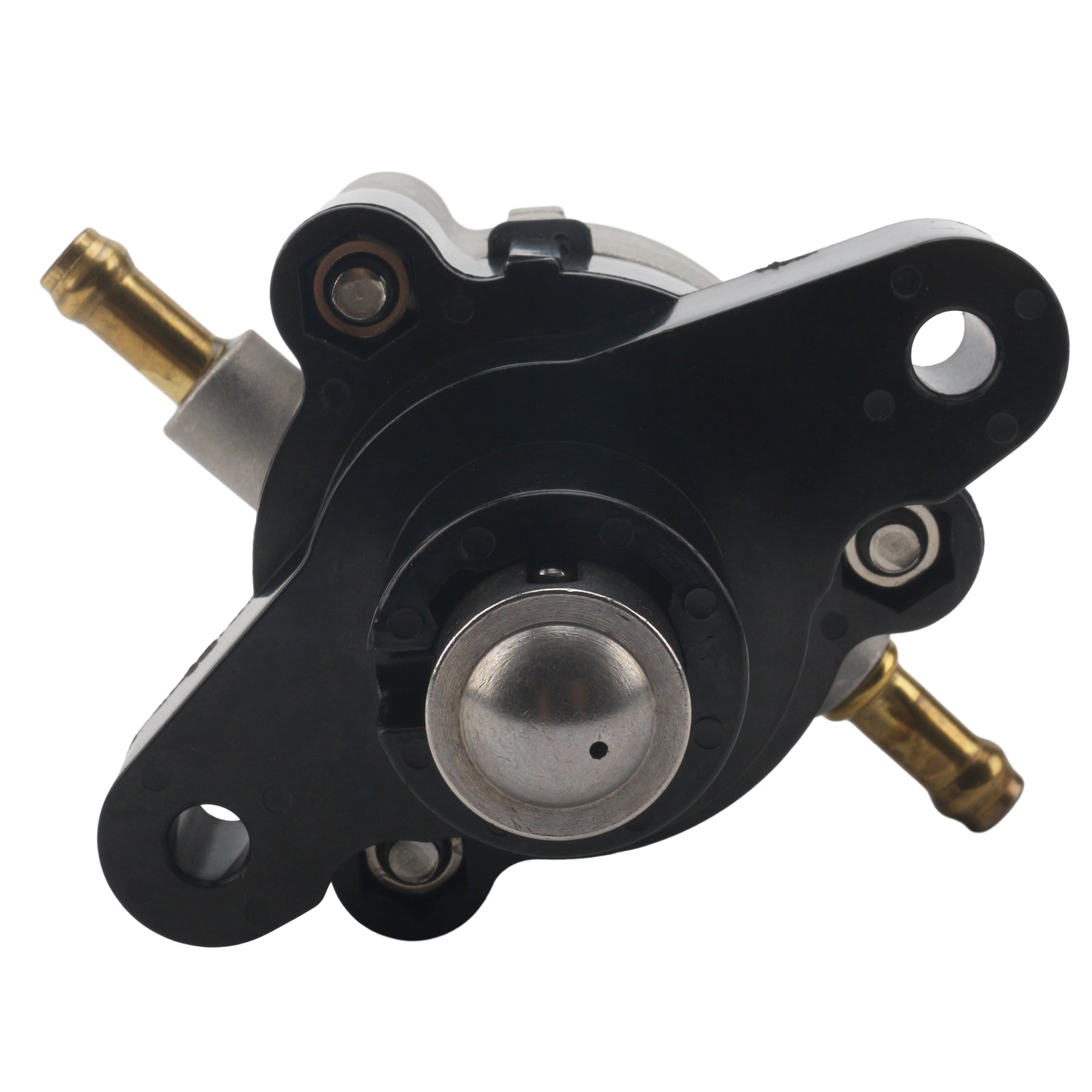

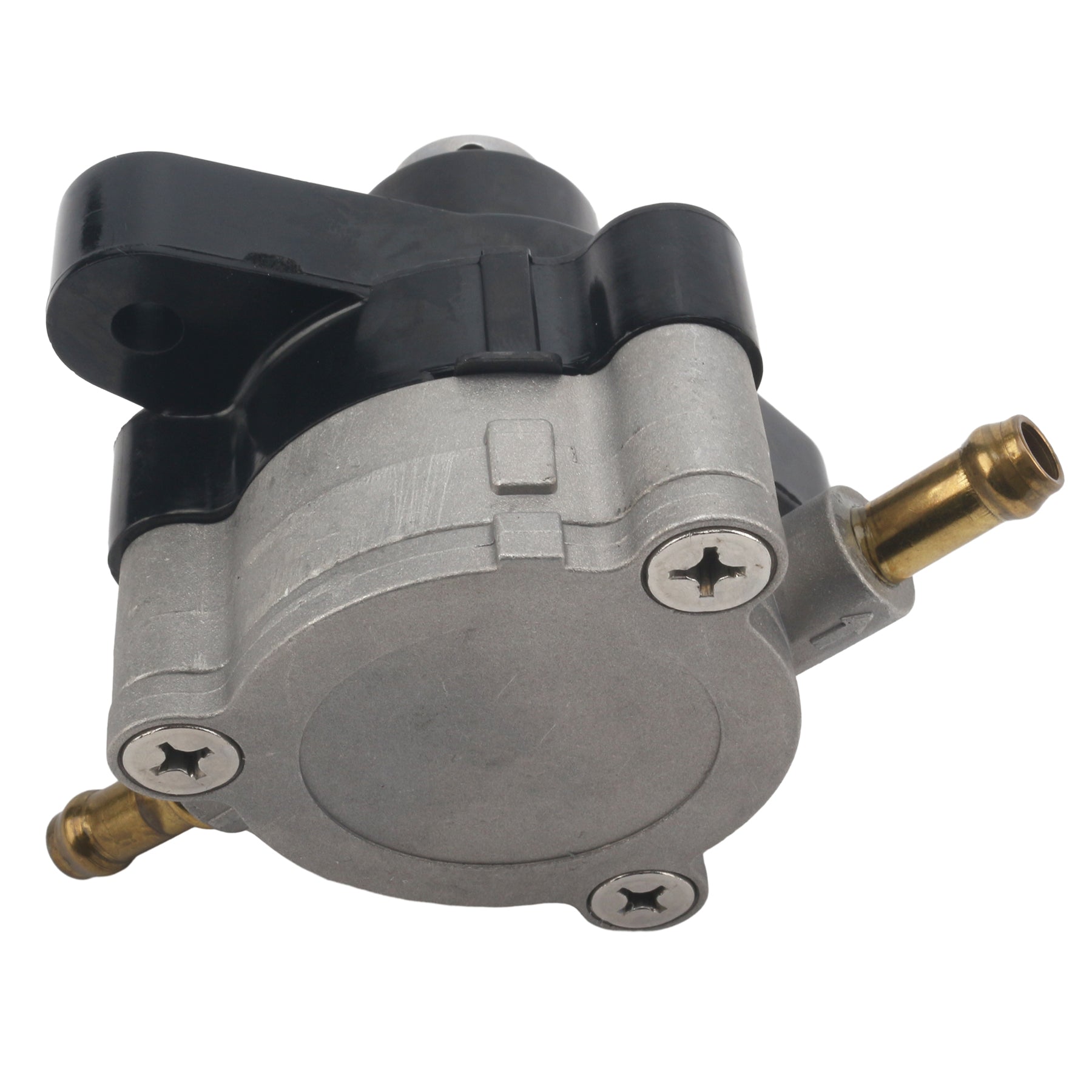

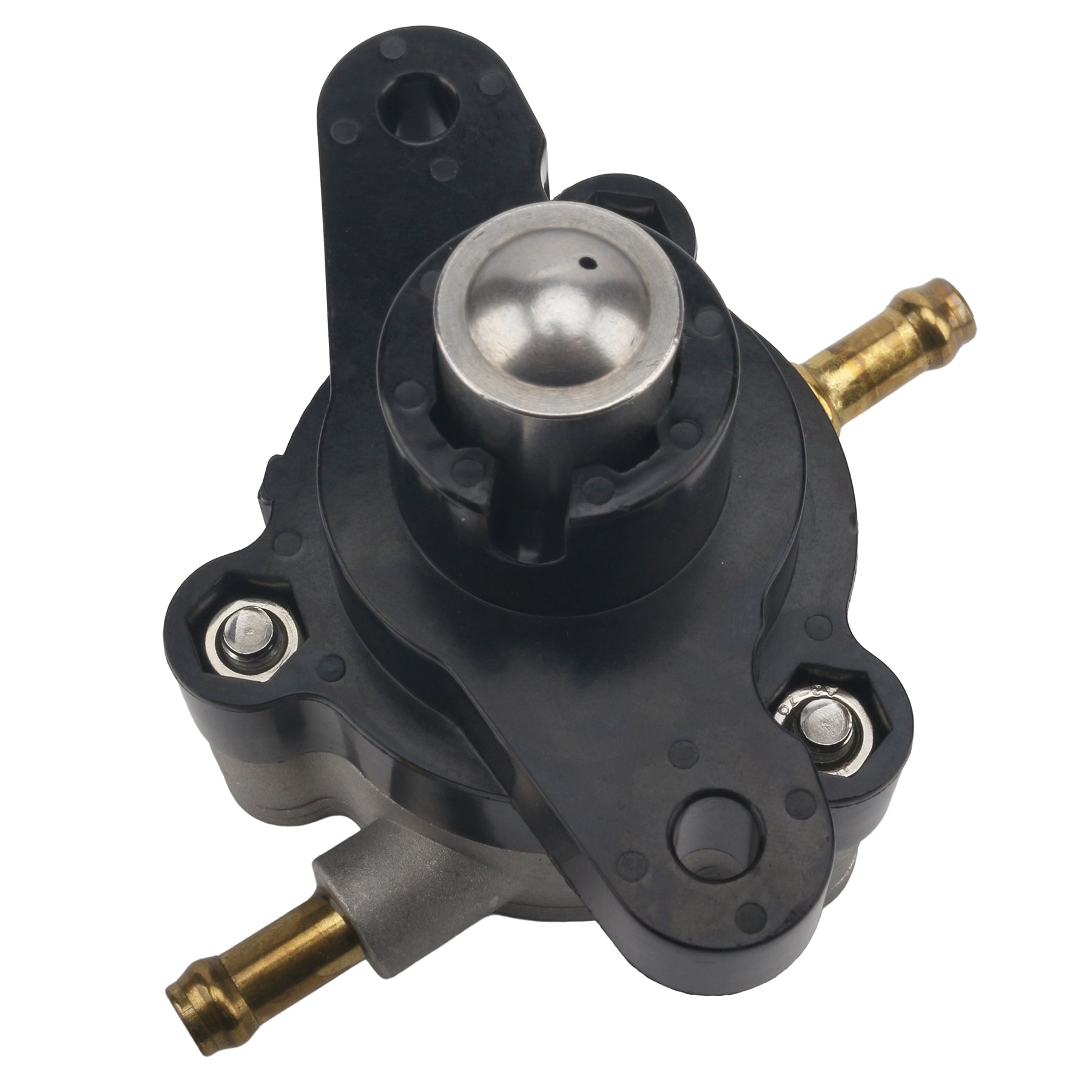

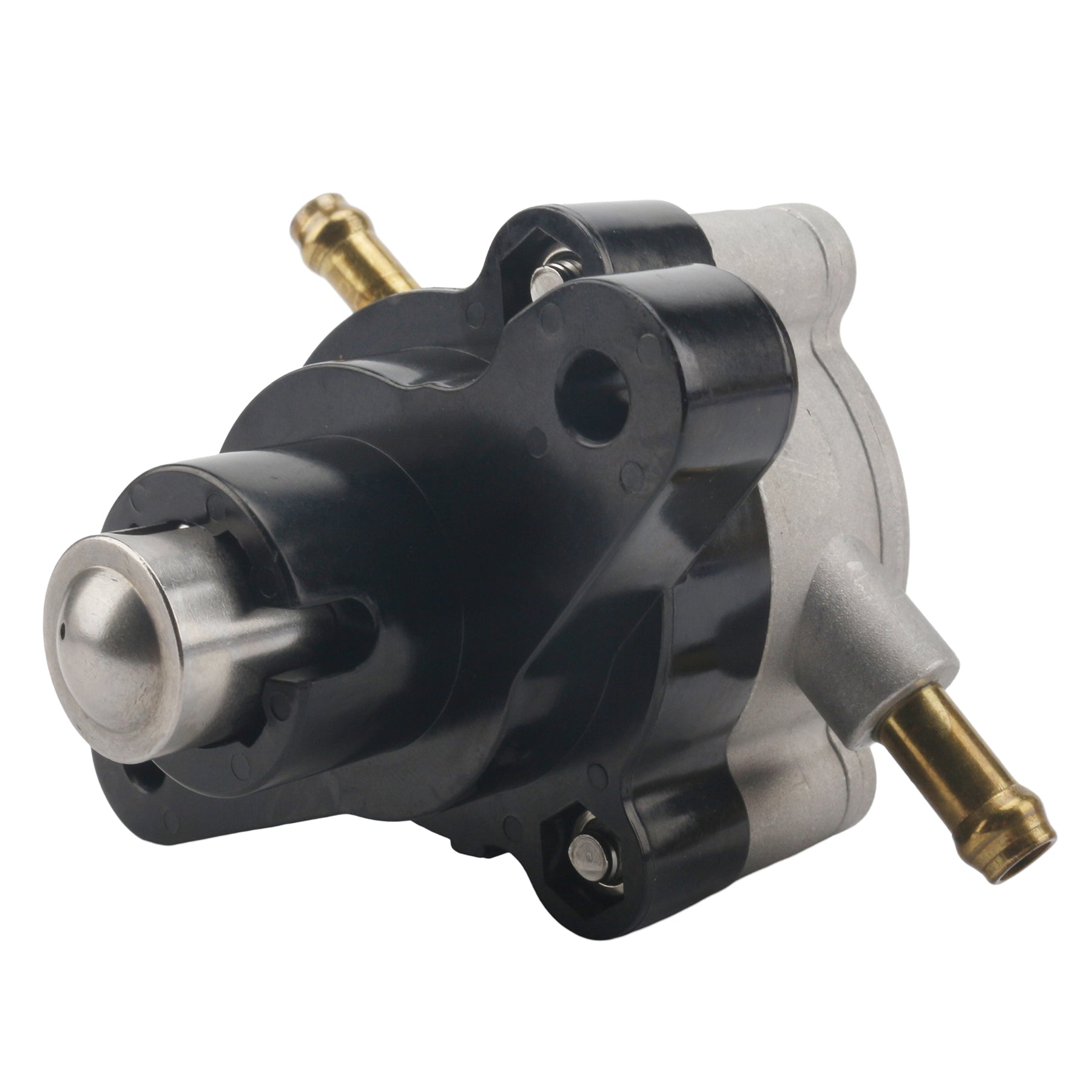

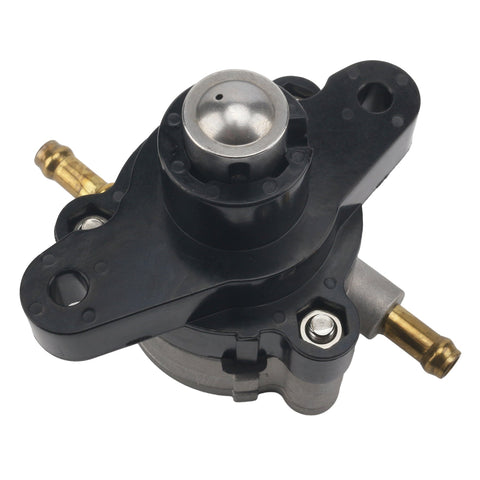

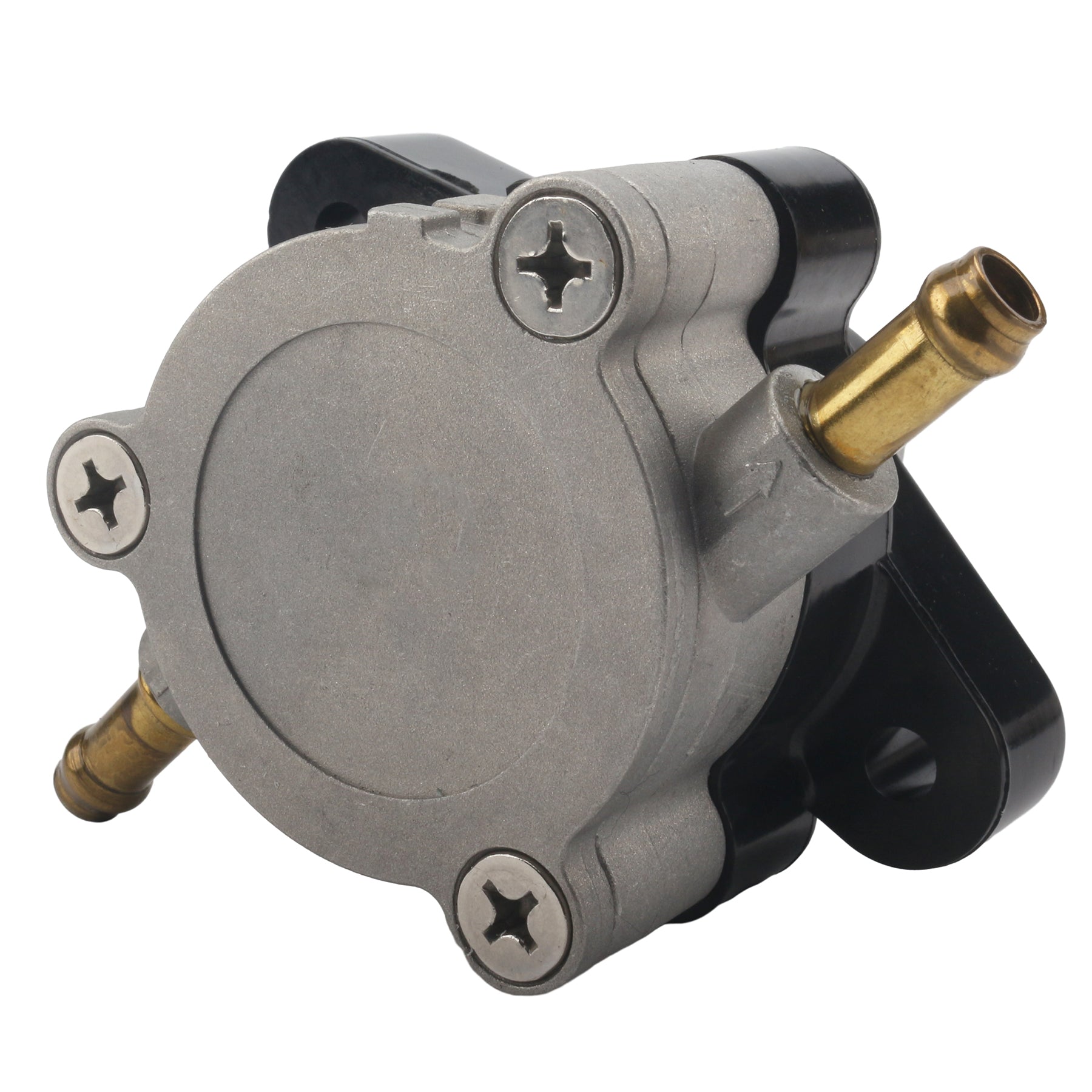

Fuel Pump Assembly for Yamaha 75HP-115HP 4-Stroke Models (68V-24410-00-00)

Fuel Pump Assembly – Fits Yamaha 4-Stroke 75-115 HP Outboards (Replaces 68V-24410-00-00)

This fuel pump assembly is designed for Yamaha 4-Stroke outboard motors (2000-2011), including 75HP, 80HP, 90HP, 100HP, and 115HP models. It serves as a direct-fit replacement, ensuring reliable fuel delivery and performance.

This component directly replaces Yamaha OEM part numbers 68V-24410-00-00, 6D8-24410-00-00, and 6D8-24410-10-00.

• Installation Method: Direct OEM replacement
• Compatible Fuel Type: Gasoline
• Kit Contents: Includes fuel pump, O-ring, and hose clamps for installation.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

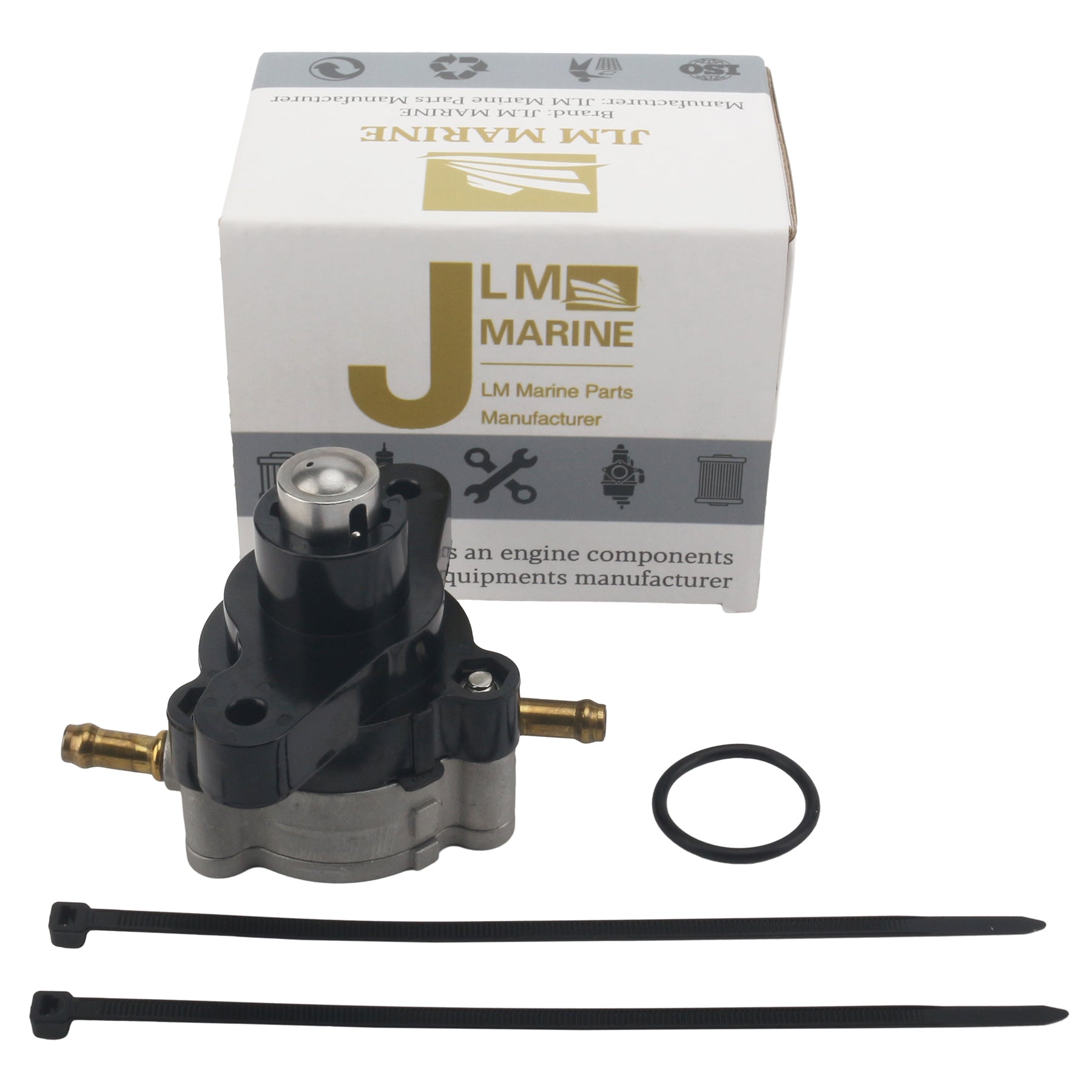

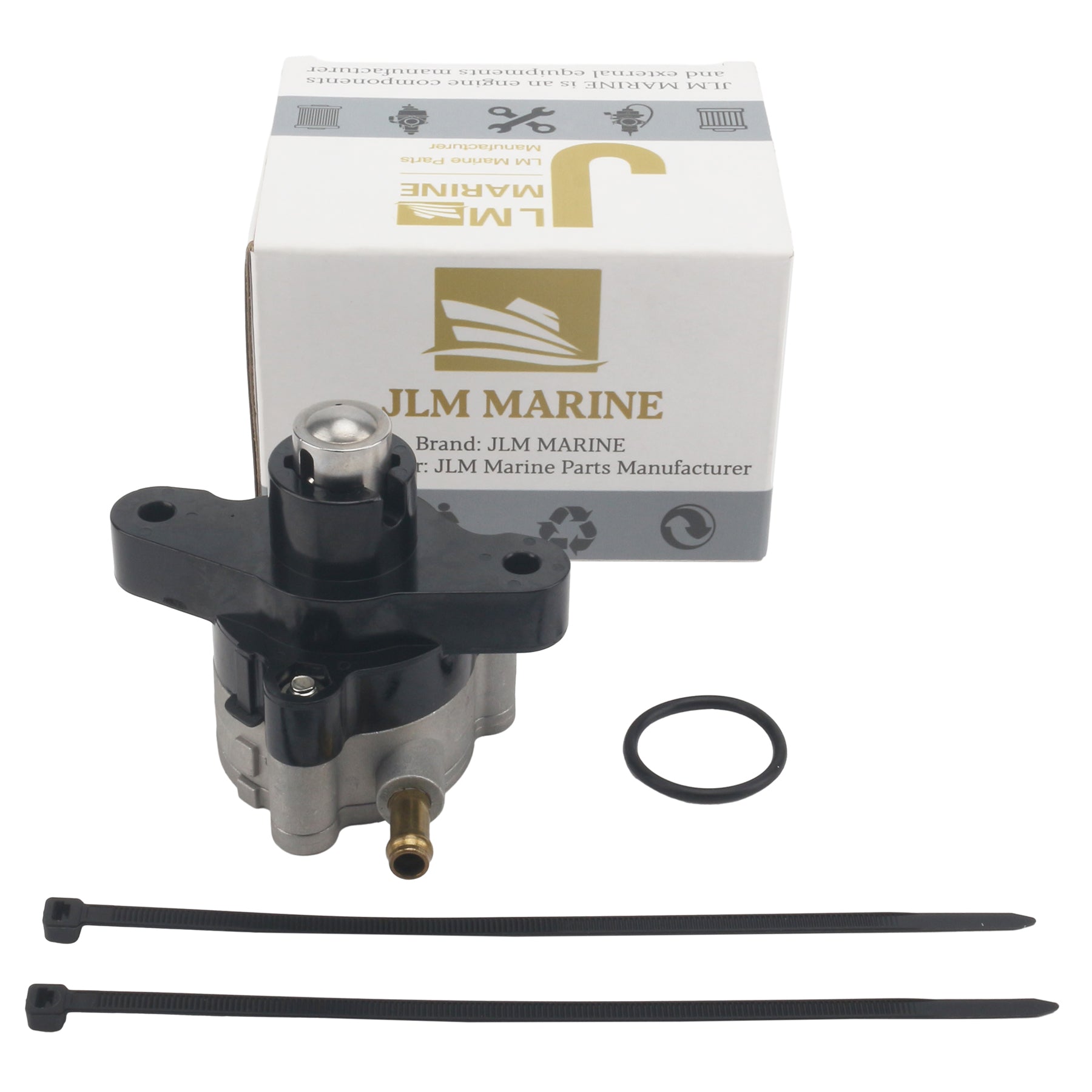

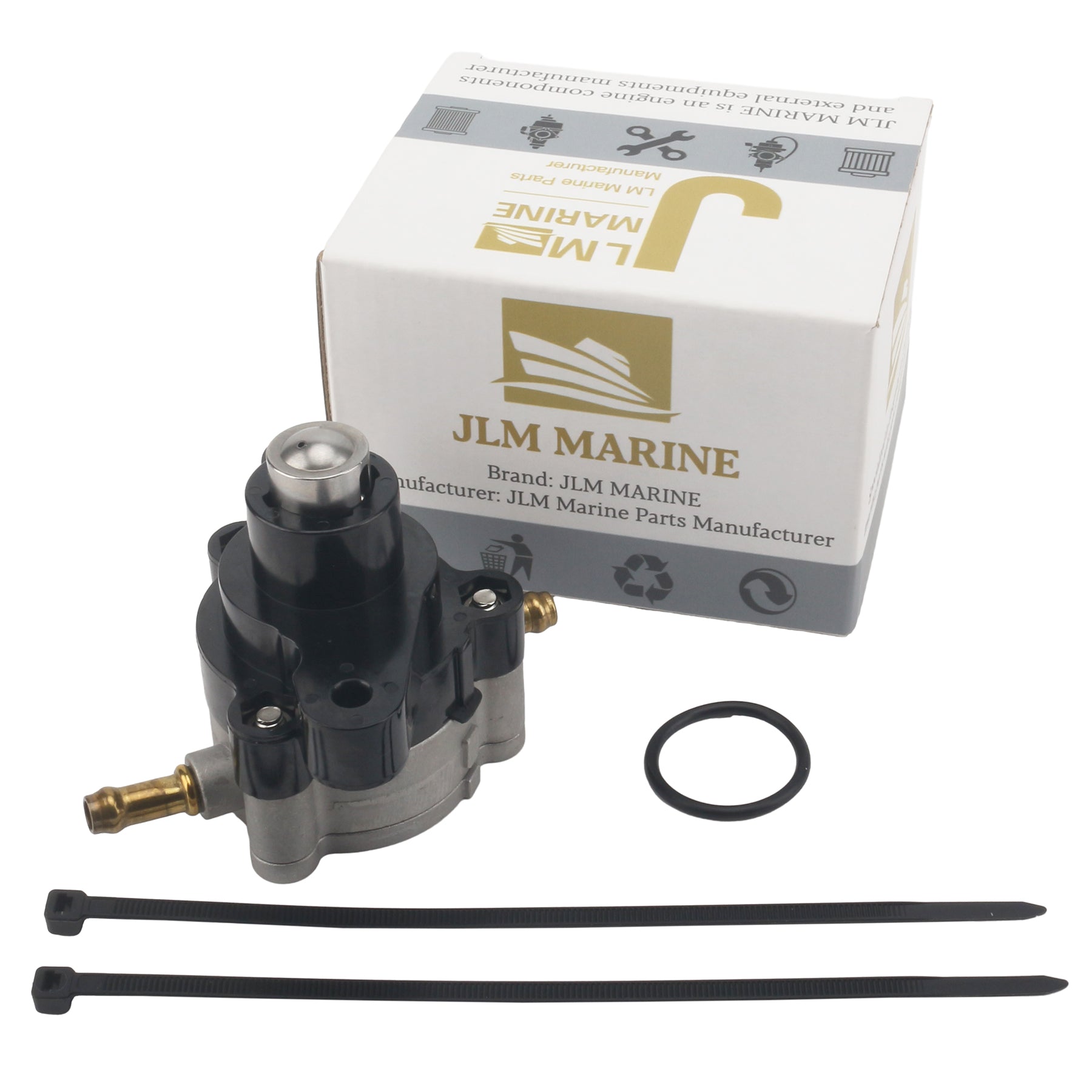

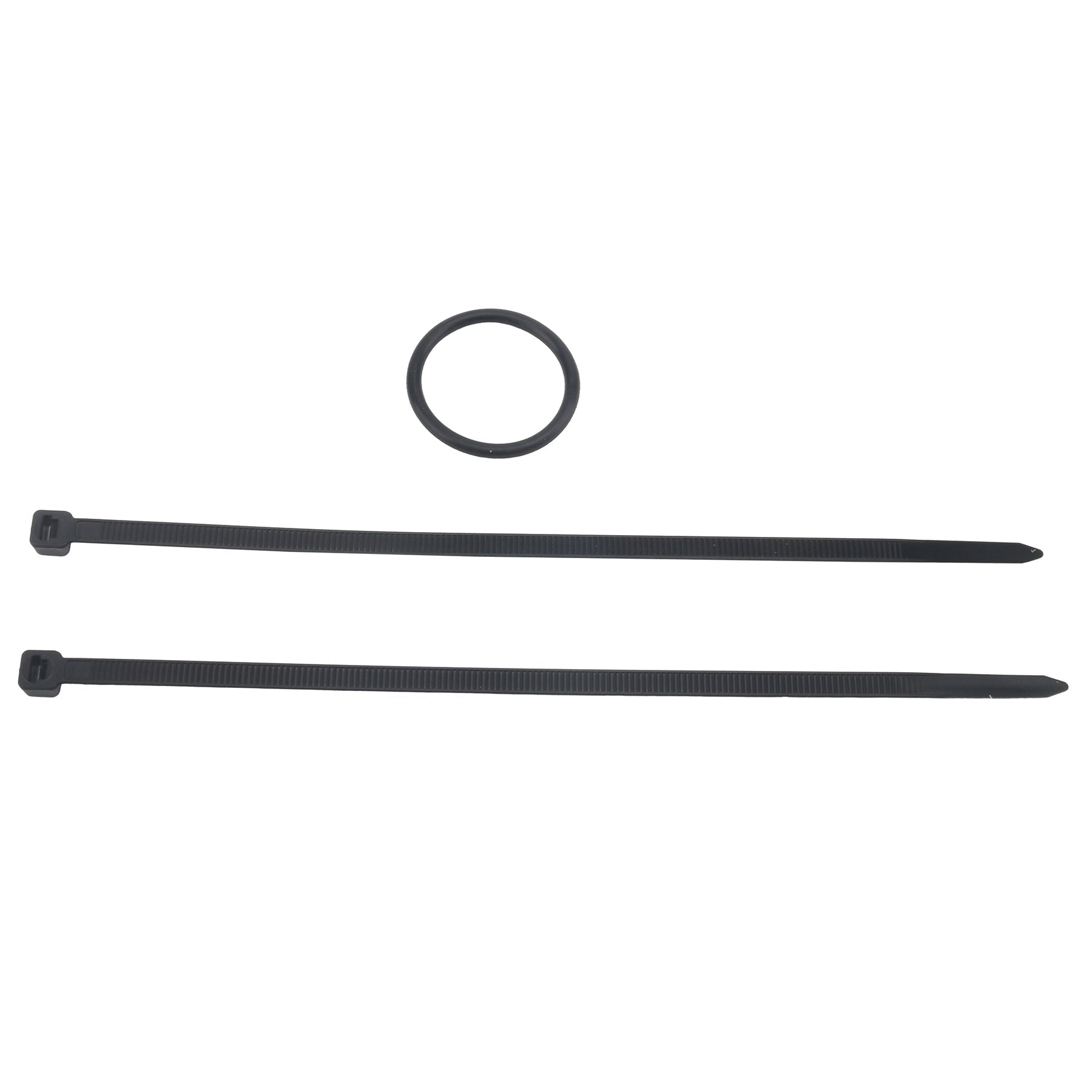

Package Contents

• 1 x Fuel Pump Assembly (68V-24410-00-00)
• 1 x Hose Clamp (90465-10098-00)
• 1 x O-Ring (93210-29198-00)
• 1 x 3x35mm Hose Clamp

Explosion Diagram

Installation Guide

1. Safety First: Disconnect the battery and work in a well-ventilated area. Ensure the engine is cool and have a fire extinguisher nearby.
2. Access the Pump: Remove the engine cowling and any components obstructing access to the fuel pump.
3. Disconnect Lines: Carefully disconnect the fuel lines and electrical connectors from the old pump. Use a rag to catch any residual fuel.
4. Remove Old Pump: Unbolt and remove the old fuel pump assembly from the engine block.
5. Install New Pump: Mount the new fuel pump assembly, ensuring it is securely fastened.
6. Replace O-Ring: Install the new O-ring provided in the kit to ensure a proper seal.
7. Reconnect Lines: Attach the fuel lines and secure them with the new hose clamps. Reconnect the electrical connectors.
8. Prime the System: Prime the fuel system according to your engine's manual to ensure fuel flows to the pump.
9. Final Check: Reconnect the battery, start the engine, and check for any leaks around the pump and connections.

Troubleshooting & FAQ

Q: How do I confirm this part fits my engine?
A: The best way to ensure fitment is by comparing your original part number to the numbers listed in our Part Number Cross-Reference table (68V-24410-00-00, 6D8-24410-00-00, etc.). Additionally, check your specific engine model and year against the detailed "Compatible Engine Models" list on this page.

Q: What are common signs of a failing fuel pump?
A: Symptoms of a failing fuel pump include difficulty starting the engine, sputtering or stalling at high speeds, engine hesitation, or a total loss of power. If you notice these issues, inspect the fuel system promptly.

Q: How often should I replace my outboard's fuel pump?
A: There is no fixed replacement interval for fuel pumps. It should be replaced when it fails or during a major engine overhaul if it shows signs of wear. Regular maintenance of your fuel system, including changing fuel filters, can extend its life.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
