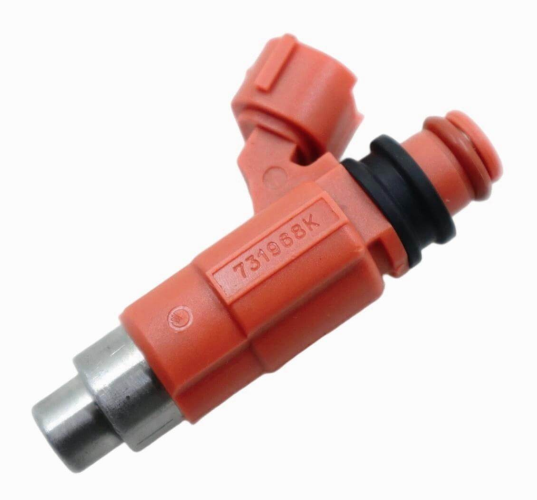

Fuel Injector – Fits Suzuki DF90/100/115/140 (Replaces 15710-65D00)

Fuel Injector – Fits Suzuki DF90/100/115/140 (Replaces 15710-65D00)

This fuel injector is designed for Suzuki 90–140 HP, 4-stroke outboard engines manufactured between 2001 and 2010, including the DF90, DF100, DF115, and DF140 models. It serves as a direct replacement for several OEM part numbers, ensuring precise fitment and restored engine performance.

This component is a direct replacement for Suzuki 15710-65D00, Mercury 68V-8A360-00-00, Yamaha CDH210, and Denso/Sumitomo INP-771.

• Installation: Direct plug-and-play with a Denso/Sumitomo style connector.
• Fuel Type: Compatible with gasoline applications.
• Flow Rate: Factory-rated at 21.9 lb/hr (230 cc/min) at 43.5 PSI.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Suzuki Outboard Motors

Mercury Marine Outboards

Other Compatible Vehicle Applications

Technical Specifications

Package Contents

• 1 x Fuel Injector (15710-65D00)

Installation Guide

1. Safety First: Before starting, disconnect the battery and relieve the pressure from the fuel system according to your service manual.
2. Access the Fuel Rail: Remove any components obstructing access to the fuel rail and fuel injectors.
3. Disconnect Injectors: Carefully unplug the electrical connectors from each fuel injector.
4. Remove Fuel Rail: Unbolt and gently lift the fuel rail assembly away from the engine.
5. Remove Old Injectors: Pull the old fuel injectors straight out of their ports on the fuel rail. You may need to gently twist them to break the seal.
6. Prepare New Injectors: Lightly lubricate the new O-rings with clean engine oil to ensure a proper seal and prevent damage during installation.
7. Install New Injectors: Press the new injectors firmly into the fuel rail ports until they seat completely.
8. Reinstall Fuel Rail: Carefully place the fuel rail assembly back onto the engine and tighten the mounting bolts to the manufacturer's specified torque.
9. Reconnect and Test: Reconnect the electrical connectors, re-attach the battery, and turn the ignition key to the "on" position (without starting the engine) to prime the system. Check thoroughly for any fuel leaks around the injectors and fuel rail before starting the engine.

Troubleshooting & FAQ

How do I confirm this fits my engine?
First, check the "Part Number Cross-Reference" table to see if your old part number is listed. Next, review the "Compatible Engine Models" tables to ensure your specific engine model and year are included. Visually comparing the product photos to your existing part is also a critical step.

What are the common signs of a failing fuel injector?
Symptoms of a bad fuel injector include rough idling, frequent engine misfires, a noticeable decrease in fuel economy, difficulty starting the engine, and a smell of gasoline in or around the vehicle.

What is the flow rate and operating pressure for this injector?
This injector has a flow rate of 21.9 lb/hr (230 cc/min) at a standard testing pressure of 43.5 PSI (3 BAR). Its normal operating pressure on the engine is approximately 40 PSI.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
