Fuel Injector – Fits Indmar, MerCruiser, Volvo Penta 5.0L, 5.7L, 6.2L

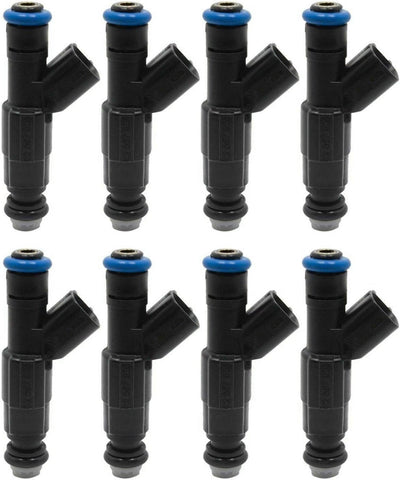

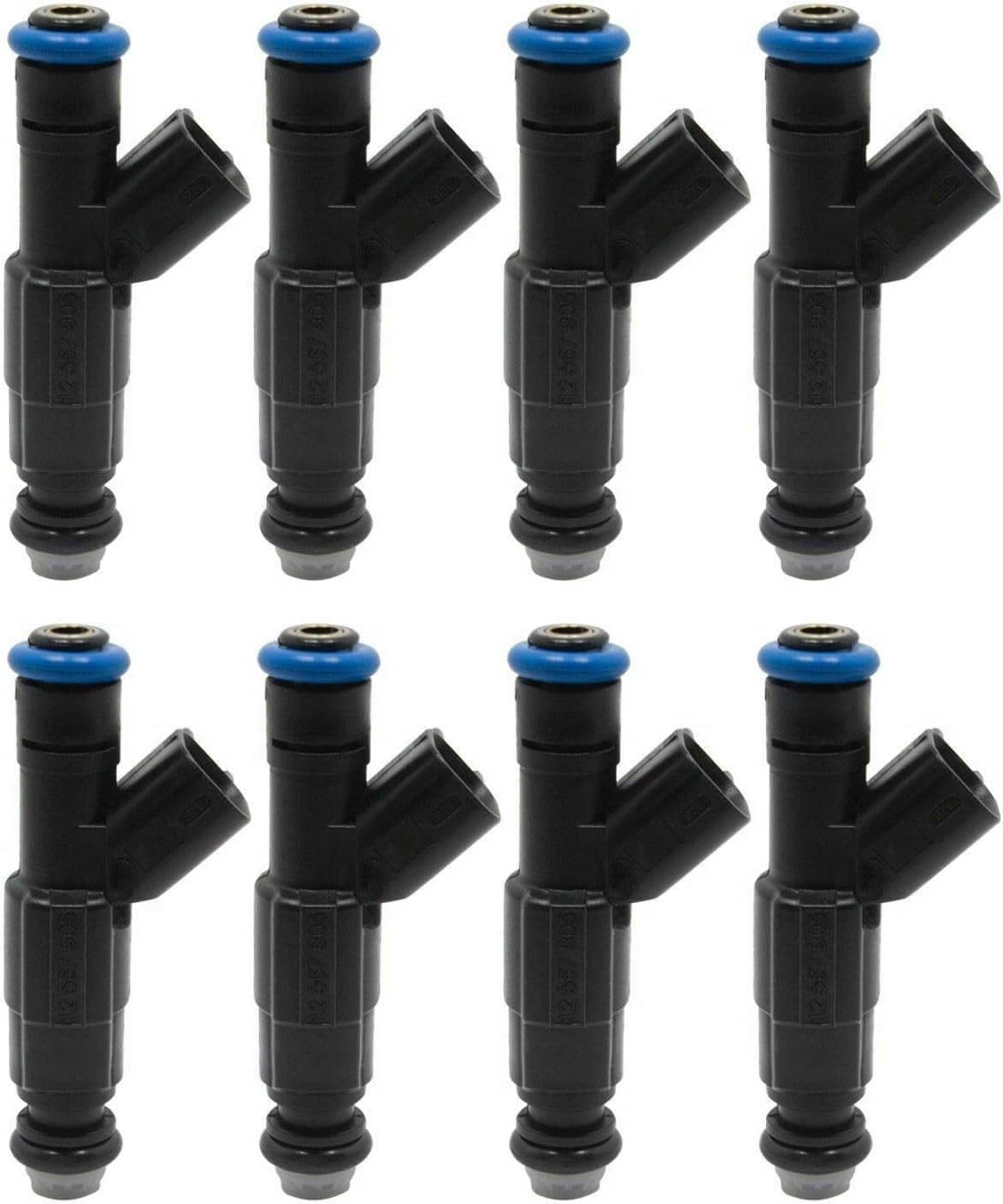

This is a remanufactured EV-14 style fuel injector designed for marine applications using a 4-BAR system, particularly those with a MEFI 6 ECM. It is engineered for compatibility with a range of Indmar, MerCruiser, and Volvo Penta gasoline engines.
This injector serves as a direct replacement for Indmar 636051, MerCruiser 885176, Volvo Penta 3858969, and Bosch 0280156081. Each unit is remanufactured in the USA from genuine Bosch cores and is flow-matched to ensure balanced engine performance.
-
Installation: Direct plug-and-play replacement.
-
Fuel Compatibility: Gasoline.
-

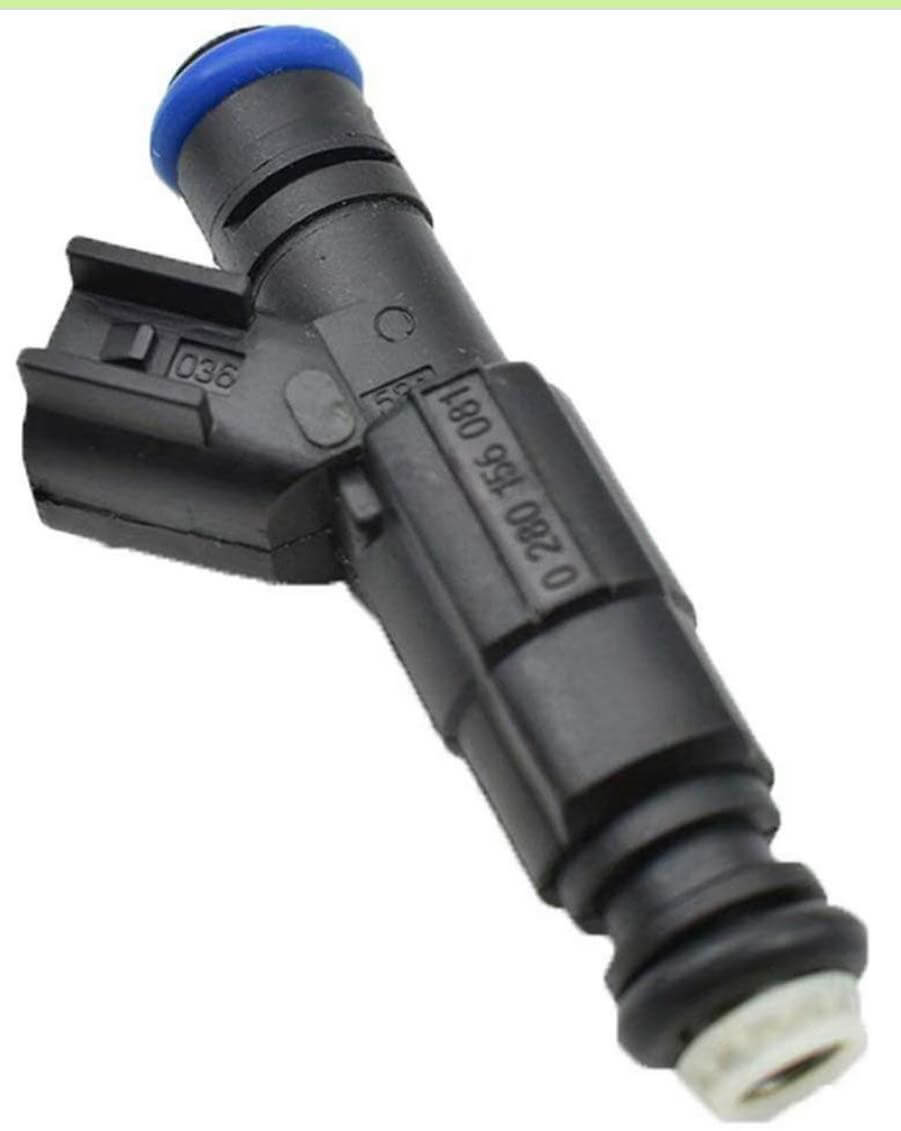

Important Note: This listing is for the black-body injector style. Please verify your original part number and style before ordering.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
Brand |
Part Number |
Indmar |
636051 |
MerCruiser |
885176, 12567905 |
Volvo Penta |
3858969, 3858981 |
Mallory Marine |
9-33102 |
Bosch |
0280156081, 0280158165 |
Compatible Engine Models
Confirm your engine model/year in the table below.
Indmar
Model |
Stroke |
Years |
OEM Part No. |
Notes |
5.7L with MEFI 6 ECM |
4-Stroke |
2007-2013 |
636051 |
Only for engines with MEFI 6 ECM |
MerCruiser
Model |
Stroke |
OEM Part No. |
Notes |
4.3L |
4-Stroke |
885176/12567905 |
Requires ECM 555 |
5.0L |
4-Stroke |
885176/12567905 |
Requires ECM 555 |
5.7L |
4-Stroke |
885176/12567905 |
Requires ECM 555 |
6.2L |
4-Stroke |
885176/12567905 |
Requires ECM 555 |
350 Mag MPI |
4-Stroke |
885176/12567905 |
Requires ECM 555 |
Volvo Penta
Model |
Stroke |
OEM Part No. |
4.3L Models: 4.3GXi-B, 4.3GXi-C, 4.3GXi-CF, 4.3GXi-D, 4.3GXi-E, 4.3GXi-EF, 4.3GXi-FF, 4.3OSi-B, 4.3OSi-BF, 4.3OSi-CF, 4.3OSi-E, 4.3OSi-EF, 4.3OSi-F, 4.3OSi-GF |
4-Stroke |
3858969/3858981 |
5.0L Models: 5.0GXi-BF, 5.0GXi-C, 5.0GXi-D, 5.0GXi-DF, 5.0GXi-E, 5.0GXi-GF, 5.0OSi-CF, 5.0OSi-D, 5.0OSi-FF, 5.0OSi-GF |
4-Stroke |
3858969/3858981 |
5.7L Models: 5.7Gi-CF, 5.7Gi-DF, 5.7Gi-E, 5.7Gi-EF, 5.7Gi-F, 5.7Gi-GF, 5.7Gii-D, 5.7Gii-E, 5.7Gii-F, 5.7Gii-G, 5.7GXi-D, 5.7GXi-E, 5.7GXi-F, 5.7GXi-HF, 5.7GXii-D, 5.7GXii-E, 5.7GXii-F, 5.7OSi-B, 5.7OSi-BF, 5.7OSi-D, 5.7OSi-E, 5.7OSi-G, 5.7OSi-GF, 5.7OSXi-A, 5.7OSXi-AF, 5.7OSXi-CF, 5.7OSXi-EF |
4-Stroke |
3858969/3858981 |
Technical Specifications
Specification |
Value |
Product Type |
Fuel Injector |
Installation |
Direct replacement (plug-and-play) |
Fuel Type |
Gasoline |
Flow Rate |
272cc @ 3 BAR (OEM specification) |
Connection |
EV-14 style electrical connector |
Core Part Brand |
Bosch |
Housing Color |
Black |
Working Pressure |
4 BAR |
Warranty |
1 Year |
Other Technical Attributes |
Remanufactured in USA from premium brand cores |
Package Contents
- 1 x Fuel Injector (Replaces 636051/885176/3858969)
- Note: Injector clip is sold separately (Indmar part number 63-1158).
Installation Guide
- Disconnect the negative battery terminal.
- Properly relieve the fuel system pressure according to your engine's service manual.
- Carefully disconnect the electrical connector from each fuel injector.
- Remove the bolts securing the fuel rail to the intake manifold.
- Gently lift the fuel rail assembly away from the engine.
- Remove the retaining clips and pull the old injectors from the fuel rail.
- Lightly lubricate the new injector o-rings with clean engine oil before installation.
- Press the new injectors firmly into the fuel rail until they seat correctly and install the retaining clips.
- Reinstall the fuel rail assembly and tighten the bolts to the manufacturer's specified torque.
- Reconnect the electrical connectors to each injector.
- Reconnect the battery terminal, turn the key to the 'on' position to prime the system, and thoroughly check for any fuel leaks before starting the engine.
Troubleshooting & FAQ
How do I confirm this injector fits my engine?
Start by matching the part number from your old injector to the numbers listed in our cross-reference table. Additionally, verify your engine model, year, and ECM type (e.g., MEFI 6 for Indmar, ECM 555 for MerCruiser) against our compatibility charts. This injector is the black-body, EV-14 style; visual confirmation is crucial.
What are the symptoms of a bad fuel injector?
Common signs include a rough idle, engine misfires, difficulty starting, decreased fuel economy, increased emissions, or the smell of raw fuel. A check engine light with codes related to the fuel system or specific cylinders can also indicate a failing injector.
Should I replace all my fuel injectors at once?
While not strictly necessary, it is highly recommended. These injectors are remanufactured and flow-matched to ensure each cylinder receives an equal amount of fuel. Replacing all at once provides balanced engine performance and prevents future issues from other aging injectors.
What is the difference between a 3-BAR and 4-BAR injector?
BAR is a unit of pressure. This is a 4-BAR injector designed for specific fuel systems. While its flow rate is measured at a 3-BAR standard (272cc), it operates at 4 BAR. Using the wrong pressure-rated injector will result in incorrect fueling and poor engine performance. Always use the injector specified for your engine's fuel system.
OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
- Professional installation is recommended to ensure safety and optimal performance.
