Fuel Injector Assembly–Fits Yamaha 200–350HP 4-Stroke (Replaces 6P2-13761-00-00, 6P2-13761-10-00, 6P2-13761-11-00)

Vendor: JLM Marine
Availability: In Stock
Product Type: Fuel Injector
$24.50
$24.50
Subtotal: $24.50

Free Shipping

Free standard shipping on all orders under 1 KG

Worry-Free Returns

Learn More.
Fuel Injector Assembly–Fits Yamaha 200–350HP 4 - Stroke (Replaces 6P2 - 13761 - 00 - 00, 6P2 - 13761 - 10 - 00, 6P2 - 13761 - 11 - 00) - JLM Marine Boat Parts Limited

Fuel Injector Assembly–Fits Yamaha 200–350HP 4-Stroke (Replaces 6P2-13761-00-00, 6P2-13761-10-00, 6P2-13761-11-00)

$24.50

Fuel Injector Assembly–Fits Yamaha 200–350HP 4-Stroke (Replaces 6P2-13761-00-00, 6P2-13761-10-00, 6P2-13761-11-00)

$24.50

Fuel Injector Assembly–Fits Yamaha 200–350HP 4-Stroke (Replaces 6P2-13761-00-00, 6P2-13761-10-00, 6P2-13761-11-00)

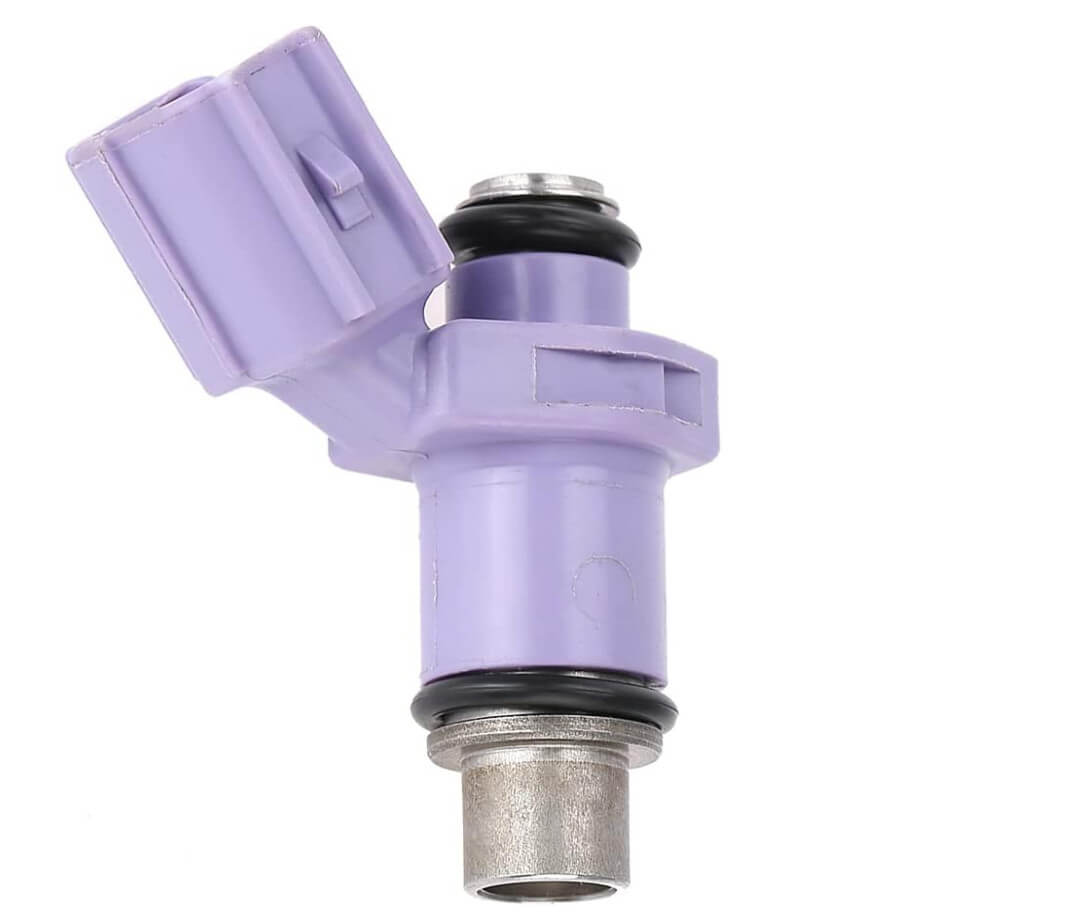

This fuel injector assembly is engineered for Yamaha 4-stroke outboard engines from 200HP to 250HP (3.3L). It serves as a direct replacement for OEM part numbers 6P2-13761-00-00, 6P2-13761-10-00, 6P2-13761-11-00, and 6P21376100, ensuring precise fit and function.

Constructed from engineering-grade plastic, this component features a 4-hole nozzle for optimal fuel atomization and an internal fuel filter screen. It is designed for use with unleaded gasoline containing a maximum of 10% ethanol (E10).

  • Installation: Direct replacement for the OEM fuel injection system.
  • Connector: Features a standard EV6 USCAR electrical connection.
  • Compatibility: Designed for specific Yamaha 3.3L V6 outboards.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers.

Brand Part Number
Yamaha 6P2-13761-00-00
Yamaha 6P2-13761-10-00
Yamaha 6P2-13761-11-00
Yamaha 6P21376100

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Yamaha F200XA, F200XB 200 4-Stroke 2011–2018 6P2-13761-00-00 3.3L displacement, confirmed compatibility
Yamaha F225XA, F225XB 225 4-Stroke 2007–2018 6P2-13761-00-00 3.3L displacement, primary application
Yamaha F250XA, F250XB 250 4-Stroke 2006–2018 6P2-13761-00-00 3.3L displacement, primary application

Technical Specifications

Specification Value
Product Type Fuel Injector Assembly
Installation Direct replacement for OEM fuel injection system
Filtration Rating Internal fuel filter screen
Fuel Type Unleaded gasoline, maximum 10% ethanol (E10)
Connection EV6 USCAR connector, Toyota port interface
Housing Material Engineering-grade plastic
Housing Color Purple
Injector Dimensions 7.64 x 3.46 x 1.22 inches (194 x 88 x 31 mm)
Injector Weight 3.87 ounces (110 grams)
Package Dimensions 8 x 4.5 x 3.5 cm
Fitting Type 4-hole nozzle design
Thread Size Standard marine fuel injector threading
Working Pressure 43.5–101.5 psi (3.0–7.0 bar)
Operating Temperature Maximum fuel temperature 150°F (66°C)
Other Technical Attributes Aisin EV6 series, compact design, high-impedance electrical characteristics

Package Contents

Package Includes:

  • 1 x Fuel Injector Assembly (Replaces 6P2-13761-00-00)

Important Notes:

  • This fuel injector is sold individually. V6 engines require 6 injectors for a complete service replacement.
  • O-rings and sealing components are typically included with new units but should be verified with the supplier. Rebuild kits with replacement O-rings and filter screens are available separately.

Installation Guide

  1. Safety First: Disconnect the negative battery terminal and work in a well-ventilated area.
  2. Relieve Fuel Pressure: Follow your engine’s service manual to safely relieve pressure from the fuel system.
  3. Disconnect Electrical Connector: Carefully unclip the wiring harness from the fuel injector.
  4. Remove Fuel Rail: Detach the fuel rail that holds the injectors in place. Place a rag underneath to catch any residual fuel.
  5. Remove Old Injector: Gently pull the old fuel injector out of its port on the fuel rail.
  6. Prepare New Injector: Lightly lubricate the new O-rings with clean engine oil to ensure a proper seal.
  7. Install New Injector: Press the new injector firmly into the fuel rail port until it seats completely.
  8. Re-secure Fuel Rail: Re-install the fuel rail and torque the bolts to the manufacturer's specification.
  9. Reconnect Connector: Re-attach the electrical connector to the new injector.
  10. Pressurize and Check: Reconnect the battery. Turn the key to the "On" position (without starting the engine) a few times to prime the fuel system.
  11. Inspect for Leaks: Carefully inspect the new injector, fuel rail, and all connections for any signs of fuel leaks.
  12. Start Engine: Once confirmed there are no leaks, start the engine and ensure it idles smoothly.

Troubleshooting & FAQ

Q: How do I confirm this injector fits my specific Yamaha engine?

A: The most reliable method is to match the part number. Cross-reference the number stamped on your original injector (e.g., 6P2-13761-00-00) with the numbers listed in our "Part Number Cross-Reference" table. Also, verify your engine model and year falls within the ranges shown in the "Compatible Engine Models" chart.

Q: What are common symptoms of a bad or clogged fuel injector?

A: Common signs include difficulty starting, a rough or unstable idle, engine misfires, reduced horsepower, and decreased fuel economy. A diagnostic scan may also show a cylinder-specific misfire code.

Q: Can I use E85 or high-ethanol fuel with this injector?

A: No. This injector is designed for use with unleaded gasoline with a maximum of 10% ethanol content (E10). Using higher ethanol blends can damage the internal components.

Q: How many injectors do I need for my V6 engine?

A: This part is sold individually. If you are servicing a V6 engine, you will need to purchase six injectors for a complete replacement.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
