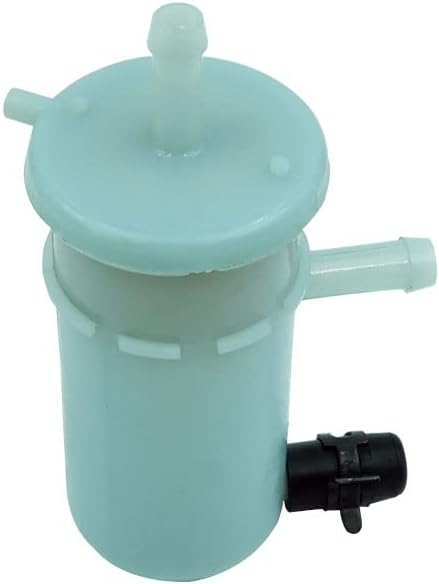

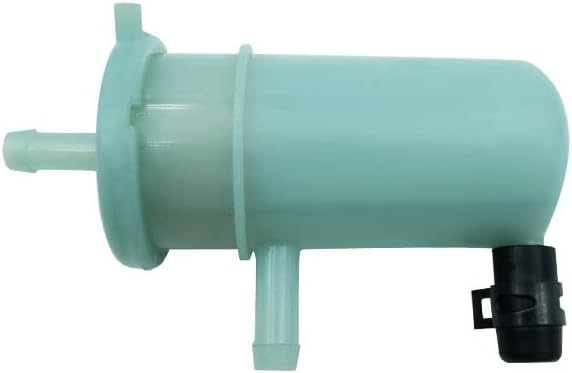

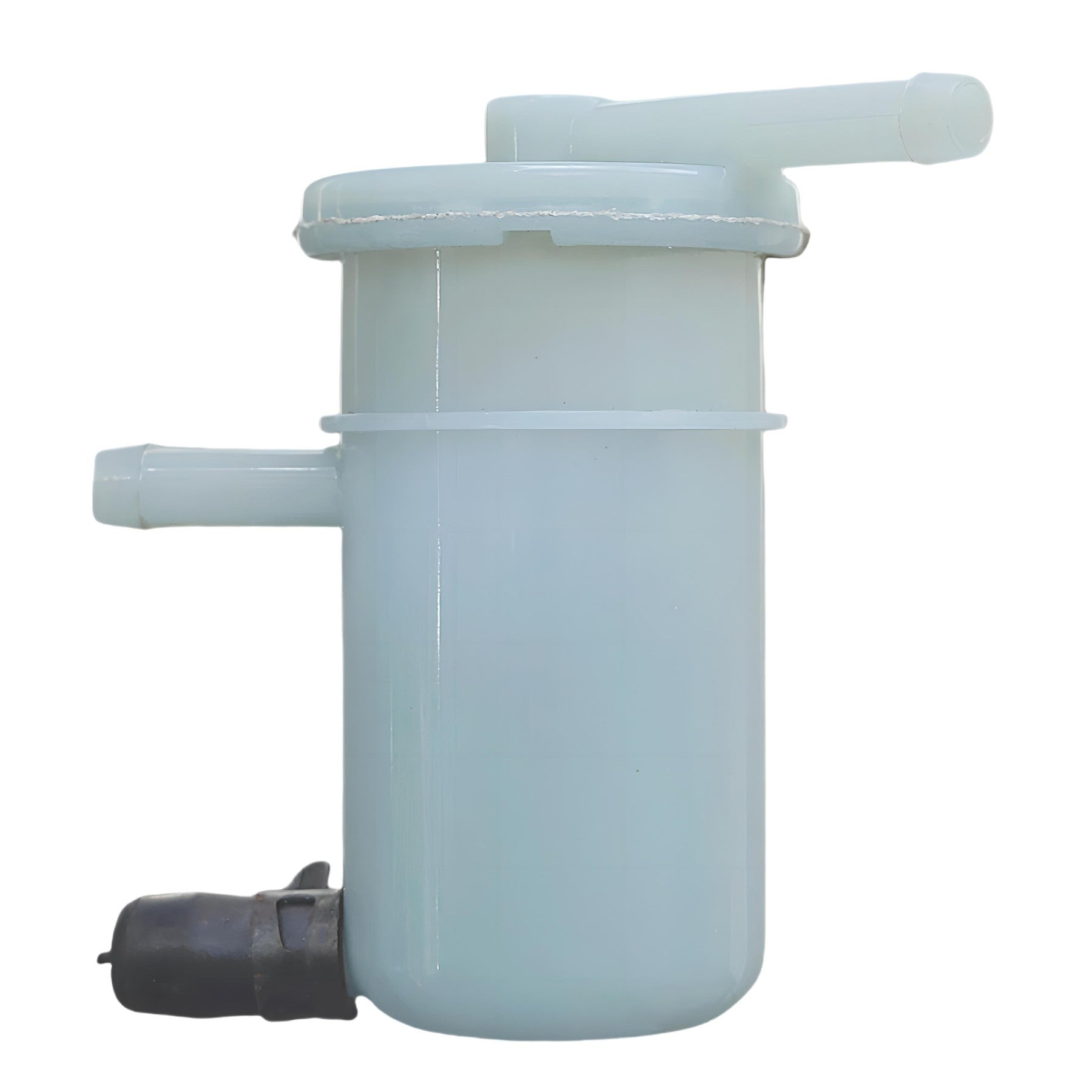

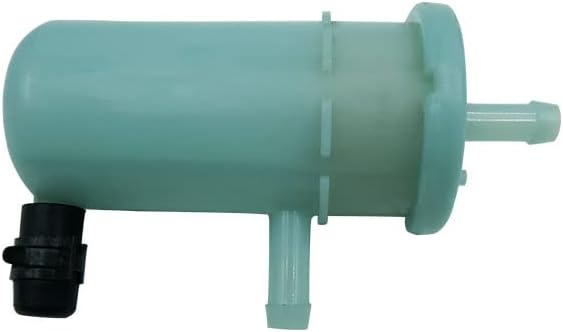

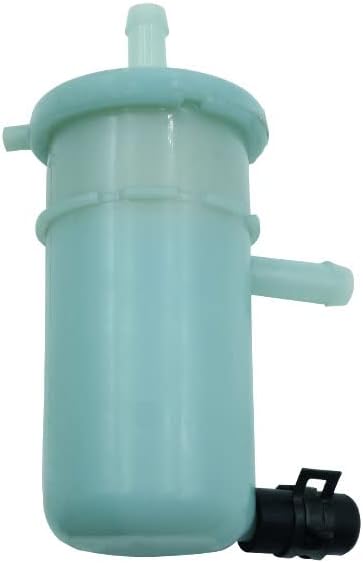

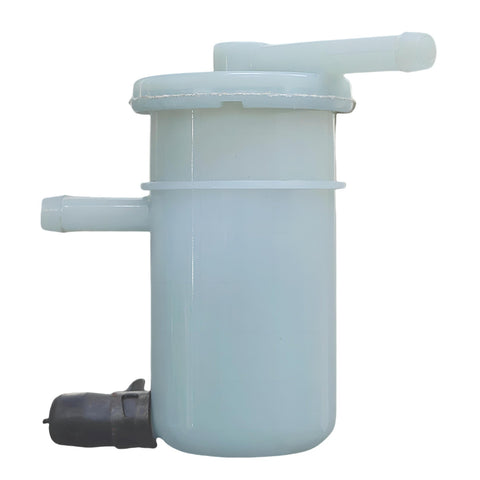

This fuel filter is engineered to fit Suzuki 4-stroke outboard engines, specifically the 40 HP DF40A, 50 HP DF50A, and 60 HP DF60 models from 2010 and newer. It ensures clean fuel delivery and optimal engine performance by filtering out contaminants before they reach your engine's fuel system.

This aftermarket replacement directly replaces Suzuki OEM part number 15410-88L00, providing a cost-effective solution without compromising on quality or reliability.

• Direct replacement for Suzuki 15410-88L00
• Designed for 4-stroke outboard engines
• Helps maintain fuel system cleanliness and engine efficiency

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 × Fuel Filter (15410-88L00)

Installation Guide

1. Turn off the engine and disconnect the battery to ensure safety during the installation process.
2. Locate the fuel filter along the fuel line between the fuel tank and the engine.
3. Use a wrench or pliers to carefully disconnect the fuel line fittings from both ends of the old filter. Be prepared for minor fuel spillage.
4. Remove the old fuel filter and inspect the fuel lines for cracks or damage.
5. Install the new fuel filter, ensuring the arrow on the filter body points toward the engine (direction of fuel flow).
6. Reconnect the fuel line fittings securely to both ends of the new filter. Tighten connections to prevent leaks.
7. Reconnect the battery and check all connections for proper seating.
8. Prime the fuel system according to your engine's manual to remove air from the lines.
9. Start the engine and inspect the filter area for any fuel leaks.
10. Allow the engine to run for a few minutes and verify stable operation.

Troubleshooting & FAQ

Q: How do I confirm this fuel filter fits my Suzuki outboard?
A: Check the compatibility table above to verify your engine model, horsepower, and year. This filter is designed for Suzuki DF40A, DF50A, and DF60 models from 2010 and newer. Cross-reference your current OEM part number (15410-88L00) to ensure proper fitment.

Q: How often should I replace my fuel filter?
A: Suzuki recommends inspecting the fuel filter every 100 hours of operation or annually, whichever comes first. Replace it if you notice reduced engine performance, difficulty starting, or visible contamination. Regular replacement helps prevent fuel system issues and maintains optimal engine performance.

Q: What are the signs that my fuel filter needs replacement?
A: Common symptoms include engine hesitation or stuttering at high RPM, difficulty starting, reduced power output, and rough idling. If the filter appears clogged or discolored when inspected, it should be replaced immediately.

Q: Can I install this filter in reverse?
A: No, fuel filters must be installed with the correct flow direction. Look for the directional arrow on the filter body—it must point toward the engine. Installing it backwards can restrict fuel flow and cause engine performance issues.

Q: Is this an OEM or aftermarket part?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
