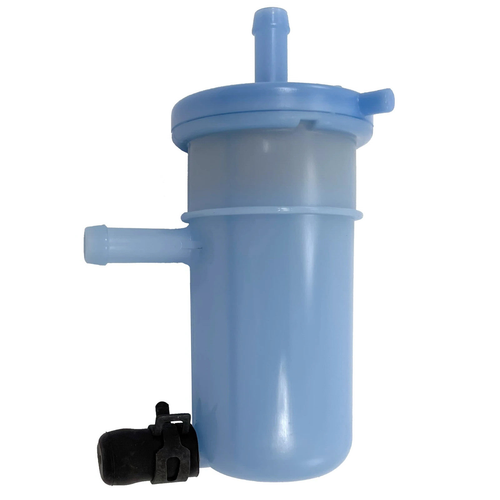

Fuel Filter – Fits Suzuki DF 9.9-90 HP Outboards (Replaces 15410-87L00, 15410-87LL0)
Fuel Filter – Fits Suzuki DF 9.9-90 HP Outboards (Replaces 15410-87L00, 15410-87LL0)

Fuel Filter – Fits Suzuki DF 9.9-90 HP Outboards (Replaces 15410-87L00, 15410-87LL0)

Vendor: JLM Marine
Availability: In Stock
Product Type: Fuel Filter
$14.99
$17.00
$14.99
Subtotal: $14.99

Free Shipping

Free standard shipping on all orders under 1 KG

Worry-Free Returns

Learn More.
Fuel Filter – Fits Suzuki DF 9.9-90 HP Outboards (Replaces 15410-87L00, 15410-87LL0)

Fuel Filter – Fits Suzuki DF 9.9-90 HP Outboards (Replaces 15410-87L00, 15410-87LL0)

$17.00 $14.99
Fuel Filter – Fits Suzuki DF 9.9-90 HP Outboards (Replaces 15410-87L00, 15410-87LL0)

Fuel Filter – Fits Suzuki DF 9.9-90 HP Outboards (Replaces 15410-87L00, 15410-87LL0)

$17.00 $14.99
Description

Fuel Filter – Fits Suzuki DF 9.9-90 HP Outboards (Replaces 15410-87L00, 15410-87LL0)

This internal fuel filter is designed for Suzuki Marine 4-stroke outboard engines from 9.9 to 90 HP, including models DF9.9B, DF15A, DF20A, DF25A, DF30A, DF70A, DF80A, and DF90A manufactured from 2009 to the present.

It serves as a direct replacement for Suzuki part numbers 15410-87L00 and 15410-87LL0, as well as aftermarket parts from brands like HeuroFosh, MvpYaoBaiGe, and GHmarine.

  • Installation Type: Engine-Mounted
  • Compatible Fuel: Gasoline
  • Includes one complete fuel filter assembly for a straightforward replacement.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
Suzuki 15410-87L00
Suzuki 15410-87LL0
HeuroFosh 15410-87L00
MvpYaoBaiGe 15410-87L00
GHmarine 15410-87L00

Compatible Engine Models

For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Suzuki DF9.9B 9.9 4-Stroke 2013–Current 15410-87L00
Suzuki DF15A 15 4-Stroke 2013–Current 15410-87L00
Suzuki DF20A 20 4-Stroke 2013–Current 15410-87L00
Suzuki DF25A 25 4-Stroke 2015–Current 15410-87L00
Suzuki DF30A 30 4-Stroke 2015–Current 15410-87L00
Suzuki DF70A 70 4-Stroke 2009–Current 15410-87L00
Suzuki DF75A 75 4-Stroke 2009–Current 15410-87L00 Listed by Boat Max Online
Suzuki DF80A 80 4-Stroke 2009–Current 15410-87L00
Suzuki DF90A 90 4-Stroke 2009–Current 15410-87L00

Technical Specifications

Specification Value
Product Type Internal Fuel Filter Element
Installation Engine-Mounted
Fuel Type Gasoline
Housing Material Stainless Steel
Dimensions 8 × 5 × 3 in (203 × 127 × 76 mm)
Weight 0.5 lbs (0.23 kg)
Warranty 1 Year
Other Technical Attributes Low pressure engine-mounted filter that should be inspected at regular service intervals and replaced approximately every 200 hours

Package Contents

  • 1 × Fuel Filter Kit (15410-87L00/15410-87LL0)

Installation Guide

Follow these general steps to replace your engine-mounted fuel filter. Always consult your engine's service manual for specific instructions.

  1. Ensure the engine is off and has had time to cool down completely.
  2. Locate the existing fuel filter housing on the engine block.
  3. Place a rag or container underneath the filter to catch any spilled fuel.
  4. Carefully disconnect the fuel lines attached to the filter housing.
  5. Remove the old filter element from its housing. Note its orientation.
  6. Clean the housing of any debris before inserting the new filter element.
  7. Install the new filter, making sure any seals or O-rings are correctly seated.
  8. Securely reconnect the fuel lines to the filter housing.
  9. Prime the fuel system according to your engine's manual to remove any air.
  10. Start the engine and carefully inspect the filter and connections for any leaks.

Troubleshooting & FAQ

How do I confirm this fits my engine?
First, check the "Compatible Engine Models" table to ensure your Suzuki model and year range are listed. Second, cross-reference your existing part number with the numbers in the "Part Number Cross-Reference" table. If both match, the part will fit.

How often should I replace this fuel filter?
For optimal engine health and performance, this low-pressure filter should be inspected during regular service checks and replaced approximately every 200 hours of operation or annually, whichever comes first.

What are the signs of a clogged or failing fuel filter?
Common symptoms include engine sputtering, hesitation during acceleration, a noticeable loss of power, difficulty starting, or stalling at low speeds. Replacing the filter can often resolve these fuel delivery issues.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
