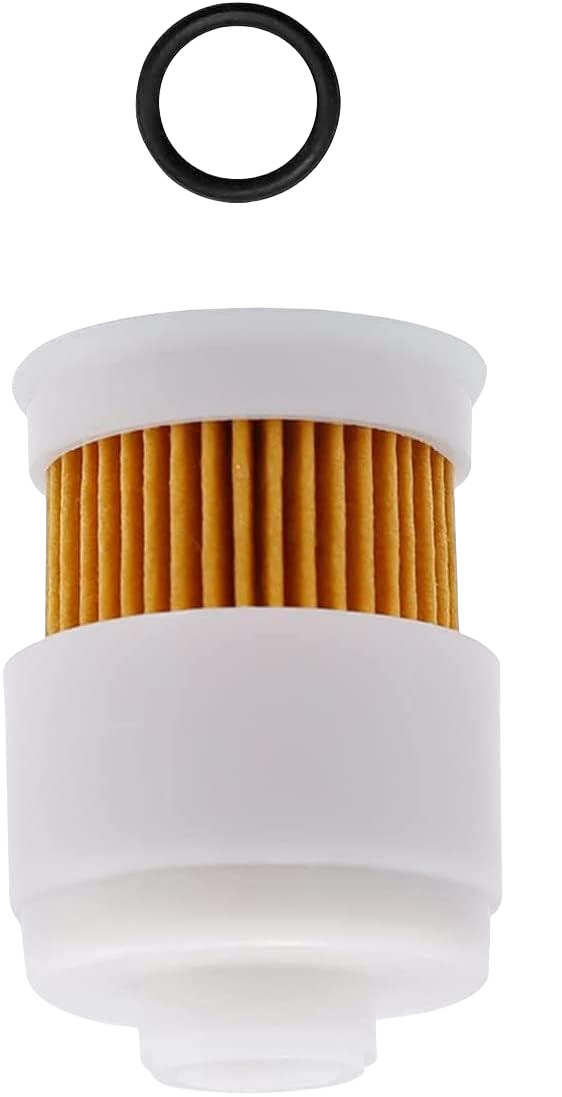

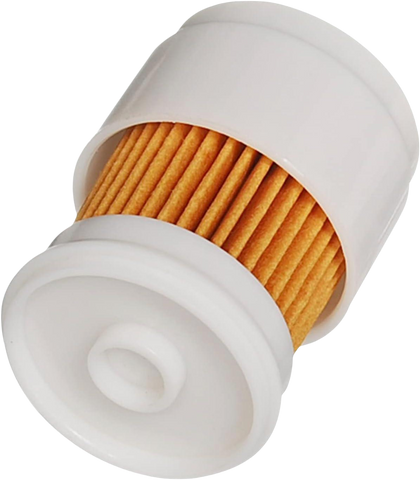

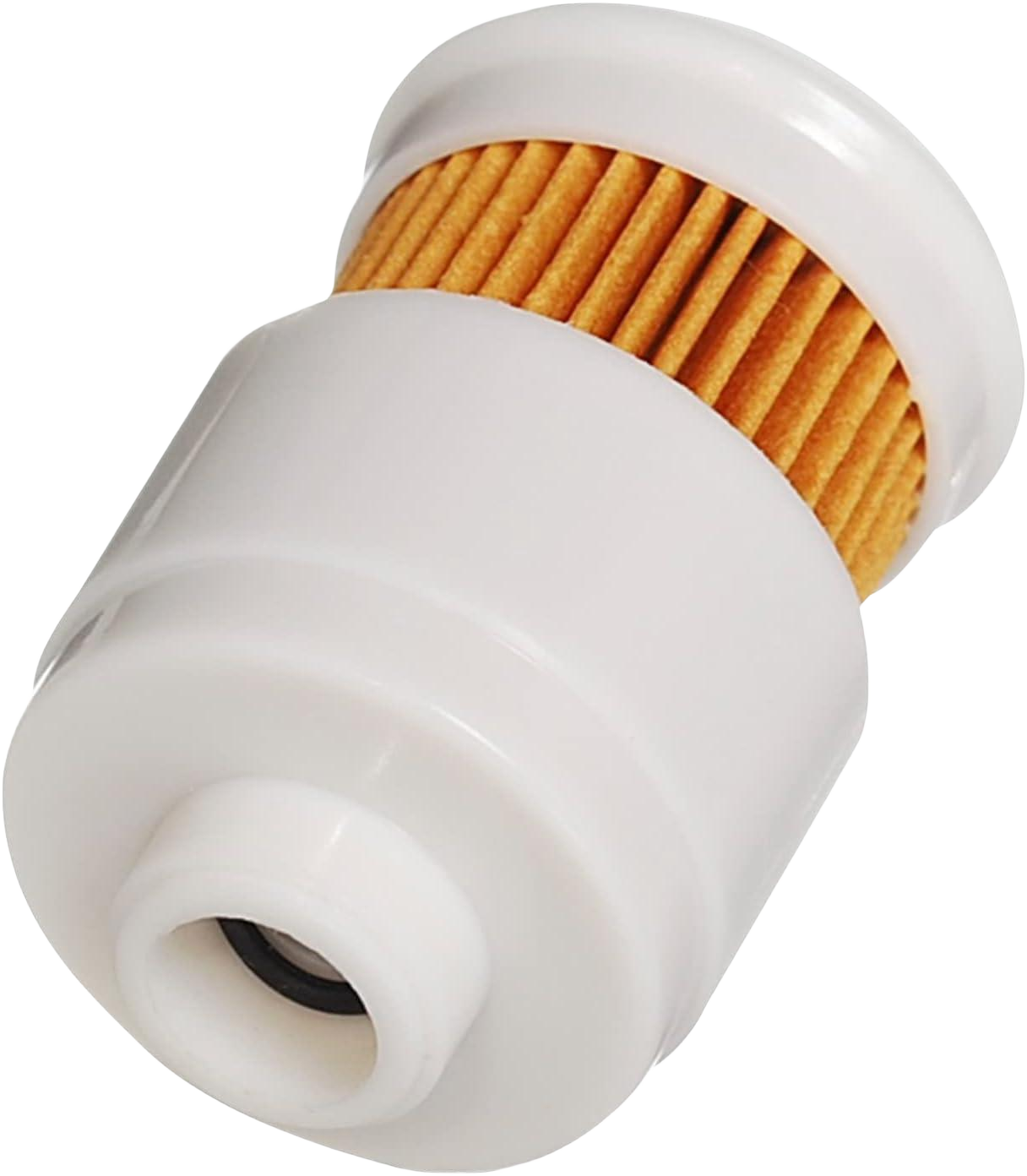

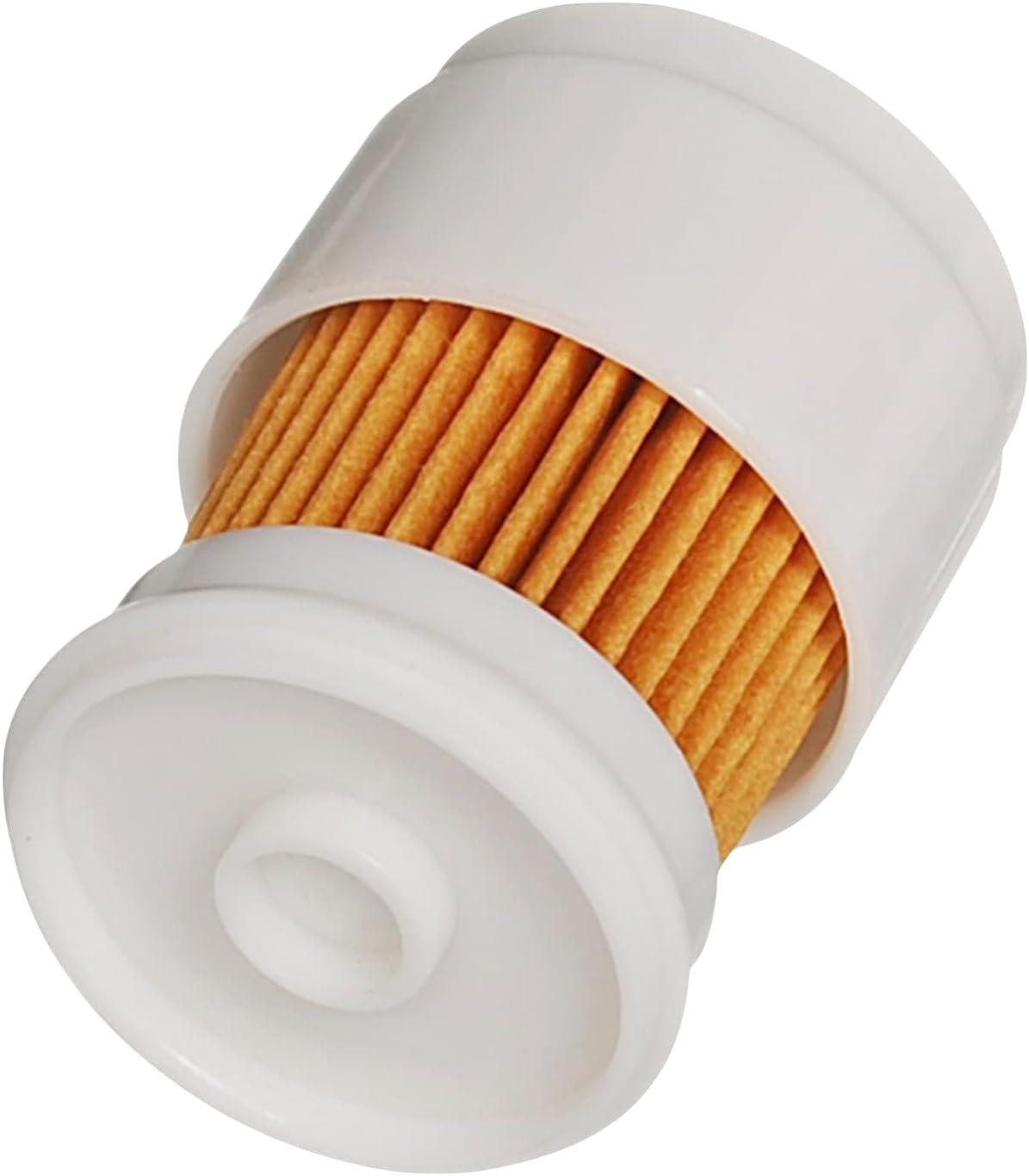

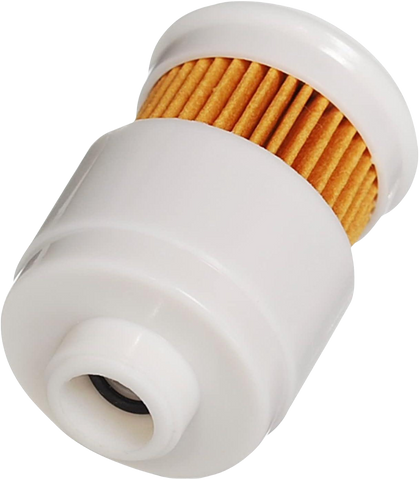

Fuel Filter Element Short for Yamaha HPDI Outboard 150-250 HP – Replaces 68F-24563-00

This fuel filter element is engineered for Yamaha HPDI outboard engines ranging from 150 HP to 250 HP. It fits a wide range of models from the VZ-TLR VMAX, Z-TLR, Z-TXR, LZ-TXR, and Z-TUR series spanning model years 2000–2004. Designed to maintain optimal fuel flow and protect your engine's high-pressure direct injection system, this filter ensures reliable performance on the water.

This aftermarket replacement directly crosses to Yamaha OEM 68F-24563-00-00 and aftermarket number 18-79980, providing a cost-effective solution without compromising quality.

• Direct fit for Yamaha HPDI 150, 175, 200, 225, and 250 HP outboards
• Replaces OEM and aftermarket part numbers for broad compatibility
• Essential maintenance component for fuel system protection

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here's a guide to help you identify your engine's serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 × Fuel Filter Element (Short Type)

Installation Guide

1. Shut off the fuel supply and disconnect the battery to ensure safe working conditions.
2. Locate the fuel filter housing on your Yamaha HPDI outboard engine.
3. Use appropriate tools to carefully remove the filter housing cover. Be prepared for residual fuel spillage.
4. Remove the old fuel filter element from the housing and inspect the housing for debris or contamination.
5. Clean the filter housing thoroughly with a lint-free cloth before installing the new element.
6. Insert the new fuel filter element into the housing, ensuring proper orientation and seating.
7. Reinstall the filter housing cover and tighten to manufacturer specifications to prevent leaks.
8. Reconnect the fuel supply and battery.
9. Prime the fuel system according to your engine's service manual to remove air from the lines.
10. Start the engine and inspect the filter housing area for any fuel leaks.
11. Allow the engine to run at idle for a few minutes and recheck all connections.
12. Dispose of the old filter element properly in accordance with local environmental regulations.

Troubleshooting & FAQ

How do I confirm this filter fits my Yamaha HPDI engine?
Verify your engine model, horsepower, and year against the compatibility table above. Cross-reference your current filter's part number with 68F-24563-00-00 or 18-79980. If your model is listed and the part numbers match, this filter will fit.

How often should I replace the fuel filter on my Yamaha HPDI outboard?
Yamaha recommends inspecting and replacing the fuel filter annually or every 100 hours of operation, whichever comes first. If you notice reduced engine performance, rough idling, or difficulty starting, inspect the filter sooner as contamination may be present.

What are the signs of a clogged or failing fuel filter?
Common symptoms include hard starting, engine stalling, loss of power under load, rough idle, and decreased fuel efficiency. If you experience any of these issues, inspect and replace the fuel filter as part of your troubleshooting process.

Can I use this aftermarket filter instead of the Yamaha OEM filter?
Yes, this aftermarket replacement is manufactured to OEM specifications and provides equivalent filtration performance. It is designed to fit and function identically to the Yamaha OEM 68F-24563-00-00 filter.

Will this filter work on non-HPDI Yamaha outboards?
No, this filter element is specifically designed for Yamaha HPDI (High Pressure Direct Injection) engines from 2000–2004. Using it on non-HPDI models may result in improper fitment or inadequate filtration.

OEM vs. Aftermarket – what's the difference?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
