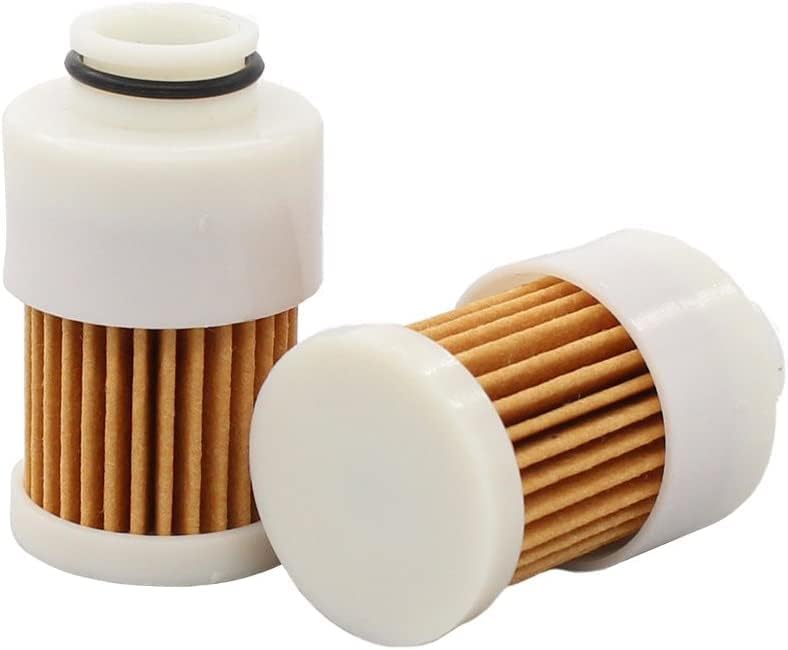

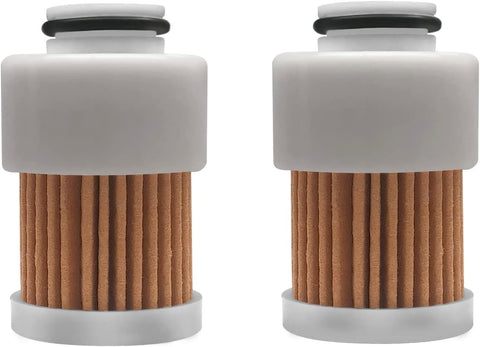

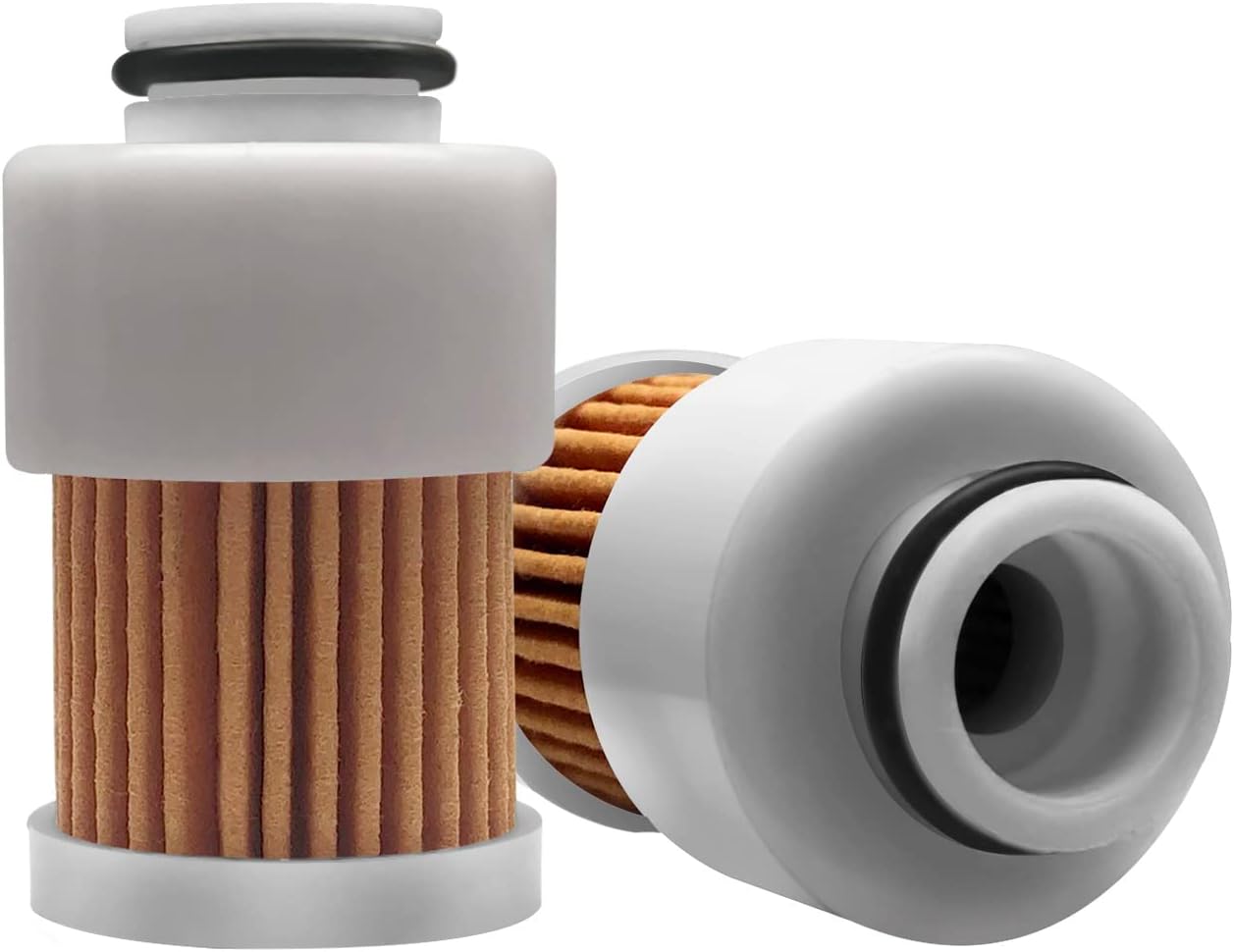

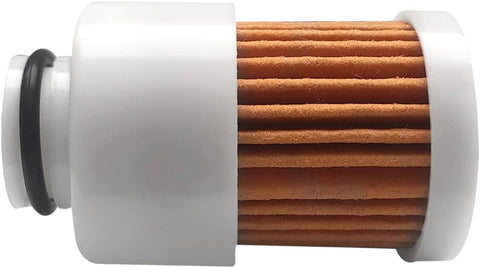

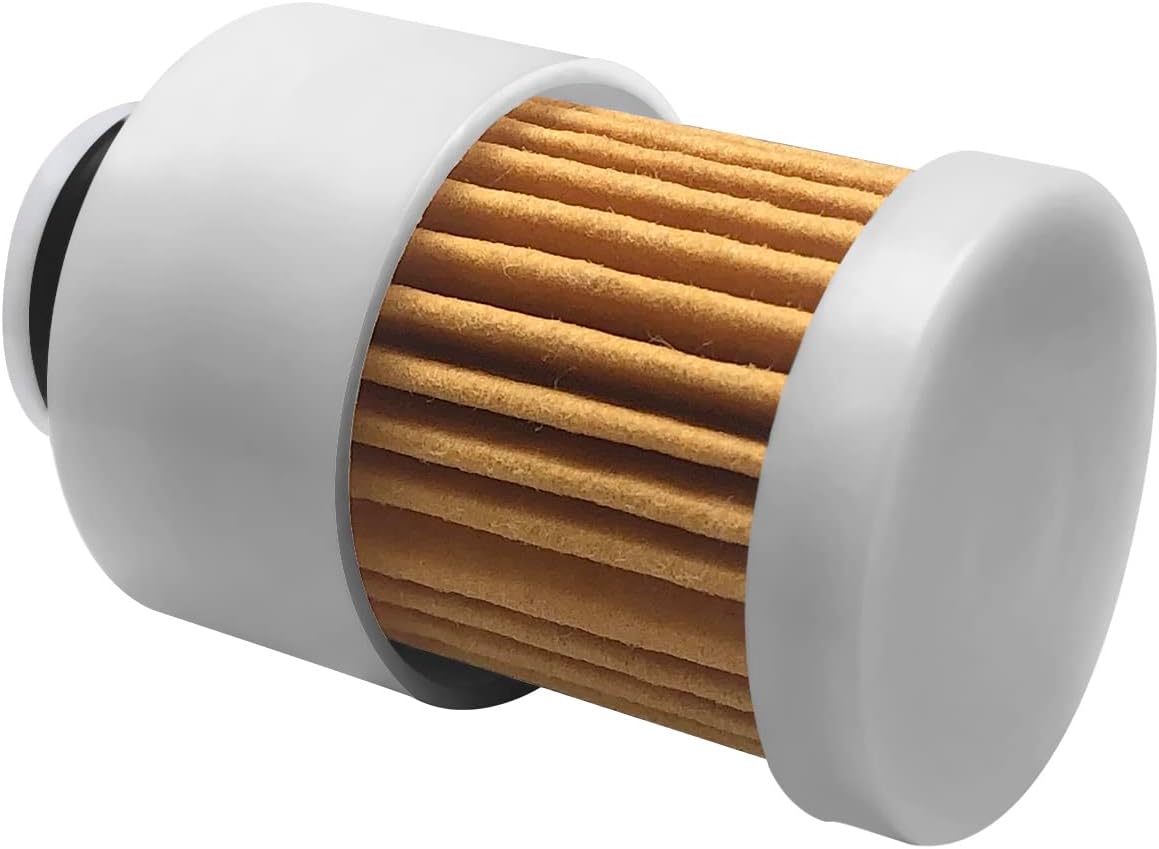

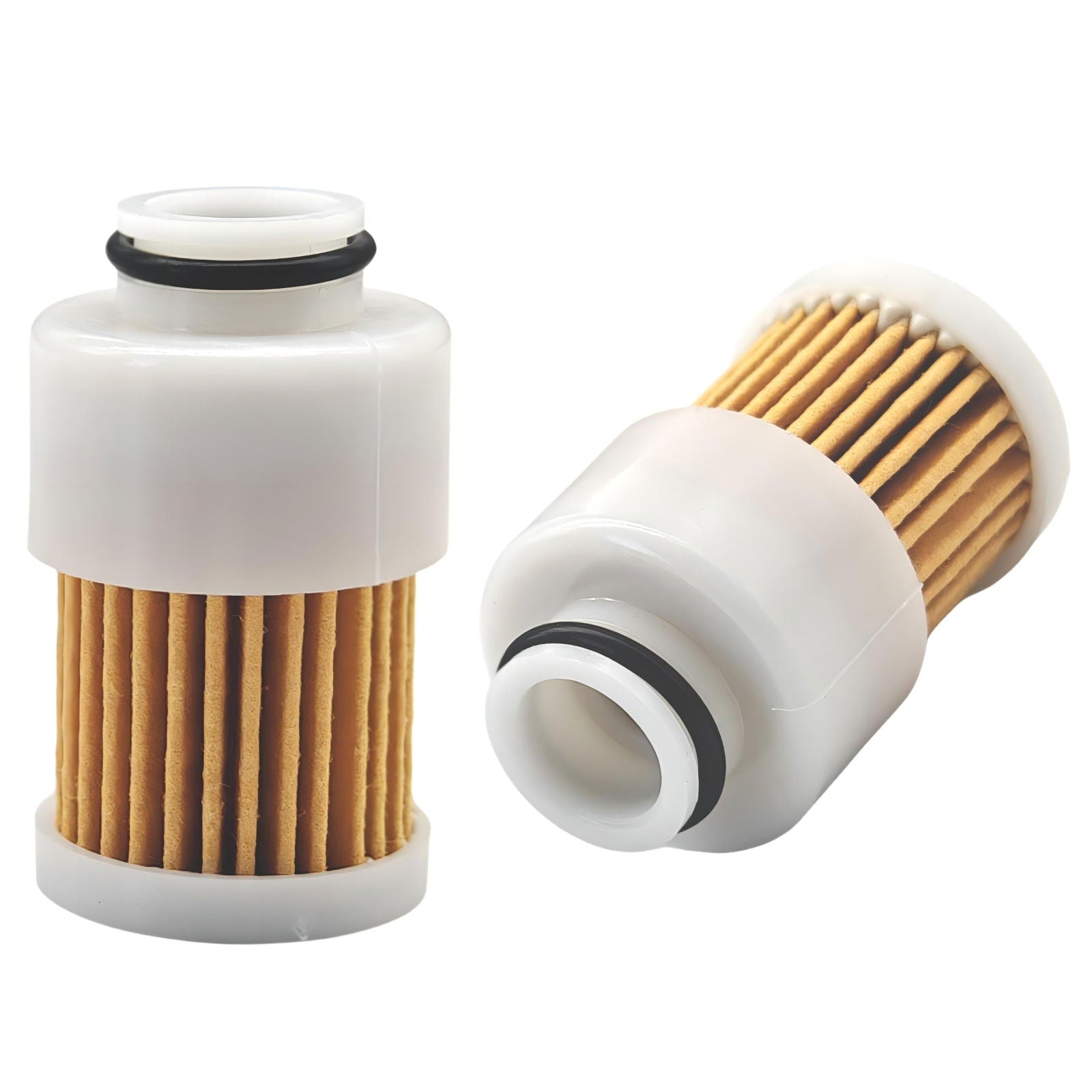

Fuel Filter Element for Mercury 75-115 HP 881540 / 35-881540

Fuel Filter Element – Fits  Mercury 75-115 HP 881540 / 35-881540

This fuel filter element is designed for reliable performance in Yamaha and Mercury 4-stroke outboard engines. It effectively screens contaminants to protect your fuel system and ensure smooth engine operation. This filter is a direct replacement for the internal element located inside the Vapor Separator Tank (VST) assembly.

This component is a direct replacement for Yamaha part number 68V-24563-00-00, Mercury part numbers 881540 / 8M0168897 / 8M0149607 / 35-8M0149607 / 35-881540, Sierra 18-7979, and Mallory 9-37961.

• Installation Type: Internal VST Fuel Pump Filter
• Compatible Fuel: Gasoline
• Included Components: 1x Fuel Filter Element

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Fuel Filter Element (Replaces 68V-24563-00-00)

Installation Guide

1. Safety First: Turn off the engine and disconnect the negative battery terminal.
2. Locate VST: Find the Vapor Separator Tank (VST) on your outboard motor.
3. Relieve Pressure: Carefully relieve fuel pressure from the system according to your engine's service manual.
4. Disconnect Lines: Disconnect the fuel lines and electrical connectors attached to the VST.
5. Access Filter: Remove the screws holding the VST cover and lift it off to access the fuel pump and filter assembly.
6. Remove Old Filter: Gently detach the old fuel filter element from the base of the high-pressure fuel pump. Note its orientation.
7. Install New Filter: Securely install the new filter element in the same position as the old one.
8. Reassemble: Re-install the fuel pump into the VST, replace the cover gasket, and secure the VST cover.
9. Reconnect: Reattach all fuel lines and electrical connectors.
10. Prime & Check: Reconnect the battery, prime the fuel system using the primer bulb, and start the engine. Check for any leaks around the VST and fuel line connections.

Troubleshooting & FAQ

Q: How do I confirm this filter fits my Yamaha or Mercury engine?

A: Check the "Compatible Engine Models" table on this page. For Yamaha, this filter fits F50, F60, F75, F90, and F115 models from 2000-2005. For Mercury, it fits 75-115 HP 4-stroke models. Always verify your specific model and year against the list, or match the OEM part number.

Q: Where is this fuel filter installed?

A: This is an internal filter element that is installed inside the Vapor Separator Tank (VST) assembly, attached to the high-pressure fuel pump.

Q: What are the signs my fuel filter needs replacing?

A: Common symptoms of a clogged filter include difficulty starting, rough idling, engine stalling, surging, or a noticeable loss of power, especially at higher speeds. Replacing it is recommended as part of routine annual maintenance.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
