Fuel Filter Element – Fits Honda BF 90-250 HP Outboard Engines (Replaces 16911-ZY3-010, 16911-ZY3-000)

Vendor: JLM Marine
Availability: In Stock
Product Type: Fuel Filter
$15.79
$15.79
Subtotal: $15.79

Free Shipping

Free standard shipping on all orders under 1 KG

Worry-Free Returns

Learn More.

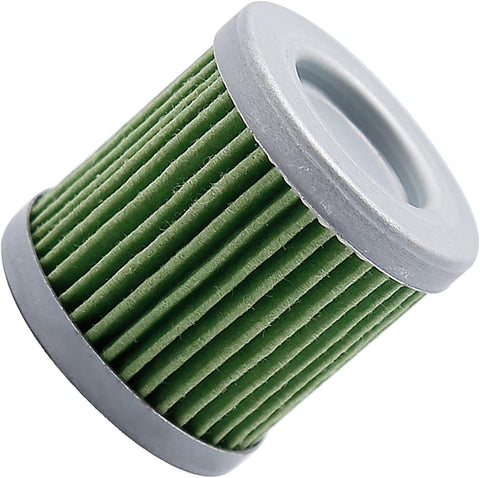

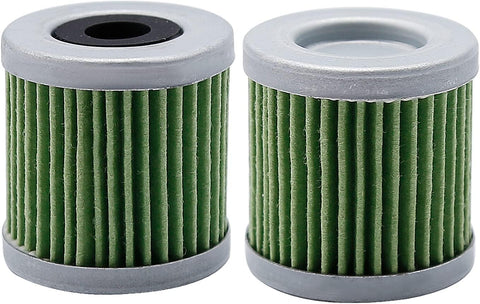

photo of JLM Marine fuel filter element 16911-zy3-010 for Honda BF 90-250 HP, cylindrical with green pleated filter material, silver metal cap and band

Fuel Filter Element – Fits Honda BF 90-250 HP Outboard Engines (Replaces 16911-ZY3-010, 16911-ZY3-000)

$15.79

Fuel Filter Element – Fits Honda BF 90-250 HP Outboard Engines (Replaces 16911-ZY3-010, 16911-ZY3-000)

$15.79

Fuel Filter Element – Fits Honda BF 90-250 HP Outboard Engines (Replaces 16911-ZY3-010, 16911-ZY3-000)

This high-pressure fuel filter element is designed for Honda Marine 4-Stroke outboard engines in the BF90 to BF250 series (1997–Present, depending on the specific model). It installs inside the vapor separator assembly to protect your fuel injection system from contaminants.

It serves as a direct replacement for Honda part numbers 16911-ZY3-010 and 16911-ZY3-000, as well as several other aftermarket equivalents.

  • Installation Type: Internal high-pressure filter (fits inside the vapor separator).
  • Fuel Compatibility: Designed for use with gasoline fuel systems.
  • Critical Note: Installation requires a new O-ring for the vapor separator cover plate to ensure a proper seal (O-ring is not included with this part).

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number
Honda 16911-ZY3-010
Honda 16911-ZY3-000
Sierra 18-79908
Sierra 18-7908
Volvo 21646645
Volvo 3582358

Compatible Engine Models

Confirm your engine model/year in the table below.

Brand Model Rated HP Stroke Years OEM Part No.
Honda BF75DK0, DK2 & DK3 75 4-Stroke 16911-ZY3-010
Honda BF80A & AK1 80 4-Stroke 16911-ZY3-010
Honda BF90 90 4-Stroke 2007 & up 16911-ZY3-010
Honda BF90DK0, DK2, DK4 & DK5 90 4-Stroke 16911-ZY3-010
Honda BF100A & AK1 100 4-Stroke 16911-ZY3-010
Honda BF115 115 4-Stroke 1997 & below, 2002 & up 16911-ZY3-010
Honda BF115A2, D & DK1 115 4-Stroke 16911-ZY3-010
Honda BF130 130 4-Stroke 2002-2004 16911-ZY3-010
Honda BF130A2 130 4-Stroke 16911-ZY3-010
Honda BF135 135 4-Stroke 2004 & up 16911-ZY3-010
Honda BF135A4 & AK2 135 4-Stroke 16911-ZY3-010
Honda BF150 150 4-Stroke 2004 & up 16911-ZY3-010
Honda BF150A4 & AK2 150 4-Stroke 16911-ZY3-010
Honda BF175 175 4-Stroke 2007 & up 16911-ZY3-010
Honda BF175A6, AK1, AK2 & AK3 175 4-Stroke 16911-ZY3-010
Honda BF200 200 4-Stroke 2002 & up 16911-ZY3-010
Honda BF200A6, AK1, AK2 & AK3 200 4-Stroke 16911-ZY3-010
Honda BF225 225 4-Stroke 2002 & up 16911-ZY3-010
Honda BF225A6, AK1, AK2 & AK3 225 4-Stroke 16911-ZY3-010
Honda BF250 250 4-Stroke 1997 & below 16911-ZY3-010
Honda BF250A 250 4-Stroke 16911-ZY3-010

Technical Specifications

Specification Value
Product Type High-Pressure Fuel Filter Element
Installation Internal (Vapor Separator Assembly)
Fuel Type Gasoline
Connection Direct Fit
Fitting Type Direct Fit with Spring
Thread Size N/A (Non-threaded, replaces element only)
Warranty 1 Year (from YiheoZux)
Other Technical Attributes Spring-loaded installation; O-ring seal required for cover plate

Package Contents

  • 1 x Fuel Filter Element (Replaces 16911-ZY3-010 / 16911-ZY3-000)
  • Important: This kit does not include the required cover plate O-ring (Honda P/N: 16078-ZY3-000). The O-ring must be replaced to prevent fuel leaks.

Explosion Diagram

Explosion Diagram

Installation Guide

  1. Safety First: Disconnect the negative battery cable. Work in a well-ventilated area and have a fire extinguisher nearby.
  2. Relieve Fuel Pressure: Follow your engine's service manual procedure to safely relieve pressure from the fuel system.
  3. Access the VST: Locate the vapor separator tank (VST) on your engine. Remove the screws or bolts securing the VST cover.
  4. Remove Old Filter: Carefully lift the cover. The high-pressure fuel filter will be inside. Note the orientation of the old filter and its spring before removing them.
  5. Install New Filter: Place the new filter element into the VST housing, ensuring it is seated correctly with its spring.
  6. Replace O-Ring: Crucially, install a new cover plate O-ring (sold separately) to ensure a high-pressure seal. Do not reuse the old one.
  7. Reassemble: Secure the VST cover, tightening the fasteners to the manufacturer's specified torque.
  8. Final Checks: Reconnect all fuel lines and the battery cable. Prime the fuel system according to your owner's manual. Before starting the engine, carefully inspect the VST for any signs of fuel leaks.

Troubleshooting & FAQ

How do I confirm this filter fits my Honda engine?
This filter fits a wide range of Honda 4-stroke outboards from 75 HP to 250 HP, generally from 1997 and newer. The best way to confirm is to check your engine's model code against the "Compatible Engine Models" table on this page and verify it replaces part numbers 16911-ZY3-010 or 16911-ZY3-000.

Where is this filter located on the engine?
This is the high-pressure fuel filter, located inside the vapor separator assembly (VST). It is not the external, low-pressure filter.

How often should I replace this filter?
For optimal performance and to protect your fuel injectors, it is recommended to replace the high-pressure fuel filter annually or every 100 hours of operation, whichever comes first. Refer to your owner's service manual for the specific maintenance schedule.

Does this filter kit include the required O-ring?
No, this filter element does not include the VST cover O-ring (Honda part number 16078-ZY3-000). You must purchase and install a new O-ring separately to prevent high-pressure fuel leaks.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
