Fuel Filter – Fits Honda Outboard BF 115-225 HP (Replaces 16901-ZY3-003)

Fuel Filter – Fits Honda Outboard BF 115-225 HP (Replaces 16901-ZY3-003)

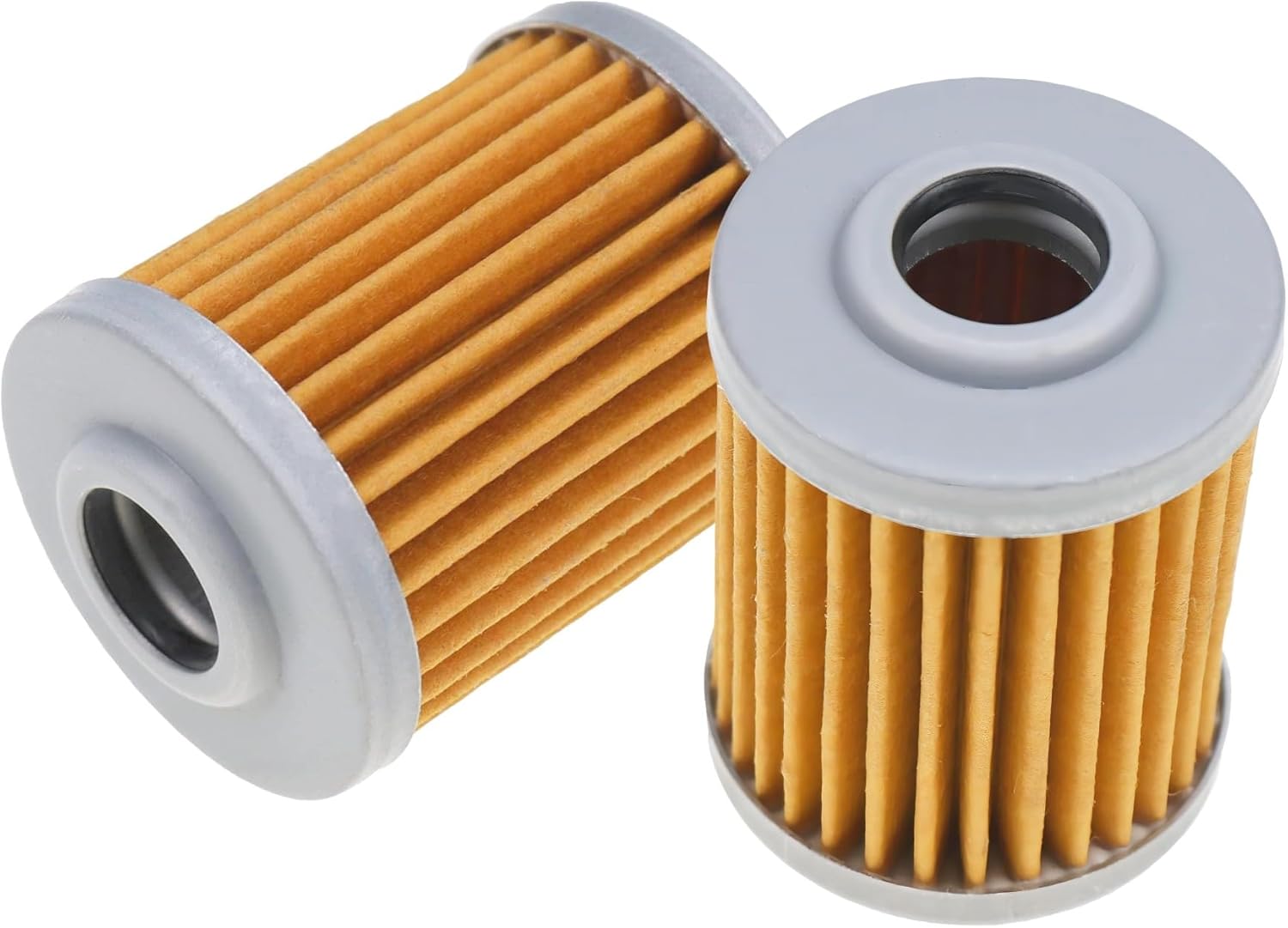

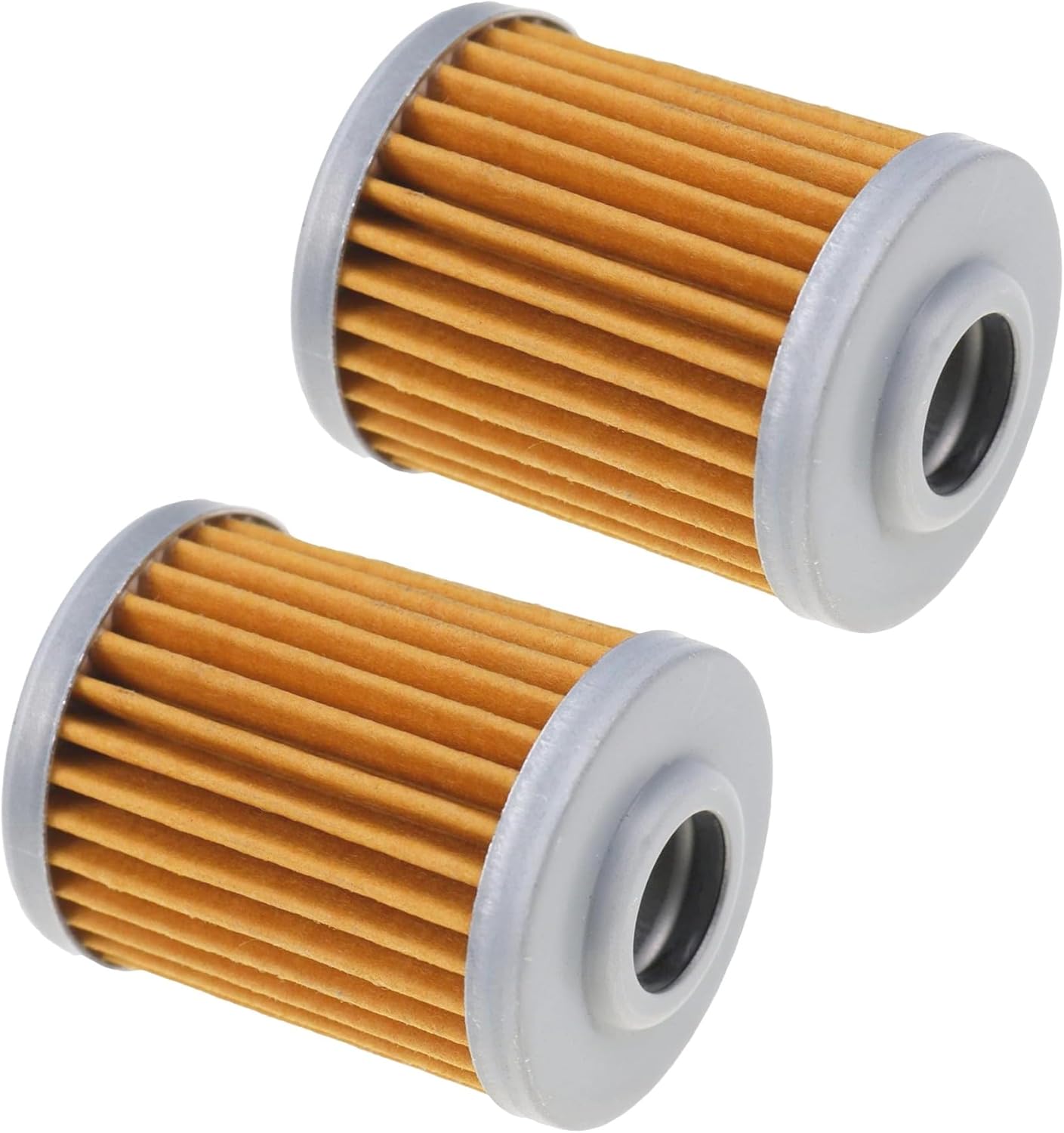

This high-quality aftermarket fuel filter is designed for select Honda Outboard 4-Stroke BF Series engines (90-225 HP) and specific Mercury V-175 models. It ensures your engine is protected from harmful contaminants, promoting reliability and performance.

This component is a direct replacement for Sierra part numbers 18-79909, 18-0378, and 18-0934-1.

• Package includes: 1 x Fuel Filter Element (16901-ZY3-003)
• Installation Type: In-line
• Filtration Rating: 20 microns

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below.

For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Honda Outboard Models

Mercury Models

Technical Specifications

Package Contents

This package includes the following items:

• 1 x Fuel Filter Element (16901-ZY3-003)

Explosion Diagram

Installation Guide

1. Safety First: Shut off the fuel supply at the tank and disconnect the boat's battery.
2. Locate Filter: Find the current fuel filter. It is an in-line canister connected to the fuel hoses.
3. Prepare for Spills: Place a rag or suitable container under the filter to catch any residual gasoline.
4. Disconnect Hoses: Carefully loosen the clamps securing the fuel hoses to the old filter and gently twist the hoses off.
5. Remove Old Filter: Take out the old filter, paying attention to the fuel flow direction, which is typically indicated by an arrow on the housing.
6. Install New Filter: Position the new filter, making sure the flow arrow points toward the engine.
7. Secure Hoses: Re-attach the fuel hoses to the new filter and tighten the clamps securely. Do not overtighten.
8. Final Checks: Reconnect the battery and turn the fuel supply back on. Prime the fuel system and carefully inspect the filter and connections for any leaks.

Troubleshooting & FAQ

Q: How do I confirm this fits my Honda engine?

A: Refer to the 'Compatible Engine Models' table provided above. This filter is specifically designed for Honda's BF series 4-stroke outboards ranging from 90 to 225 HP. Always match your engine model to the list to ensure correct fitment.

Q: What are the signs that my fuel filter needs to be replaced?

A: Common symptoms of a clogged or failing fuel filter include engine hesitation, difficulty starting, stalling at low speeds, or a general loss of power. A visual inspection may also reveal debris or discoloration in the filter element.

Q: How often should I replace my outboard fuel filter?

A: As a general rule, you should replace your fuel filter annually or every 100 hours of operation, whichever comes first. This preventative maintenance helps protect sensitive fuel system components from damage.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
