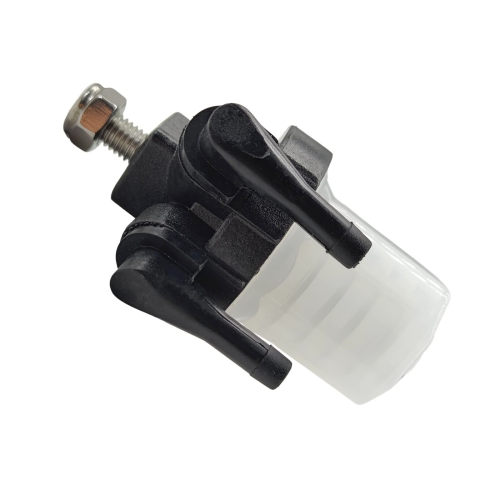

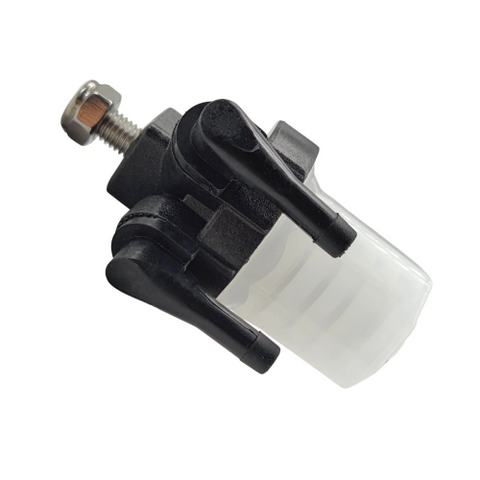

Fuel Filter Assembly – Fits Yamaha 9.9-90 HP Outboards (Replaces 61N-24560-00, 61N-24560-10-00)

Fuel Filter Assembly – Fits Yamaha 9.9-90 HP Outboards

This aftermarket fuel filter assembly provides reliable filtration to protect your engine's fuel system. It is designed to fit a wide range of Yamaha 2-stroke and 4-stroke outboard motors from 9.9 to 90 HP, primarily from 1994–1996, with likely compatibility for additional years.

This component serves as a direct replacement for Yamaha parts 61N-24560-00 and 61N-24560-10-00, and also cross-references with parts from Sierra, Mercury, and Suzuki, ensuring broad applicability. Its clear plastic housing allows for visual inspection of fuel flow and contaminant levels.

• Installation Type: Simple in-line, push-on hose barb connection.
• Fuel Compatibility: Designed for use with gasoline.
• Package Includes: One complete fuel filter assembly.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

For Suzuki owners, You can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Yamaha

Mercury

Suzuki

Technical Specifications

Package Contents

• 1 x Fuel Filter Assembly (Replaces 61N-24560-00 / 61N-24560-10-00)

Installation Guide

1. Safety First: Ensure the engine is off, cool to the touch, and in a well-ventilated area.
2. Locate the Filter: Find the existing in-line fuel filter, typically situated between the fuel tank and the engine.
3. Prepare for Fuel Spillage: Place a rag or container under the filter to catch any fuel that may leak out.
4. Release Pressure: If applicable, release any pressure from the fuel line according to your engine's service manual.
5. Remove Clamps: Loosen and slide the hose clamps off both ends of the old filter.
6. Detach Hoses: Carefully twist and pull the fuel hoses off the old filter assembly. Note the direction of the fuel flow arrow on the filter body.
7. Install New Filter: Orient the new filter with the fuel flow arrow pointing towards the engine and connect the hoses to the barbs.
8. Secure Clamps: Slide the hose clamps back over the connection points and tighten them securely.
9. Prime the System: Squeeze the primer bulb until it feels firm to ensure the filter is filled with fuel.
10. Check for Leaks: Start the engine and carefully inspect the filter and hose connections for any signs of leaks.

Troubleshooting & FAQ

How do I confirm this fits my engine?

The best way to ensure fitment is to check your original part number against our cross-reference list. You can also consult the "Compatible Engine Models" tables on this page to see if your specific model and year are listed. When in doubt, use the provided links to check OEM parts diagrams.

What are the signs of a clogged or failing fuel filter?

Common symptoms include the engine hesitating or bogging down during acceleration, difficulty starting, rough idling, or stalling. The clear housing on this filter also allows for visual inspection of debris or water.

How often should I replace my fuel filter?

Replacement frequency depends on fuel quality, tank condition, and hours of use. As a general guideline, it is good practice to inspect it regularly and replace it at least once per season or every 100 hours of operation, whichever comes first.

OEM vs. Aftermarket?

This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?

We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?

This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
