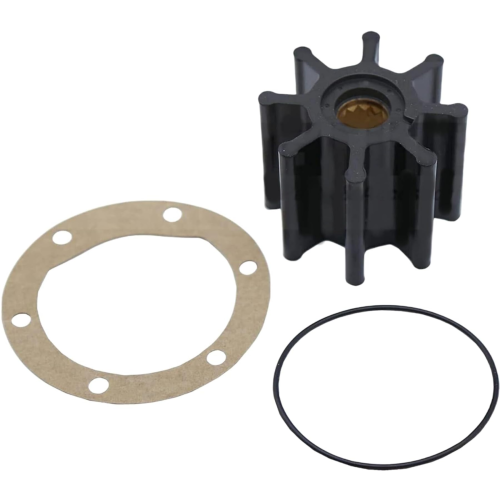

Flexible Impeller Kit – Fits Jabsco, Johnson, Sherwood & Yanmar (Replaces 920-0001-P, 09-1028BT, 18200K)

Flexible Impeller Kit – Fits Jabsco, Johnson, Sherwood & Yanmar Engines

This flexible impeller kit is designed for marine engines using various raw water cooling pumps. It is a direct-replacement part for applications with a 16mm (5/8") shaft diameter, fitting a wide range of Jabsco, Johnson/Evinrude, Sherwood, Volvo Penta, and Yanmar models.

This part directly replaces Jabsco 920-0001-P/17937-0001-P, Johnson 09-1028B/09-1028BT-1, Sherwood 18200K, Yanmar 127610-42200/127610-42270, Volvo Penta 801277/877061-2, and Caterpillar 7C3286.

• Installation Type: Direct Replacement
• Drive Type: 12-Point Spline Drive
• Material: Durable Neoprene with a Brass Insert

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson/Evinrude Serial Number Guide.

Confirm your engine model/year in the table below.

Technical Specifications

Package Contents

Standard Kit Includes:

• 1 x Flexible Impeller
• 1 x Gasket (if included by manufacturer)

JMP Marine Kit (7400-01K) Includes:

• 1 x JMP Marine Flexible Impeller #7400-01
• 1 x Gasket (GAK0016)
• 1 x Gasket (GAK0062)
• 1 x O-Ring (ORG0013)
• 1 x O-Ring (ORG0022)
• 1 x O-Ring (ORG0067)

Installation Guide

1. Close the seacock to prevent water from entering the vessel.
2. Loosen the screws on the water pump cover to remove it.
3. Use needle-nose pliers or an impeller puller tool to carefully remove the old impeller.
4. Clean the inside of the pump housing, ensuring no old blade pieces remain.
5. Inspect the housing for scoring or cracks and check the cover plate for wear.
6. Apply a thin layer of water-resistant grease or soap to the inside of the pump housing and the new impeller.
7. Install the new impeller, rotating the shaft in the direction of engine operation to bend the blades correctly.
8. Replace the gasket or O-ring on the cover plate.
9. Secure the cover plate back onto the pump housing and tighten the screws evenly.
10. Re-open the seacock.
11. Start the engine and immediately check for leaks and proper water flow from the exhaust.

Troubleshooting & FAQ

Q: How do I confirm this impeller fits my engine?
A: The best way is to compare your OEM part number to our cross-reference list. You should also verify the dimensions (65mm diameter, 50.2mm width, 16mm shaft) against your old part, as some engine models have pump variations.

Q: Why do some sources say this impeller has 8 blades and others say 10?
A: This specific impeller model is produced by different manufacturers, and minor variations in blade count can exist. Both 8 and 10-blade versions are functionally equivalent for the compatible models, providing sufficient water flow. Our part matches the OEM specification for performance.

Q: How often should I replace my raw water pump impeller?
A: As a general rule, impellers should be inspected annually and replaced every 1-2 years or after 200-300 hours of use, whichever comes first. Replacement intervals can vary based on usage (e.g., in sandy or silty water) and winterization procedures.

Q: What are the signs of a failing impeller?
A: Common signs include engine overheating at idle or low speeds, reduced water flow from the exhaust outlet, and visible cracks or missing blades on the impeller itself during inspection.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
