Exhaust Mixing Elbow 861289 – Stainless – Fits Volvo Penta 31–44/300

Exhaust Mixing Elbow 861289 – Stainless – Fits Volvo Penta 31–44/300

$143.00
Description

How to Match This Part

This aftermarket exhaust mixing elbow replaces Volvo Penta reference 861289. It mixes raw cooling water with exhaust gas on compatible Volvo Penta 31-, 32-, 41-, 42-, 43-, 44-, and 300-series marine diesels.

Match this part in this order:
1. Original part number on the elbow or parts list (861289)
2. Engine model on the engine identification plate
3. Physical form against the product images

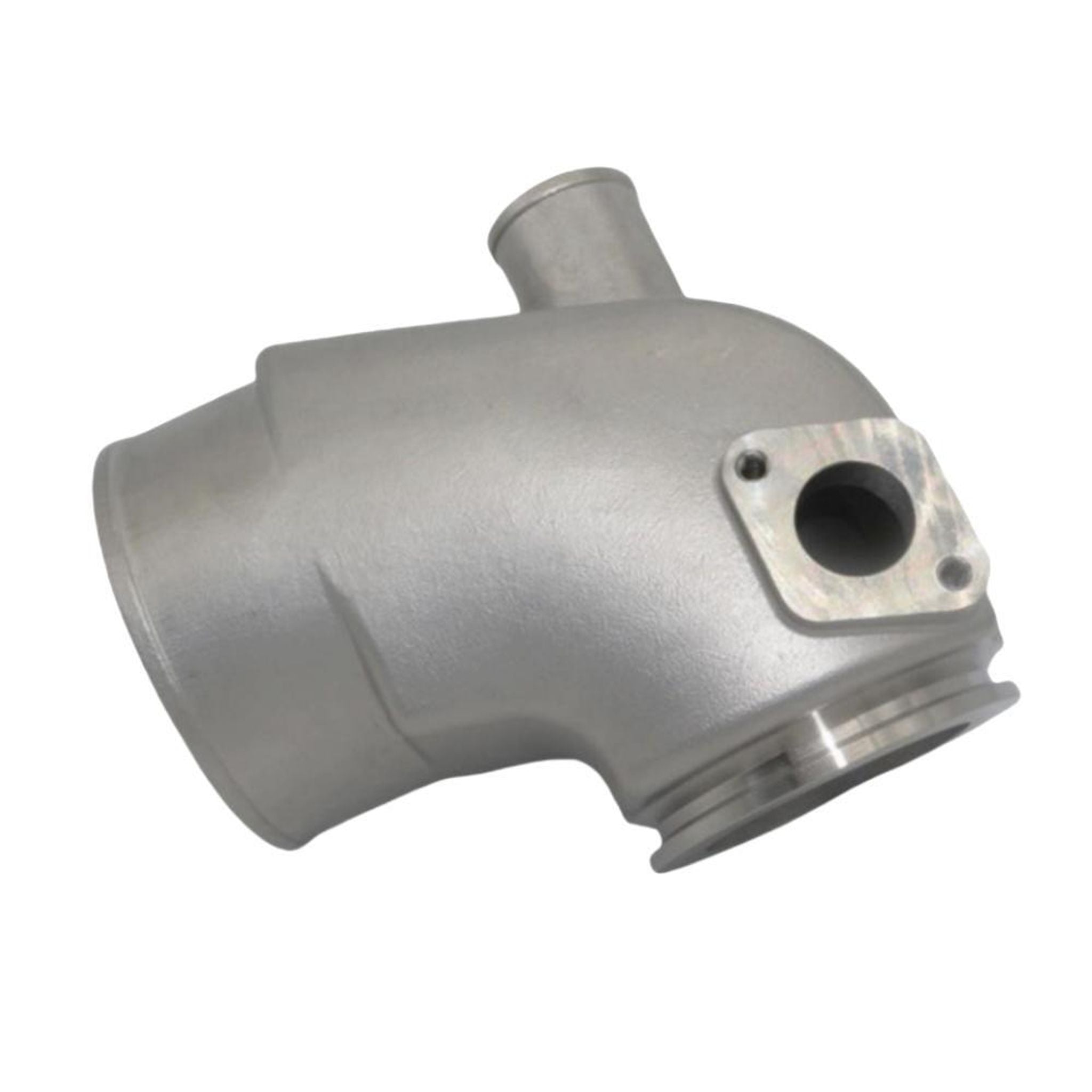

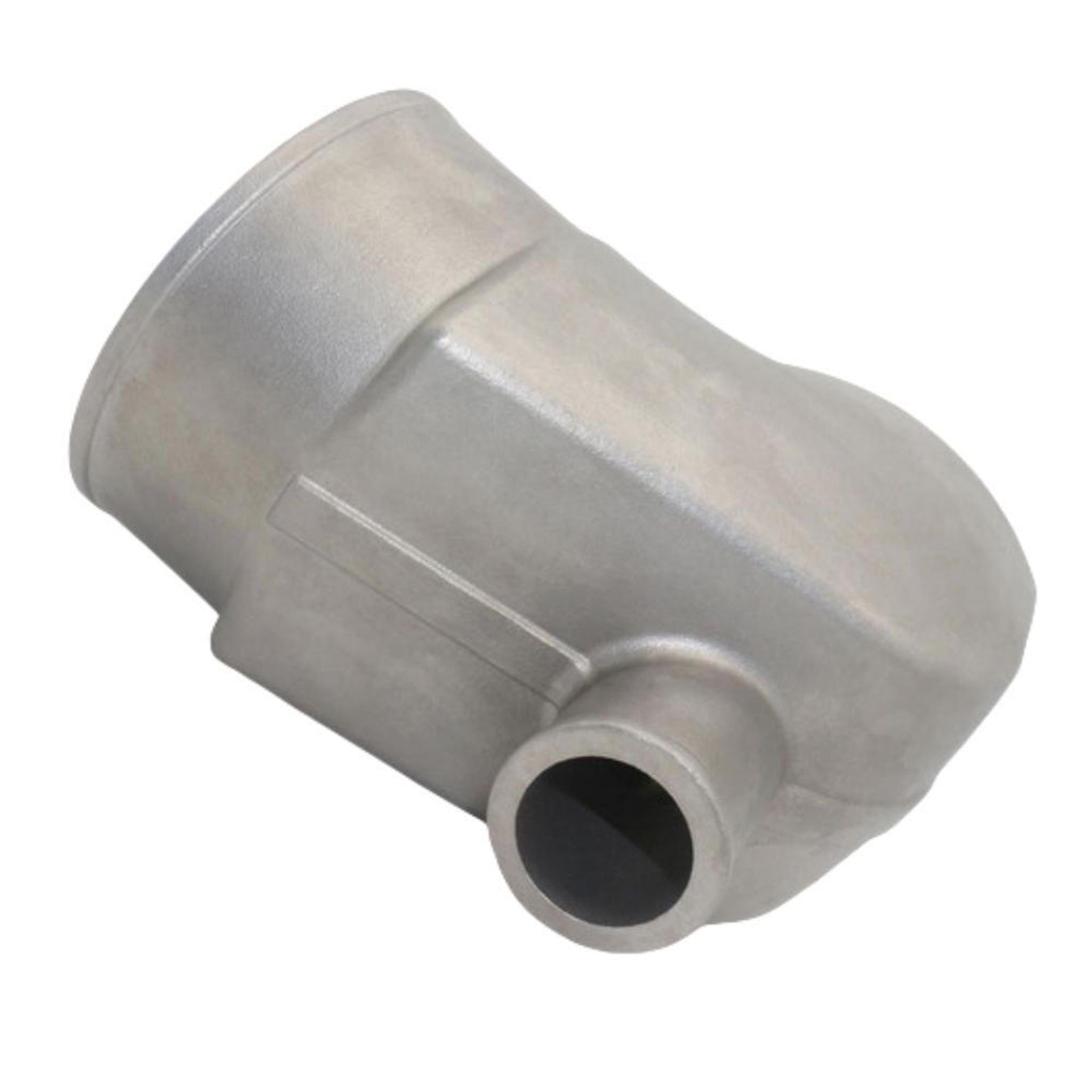

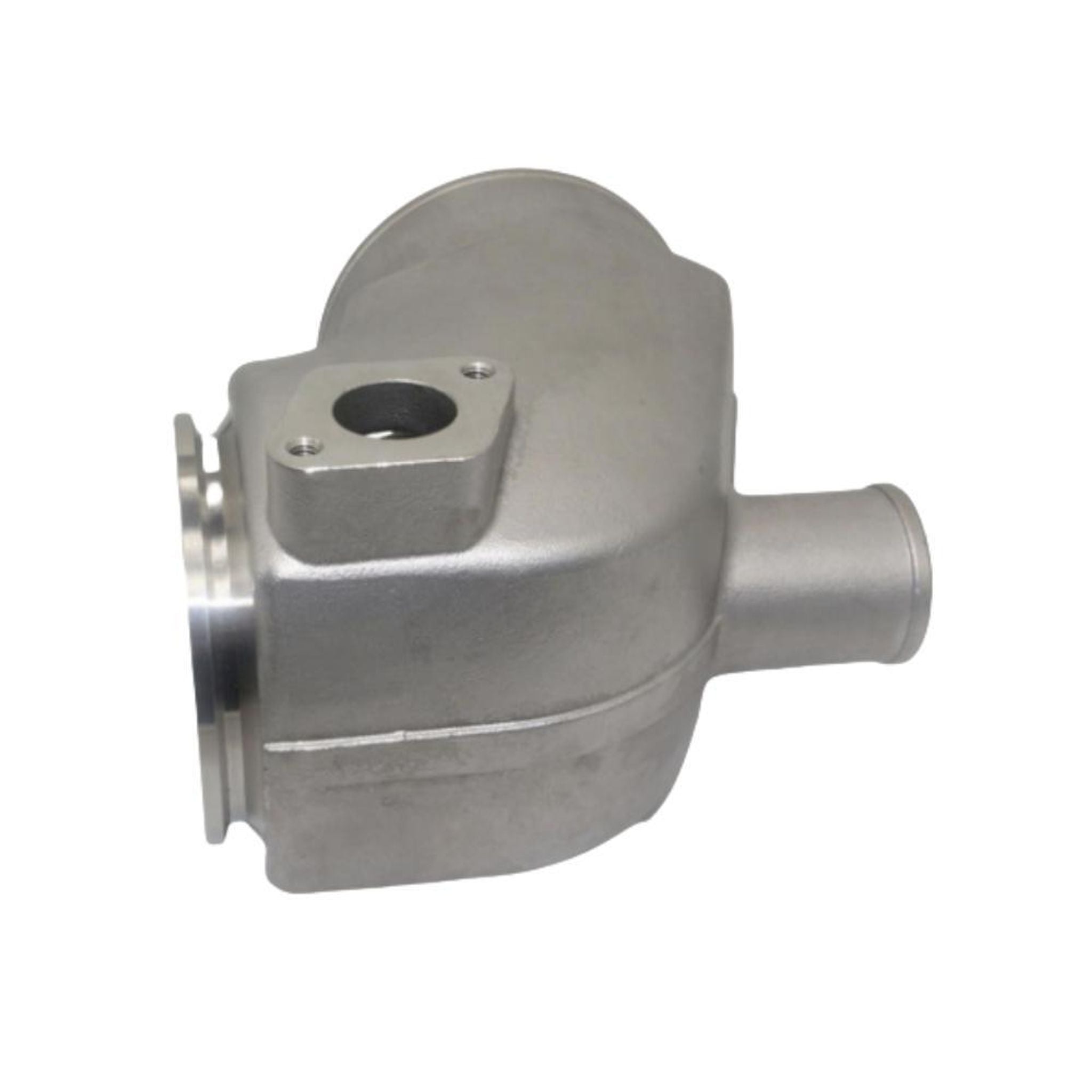

Confirm a thick curved elbow body, a square 4-bolt mounting flange on the side, and a cylindrical water-injection branch on top before ordering. See the product images for flange orientation and branch position.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Reference Type Brand Part Number Notes
Primary OEM Reference Volvo Penta 861289 Exhaust pipe elbow
Aftermarket Orbitrade 16289 Aftermarket replacement
Aftermarket HGE HGE1289 Aftermarket replacement

Compatible Engine Models

Confirm your engine model in the table below. Match the original part number and the physical shape to the product images. On Volvo Penta inboards, the model and serial identification are typically on the engine block or flywheel housing—not on an outboard transom bracket.

Brand Engine Model
Volvo Penta TAMD31, TAMD31M-A, TAMD31L-A, AD31L-A, AD31P-A
Volvo Penta KAD32P, KAD32P-A
Volvo Penta AD41L-A, AD41P-A
Volvo Penta TAMD42WJ-A, TAMD42B, KAD42, KAD42B, KAD42P-A, KAMD42, KAMD42B, KAMD42P-A
Volvo Penta KAD43P, KAD43P-A, KAMD43P, KAMD43P-A
Volvo Penta KAD44P, KAD44P-A, KAD44P-B, KAD44P-C, KAMD44P, KAMD44P-A, KAMD44P-B, KAMD44P-C
Volvo Penta KAD300A, KAMD300A

Technical Specifications

Specification Value
Product type Exhaust mixing elbow
Material Stainless steel
Mounting flange Square 4-bolt flange
Water branch Cylindrical top water-injection branch
Water inlet 38 mm (1-1/2") hose connection
Exhaust outlet 106 mm (4-3/16") OD

Installation Guide

1

Allow the engine to cool completely and disconnect the battery before working on the exhaust system.

2

Support the exhaust hose and water hose, then unbolt and remove the old elbow. Protect the manifold mating face from damage.

3

Clean the flange face and compare the new elbow’s square 4-bolt flange, top water branch, and outlet to the removed part and the product images.

4

Install with the gasket and fasteners specified in your Volvo Penta parts list or service manual. Tighten evenly to the manual’s torque values.

5

Reconnect the water and exhaust hoses, secure all clamps, refill cooling water as required, and check for leaks at idle before returning to service.

Note: Follow the Volvo Penta service manual for torque and gasket requirements. Professional installation is recommended.

Troubleshooting & FAQ

Is this an OEM or aftermarket part? +

This is an aftermarket replacement manufactured to match the Volvo Penta 861289 application. It is not a Volvo Penta original-equipment part.

Does a mounting gasket come with this elbow? +

Do not assume a mounting gasket or hardware kit is included. Use the gasket and related parts called out in your Volvo Penta parts list unless your order confirmation states otherwise.

How is this different from a dual-wall cast-iron elbow? +

This listing is a stainless steel elbow with a square 4-bolt side flange and a cylindrical top water branch. Compare those features to your old part and the product images—do not order from engine-family names alone if the shape does not match.
