Exhaust Mixing Elbow 21190094 – Fits Volvo Penta D1 D2 MD
- $181.50
- $181.50
- Unit price
- per
Couldn't load pickup availability
Free Shipping
Free standard shipping on all orders
Worry-Free Returns
Learn More.
How to Match This Part
This aftermarket exhaust mixing elbow replaces Volvo Penta reference 21190094 (also cataloged as 861906). It mixes raw cooling water with exhaust gas on compatible Volvo Penta D1, D2, and MD2010–MD2040 marine diesels.
Match this part in this order:
1. Original part number on the elbow or parts list (21190094 or 861906)
2. Engine model on the engine identification plate
3. Physical form against the product images

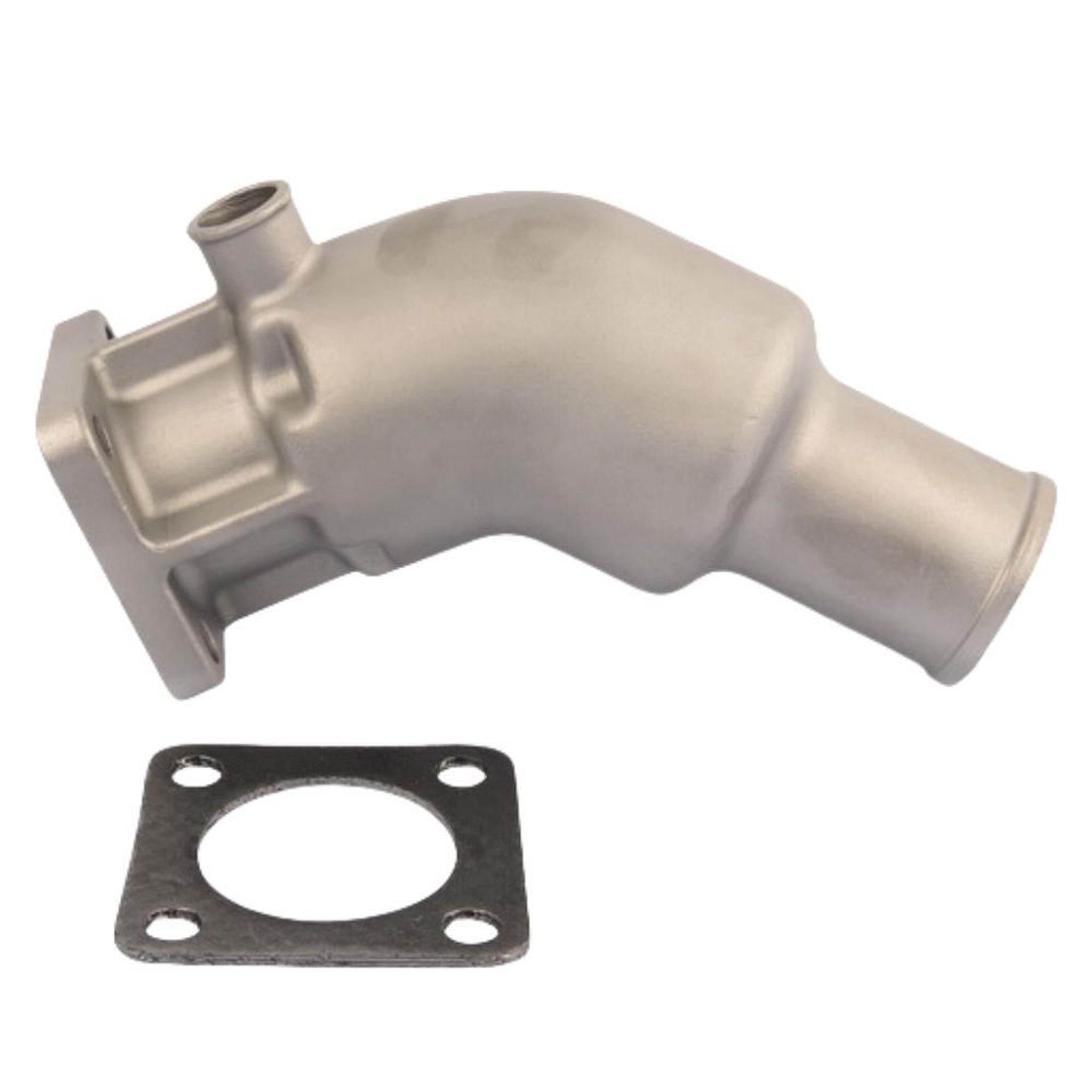

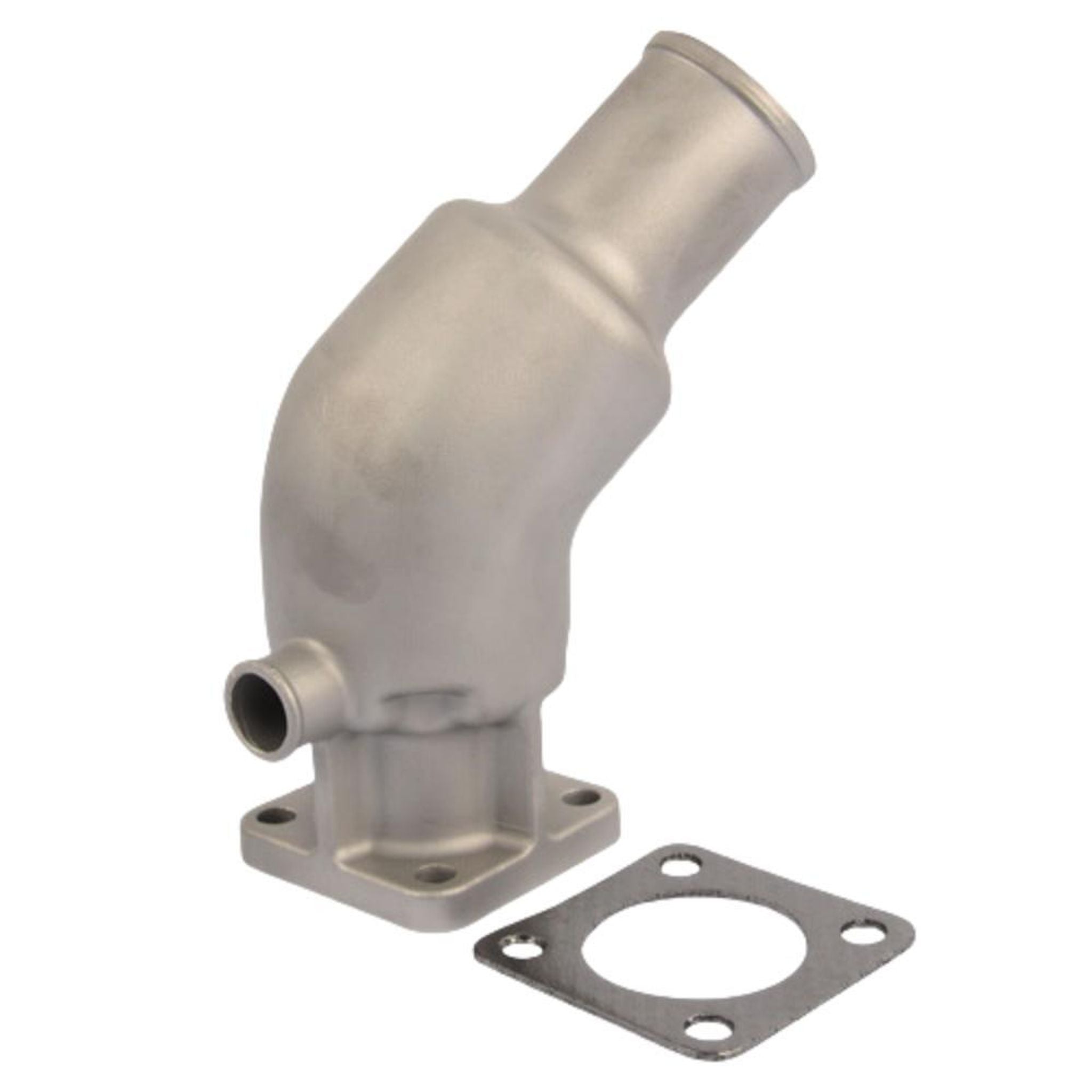

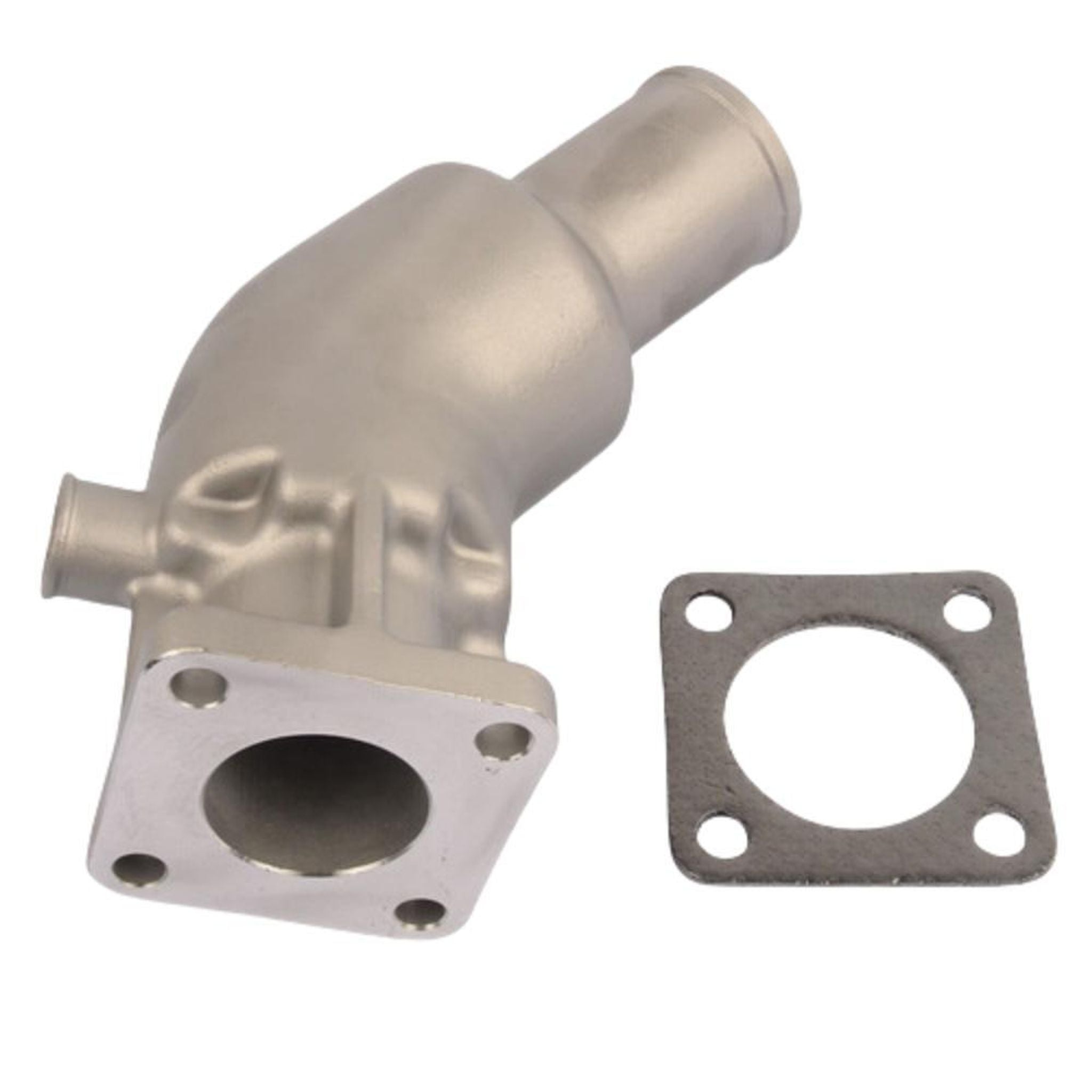

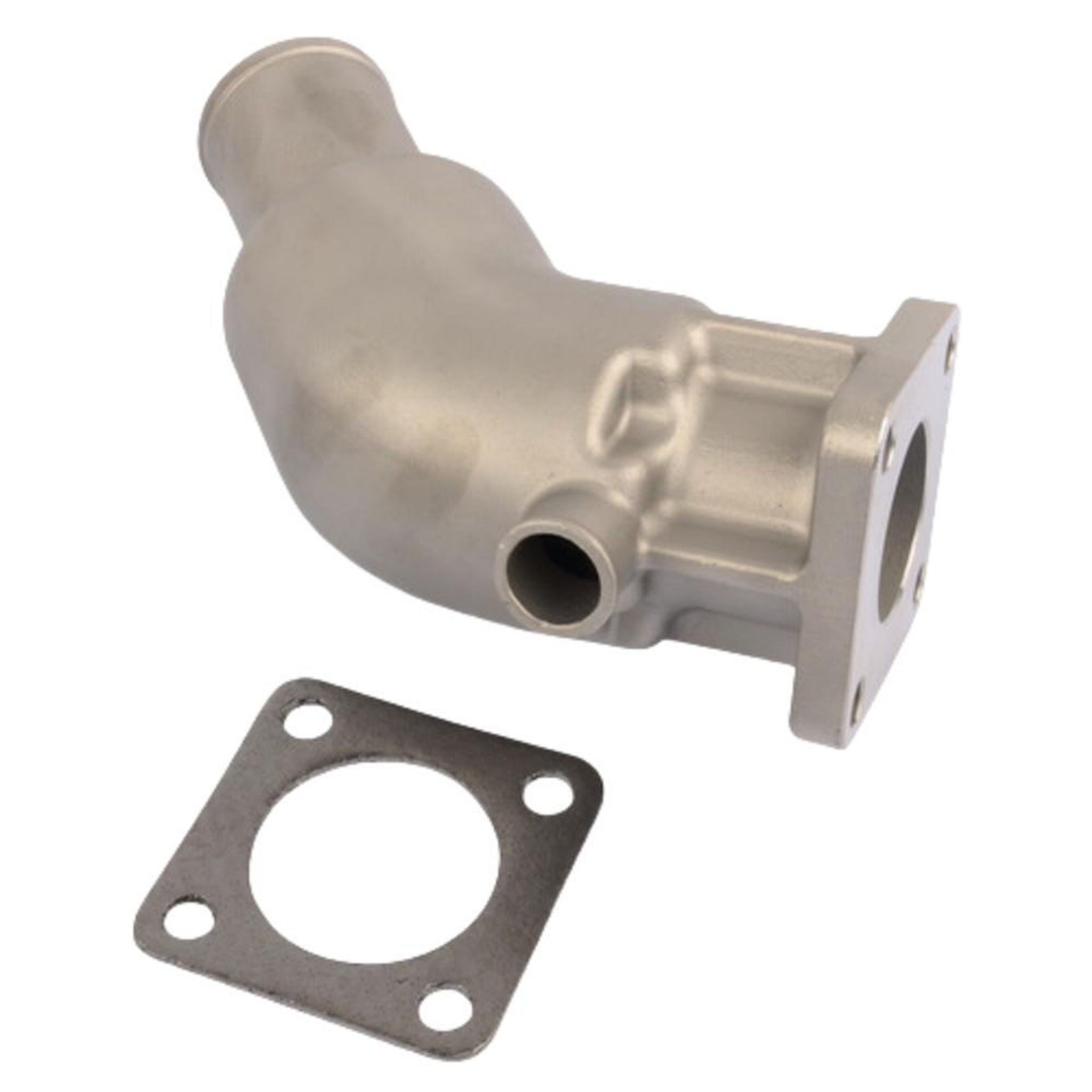

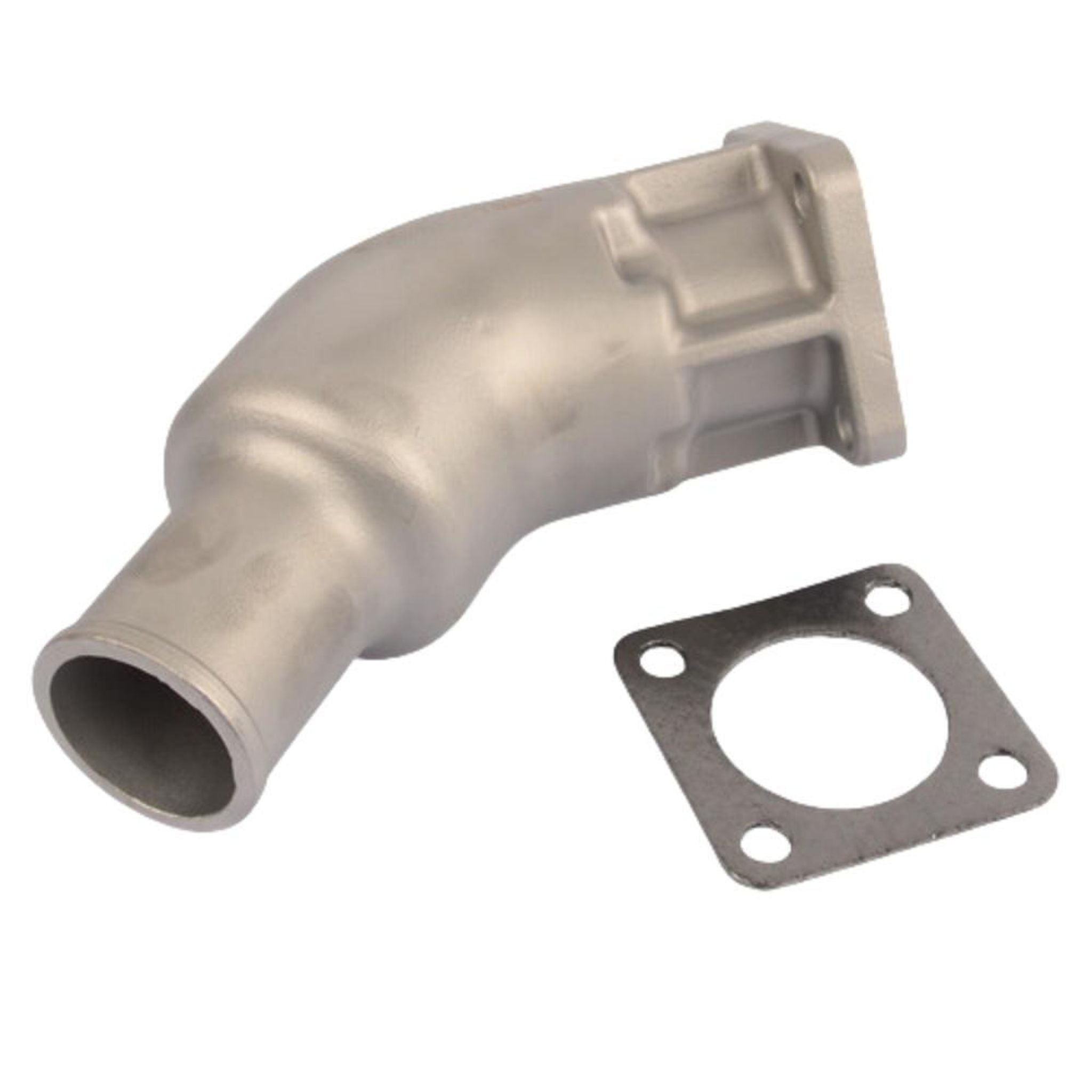

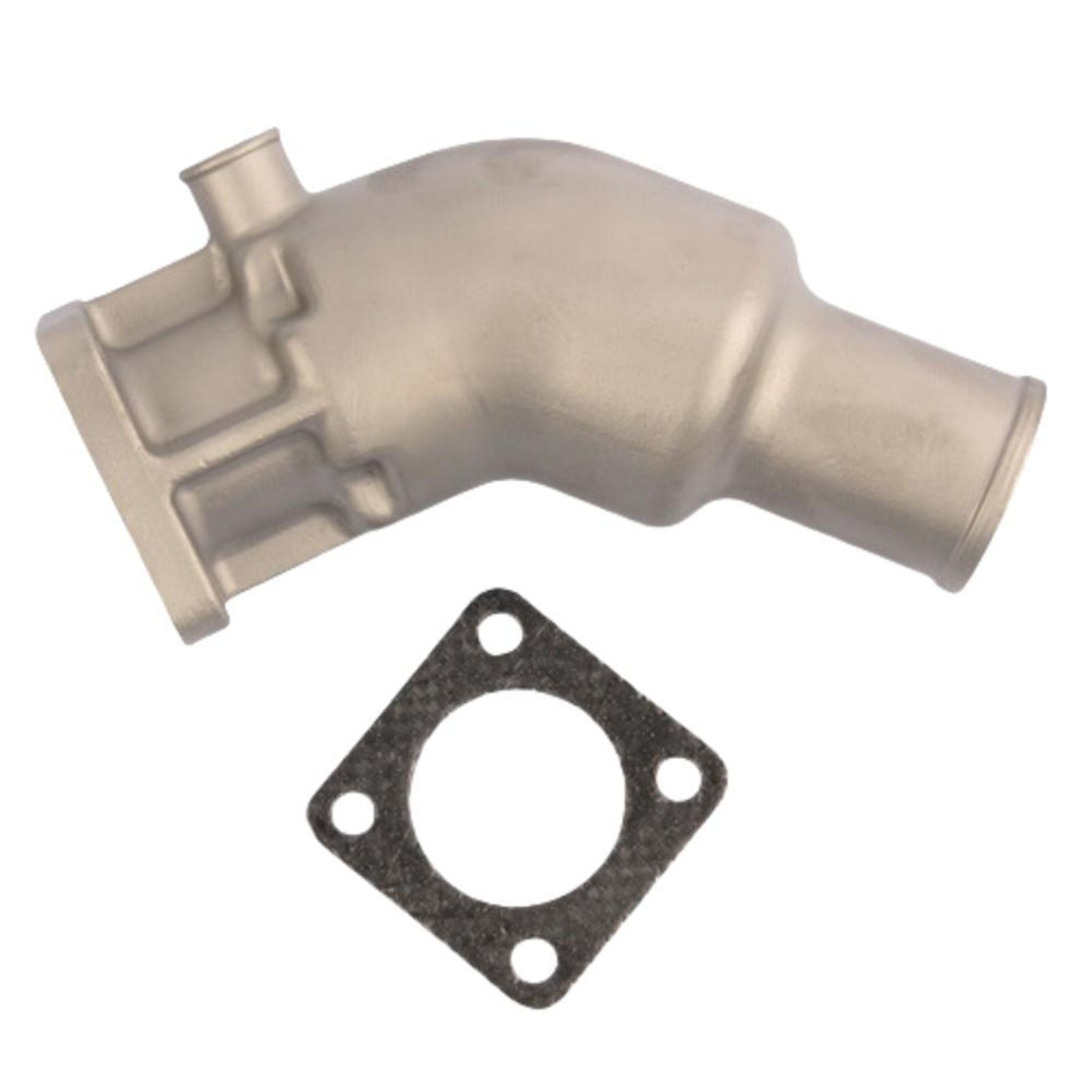

Confirm a curved mixing elbow with a square 4-bolt mounting flange, a cylindrical water-injection port on the side/top near the flange, and a beaded circular discharge end. See the product images before ordering.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
| Reference Type | Brand | Part Number | Notes |
|---|---|---|---|
| Primary OEM Reference | Volvo Penta | 21190094 | Exhaust mixing elbow |
| OEM | Volvo Penta | 861906 | Current catalog number |
| Aftermarket | HDI Marine | V834 | Aftermarket replacement |
| Aftermarket | Orbitrade | 16750 | Aftermarket replacement |
| Aftermarket | Recmar | MAR906INOX | Aftermarket replacement |
Compatible Engine Models
Confirm your engine family in the table below. Match the original part number and the physical shape to the product images. On Volvo Penta inboards, the model and serial identification are typically on the engine block or flywheel housing.
| Brand | Engine Family |
|---|---|
| Volvo Penta | D1-13, D1-20, D1-30 |
| Volvo Penta | D2-40 |
| Volvo Penta | MD2010, MD2020, MD2030, MD2040 |
Common A/B/C/D/F suffixes within these families are covered when your original elbow is 21190094 or 861906 and the flange geometry matches the product images.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | Exhaust mixing elbow |
| Material | 316 stainless steel |
| Mounting flange | Square 4-bolt flange |
| Water branch | Cylindrical side/top water-injection port |
| Discharge diameter | 1-3/4" (44.5 mm) beaded hose end |
Package Contents
- 1 × exhaust mixing elbow
- 1 × square 4-hole mounting gasket
Installation Guide
1
Allow the engine to cool completely and disconnect the battery before working on the exhaust system.
2
Support the exhaust hose and water hose, then unbolt and remove the old elbow. Protect the manifold mating face from damage.
3
Clean the flange face. Compare the new elbow’s square 4-bolt flange, water port, and beaded outlet to the removed part and the product images.
4
Place the included square mounting gasket, align the elbow, and tighten the four mounting bolts evenly to the torque values in your Volvo Penta service manual.
5
Reconnect the water and exhaust hoses on the beaded outlet and water port, secure all clamps, and check for leaks at idle before returning to service.
Note: Follow the Volvo Penta service manual for torque and hose routing. Professional installation is recommended.
