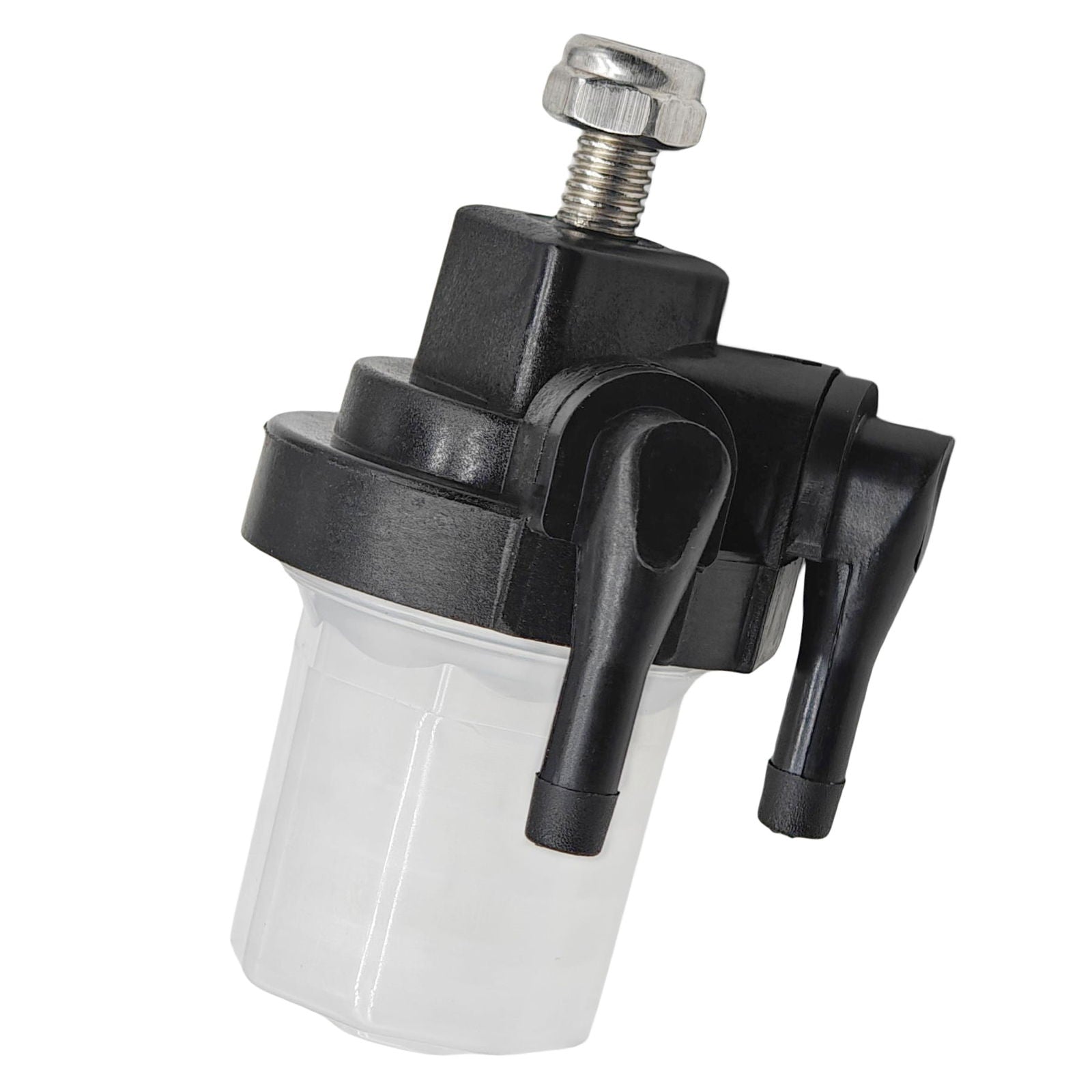

Fuel Filter Assembly – Fits Yamaha 9.9–90 HP Outboard Motors

This fuel filter assembly is designed to fit a wide range of Yamaha outboard engines from 9.9 HP to 90 HP, covering both standard and FICHT models. Compatible with popular series including F-Series (F9.9, F15, F20, F25, F40, F50), C-Series (C25, C30, C40, C50, C55, C60, C75, C80, C85, C90), and E-Series (E48, E60, E75), as well as the B90 model. This part ensures reliable fuel filtration for your outboard motor.

This assembly directly replaces Yamaha OEM part numbers 61N-24560-00, 61N-24560-01, 655-24560-60, 61N-24560-10, 655-24560-00, and 655-24560-01, as well as Sierra part number 18-79910.

• Complete fuel filter assembly ready for installation
• Essential component for maintaining clean fuel delivery and engine performance
• Fits both 2-stroke and 4-stroke Yamaha outboard models from 1994 to 2010

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here's a guide to help you identify your engine's serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 × Fuel Filter Assembly

Installation Guide

1. Disconnect the fuel line from the engine and allow any residual fuel to drain into a suitable container.
2. Locate the existing fuel filter assembly on your Yamaha outboard motor. It is typically positioned along the fuel line between the fuel tank and the carburetor or fuel injection system.
3. Remove the old fuel filter assembly by disconnecting the inlet and outlet fuel hoses. Use hose clamps or pinch-off pliers to prevent fuel spillage.
4. Inspect the fuel hoses and clamps for wear, cracks, or deterioration. Replace if necessary to ensure a secure connection.
5. Install the new fuel filter assembly by connecting the inlet hose to the filter inlet and the outlet hose to the filter outlet. Ensure the fuel flow direction matches any arrows marked on the filter body.
6. Secure all connections with new or existing hose clamps, tightening them appropriately to prevent fuel leaks.
7. Reconnect the fuel line to the engine and fuel tank, ensuring all connections are tight and properly seated.
8. Prime the fuel system by squeezing the primer bulb until it becomes firm. This removes air from the fuel line and fills the new filter.
9. Start the engine and allow it to run at idle for a few minutes. Monitor for any fuel leaks around the new filter assembly and connections.
10. Check engine performance to ensure smooth operation without hesitation or stalling. If issues persist, recheck all fuel line connections and filter orientation.
11. Dispose of the old filter properly according to local environmental regulations for fuel-contaminated parts.

Troubleshooting & FAQ

Q: How do I confirm this fuel filter fits my Yamaha engine?
A: Cross-reference your engine model, horsepower, and year with the compatibility table above. You can also verify your engine serial number using the Yamaha Serial Number Guide linked in the Compatible Engine Models section, or check the OEM part number on your existing filter against the part numbers listed.

Q: How often should I replace the fuel filter?
A: Yamaha recommends inspecting the fuel filter regularly and replacing it at least once per season or every 100 hours of operation, whichever comes first. If you notice poor engine performance, difficulty starting, or fuel starvation symptoms, inspect and replace the filter immediately.

Q: What are the signs that my fuel filter needs replacement?
A: Common symptoms include engine hesitation, loss of power under load, difficulty starting, rough idling, or the engine stalling unexpectedly. A clogged or dirty filter restricts fuel flow and degrades performance.

Q: Can I use this filter on both 2-stroke and 4-stroke Yamaha engines?
A: Yes, this fuel filter assembly is compatible with both 2-stroke and 4-stroke Yamaha outboard engines within the specified horsepower range and model years listed in the compatibility table.

Q: Is this an OEM part or an aftermarket replacement?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
