Carburetor Repair Kit – Fits Yamaha 9.9HP & 15HP Outboard (Replaces 63V-W0093-00-00, 63V-W0093-01-00)

Carburetor Repair Kit – Fits Yamaha 9.9HP & 15HP Outboard (Replaces 63V-W0093-00-00, 63V-W0093-01-00)

This carburetor repair kit is designed for Yamaha 2-Stroke 9.9HP & 15HP outboard motors (1995–2012). It provides the necessary components to rebuild your carburetor to restore engine performance and fuel efficiency.

This kit is a direct replacement for Yamaha part numbers 63V-W0093-00-00 and 63V-W0093-01-00, as well as Sierra part number 18-7058.

• Includes all standard components for a full carburetor rebuild.
• Engineered for gasoline-fueled, 2-stroke applications.
• Ensures a direct fit for the OEM carburetor assembly 63V-14301.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

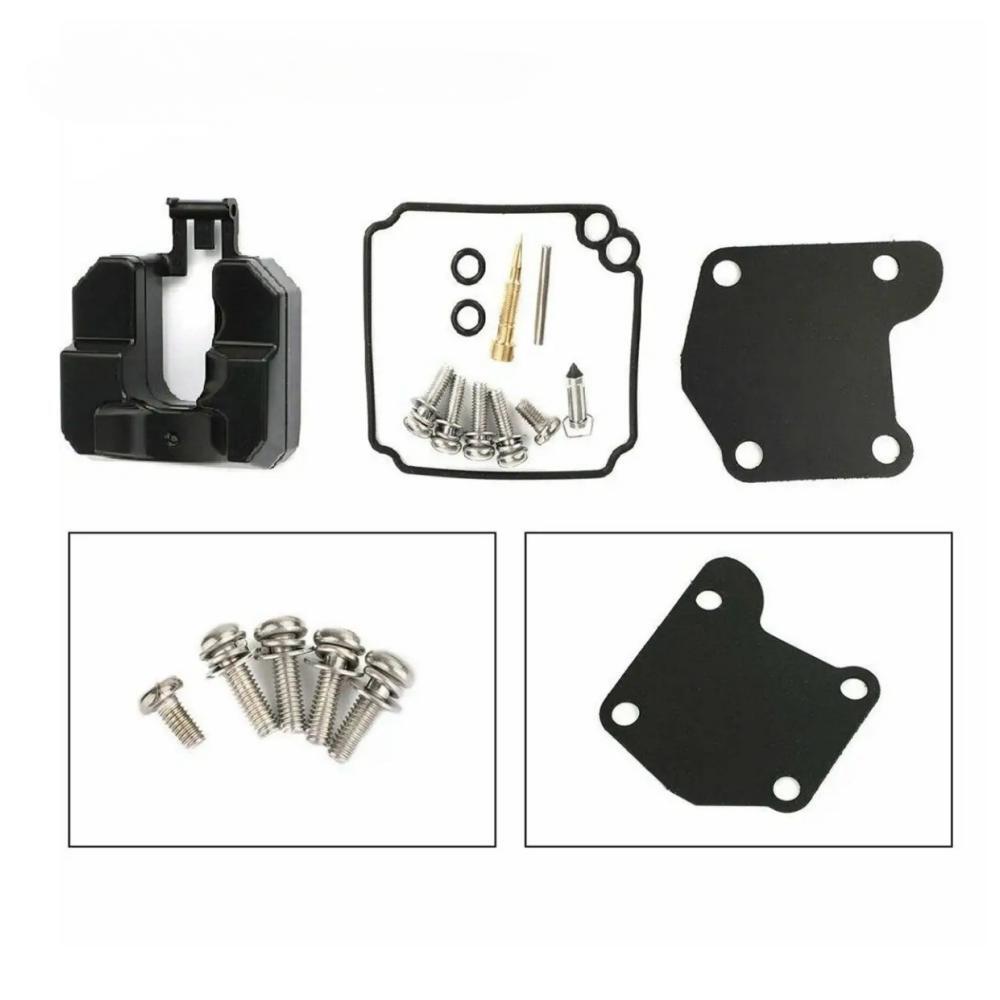

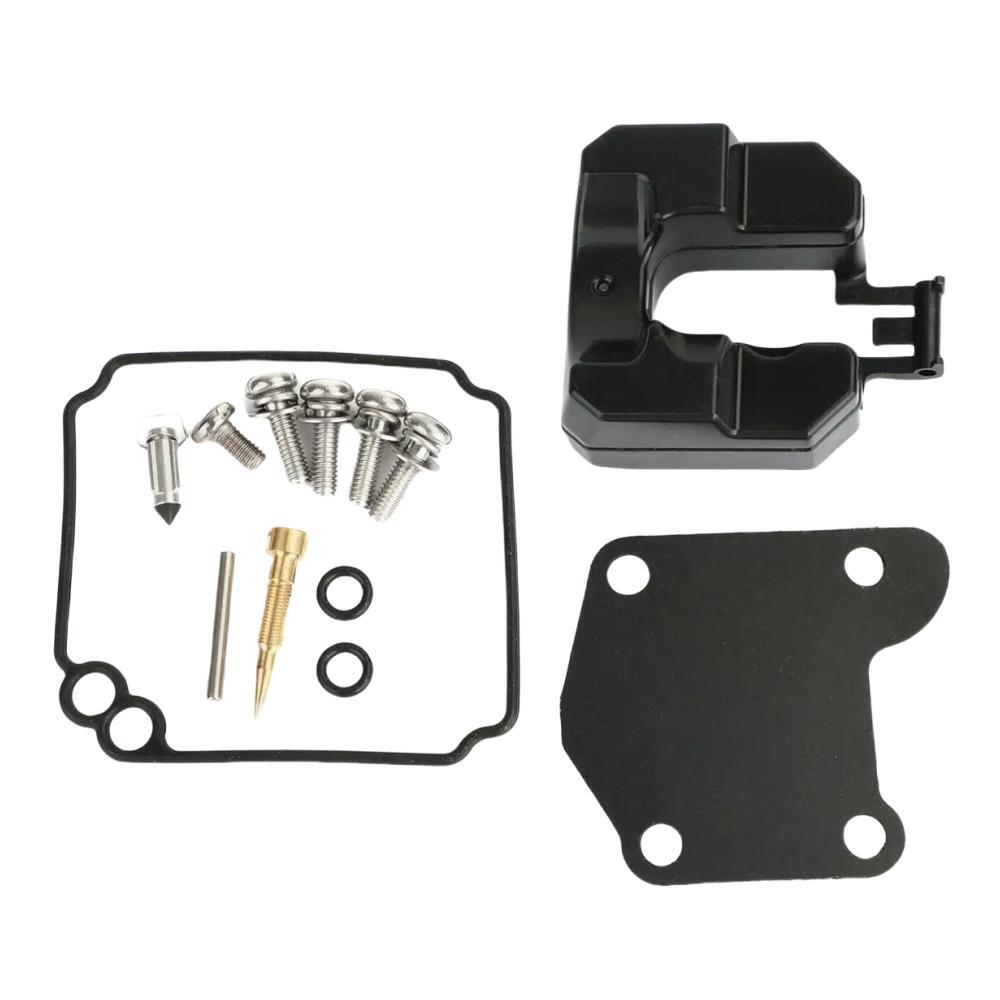

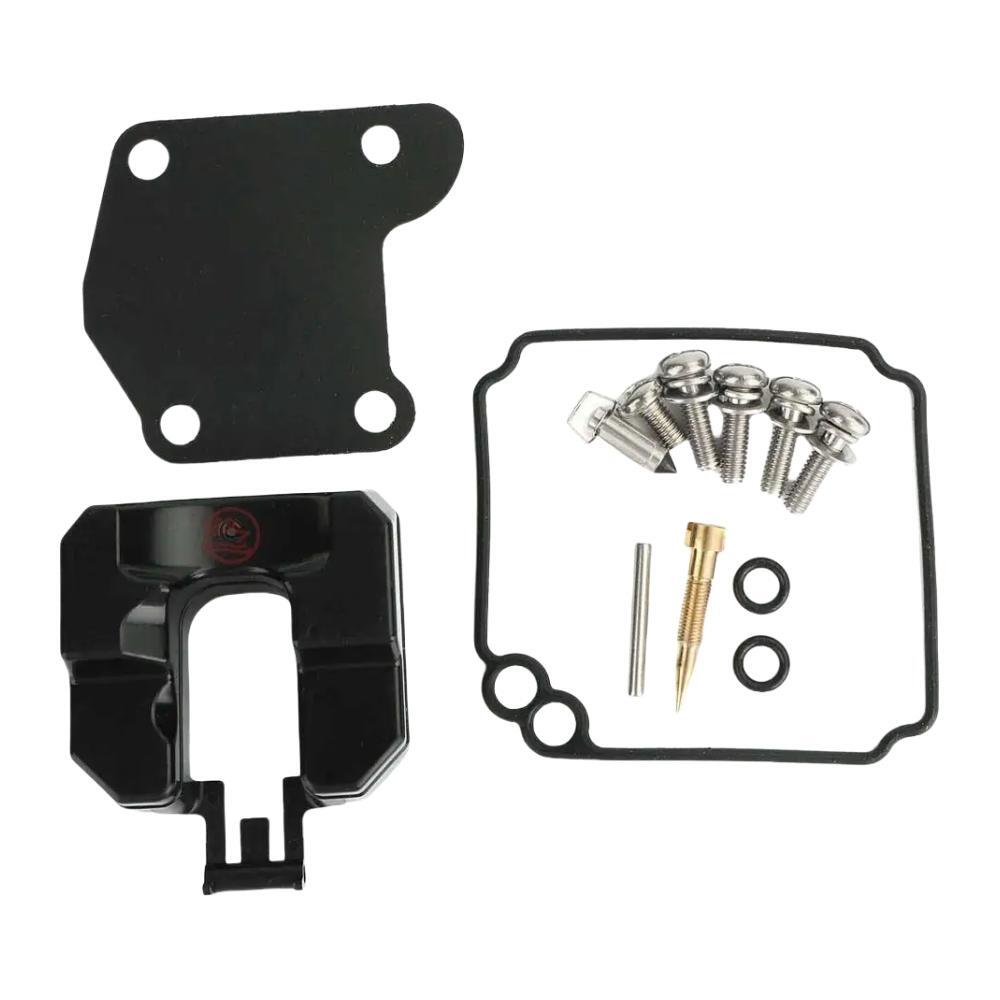

Package Contents

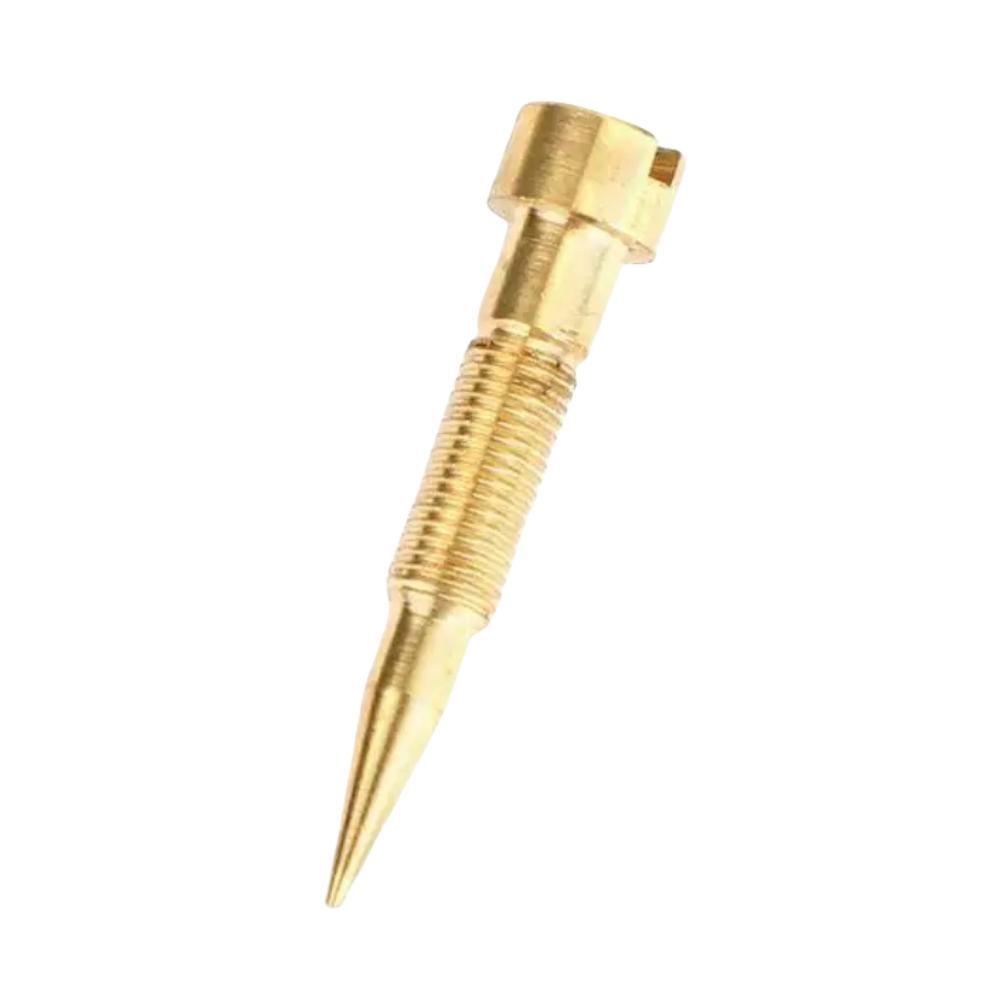

• 1 x Pilot Screw (679-14923-00-00)

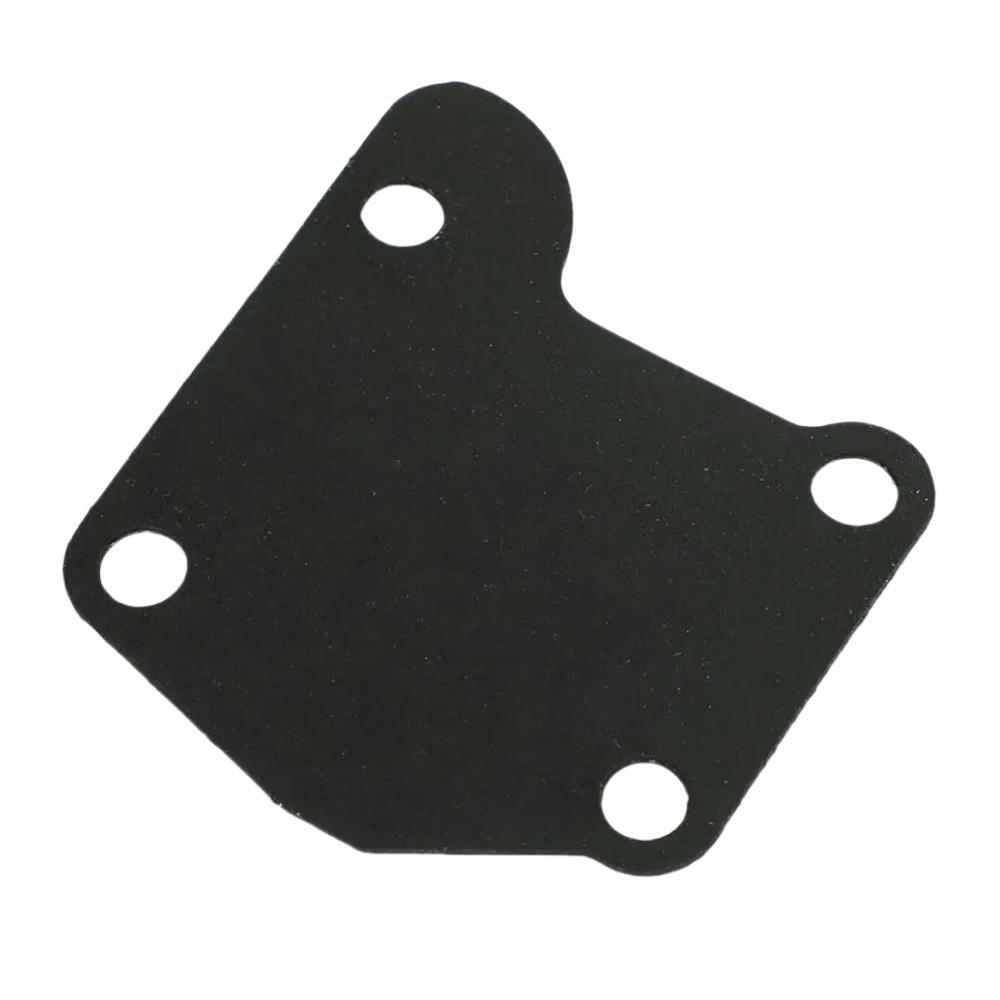

• 1 x Gasket (63V-14126-00-00)
• 1 x Float/C Gasket (63V-14984-00-00)
• 4 x Screw/Washer (97980-04114-00)
• 1 x Gasket (6G1-14398-00-00)

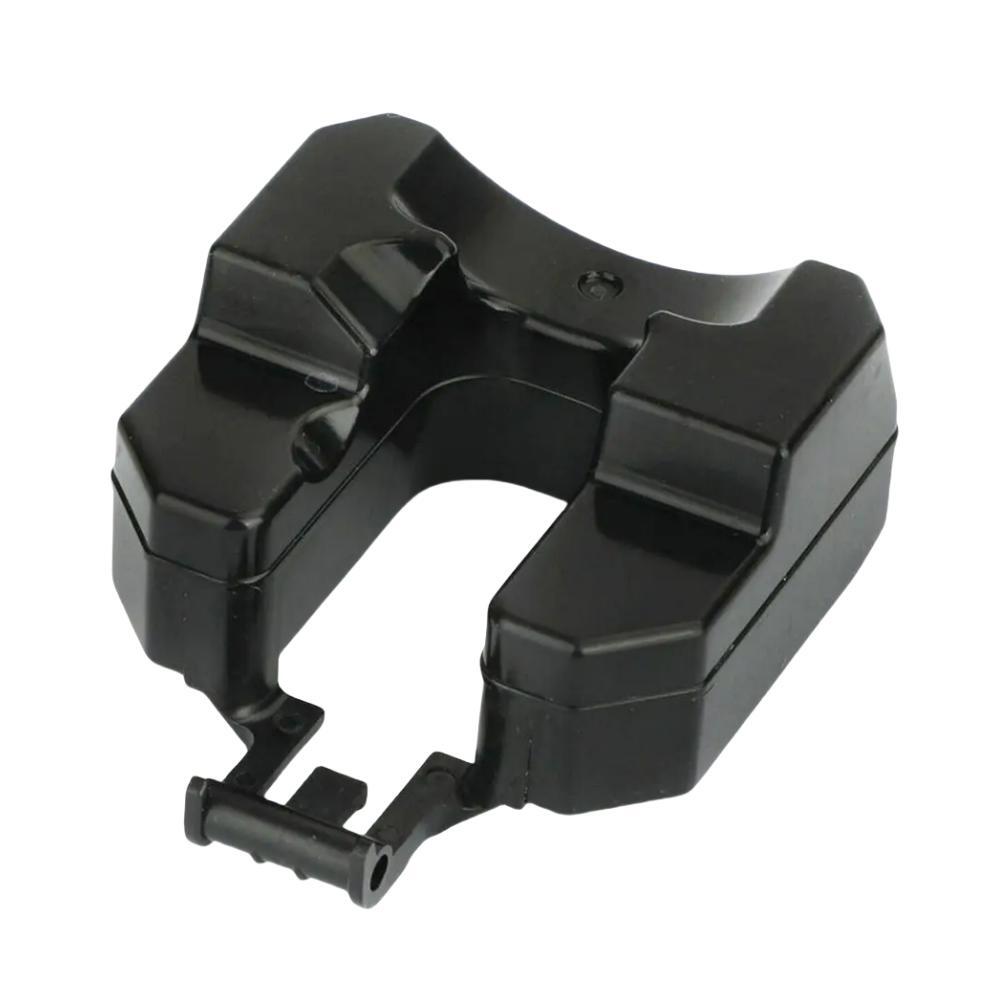

• 1 x Float (63V-14985-00-00)
• 1 x Valve Needle (6G1-14546-01-00)
• 1 x Pin Float (676-14186-00-00)
• 1 x Clip (663-14159-00-00)
• 1 x Pin Float Arm (6H4-14548-00-00)
• 1 x Gasket (65W-14398-00-00)

Installation Guide

1. Safety First: Disconnect the battery and ensure the engine is cool. Shut off the fuel supply and safely disconnect the fuel lines.
2. Remove Airbox and Carburetor: Detach the airbox cover and filter. Loosen the mounting bolts and remove the carburetor from the intake manifold, disconnecting any throttle linkages or hoses.
3. Disassemble Carburetor: Working in a clean area, carefully disassemble the carburetor. Pay close attention to the location of each jet, screw, gasket, and the float assembly.
4. Clean Components: Thoroughly clean all metal parts with a quality carburetor cleaner to remove varnish, dirt, and fuel residue. Do not use cleaner on non-metal parts.
5. Install New Parts: Carefully replace the old gaskets, seals, float needle, and other components with the new parts from the kit. Ensure each part is seated correctly.
6. Reassemble and Reinstall: Reassemble the carburetor, making sure not to overtighten screws. Mount it back onto the engine and re-attach all linkages and fuel lines.
7. Adjust and Test: Reconnect the battery. Start the engine and allow it to warm up. Adjust the idle speed and mixture screws according to your service manual for smooth operation.

Troubleshooting & FAQ

Q: How do I know if this kit fits my Yamaha engine?

A: Check your engine's model and year against the "Compatible Engine Models" table. This kit fits specific Yamaha 9.9HP, 13.5HP, and 15HP 2-stroke models made between 1995 and 2016. Ensure your current carburetor part number matches 63V-W0093-00-00, 63V-W0093-01-00, or Sierra 18-7058.

Q: What are the signs my carburetor needs a rebuild?

A: Common signs of a failing carburetor include difficulty starting, rough or unstable idling, stalling at low speeds, poor acceleration, black smoke from the exhaust, and visible fuel leaks from the carburetor body.

Q: Are any special tools required for installation?

A: The rebuild can be done with standard hand tools, including screwdrivers, pliers, and a socket set. A can of carburetor cleaning fluid is essential for properly cleaning the components before reassembly.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
