Carburetor Rebuild Kit – Fits Yamaha 60HP/70HP & Tohatsu 25-70HP Engines

This carburetor rebuild kit contains the necessary components to restore the performance of carburetors on a range of Yamaha and Tohatsu outboard motors. It is designed to meet or exceed OEM specifications for a reliable fit and function.

This kit provides a direct replacement for Yamaha models using part numbers 6H3-W0093-01-00, 6H3-W0093-02-00, or 6H3-W0093-03-00, and for select Tohatsu models requiring part 346-87122-0.

  • Direct Replacement: Engineered for a precise fit to replace original carburetor components.
  • Comprehensive Kit: Includes all essential gaskets, seals, O-rings, clips, and needle valves for a complete overhaul of three carburetors.
  • Fuel Type: Compatible with standard gasoline.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Brand Part Number Superseded By Notes
Yamaha 6H3-W0093-01-00 6H3-W0093-02-00 Original part number.
Yamaha 6H3-W0093-02-00 6H3-W0093-03-00 -
Yamaha 6H3-W0093-03-00 Latest superseded part number.
Sierra 18-7766 Aftermarket equivalent.
Tohatsu 346-87122-0 OEM part number.
Aftermarket AM6H3-W0093-02 Aftermarket equivalent.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Confirm your engine model/year in the table below.

Yamaha Models

Brand Model Rated HP Stroke Years OEM Part No. Notes
Yamaha 70ETL Series (70ETLN, 70ETLK, 70ETLJ, 70ETLH, 70ETLG, 70ETLF, 70ETLD) 70 2-Stroke 1984–1991 6H3-W0093-01-00 3-Cylinder
Yamaha P60TLHP 60 2-Stroke 1991 6H3-W0093-01-00 3-Cylinder
Yamaha E60MLHT 60 2-Stroke 1995 6H3-W0093-01-00 3-Cylinder
Yamaha E60MLHU 60 2-Stroke 1996 6H3-W0093-01-00 3-Cylinder
Yamaha E60MLHV 60 2-Stroke 1997 6H3-W0093-01-00 3-Cylinder
Yamaha E60MLHW 60 2-Stroke 1998 6H3-W0093-01-00 3-Cylinder
Yamaha E60MLHX 60 2-Stroke 1999 6H3-W0093-01-00 3-Cylinder
Yamaha E60MLHY 60 2-Stroke 2000 6H3-W0093-01-00 3-Cylinder
Yamaha C70HP 70 2-Stroke 2000-2001 6H3-W0093-01-00 3-Cylinder

Tohatsu Models

Brand Model Rated HP Stroke OEM Part No. Notes
Tohatsu 45A2 45 2-Stroke 346-87122-0 Compatible per JLM Marine
Tohatsu 50C 50 2-Stroke 346-87122-0 Compatible per JLM Marine
Tohatsu 60C 60 2-Stroke 346-87122-0 Compatible per JLM Marine
Tohatsu 70A2 70 2-Stroke 346-87122-0 Compatible per JLM Marine
Tohatsu M25C3 25 4-Stroke 346-87122-0 Compatible per JLM Marine
Tohatsu M30A4 30 4-Stroke 346-87122-0 Compatible per JLM Marine

Technical Specifications

Specification Value
Product Type Carburetor Rebuild Kit
Installation Direct Replacement
Fuel Type Gasoline
Warranty 1-year against manufacturing defects (JLM Marine)
Other Technical Attributes Manufactured to OEM specifications in ISO9002 certified factory

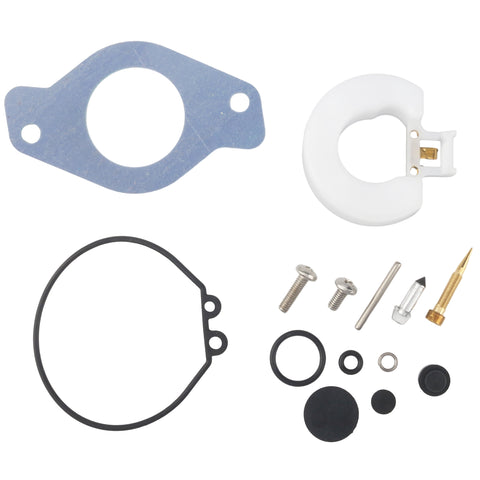

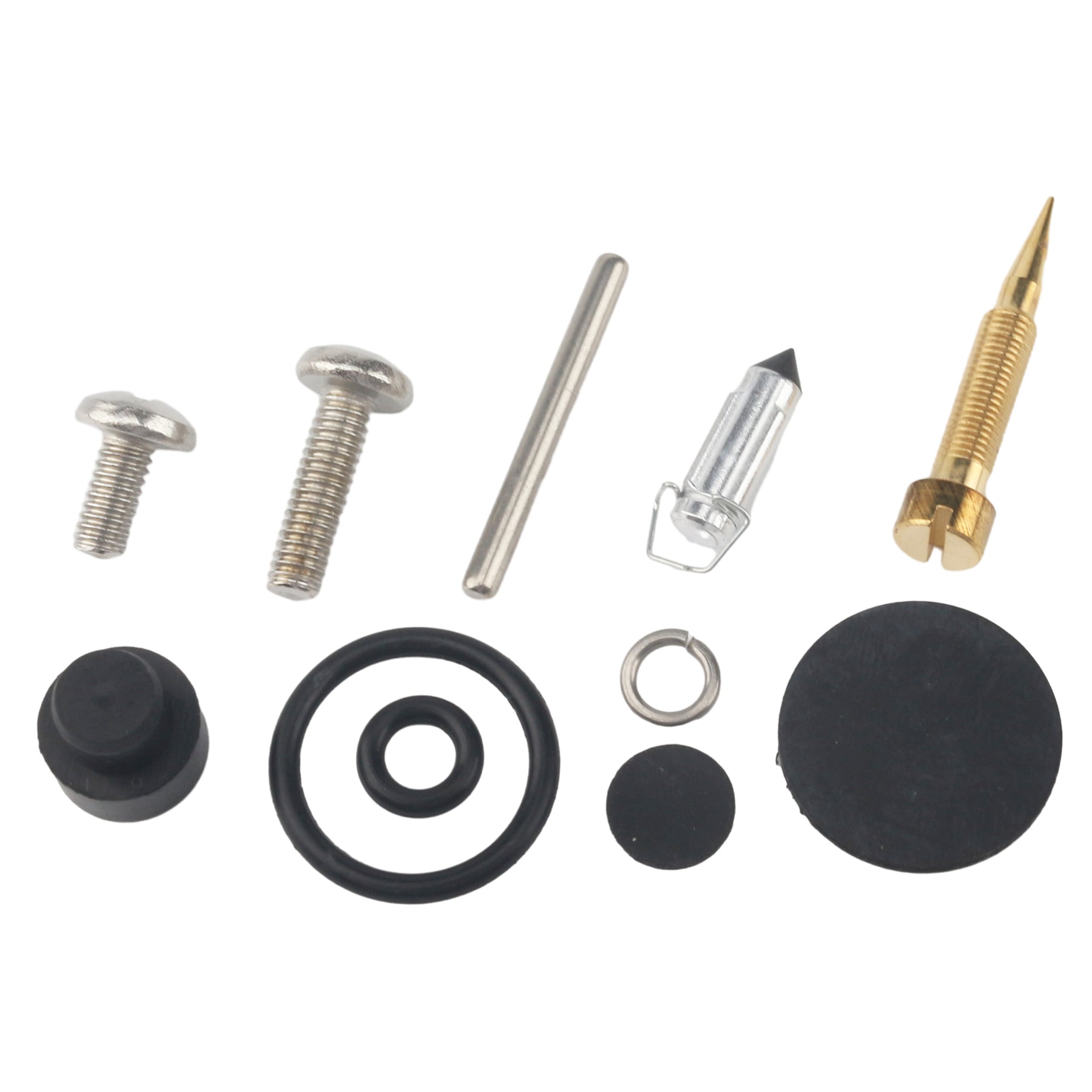

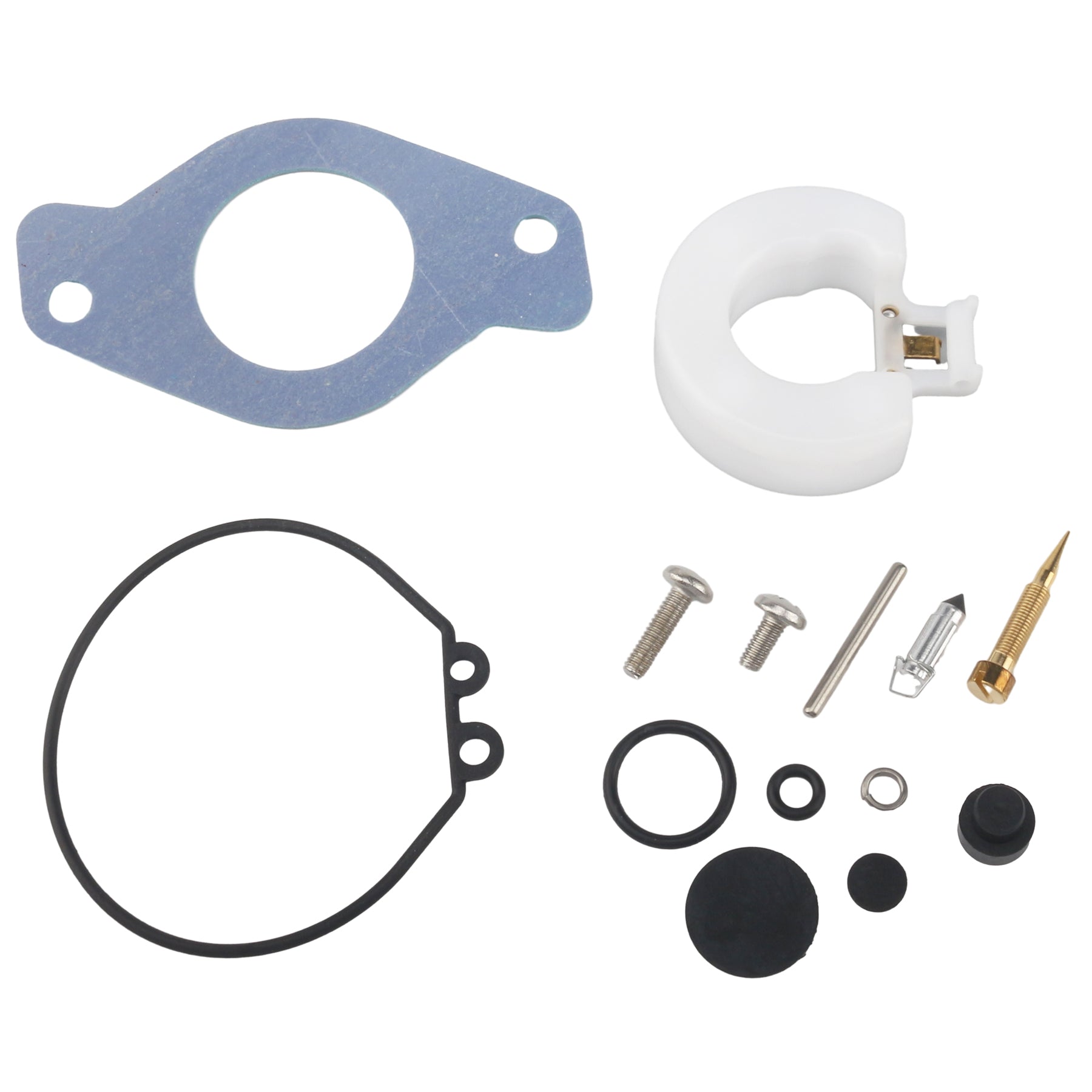

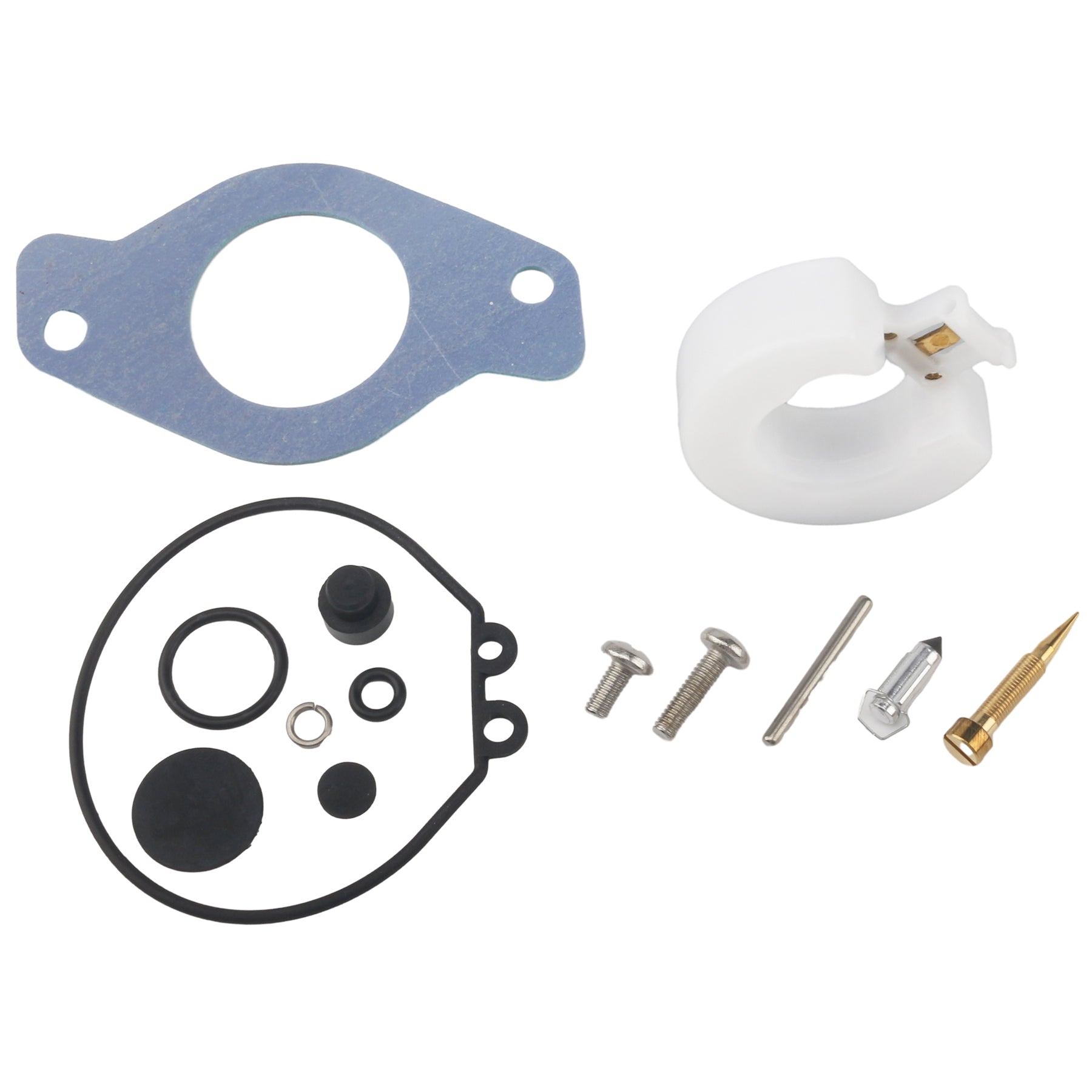

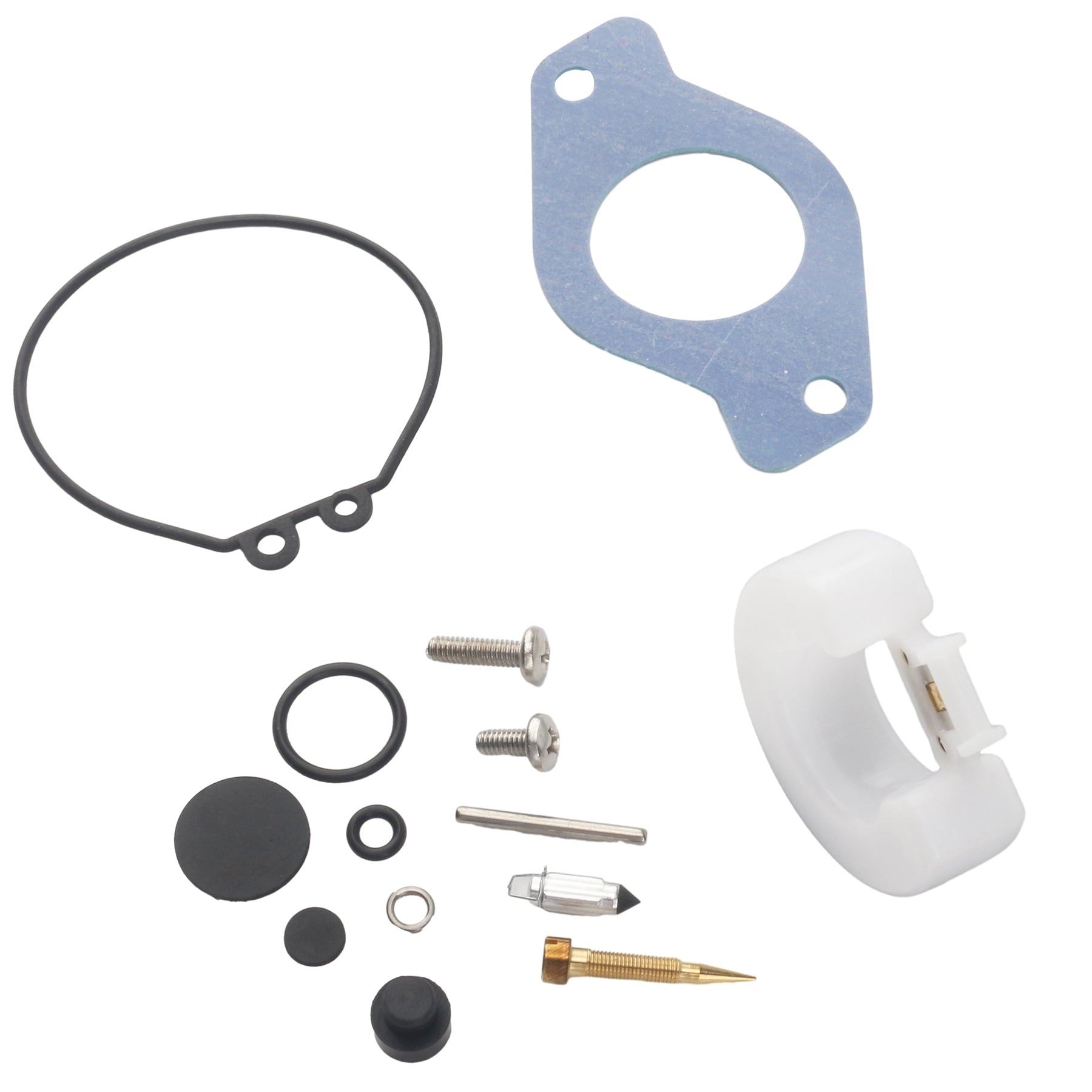

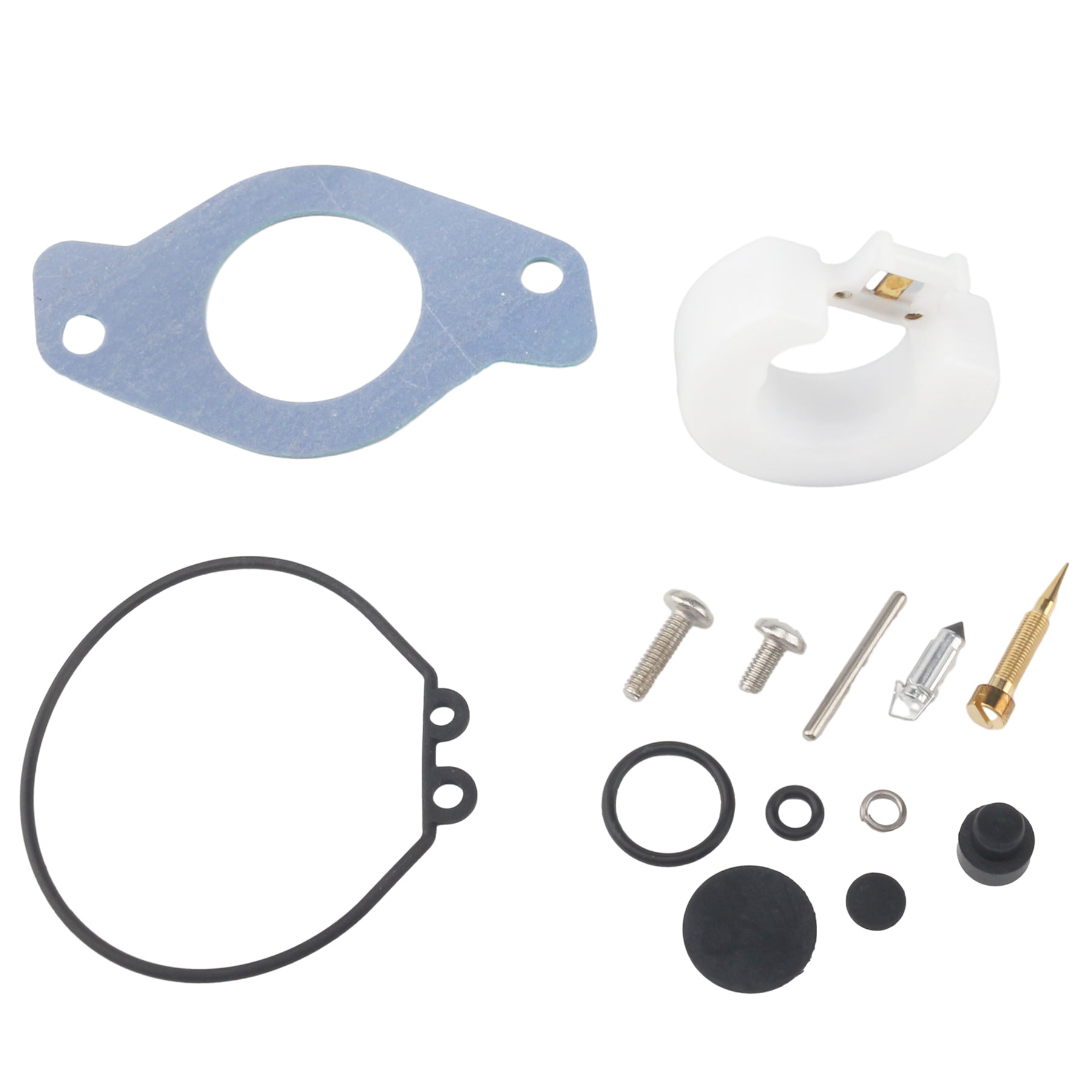

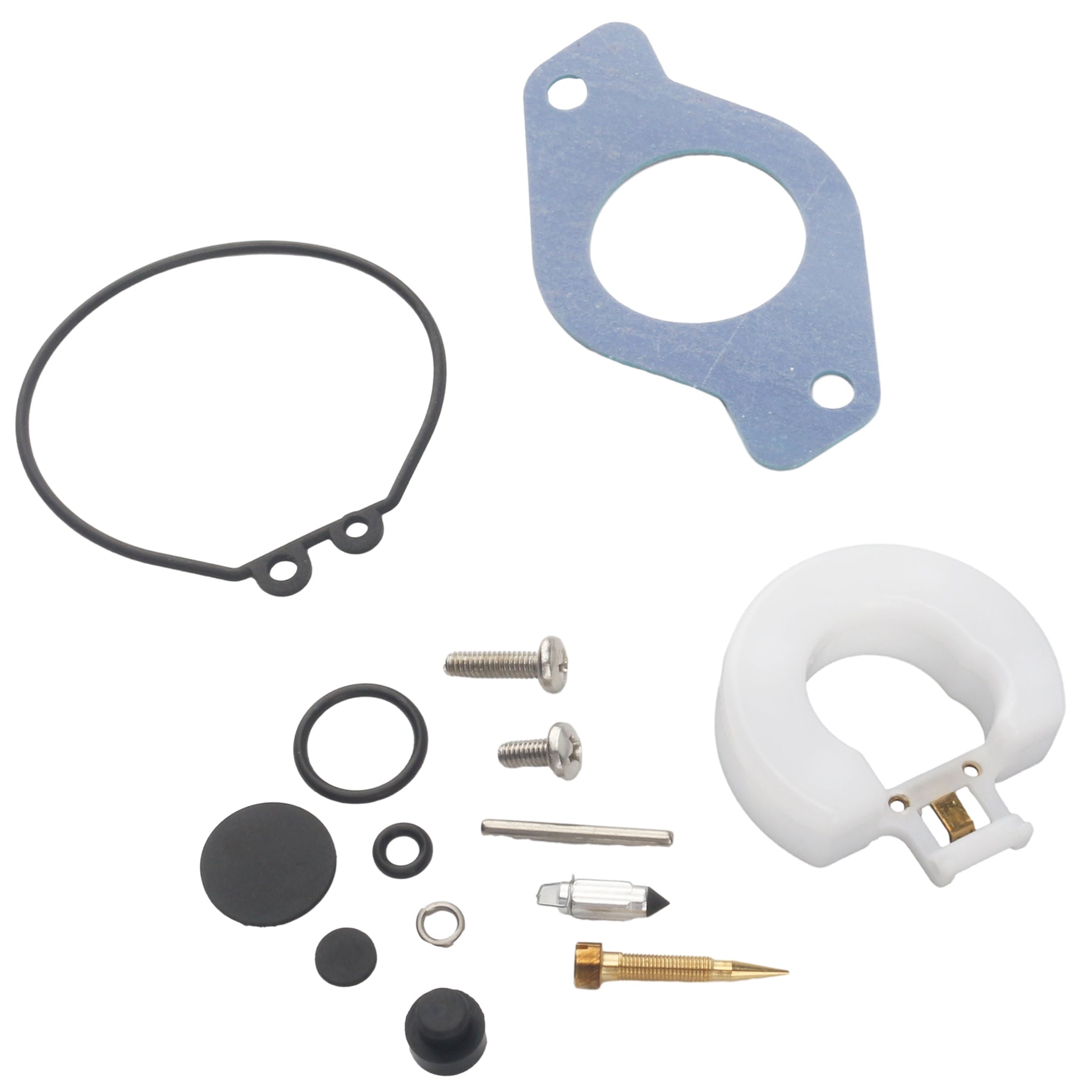

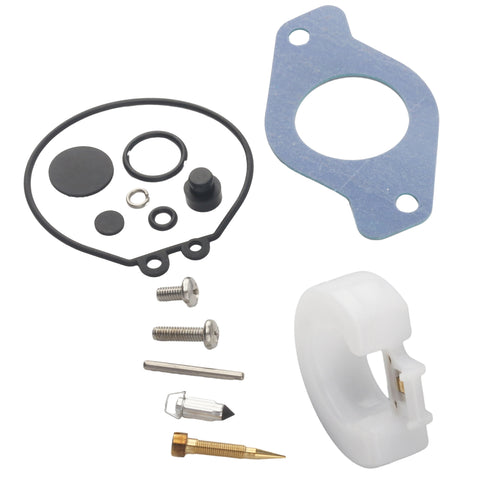

Package Contents

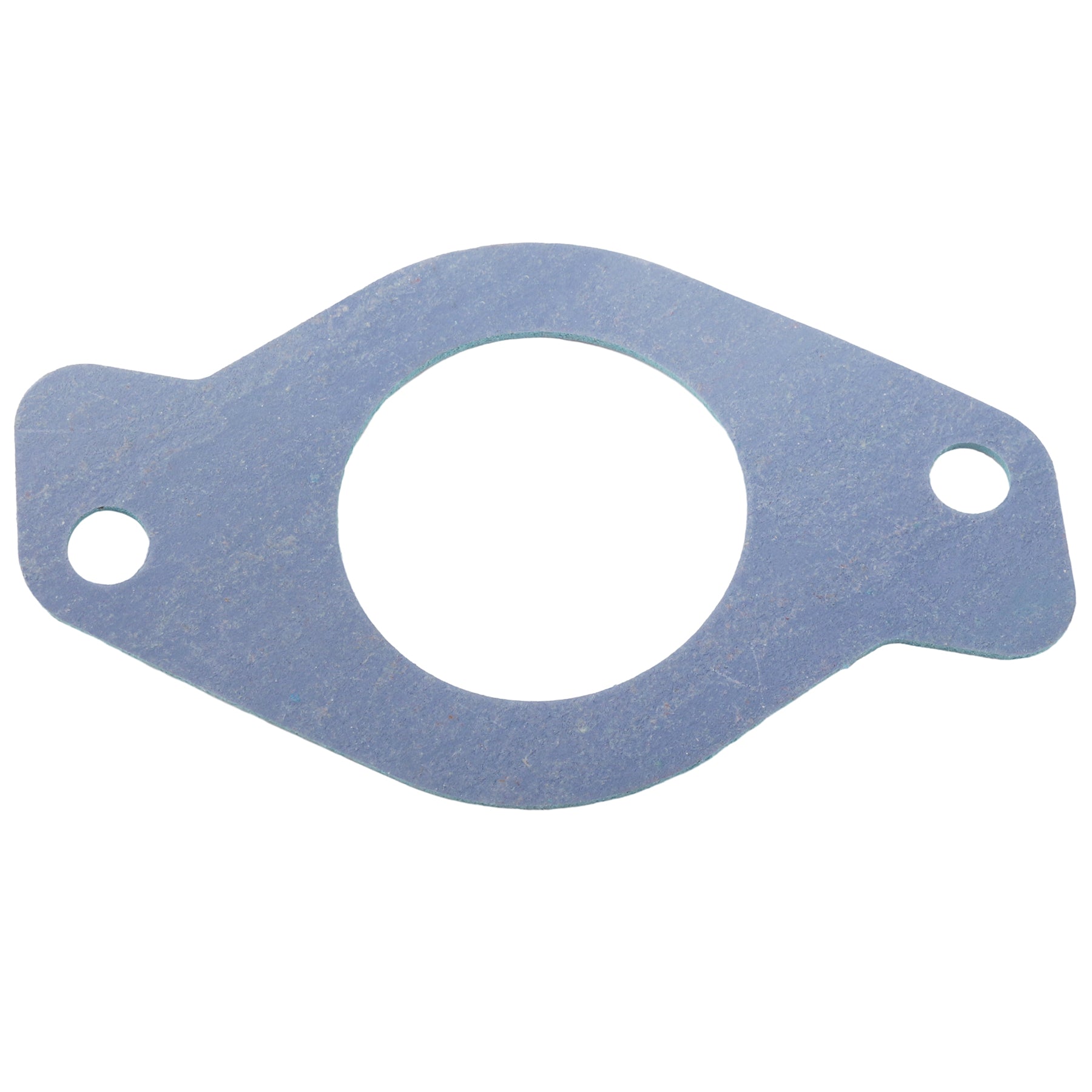

  • 1 x Gasket (6H3-14198-A1-00)
  • 3 x Cap (676-14966-00-00)
  • 3 x Needle Valve Assembly (6H3-14590-01-00)
  • 3 x Clip (663-14159-00-00)
  • 3 x Float Pin (676-14186-00-00)

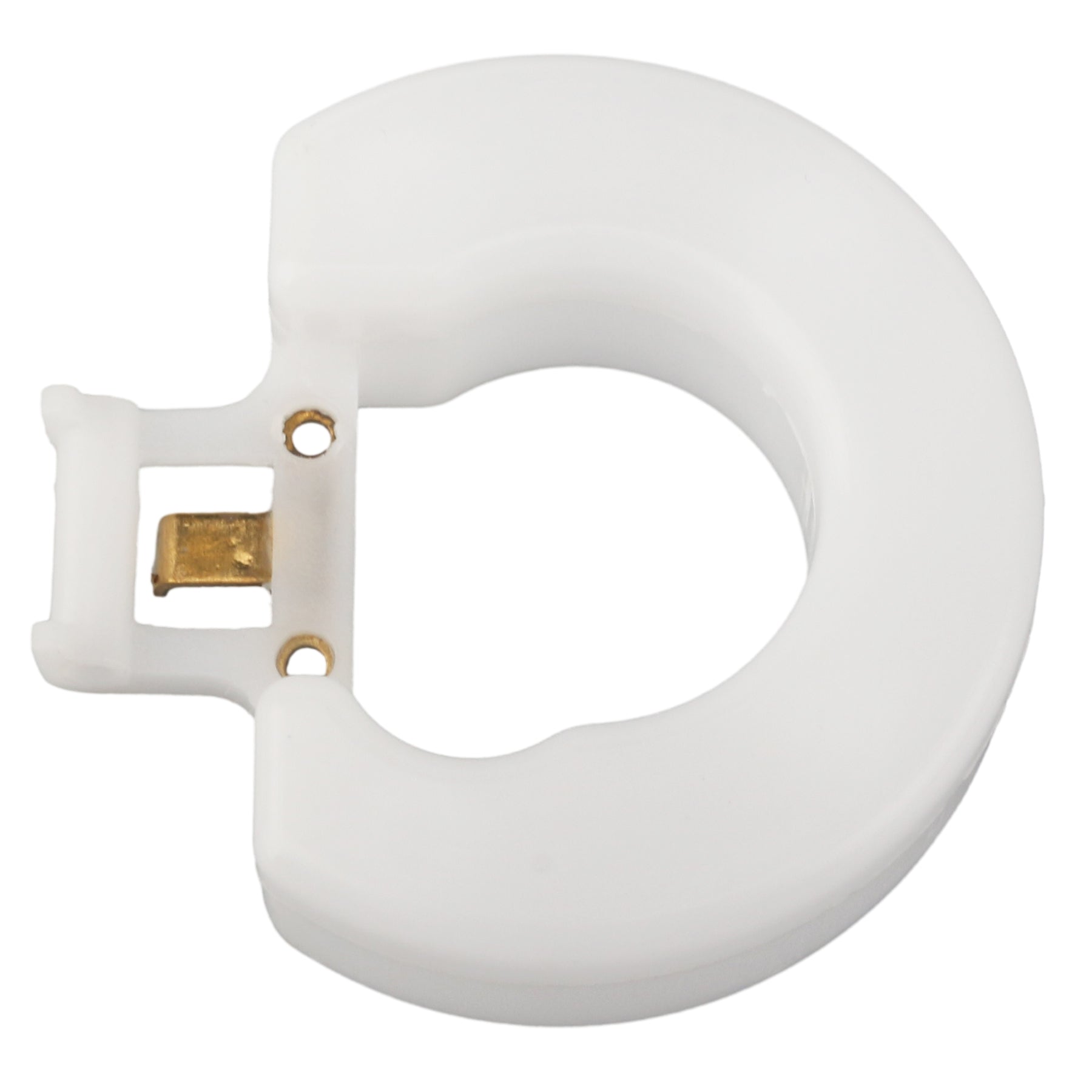

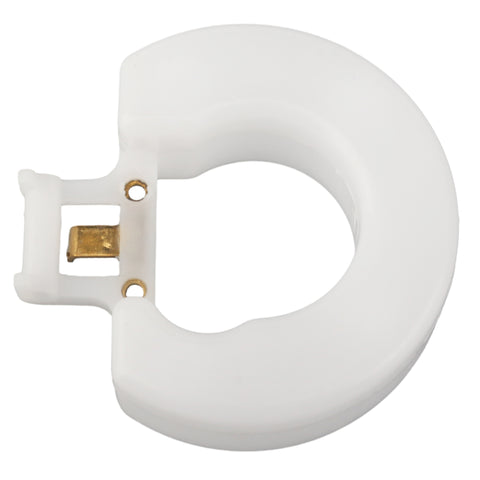

  • 3 x Float (6G1-14985-00-00)
  • 3 x Float Arm Pin (688-14548-00-00)
  • 3 x O-Ring (6G1-14984-00-00)
  • 3 x Screw with Washer (97980-04114-00)
  • 3 x O-Ring (93210-04230-00)

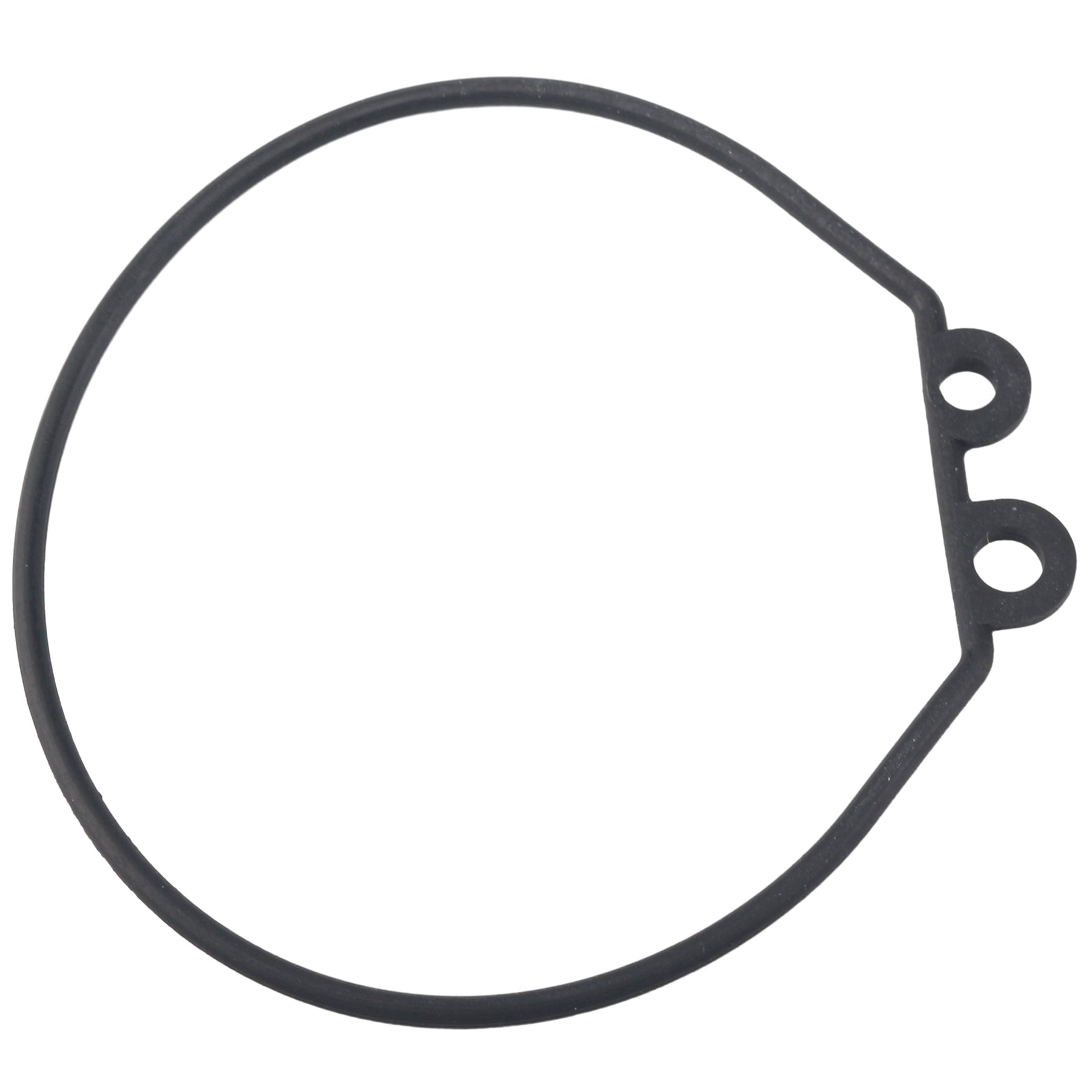

  • 3 x Gasket (663-14126-00-00)
  • 3 x Gasket (688-14126-00-00)
  • 3 x Pilot Screw (692-14923-00-00)
  • 3 x O-Ring (93210-15M52-00)

Installation Guide

  1. Ensure the engine is off and the fuel supply is shut off. Disconnect the main fuel line from the engine.
  2. Carefully remove the air silencer cover and base to access the carburetors.
  3. Note the linkage and hose connections, then remove the carburetors from the intake manifold.
  4. Disassemble one carburetor at a time to avoid mixing parts. Keep parts organized on a clean surface.
  5. Remove the float bowl, float, pin, and needle valve assembly. Discard the old gaskets, seals, and O-rings.
  6. Clean all metal components with a quality carburetor cleaner. Ensure all jets and passages are clear of debris.
  7. Install the new components from the kit, including the needle valve, gaskets, and O-rings.
  8. Set the float height to the manufacturer's specification. Reassemble the carburetor carefully.
  9. Repeat the process for the remaining carburetors.
  10. Reinstall the rebuilt carburetors onto the engine, reconnecting all linkages and fuel lines securely.
  11. Check for any fuel leaks before starting the engine.
  12. Start the engine and adjust the idle and pilot screws as needed for smooth operation.

Troubleshooting & FAQ

Q: How do I confirm this kit fits my Yamaha engine?
A: The best way is to match your engine's model and year to our compatibility chart. For Yamaha engines, you can use the linked guide to find your serial number, which helps confirm the exact model and production year. Verifying the OEM part number (6H3-W0093-01-00 or its successors) for your specific engine is the most reliable method.

Q: What are the signs that my carburetor needs rebuilding?
A: Common symptoms include difficulty starting, rough idling, stalling at low speeds, poor acceleration, or black smoke from the exhaust. Fuel leaks from the carburetor body are also a clear indication that the seals have failed and a rebuild is necessary.

Q: My Tohatsu model is listed, but the year range is not specified. How can I confirm fitment?
A: If your Tohatsu model (e.g., M30A4, 60C) is listed, this kit is documented as compatible. The primary cross-reference is the OEM part number 346-87122-0. If your existing carburetor parts match those shown in the images and your service manual calls for that part number, this kit should fit.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

  • Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
  • This product is an aftermarket replacement part and is not an OEM component.
  • Professional installation is recommended to ensure safety and optimal performance.
